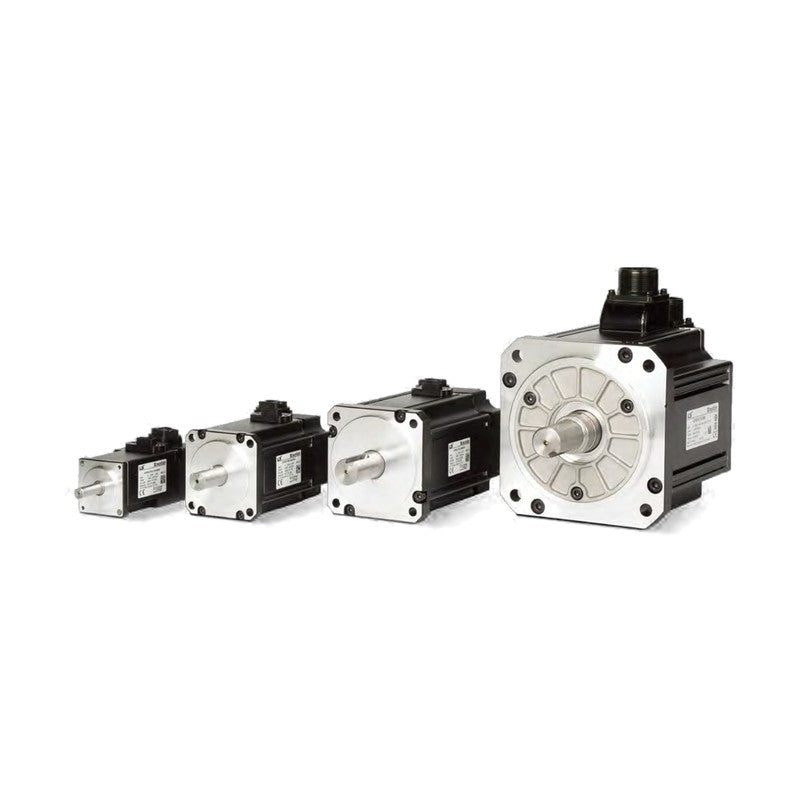

LS Electric APM-F Servo Motors 400V (130 mm, 0.3-3 kW)

LS Electric APM-F Servo Motors 400V (130 mm, 0.3-3 kW)

LS Electric Xmotion APM-F 400V flat servo motors with 130 mm flange (FEP), 0.3 to 3 kW at 1,000-3,000 rpm, for L7NHB, L7PB, L7SB drives.

Key features

  • Flat-type Xmotion F series; full order code = base model + encoder + shaft + option (e.g. APM-FEP09AMK2)
  • Serial absolute encoder 19-bit with 16-bit multi-turn as standard
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Totally enclosed self-cooled, continuous duty, vibration resistance 49 m/s2 (5G)
  • Matched to Xmotion L7NHB, L7PB, L7SB drives

Specifications

Motor series APM-F (Xmotion F series, made in Korea)
Voltage 400 VAC class
Flange 130 mm square
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 10x motor inertia
Holding brake DC 24 V, 10.4 N.m
Ambient 0 to 40 C, 80% RH max, non-condensing
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 98, 105-108, 111, 118
APM-FEP09A Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP09AMK Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP09AMK1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP09AMK2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP09AMK3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP09AMN Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP09AMN1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP09AMN2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP09AMN3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP15A Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP15AMK Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP15AMK1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP15AMK2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP15AMK3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP15AMN Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP15AMN1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP15AMN2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP15AMN3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP22A Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP22AMK Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP22AMK1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP22AMK2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP22AMK3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP22AMN Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP22AMN1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP22AMN2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP22AMN3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP30A Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP30AMK Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP30AMK1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP30AMK2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP30AMK3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP30AMN Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP30AMN1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP30AMN2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP30AMN3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP06D Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP06DMK Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP06DMK1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP06DMK2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP06DMK3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP06DMN Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP06DMN1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP06DMN2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP06DMN3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP11D Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP11DMK Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP11DMK1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP11DMK2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP11DMK3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP11DMN Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP11DMN1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP11DMN2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP11DMN3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP16D Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP16DMK Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP16DMK1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP16DMK2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP16DMK3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP16DMN Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP16DMN1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP16DMN2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP16DMN3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP22DMK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP22DMK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP22DMK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP22DMK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP22DMN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP22DMN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP22DMN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP22DMN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP05G Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP05GMK Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP05GMK1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP05GMK2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP05GMK3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP05GMN Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP05GMN1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP05GMN2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP05GMN3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP09G Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP09GMK Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP09GMK1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP09GMK2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP09GMK3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP09GMN Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP09GMN1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP09GMN2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP09GMN3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP13G Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP13GMK Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP13GMK1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP13GMK2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP13GMK3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP13GMN Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP13GMN1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP13GMN2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP13GMN3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP17G Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP17GMK Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP17GMK1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP17GMK2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP17GMK3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP17GMN Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP17GMN1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP17GMN2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP17GMN3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP03M Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP03MMK Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP03MMK1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP03MMK2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP03MMK3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP03MMN Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP03MMN1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP03MMN2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP03MMN3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP06M Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP06MMK Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP06MMK1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP06MMK2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP06MMK3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP06MMN Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP06MMN1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP06MMN2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP06MMN3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP09M Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP09MMK Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP09MMK1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP09MMK2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP09MMK3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP09MMN Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP09MMN1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP09MMN2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP09MMN3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP12MMK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP12MMK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP12MMK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP12MMK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP12MMN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP12MMN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP12MMN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP12MMN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-F Servo Motors 400V (130 mm, 0.3-3 kW)

Brand LS Electric·Servo Motors

Available part numbers (144)

APM-FEP09A, APM-FEP09AMK, APM-FEP09AMK1, APM-FEP09AMK2, APM-FEP09AMK3, APM-FEP09AMN, APM-FEP09AMN1, APM-FEP09AMN2, APM-FEP09AMN3, APM-FEP15A + 134 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-FEP09ARating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP09AMKRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP09AMK1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP09AMK2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP09AMK3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP09AMNRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP09AMN1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP09AMN2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP09AMN3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP15ARating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP15AMKRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP15AMK1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP15AMK2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP15AMK3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP15AMNRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP15AMN1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP15AMN2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP15AMN3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP22ARating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP22AMKRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP22AMK1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP22AMK2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP22AMK3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP22AMNRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP22AMN1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP22AMN2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP22AMN3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP30ARating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP30AMKRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP30AMK1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP30AMK2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP30AMK3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP30AMNRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP30AMN1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP30AMN2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP30AMN3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP06DRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP06DMKRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP06DMK1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP06DMK2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP06DMK3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP06DMNRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP06DMN1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP06DMN2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP06DMN3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP11DRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP11DMKRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP11DMK1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP11DMK2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP11DMK3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP11DMNRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP11DMN1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP11DMN2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP11DMN3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP16DRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP16DMKRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP16DMK1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP16DMK2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP16DMK3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP16DMNRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP16DMN1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP16DMN2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP16DMN3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP22DMKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP22DMK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP22DMK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP22DMK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP22DMNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP22DMN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP22DMN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP22DMN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP05GRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP05GMKRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP05GMK1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP05GMK2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP05GMK3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP05GMNRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP05GMN1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP05GMN2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP05GMN3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP09GRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP09GMKRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP09GMK1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP09GMK2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP09GMK3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP09GMNRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP09GMN1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP09GMN2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP09GMN3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP13GRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP13GMKRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP13GMK1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP13GMK2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP13GMK3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP13GMNRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP13GMN1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP13GMN2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP13GMN3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP17GRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP17GMKRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP17GMK1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP17GMK2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP17GMK3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP17GMNRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP17GMN1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP17GMN2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP17GMN3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP03MRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP03MMKRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP03MMK1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP03MMK2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP03MMK3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP03MMNRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP03MMN1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP03MMN2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP03MMN3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP06MRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP06MMKRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP06MMK1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP06MMK2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP06MMK3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP06MMNRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP06MMN1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP06MMN2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP06MMN3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP09MRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP09MMKRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP09MMK1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP09MMK2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP09MMK3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP09MMNRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP09MMN1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP09MMN2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP09MMN3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FEP12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FEP12MMKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FEP12MMK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FEP12MMK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FEP12MMK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FEP12MMNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FEP12MMN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FEP12MMN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FEP12MMN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
