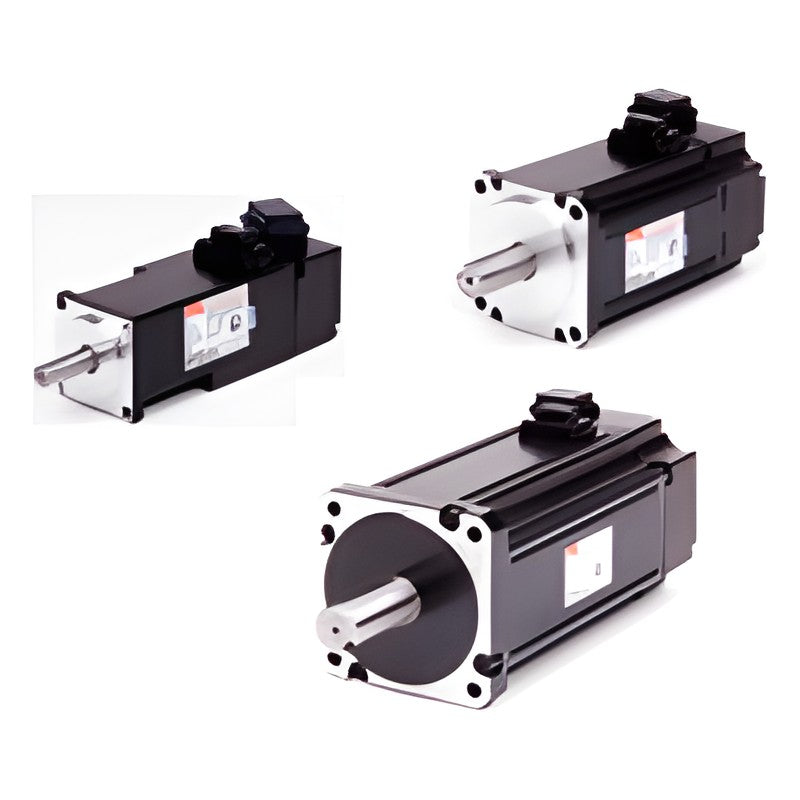

LS Electric APM-FAL/FBL/FCL Flat Servo Motors (40-80 mm, 50 W-1 kW)

LS Electric APM-FAL/FBL/FCL Flat Servo Motors (40-80 mm, 50 W-1 kW)

LS Electric (LS Mecapion) APM-FAL, FBL and FCL small-capacity servo motors with 40, 60 and 80 mm flanges, 50 W to 1 kW, for 200 V L7 servo drives.

Key features

  • 40 mm (FAL), 60 mm (FBL) and 80 mm (FCL) flanges
  • 3000 rpm (A) and 2000 rpm (D) rated speed versions
  • Serial multi-turn absolute encoder (18/19-bit)
  • Totally enclosed, IP67 (shaft through-hole excluded)
  • Optional oil seal and brake

Specifications

Series APM-FAL / FBL / FCL
Output 50 W to 1 kW
Voltage 200 VAC
Rated / max speed 3000/5000 rpm (A), 2000/3000 rpm (D)
Encoder Serial multi-turn absolute
Protection IP67
Model format APM F BL _ 04 A M K 1
Source LS Mecapion Servo Series Catalogue Vol.1.5, pp.63-65
APM-FALR5A Output: 50 W | Rated torque: 0.16 N·m | Flange: 40 mm | Speed: 3000 rpm
APM-FAL01A Output: 100 W | Rated torque: 0.32 N·m | Flange: 40 mm | Speed: 3000 rpm
APM-FAL015A Output: 150 W | Rated torque: 0.48 N·m | Flange: 40 mm | Speed: 3000 rpm
APM-FBL01A Output: 100 W | Rated torque: 0.32 N·m | Flange: 60 mm | Speed: 3000 rpm
APM-FBL02A Output: 200 W | Rated torque: 0.64 N·m | Flange: 60 mm | Speed: 3000 rpm
APM-FBL04A Output: 400 W | Rated torque: 1.27 N·m | Flange: 60 mm | Speed: 3000 rpm
APM-FCL04A Output: 400 W | Rated torque: 1.27 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL06A Output: 600 W | Rated torque: 1.91 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL08A Output: 750 W | Rated torque: 2.39 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL10A Output: 1 kW | Rated torque: 3.18 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL03D Output: 300 W | Rated torque: 1.43 N·m | Flange: 80 mm | Speed: 2000 rpm
APM-FCL05D Output: 450 W | Rated torque: 2.15 N·m | Flange: 80 mm | Speed: 2000 rpm
APM-FCL06D Output: 550 W | Rated torque: 2.63 N·m | Flange: 80 mm | Speed: 2000 rpm
APM-FCL07D Output: 650 W | Rated torque: 3.1 N·m | Flange: 80 mm | Speed: 2000 rpm
Servo MotorsLS Electric
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-FAL/FBL/FCL Flat Servo Motors (40-80 mm, 50 W-1 kW)

Brand LS Electric·Servo Motors

Available part numbers (14)

APM-FALR5A, APM-FAL01A, APM-FAL015A, APM-FBL01A, APM-FBL02A, APM-FBL04A, APM-FCL04A, APM-FCL06A, APM-FCL08A, APM-FCL10A + 4 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-FALR5AOutput: 50 W | Rated torque: 0.16 N·m | Flange: 40 mm | Speed: 3000 rpm
APM-FAL01AOutput: 100 W | Rated torque: 0.32 N·m | Flange: 40 mm | Speed: 3000 rpm
APM-FAL015AOutput: 150 W | Rated torque: 0.48 N·m | Flange: 40 mm | Speed: 3000 rpm
APM-FBL01AOutput: 100 W | Rated torque: 0.32 N·m | Flange: 60 mm | Speed: 3000 rpm
APM-FBL02AOutput: 200 W | Rated torque: 0.64 N·m | Flange: 60 mm | Speed: 3000 rpm
APM-FBL04AOutput: 400 W | Rated torque: 1.27 N·m | Flange: 60 mm | Speed: 3000 rpm
APM-FCL04AOutput: 400 W | Rated torque: 1.27 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL06AOutput: 600 W | Rated torque: 1.91 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL08AOutput: 750 W | Rated torque: 2.39 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL10AOutput: 1 kW | Rated torque: 3.18 N·m | Flange: 80 mm | Speed: 3000 rpm
APM-FCL03DOutput: 300 W | Rated torque: 1.43 N·m | Flange: 80 mm | Speed: 2000 rpm
APM-FCL05DOutput: 450 W | Rated torque: 2.15 N·m | Flange: 80 mm | Speed: 2000 rpm
APM-FCL06DOutput: 550 W | Rated torque: 2.63 N·m | Flange: 80 mm | Speed: 2000 rpm
APM-FCL07DOutput: 650 W | Rated torque: 3.1 N·m | Flange: 80 mm | Speed: 2000 rpm
