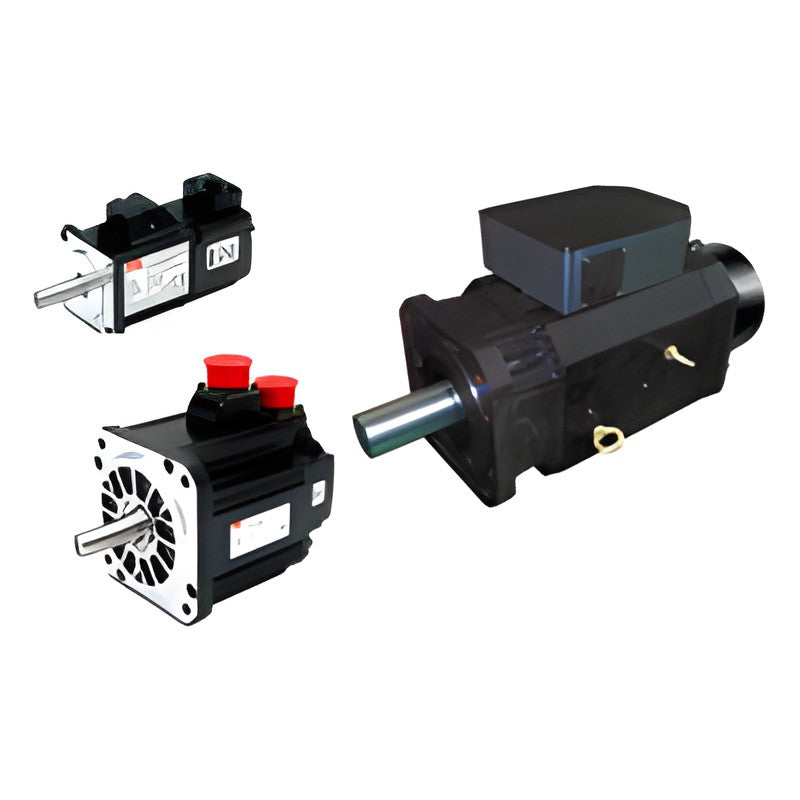

LS Electric APM-S Servo Motors (Solid Shaft, 30 W-1 kW)

LS Electric APM-S Servo Motors (Solid Shaft, 30 W-1 kW)

LS Electric (LS Mecapion) APM-S series solid-shaft AC servo motors (SA, SB, SC frames) from 30 W to 1 kW for 200 V L7 servo drives.

Key features

  • SA, SB and SC frame sizes
  • 3000 rpm (A) and 2000 rpm (D) rated speed versions
  • For L7S, L7C, L7NH and L7P 200 V drives
  • Optional brake and oil seal

Specifications

Series APM-SA / SB / SC
Output 30 W to 1 kW
Voltage 200 VAC class
Rated speed A: 3000 rpm, D: 2000 rpm
Max speed 5000 rpm (A types)
Drives L7SA, L7CA, L7NHA, L7PA
Source LS Mecapion L7S User Manual Ver1.1, ch.7 and app.9.1
APM-SAR3A Output: 30 W | Rated torque: 0.1 N·m | Rated speed: 3000 rpm
APM-SAR5A Output: 50 W | Rated torque: 0.16 N·m | Rated speed: 3000 rpm
APM-SA01A Output: 100 W | Rated torque: 0.32 N·m | Rated speed: 3000 rpm
APM-SA015A Output: 150 W | Rated torque: 0.48 N·m | Rated speed: 3000 rpm
APM-SB01A Output: 100 W | Rated torque: 0.32 N·m | Rated speed: 3000 rpm
APM-SB02A Output: 200 W | Rated torque: 0.64 N·m | Rated speed: 3000 rpm
APM-SB04A Output: 400 W | Rated torque: 1.27 N·m | Rated speed: 3000 rpm
APM-SC04A Output: 400 W | Rated torque: 1.27 N·m | Rated speed: 3000 rpm
APM-SC06A Output: 600 W | Rated torque: 1.91 N·m | Rated speed: 3000 rpm
APM-SC08A Output: 800 W | Rated torque: 2.55 N·m | Rated speed: 3000 rpm
APM-SC10A Output: 1 kW | Rated torque: 3.19 N·m | Rated speed: 3000 rpm
APM-SC03D Output: 300 W | Rated torque: 1.43 N·m | Rated speed: 2000 rpm
APM-SC05D Output: 450 W | Rated torque: 2.15 N·m | Rated speed: 2000 rpm
APM-SC06D Output: 550 W | Rated torque: 2.63 N·m | Rated speed: 2000 rpm
APM-SC07D Output: 650 W | Rated torque: 3.1 N·m | Rated speed: 2000 rpm
Servo MotorsLS Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-S Servo Motors (Solid Shaft, 30 W-1 kW)

Brand LS Electric·Servo Motors

Available part numbers (15)

APM-SAR3A, APM-SAR5A, APM-SA01A, APM-SA015A, APM-SB01A, APM-SB02A, APM-SB04A, APM-SC04A, APM-SC06A, APM-SC08A + 5 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-SAR3AOutput: 30 W | Rated torque: 0.1 N·m | Rated speed: 3000 rpm
APM-SAR5AOutput: 50 W | Rated torque: 0.16 N·m | Rated speed: 3000 rpm
APM-SA01AOutput: 100 W | Rated torque: 0.32 N·m | Rated speed: 3000 rpm
APM-SA015AOutput: 150 W | Rated torque: 0.48 N·m | Rated speed: 3000 rpm
APM-SB01AOutput: 100 W | Rated torque: 0.32 N·m | Rated speed: 3000 rpm
APM-SB02AOutput: 200 W | Rated torque: 0.64 N·m | Rated speed: 3000 rpm
APM-SB04AOutput: 400 W | Rated torque: 1.27 N·m | Rated speed: 3000 rpm
APM-SC04AOutput: 400 W | Rated torque: 1.27 N·m | Rated speed: 3000 rpm
APM-SC06AOutput: 600 W | Rated torque: 1.91 N·m | Rated speed: 3000 rpm
APM-SC08AOutput: 800 W | Rated torque: 2.55 N·m | Rated speed: 3000 rpm
APM-SC10AOutput: 1 kW | Rated torque: 3.19 N·m | Rated speed: 3000 rpm
APM-SC03DOutput: 300 W | Rated torque: 1.43 N·m | Rated speed: 2000 rpm
APM-SC05DOutput: 450 W | Rated torque: 2.15 N·m | Rated speed: 2000 rpm
APM-SC06DOutput: 550 W | Rated torque: 2.63 N·m | Rated speed: 2000 rpm
APM-SC07DOutput: 650 W | Rated torque: 3.1 N·m | Rated speed: 2000 rpm
