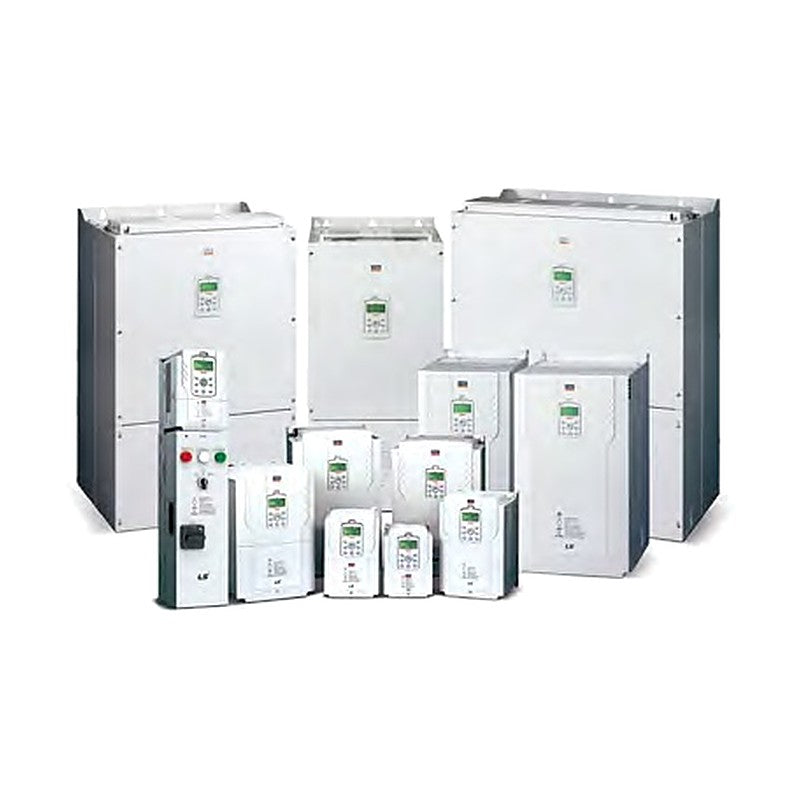

LS Electric H100 HVAC Fan and Pump AC Drive (400V Class, 0.75-30 kW)

LS Electric H100 HVAC Fan and Pump AC Drive (400V Class, 0.75-30 kW)

LS Electric LSLV-H100 HVAC fan and pump AC drives in the 3-phase 380-480 V class, 0.75 to 30 kW, with built-in C3 EMC filter, in standard and high-efficiency versions.

Key features

  • Dedicated HVAC fan and pump drive with HAND / OFF / AUTO LCD keypad
  • Multi-motor control, PID with 2 external PID loops, fire mode, damper and pipe-break functions
  • Built-in Modbus RTU, Metasys N2 and BACnet MS/TP; LonWorks option
  • Energy saving operation, flying start and power-loss ride-through
  • High-efficiency (E) versions available up to 220 kW
  • UL Open as standard, UL Enclosed Type 1 with conduit kit option

Specifications

Series LSLV-H100
Keypad LCD keypad (C)
UL rating UL Open (O)
Input voltage 3-ph 380-480 VAC (-15% to +10%)
Output frequency 0-400 Hz
Control V/F, slip compensation
Overload 0.75-90 kW 120% 1 min; 110-500 kW 110% 1 min
Protection IP20 (0.75-185 kW), IP00 (220-500 kW)
DC reactor None
Source LS Electric H100 Catalog KR 2023-06, p. 10-13
LSLV0008H100-4COFN Motor rating: 0.75 kW | Rated current: 2.5 A | EMC filter: Built-in C3 | Version: Standard
LSLV0008H100-4COFN(E) Motor rating: 0.75 kW | Rated current: 2.5 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0015H100-4COFN Motor rating: 1.5 kW | Rated current: 4 A | EMC filter: Built-in C3 | Version: Standard
LSLV0015H100-4COFN(E) Motor rating: 1.5 kW | Rated current: 4 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0022H100-4COFN Motor rating: 2.2 kW | Rated current: 6 A | EMC filter: Built-in C3 | Version: Standard
LSLV0022H100-4COFN(E) Motor rating: 2.2 kW | Rated current: 6 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0037H100-4COFN Motor rating: 3.7 kW | Rated current: 8 A | EMC filter: Built-in C3 | Version: Standard
LSLV0037H100-4COFN(E) Motor rating: 3.7 kW | Rated current: 8 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0055H100-4COFN Motor rating: 5.5 kW | Rated current: 12 A | EMC filter: Built-in C3 | Version: Standard
LSLV0055H100-4COFN(E) Motor rating: 5.5 kW | Rated current: 12 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0075H100-4COFN Motor rating: 7.5 kW | Rated current: 16 A | EMC filter: Built-in C3 | Version: Standard
LSLV0075H100-4COFN(E) Motor rating: 7.5 kW | Rated current: 16 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0110H100-4COFN Motor rating: 11 kW | Rated current: 24 A | EMC filter: Built-in C3 | Version: Standard
LSLV0110H100-4COFN(E) Motor rating: 11 kW | Rated current: 24 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0150H100-4COFN Motor rating: 15 kW | Rated current: 30 A | EMC filter: Built-in C3 | Version: Standard
LSLV0150H100-4COFN(E) Motor rating: 15 kW | Rated current: 30 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0185H100-4COFN Motor rating: 18.5 kW | Rated current: 38 A | EMC filter: Built-in C3 | Version: Standard
LSLV0185H100-4COFN(E) Motor rating: 18.5 kW | Rated current: 38 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0220H100-4COFN Motor rating: 22 kW | Rated current: 45 A | EMC filter: Built-in C3 | Version: Standard
LSLV0220H100-4COFN(E) Motor rating: 22 kW | Rated current: 45 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0300H100-4COFN Motor rating: 30 kW | Rated current: 61 A | EMC filter: Built-in C3 | Version: Standard
LSLV0300H100-4COFN(E) Motor rating: 30 kW | Rated current: 61 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0008H100-4COFN(PLUS) Motor rating: 0.75 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0015H100-4COFN(PLUS) Motor rating: 1.5 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0022H100-4COFN(PLUS) Motor rating: 2.2 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0037H100-4COFN(PLUS) Motor rating: 3.7 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0055H100-4COFN(PLUS) Motor rating: 5.5 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0075H100-4COFN(PLUS) Motor rating: 7.5 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0110H100-4COFN(PLUS) Motor rating: 11 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0150H100-4COFN(PLUS) Motor rating: 15 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0185H100-4COFN(PLUS) Motor rating: 18.5 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0220H100-4COFN(PLUS) Motor rating: 22 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0300H100-4COFN(PLUS) Motor rating: 30 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
AC DrivesLS Electric
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric H100 HVAC Fan and Pump AC Drive (400V Class, 0.75-30 kW)

Brand LS Electric·AC Drives

Available part numbers (33)

LSLV0008H100-4COFN, LSLV0008H100-4COFN(E), LSLV0015H100-4COFN, LSLV0015H100-4COFN(E), LSLV0022H100-4COFN, LSLV0022H100-4COFN(E), LSLV0037H100-4COFN, LSLV0037H100-4COFN(E), LSLV0055H100-4COFN, LSLV0055H100-4COFN(E) + 23 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
