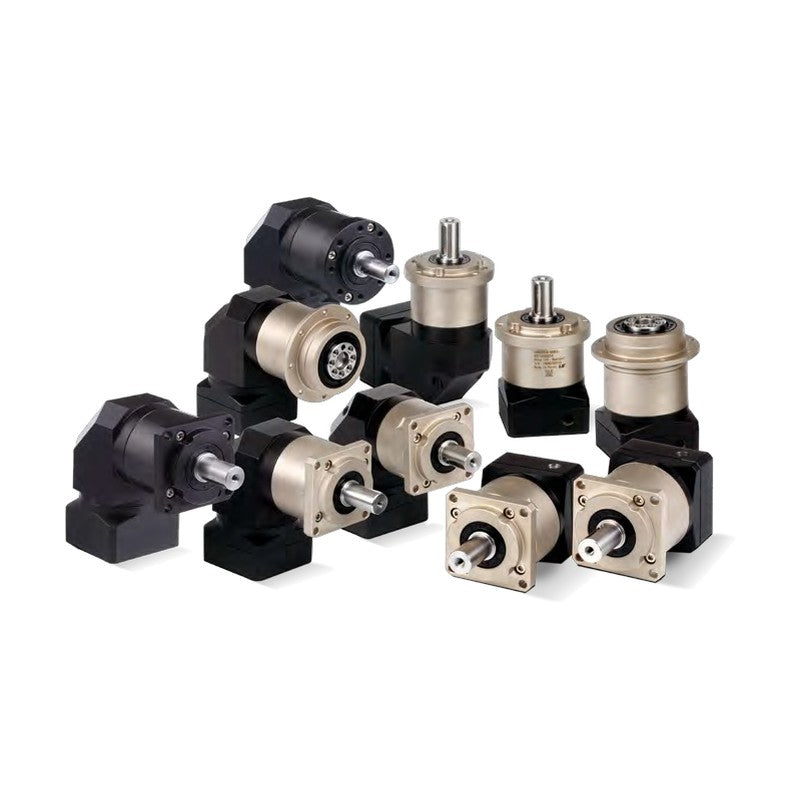

LS Electric HAD Right-Angle Planetary Gearbox, Flange Output (047-200)

LS Electric HAD Right-Angle Planetary Gearbox, Flange Output (047-200)

LS Electric HAD precision planetary gearbox (premium line, helical gear, right-angle, flange output, flange (hollow-face) output) in frames 047-200; full order code HAD<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, right-angle housing
  • Spiral bevel gear right-angle stage saves installation space
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65
  • Tapered roller output bearings for high radial and axial loads

Specifications

Series HAD (Premium line)
Gear type Helical planetary
Housing Right-Angle
Output Flange Output
Frame sizes 047, 064, 090, 110, 140, 200
Ratios 4:1 to 200:1
Efficiency (1-stage / 2-stage) >= 94% / >= 91%
Rated input speed 5,000 to 3,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 58 to 72 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 77, 82-85
HAD0471A-004KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-004NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-004KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-004NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0471A-005KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-005NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-005KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-005NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0471A-007KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-007NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-007KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-007NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0471A-010KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-010NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-010KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-010NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0472A-020KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-020NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-020KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-020NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-025KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-025NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-025KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-025NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-035KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-035NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-035KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-035NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-040KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-040NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-040KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-040NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-050KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-050NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-050KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-050NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-070KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-070NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-070KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-070NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-100KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-100NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-100KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-100NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0641A-004KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-004NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-004KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-004NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-004KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-004NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-005KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-005NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-005KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-005NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-005KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-005NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-007KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-007NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-007KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-007NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-007KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-007NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-010KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-010NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-010KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-010NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-010KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-010NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-014KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-014NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-014KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-014NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-014KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-014NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-020KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-020NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-020KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-020NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-020KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-020NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0642B-025KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-025NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-025KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-025NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-025KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-025NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-035KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-035NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-035KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-035NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-035KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-035NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-040KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-040NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-040KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-040NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-040KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-040NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-050KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-050NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-050KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-050NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-050KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-050NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-070KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-070NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-070KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-070NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-070KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-070NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-100KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-100NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-100KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-100NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-100KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-100NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-025KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-025NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-025KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-025NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-025KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-025NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-035KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-035NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-035KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-035NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-035KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-035NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-040KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-040NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-040KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-040NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-040KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-040NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-050KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-050NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-050KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-050NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-050KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-050NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-070KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-070NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-070KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-070NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-070KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-070NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-100KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-100NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-100KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-100NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-100KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-100NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-140KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-140NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-140KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-140NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-140KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-140NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-200KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-200NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-200KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-200NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-200KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-200NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0901A-004KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-004NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-004KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-004NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-004KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-004NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-005KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-005NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-005KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-005NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-005KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-005NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-007KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-007NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-007KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-007NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-007KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-007NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-010KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-010NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-010KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-010NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-010KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-010NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-014KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-014NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-014KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-014NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-014KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-014NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-020KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-020NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-020KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-020NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-020KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-020NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0902B-025KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-025NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-025KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-025NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-025KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-025NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-035KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-035NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-035KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-035NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-035KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-035NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-040KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-040NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-040KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-040NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-040KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-040NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-050KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-050NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-050KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-050NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-050KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-050NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-070KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-070NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-070KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-070NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-070KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-070NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-100KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-100NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-100KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-100NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-100KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-100NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-140KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-140NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-140KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-140NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-140KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-140NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-200KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-200NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-200KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-200NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-200KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-200NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-025KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-025NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-025KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-025NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-025KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-025NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-035KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-035NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-035KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-035NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-035KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-035NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-040KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-040NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-040KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-040NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-040KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-040NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-050KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-050NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-050KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-050NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-050KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-050NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-070KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-070NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-070KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-070NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-070KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-070NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-100KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-100NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-100KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-100NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-100KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-100NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-140KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-140NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-140KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-140NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-140KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-140NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-200KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-200NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-200KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-200NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-200KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-200NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1101A-004KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-004NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-004KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-004NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-004KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-004NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-005KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-005NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-005KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-005NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-005KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-005NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-007KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-007NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-007KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-007NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-007KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-007NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-010KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-010NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-010KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-010NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-010KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-010NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-014KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-014NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-014KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-014NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-014KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-014NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-020KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-020NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-020KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-020NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-020KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-020NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1102B-025KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-025NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-025KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-025NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-025KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-025NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-035KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-035NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-035KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-035NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-035KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-035NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-040KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-040NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-040KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-040NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-040KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-040NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-050KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-050NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-050KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-050NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-050KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-050NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-070KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-070NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-070KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-070NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-070KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-070NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-100KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-100NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-100KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-100NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-100KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-100NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-140KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-140NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-140KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-140NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-140KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-140NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-200KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-200NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-200KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-200NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-200KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-200NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-025KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-025NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-025KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-025NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-025KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-025NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-035KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-035NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-035KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-035NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-035KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-035NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-040KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-040NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-040KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-040NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-040KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-040NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-050KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-050NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-050KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-050NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-050KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-050NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-070KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-070NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-070KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-070NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-070KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-070NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-100KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-100NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-100KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-100NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-100KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-100NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-140KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-140NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-140KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-140NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-140KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-140NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-200KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-200NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-200KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-200NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-200KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-200NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1401A-004KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-004NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-004KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-004NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-004KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-004NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-005KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-005NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-005KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-005NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-005KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-005NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-007KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-007NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-007KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-007NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-007KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-007NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-010KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-010NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-010KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-010NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-010KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-010NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-014KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-014NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-014KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-014NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-014KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-014NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-020KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-020NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-020KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-020NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-020KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-020NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1402B-025KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-025NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-025KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-025NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-025KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-025NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-035KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-035NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-035KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-035NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-035KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-035NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-040KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-040NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-040KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-040NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-040KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-040NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-050KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-050NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-050KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-050NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-050KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-050NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-070KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-070NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-070KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-070NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-070KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-070NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-100KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-100NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-100KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-100NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-100KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-100NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-140KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-140NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-140KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-140NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-140KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-140NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-200KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-200NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-200KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-200NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-200KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-200NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-025KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-025NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-025KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-025NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-025KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-025NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-035KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-035NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-035KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-035NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-035KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-035NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-040KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-040NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-040KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-040NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-040KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-040NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-050KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-050NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-050KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-050NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-050KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-050NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-070KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-070NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-070KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-070NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-070KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-070NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-100KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-100NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-100KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-100NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-100KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-100NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-140KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-140NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-140KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-140NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-140KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-140NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-200KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-200NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-200KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-200NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-200KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-200NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2001A-004KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-004NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-004KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-004NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-004KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-004NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-005KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-005NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-005KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-005NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-005KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-005NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-007KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-007NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-007KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-007NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-007KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-007NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-010KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-010NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-010KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-010NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-010KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-010NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-014KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-014NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-014KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-014NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-014KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-014NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-020KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-020NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-020KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-020NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-020KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-020NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2002B-025KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-025NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-025KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-025NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-025KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-025NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-035KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-035NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-035KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-035NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-035KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-035NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-040KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-040NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-040KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-040NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-040KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-040NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-050KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-050NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-050KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-050NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-050KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-050NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-070KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-070NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-070KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-070NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-070KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-070NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-100KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-100NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-100KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-100NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-100KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-100NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-140KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-140NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-140KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-140NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-140KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-140NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-200KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-200NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-200KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-200NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-200KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-200NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-025KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-025NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-025KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-025NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-025KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-025NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-035KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-035NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-035KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-035NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-035KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-035NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-040KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-040NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-040KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-040NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-040KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-040NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-050KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-050NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-050KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-050NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-050KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-050NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-070KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-070NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-070KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-070NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-070KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-070NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-100KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-100NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-100KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-100NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-100KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-100NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-140KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-140NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-140KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-140NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-140KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-140NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-200KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-200NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-200KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-200NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-200KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-200NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0471A Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0641A Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0901A Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1101A Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1401A Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD2001A Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0642B Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0902B Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1102B Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1402B Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD2002B Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0472A Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0642A Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0902A Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1102A Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1402A Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD2002A Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
709 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HAD Right-Angle Planetary Gearbox, Flange Output (047-200)

Brand LS Electric·Planetary Gearboxes

Available part numbers (709)

HAD0471A-004KS, HAD0471A-004NS, HAD0471A-004KP, HAD0471A-004NP, HAD0471A-005KS, HAD0471A-005NS, HAD0471A-005KP, HAD0471A-005NP, HAD0471A-007KS, HAD0471A-007NS + 699 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HAD0471A-004KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-004NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-004KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-004NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0471A-005KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-005NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-005KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-005NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0471A-007KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-007NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-007KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-007NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0471A-010KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0471A-010NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0471A-010KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0471A-010NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0472A-020KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-020NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-020KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-020NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-025KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-025NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-025KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-025NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-035KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-035NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-035KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-035NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-040KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-040NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-040KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-040NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-050KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-050NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-050KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-050NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-070KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-070NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-070KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-070NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0472A-100KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0472A-100NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0472A-100KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0472A-100NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0641A-004KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-004NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-004KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-004NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-004KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-004NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-005KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-005NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-005KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-005NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-005KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-005NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-007KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-007NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-007KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-007NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-007KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-007NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-010KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-010NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-010KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-010NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-010KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-010NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-014KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-014NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-014KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-014NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-014KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-014NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0641A-020KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0641A-020NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0641A-020KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0641A-020NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0641A-020KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0641A-020NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0642B-025KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-025NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-025KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-025NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-025KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-025NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-035KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-035NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-035KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-035NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-035KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-035NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-040KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-040NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-040KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-040NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-040KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-040NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-050KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-050NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-050KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-050NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-050KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-050NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-070KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-070NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-070KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-070NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-070KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-070NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642B-100KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642B-100NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642B-100KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642B-100NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642B-100KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642B-100NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-025KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-025NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-025KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-025NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-025KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-025NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-035KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-035NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-035KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-035NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-035KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-035NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-040KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-040NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-040KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-040NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-040KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-040NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-050KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-050NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-050KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-050NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-050KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-050NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-070KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-070NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-070KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-070NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-070KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-070NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-100KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-100NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-100KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-100NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-100KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-100NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-140KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-140NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-140KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-140NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-140KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-140NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0642A-200KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0642A-200NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0642A-200KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0642A-200NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0642A-200KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0642A-200NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0901A-004KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-004NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-004KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-004NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-004KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-004NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-005KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-005NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-005KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-005NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-005KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-005NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-007KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-007NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-007KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-007NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-007KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-007NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-010KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-010NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-010KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-010NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-010KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-010NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-014KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-014NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-014KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-014NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-014KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-014NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0901A-020KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD0901A-020NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD0901A-020KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD0901A-020NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD0901A-020KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD0901A-020NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD0902B-025KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-025NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-025KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-025NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-025KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-025NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-035KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-035NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-035KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-035NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-035KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-035NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-040KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-040NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-040KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-040NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-040KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-040NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-050KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-050NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-050KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-050NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-050KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-050NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-070KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-070NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-070KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-070NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-070KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-070NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-100KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-100NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-100KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-100NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-100KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-100NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-140KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-140NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-140KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-140NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-140KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-140NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902B-200KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902B-200NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902B-200KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902B-200NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902B-200KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902B-200NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-025KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-025NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-025KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-025NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-025KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-025NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-035KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-035NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-035KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-035NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-035KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-035NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-040KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-040NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-040KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-040NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-040KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-040NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-050KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-050NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-050KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-050NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-050KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-050NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-070KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-070NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-070KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-070NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-070KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-070NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-100KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-100NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-100KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-100NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-100KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-100NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-140KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-140NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-140KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-140NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-140KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-140NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0902A-200KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD0902A-200NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD0902A-200KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD0902A-200NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD0902A-200KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD0902A-200NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1101A-004KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-004NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-004KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-004NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-004KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-004NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-005KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-005NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-005KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-005NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-005KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-005NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-007KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-007NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-007KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-007NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-007KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-007NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-010KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-010NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-010KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-010NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-010KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-010NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-014KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-014NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-014KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-014NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-014KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-014NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1101A-020KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1101A-020NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1101A-020KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1101A-020NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1101A-020KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1101A-020NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1102B-025KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-025NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-025KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-025NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-025KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-025NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-035KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-035NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-035KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-035NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-035KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-035NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-040KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-040NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-040KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-040NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-040KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-040NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-050KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-050NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-050KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-050NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-050KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-050NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-070KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-070NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-070KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-070NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-070KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-070NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-100KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-100NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-100KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-100NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-100KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-100NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-140KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-140NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-140KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-140NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-140KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-140NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102B-200KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102B-200NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102B-200KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102B-200NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102B-200KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102B-200NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-025KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-025NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-025KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-025NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-025KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-025NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-035KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-035NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-035KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-035NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-035KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-035NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-040KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-040NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-040KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-040NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-040KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-040NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-050KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-050NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-050KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-050NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-050KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-050NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-070KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-070NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-070KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-070NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-070KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-070NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-100KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-100NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-100KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-100NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-100KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-100NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-140KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-140NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-140KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-140NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-140KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-140NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1102A-200KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1102A-200NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1102A-200KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1102A-200NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1102A-200KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1102A-200NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1401A-004KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-004NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-004KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-004NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-004KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-004NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-005KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-005NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-005KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-005NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-005KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-005NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-007KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-007NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-007KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-007NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-007KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-007NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-010KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-010NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-010KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-010NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-010KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-010NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-014KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-014NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-014KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-014NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-014KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-014NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1401A-020KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD1401A-020NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD1401A-020KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD1401A-020NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD1401A-020KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD1401A-020NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD1402B-025KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-025NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-025KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-025NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-025KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-025NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-035KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-035NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-035KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-035NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-035KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-035NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-040KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-040NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-040KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-040NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-040KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-040NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-050KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-050NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-050KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-050NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-050KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-050NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-070KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-070NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-070KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-070NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-070KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-070NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-100KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-100NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-100KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-100NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-100KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-100NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-140KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-140NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-140KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-140NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-140KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-140NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402B-200KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402B-200NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402B-200KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402B-200NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402B-200KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402B-200NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-025KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-025NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-025KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-025NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-025KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-025NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-035KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-035NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-035KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-035NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-035KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-035NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-040KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-040NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-040KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-040NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-040KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-040NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-050KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-050NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-050KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-050NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-050KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-050NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-070KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-070NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-070KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-070NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-070KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-070NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-100KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-100NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-100KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-100NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-100KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-100NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-140KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-140NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-140KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-140NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-140KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-140NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD1402A-200KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD1402A-200NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD1402A-200KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD1402A-200NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD1402A-200KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD1402A-200NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2001A-004KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-004NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-004KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-004NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-004KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-004NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-005KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-005NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-005KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-005NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-005KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-005NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-007KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-007NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-007KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-007NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-007KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-007NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-010KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-010NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-010KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-010NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-010KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-010NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-014KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-014NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-014KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-014NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-014KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-014NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2001A-020KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAD2001A-020NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAD2001A-020KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAD2001A-020NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAD2001A-020KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAD2001A-020NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAD2002B-025KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-025NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-025KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-025NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-025KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-025NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-035KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-035NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-035KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-035NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-035KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-035NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-040KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-040NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-040KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-040NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-040KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-040NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-050KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-050NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-050KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-050NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-050KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-050NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-070KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-070NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-070KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-070NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-070KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-070NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-100KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-100NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-100KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-100NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-100KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-100NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-140KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-140NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-140KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-140NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-140KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-140NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002B-200KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002B-200NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002B-200KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002B-200NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002B-200KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002B-200NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-025KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-025NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-025KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-025NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-025KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-025NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-035KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-035NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-035KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-035NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-035KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-035NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-040KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-040NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-040KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-040NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-040KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-040NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-050KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-050NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-050KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-050NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-050KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-050NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-070KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-070NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-070KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-070NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-070KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-070NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-100KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-100NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-100KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-100NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-100KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-100NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-140KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-140NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-140KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-140NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-140KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-140NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD2002A-200KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAD2002A-200NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAD2002A-200KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAD2002A-200NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAD2002A-200KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAD2002A-200NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAD0471AFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0641AFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0901AFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1101AFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1401AFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD2001AFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0642BFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0902BFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1102BFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1402BFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD2002BFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0472AFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0642AFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD0902AFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1102AFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD1402AFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAD2002AFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
