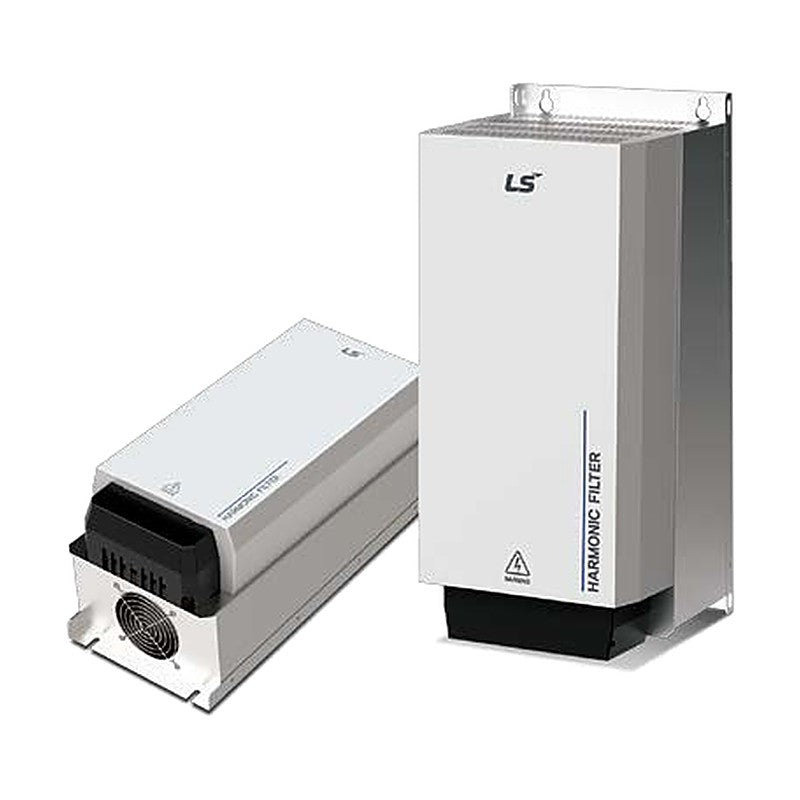

LS Electric HFS Passive Harmonic Filter (380-480V, 50/60 Hz)

LS Electric HFS series passive harmonic filters for six-pulse AC drive inputs, holding current THDi to 5% or less to meet IEEE 519.

Key features

THDi 5% or less at rated load (filters 4 kW and above); TDD compliant with IEEE 519
50 Hz versions for 3-phase 380-415 V, 1.1-250 kW motors; 60 Hz versions for 3-phase 380-480 V
98% or higher efficiency; overload 1.6 x rated current for 1 minute once per hour
Built-in fan forced cooling (natural cooling on frames A-C), IP20 enclosure
NC 180 C thermal switch output for choke overtemperature monitoring
Designed to UL 61800-5-1 and EN 61800-5-1; 100 kA SCCR with UL class J fuses

Specifications

Series	HFS passive harmonic filter
THDi	5% or less
Efficiency	98% or higher
Power networks	TN, TT, IT
Overload	1.6 x In for 1 min, once per hour
SCCR	100 kA (UL class J fuses)
Protection degree	IP20
Insulation class	N (200 C), H (180 C)
Operating temperature	-25 to +45 C full load; to +70 C derated
MTBF	200,000 h
Source	LS Electric HFS Passive Harmonic Filter Catalog KR 2021.02, p. 4-7

HFS-0003-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 3 A \| Filter current: 1.6 A \| Motor at 100% load: 1.1 kW \| Frame: A
HFS-0005-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 5.5 A \| Filter current: 3.3 A \| Motor at 100% load: 2.2 kW \| Frame: A
HFS-0010-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 10 A \| Filter current: 5.9 A \| Motor at 100% load: 4.0 kW \| Frame: B
HFS-0013-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 13 A \| Filter current: 8.2 A \| Motor at 100% load: 5.5 kW \| Frame: C
HFS-0016-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 16 A \| Filter current: 11.1 A \| Motor at 100% load: 7.5 kW \| Frame: C
HFS-0024-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 24 A \| Filter current: 16.3 A \| Motor at 100% load: 11 kW \| Frame: D
HFS-0032-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 32 A \| Filter current: 22.2 A \| Motor at 100% load: 15 kW \| Frame: D
HFS-0038-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 38 A \| Filter current: 28.2 A \| Motor at 100% load: 19 kW \| Frame: D
HFS-0045-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 45 A \| Filter current: 32.5 A \| Motor at 100% load: 22 kW \| Frame: E
HFS-0060-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 60 A \| Filter current: 44.4 A \| Motor at 100% load: 30 kW \| Frame: E
HFS-0075-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 75 A \| Filter current: 54.8 A \| Motor at 100% load: 37 kW \| Frame: E
HFS-0090-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 90 A \| Filter current: 66.7 A \| Motor at 100% load: 45 kW \| Frame: E
HFS-0110-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 110 A \| Filter current: 81.6 A \| Motor at 100% load: 55 kW \| Frame: E
HFS-0150-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 150 A \| Filter current: 111 A \| Motor at 100% load: 75 kW \| Frame: G
HFS-0180-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 180 A \| Filter current: 134 A \| Motor at 100% load: 90 kW \| Frame: G
HFS-0210-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 210 A \| Filter current: 164 A \| Motor at 100% load: 110 kW \| Frame: H
HFS-0260-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 260 A \| Filter current: 197 A \| Motor at 100% load: 132 kW \| Frame: H
HFS-0320-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 320 A \| Filter current: 240 A \| Motor at 100% load: 160 kW \| Frame: H
HFS-0400-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 400 A \| Filter current: 300 A \| Motor at 100% load: 200 kW \| Frame: H
HFS-0530-3-50		Supply: 3-ph 380-415 V 50 Hz \| Drive input current: 530 A \| Filter current: 376 A \| Motor at 100% load: 250 kW \| Frame: J
HFS-0002-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 2 A \| Filter current: 1.4 A \| Motor at 100% load: 0.9 kW \| Frame: A
HFS-0004-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 4 A \| Filter current: 2.8 A \| Motor at 100% load: 1.7 kW \| Frame: A
HFS-0047-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 7 A \| Filter current: 4.6 A \| Motor at 100% load: 2.9 kW \| Frame: B
HFS-0011-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 11 A \| Filter current: 6.9 A \| Motor at 100% load: 4.4 kW \| Frame: B
HFS-0014-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 14 A \| Filter current: 9.3 A \| Motor at 100% load: 5.9 kW \| Frame: C
HFS-0021-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 21 A \| Filter current: 13.8 A \| Motor at 100% load: 8.7 kW \| Frame: C
HFS-0027-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 27 A \| Filter current: 18.5 A \| Motor at 100% load: 12 kW \| Frame: D
HFS-0034-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 34 A \| Filter current: 23.1 A \| Motor at 100% load: 15 kW \| Frame: D
HFS-0044-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 44 A \| Filter current: 27.8 A \| Motor at 100% load: 17 kW \| Frame: D
HFS-0052-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 52 A \| Filter current: 37.2 A \| Motor at 100% load: 24 kW \| Frame: E
HFS-0066-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 66 A \| Filter current: 46.2 A \| Motor at 100% load: 29 kW \| Frame: E
HFS-0083-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 83 A \| Filter current: 55.6 A \| Motor at 100% load: 36 kW \| Frame: E
HFS-00103-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 103 A \| Filter current: 69.3 A \| Motor at 100% load: 44 kW \| Frame: F
HFS-00128-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 128 A \| Filter current: 92.5 A \| Motor at 100% load: 59 kW \| Frame: F
HFS-00165-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 165 A \| Filter current: 115 A \| Motor at 100% load: 74 kW \| Frame: G
HFS-00208-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 208 A \| Filter current: 139 A \| Motor at 100% load: 89 kW \| Frame: G
HFS-00240-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 240 A \| Filter current: 184 A \| Motor at 100% load: 118 kW \| Frame: H
HFS-00320-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 320 A \| Filter current: 231 A \| Motor at 100% load: 147 kW \| Frame: H
HFS-00403-5-60		Supply: 3-ph 380-480 V 60 Hz \| Drive input current: 403 A \| Filter current: 279 A \| Motor at 100% load: 177 kW \| Frame: H
