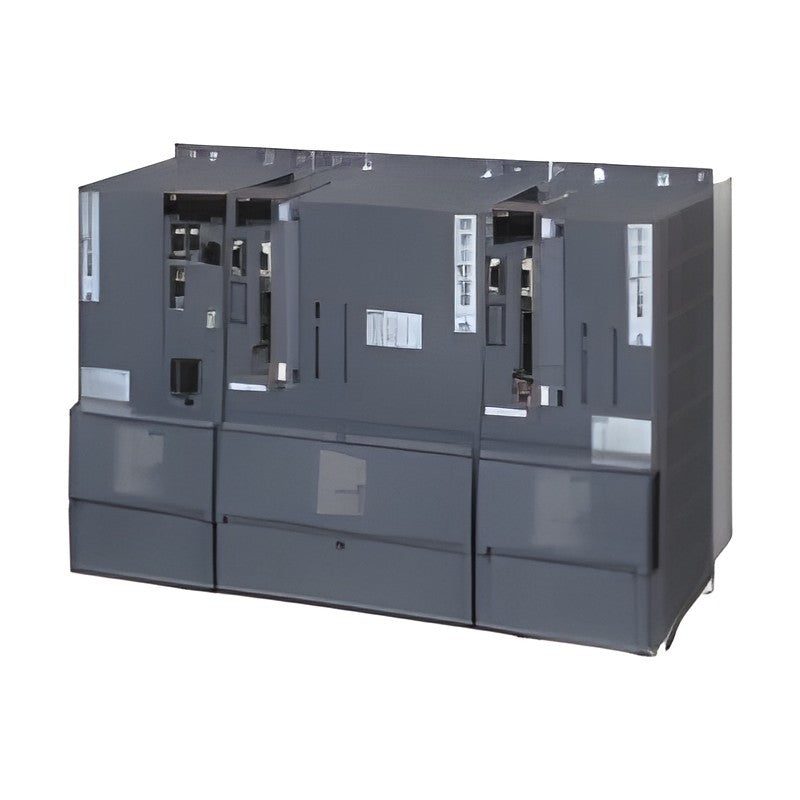

Mitsubishi Electric MR-CV Power Regeneration Converter Unit (11-75 kW)

MR-CV power regeneration converter units supply DC bus power to MELSERVO-J4 MR-J4-DU_B drive units and return regenerative energy to the power supply.

Key features

Capacity 11-55 kW (200 V) and 11-75 kW (400 V); MR-CV75K4 only in 400 V class
Feeds MR-J4-DU_B(4)(-RJ) and MR-J4-DU_B4-RJ100 drive units via bus bars (not MR-J4-DU_A)
Regenerated power returned to the supply, no regenerative resistor needed
Dedicated MR-AL AC reactor required for each converter
Protective functions incl. undervoltage, regenerative overvoltage, open-phase and overload shut-off

Specifications

Series	MELSERVO-J4 MR-CV
Output	270-324 V DC (200 V class)
Cooling	Force cooling, open (IP20)
Ambient temperature	0-55 C (operation)
Control circuit supply	1-ph 200-240 V AC (200 V class)
Required option	MR-AL AC reactor, MR-DCBAR bus bars
Source	Mitsubishi Electric MELSERVO-J4 catalogue L(NA)03058ENG, p. 60, 108-109, 425

MR-CV11K		Model: MR-CV11K \| Capacity: 11 kW \| Voltage class: 200 V \| Main circuit supply: 3-ph 200-240 V AC \| AC reactor: MR-AL-11K
MR-CV18K		Model: MR-CV18K \| Capacity: 18 kW \| Voltage class: 200 V \| Main circuit supply: 3-ph 200-240 V AC \| AC reactor: MR-AL-18K
MR-CV30K		Model: MR-CV30K \| Capacity: 30 kW \| Voltage class: 200 V \| Main circuit supply: 3-ph 200-240 V AC \| AC reactor: MR-AL-30K
MR-CV37K		Model: MR-CV37K \| Capacity: 37 kW \| Voltage class: 200 V \| Main circuit supply: 3-ph 200-240 V AC \| AC reactor: MR-AL-37K
MR-CV45K		Model: MR-CV45K \| Capacity: 45 kW \| Voltage class: 200 V \| Main circuit supply: 3-ph 200-240 V AC \| AC reactor: MR-AL-45K
MR-CV55K		Model: MR-CV55K \| Capacity: 55 kW \| Voltage class: 200 V \| Main circuit supply: 3-ph 200-240 V AC \| AC reactor: MR-AL-55K
MR-CV11K4		Model: MR-CV11K4 \| Capacity: 11 kW \| Voltage class: 400 V \| Main circuit supply: 3-ph 380-480 V AC \| AC reactor: MR-AL-11K4
MR-CV18K4		Model: MR-CV18K4 \| Capacity: 18 kW \| Voltage class: 400 V \| Main circuit supply: 3-ph 380-480 V AC \| AC reactor: MR-AL-18K4
MR-CV30K4		Model: MR-CV30K4 \| Capacity: 30 kW \| Voltage class: 400 V \| Main circuit supply: 3-ph 380-480 V AC \| AC reactor: MR-AL-30K4
MR-CV37K4		Model: MR-CV37K4 \| Capacity: 37 kW \| Voltage class: 400 V \| Main circuit supply: 3-ph 380-480 V AC \| AC reactor: MR-AL-37K4
MR-CV45K4		Model: MR-CV45K4 \| Capacity: 45 kW \| Voltage class: 400 V \| Main circuit supply: 3-ph 380-480 V AC \| AC reactor: MR-AL-45K4
MR-CV55K4		Model: MR-CV55K4 \| Capacity: 55 kW \| Voltage class: 400 V \| Main circuit supply: 3-ph 380-480 V AC \| AC reactor: MR-AL-55K4
MR-CV75K4		Model: MR-CV75K4 \| Capacity: 75 kW \| Voltage class: 400 V \| Main circuit supply: 3-ph 380-480 V AC \| AC reactor: MR-AL-75K4

Converter UnitsMitsubishi Electric

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric MR-CV Power Regeneration Converter Unit (11-75 kW)

Brand Mitsubishi Electric·Converter Units

Available part numbers (13)

MR-CV11K, MR-CV18K, MR-CV30K, MR-CV37K, MR-CV45K, MR-CV55K, MR-CV11K4, MR-CV18K4, MR-CV30K4, MR-CV37K4 + 3 more — see full table ↓
