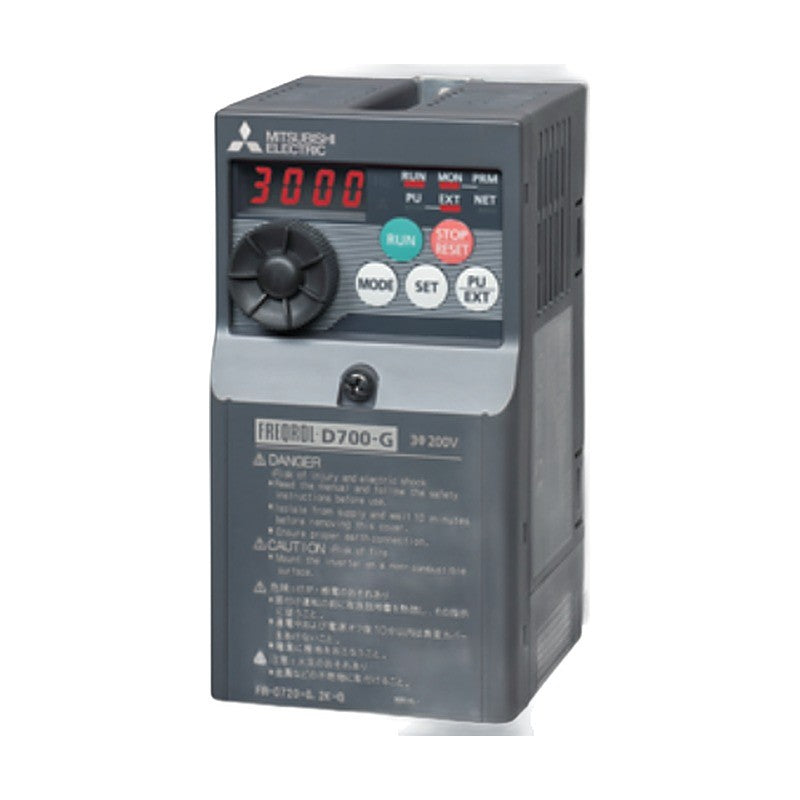

Mitsubishi Electric FR-D720-G Drive Unit for S-PM Motors (0.2-3.7K)

Mitsubishi Electric FR-D720-G Drive Unit for S-PM Motors (0.2-3.7K)

Mitsubishi Electric FREQROL-D700-G simple compact drive unit dedicated to S-PM sensorless servo geared motors, three-phase 200V class.

Key features

  • Dedicated to S-PM geared motors (GV series) with PM sensorless vector control
  • Spring-clamp control terminals; 128 mm height for all capacities
  • Motor combination: drive capacity one rank above motor capacity
  • Overload rating 150% 60 s, 200% 0.5 s
  • Optional FR-PA07 panel, FR-PU07 parameter unit, FR Configurator2

Specifications

Series FREQROL-D700-G
Input 3-phase 200-240V 50/60Hz
Applicable motors S-PM geared motors only
Overload 150% 60s, 200% 0.5s
Enclosure IP20
Standards UL, cUL, CE, KC, EAC
Source Mitsubishi Electric Sensorless Servo catalogue L(NA)06083-K, p. 72-81, 118
FR-D720-0.2K-G Model: FR-D720-0.2K-G | Capacity: 0.2K | S-PM motor: 0.1kW | Rated current: 1.4A
FR-D720-0.4K-G Model: FR-D720-0.4K-G | Capacity: 0.4K | S-PM motor: 0.2kW | Rated current: 2.5A
FR-D720-0.75K-G Model: FR-D720-0.75K-G | Capacity: 0.75K | S-PM motor: 0.4kW | Rated current: 4.2A
FR-D720-1.5K-G Model: FR-D720-1.5K-G | Capacity: 1.5K | S-PM motor: 0.75kW | Rated current: 7.0A
FR-D720-2.2K-G Model: FR-D720-2.2K-G | Capacity: 2.2K | S-PM motor: 1.5kW | Rated current: 10.0A
FR-D720-3.7K-G Model: FR-D720-3.7K-G | Capacity: 3.7K | S-PM motor: 2.2kW | Rated current: 16.5A
Inverters (VFD)Mitsubishi Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-D720-G Drive Unit for S-PM Motors (0.2-3.7K)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (6)

FR-D720-0.2K-G, FR-D720-0.4K-G, FR-D720-0.75K-G, FR-D720-1.5K-G, FR-D720-2.2K-G, FR-D720-3.7K-G

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-D720-0.2K-GModel: FR-D720-0.2K-G | Capacity: 0.2K | S-PM motor: 0.1kW | Rated current: 1.4A
FR-D720-0.4K-GModel: FR-D720-0.4K-G | Capacity: 0.4K | S-PM motor: 0.2kW | Rated current: 2.5A
FR-D720-0.75K-GModel: FR-D720-0.75K-G | Capacity: 0.75K | S-PM motor: 0.4kW | Rated current: 4.2A
FR-D720-1.5K-GModel: FR-D720-1.5K-G | Capacity: 1.5K | S-PM motor: 0.75kW | Rated current: 7.0A
FR-D720-2.2K-GModel: FR-D720-2.2K-G | Capacity: 2.2K | S-PM motor: 1.5kW | Rated current: 10.0A
FR-D720-3.7K-GModel: FR-D720-3.7K-G | Capacity: 3.7K | S-PM motor: 2.2kW | Rated current: 16.5A
