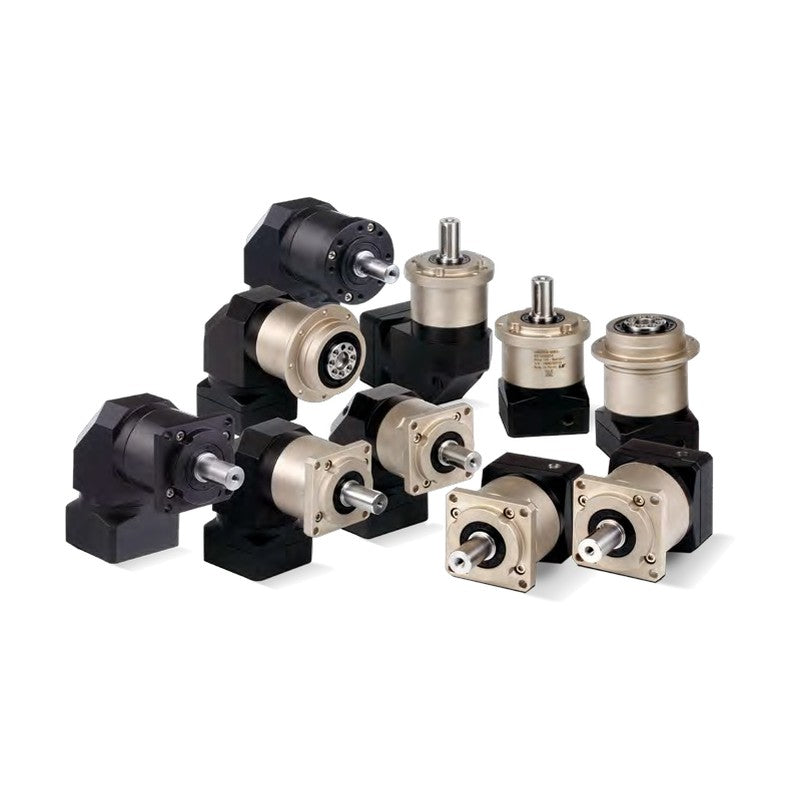

LS Electric HSD Inline Planetary Gearbox, Flange Output (047-200)

LS Electric HSD Inline Planetary Gearbox, Flange Output (047-200)

LS Electric HSD precision planetary gearbox (premium line, helical gear, inline, flange output, flange (hollow-face) output) in frames 047-200; full order code HSD<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, inline housing
  • Coaxial input/output for compact inline mounting
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65
  • Tapered roller output bearings for high radial and axial loads

Specifications

Series HSD (Premium line)
Gear type Helical planetary
Housing Inline
Output Flange Output
Frame sizes 047, 064, 090, 110, 140, 200
Ratios 4:1 to 100:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 3,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 52 to 64 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 77, 78-81
HSD0471A-004KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-004NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-004KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-004NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0471A-005KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-005NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-005KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-005NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0471A-007KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-007NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-007KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-007NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0471A-010KS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-010NS Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-010KP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-010NP Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0472A-020KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-020NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-020KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-020NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-025KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-025NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-025KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-025NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-035KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-035NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-035KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-035NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-040KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-040NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-040KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-040NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-050KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-050NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-050KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-050NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-070KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-070NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-070KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-070NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-100KS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-100NS Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-100KP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-100NP Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0641A-004KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-004NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-004KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-004NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-004KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-004NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0641A-005KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-005NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-005KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-005NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-005KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-005NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0641A-007KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-007NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-007KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-007NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-007KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-007NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0641A-010KS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-010NS Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-010KP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-010NP Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-010KA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-010NA Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0642B-020KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-020NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-020KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-020NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-020KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-020NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-020KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-020NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-020KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-020NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-020KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-020NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-025KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-025NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-025KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-025NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-025KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-025NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-025KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-025NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-025KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-025NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-025KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-025NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-035KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-035NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-035KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-035NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-035KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-035NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-035KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-035NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-035KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-035NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-035KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-035NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-040KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-040NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-040KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-040NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-040KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-040NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-040KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-040NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-040KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-040NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-040KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-040NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-050KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-050NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-050KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-050NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-050KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-050NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-050KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-050NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-050KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-050NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-050KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-050NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-070KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-070NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-070KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-070NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-070KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-070NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-070KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-070NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-070KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-070NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-070KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-070NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-100KS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-100NS Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-100KP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-100NP Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-100KA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-100NA Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-100KS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-100NS Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-100KP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-100NP Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-100KA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-100NA Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0901A-004KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-004NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-004KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-004NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-004KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-004NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0901A-005KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-005NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-005KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-005NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-005KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-005NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0901A-007KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-007NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-007KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-007NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-007KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-007NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0901A-010KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-010NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-010KP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-010NP Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-010KA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-010NA Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0902B-020KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-020NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-020KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-020NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-020KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-020NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-020KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-020NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-020KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-020NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-020KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-020NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-025KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-025NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-025KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-025NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-025KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-025NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-025KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-025NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-025KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-025NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-025KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-025NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-035KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-035NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-035KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-035NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-035KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-035NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-035KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-035NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-035KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-035NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-035KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-035NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-040KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-040NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-040KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-040NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-040KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-040NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-040KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-040NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-040KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-040NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-040KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-040NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-050KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-050NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-050KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-050NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-050KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-050NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-050KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-050NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-050KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-050NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-050KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-050NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-070KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-070NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-070KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-070NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-070KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-070NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-070KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-070NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-070KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-070NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-070KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-070NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-100KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-100NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-100KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-100NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-100KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-100NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-100KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-100NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-100KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-100NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-100KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-100NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1101A-004KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-004NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-004KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-004NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-004KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-004NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1101A-005KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-005NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-005KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-005NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-005KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-005NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1101A-007KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-007NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-007KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-007NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-007KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-007NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1101A-010KS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-010NS Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-010KP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-010NP Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-010KA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-010NA Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1102B-020KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-020NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-020KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-020NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-020KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-020NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-020KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-020NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-020KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-020NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-020KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-020NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-025KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-025NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-025KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-025NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-025KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-025NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-025KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-025NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-025KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-025NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-025KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-025NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-035KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-035NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-035KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-035NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-035KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-035NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-035KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-035NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-035KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-035NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-035KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-035NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-040KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-040NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-040KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-040NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-040KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-040NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-040KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-040NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-040KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-040NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-040KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-040NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-050KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-050NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-050KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-050NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-050KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-050NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-050KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-050NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-050KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-050NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-050KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-050NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-070KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-070NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-070KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-070NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-070KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-070NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-070KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-070NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-070KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-070NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-070KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-070NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-100KS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-100NS Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-100KP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-100NP Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-100KA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-100NA Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-100KS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-100NS Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-100KP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-100NP Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-100KA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-100NA Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1401A-004KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-004NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-004KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-004NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-004KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-004NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1401A-005KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-005NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-005KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-005NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-005KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-005NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1401A-007KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-007NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-007KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-007NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-007KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-007NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1401A-010KS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-010NS Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-010KP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-010NP Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-010KA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-010NA Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1402B-020KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-020NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-020KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-020NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-020KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-020NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-020KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-020NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-020KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-020NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-020KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-020NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-025KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-025NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-025KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-025NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-025KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-025NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-025KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-025NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-025KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-025NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-025KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-025NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-035KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-035NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-035KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-035NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-035KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-035NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-035KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-035NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-035KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-035NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-035KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-035NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-040KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-040NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-040KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-040NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-040KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-040NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-040KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-040NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-040KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-040NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-040KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-040NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-050KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-050NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-050KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-050NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-050KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-050NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-050KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-050NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-050KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-050NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-050KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-050NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-070KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-070NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-070KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-070NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-070KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-070NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-070KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-070NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-070KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-070NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-070KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-070NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-100KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-100NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-100KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-100NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-100KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-100NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-100KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-100NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-100KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-100NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-100KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-100NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2001A-004KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-004NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-004KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-004NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-004KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-004NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2001A-005KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-005NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-005KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-005NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-005KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-005NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2001A-007KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-007NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-007KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-007NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-007KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-007NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2001A-010KS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-010NS Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-010KP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-010NP Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-010KA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-010NA Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2002B-020KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-020NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-020KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-020NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-020KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-020NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-020KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-020NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-020KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-020NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-020KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-020NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-025KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-025NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-025KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-025NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-025KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-025NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-025KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-025NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-025KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-025NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-025KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-025NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-035KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-035NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-035KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-035NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-035KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-035NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-035KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-035NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-035KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-035NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-035KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-035NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-040KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-040NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-040KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-040NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-040KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-040NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-040KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-040NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-040KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-040NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-040KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-040NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-050KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-050NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-050KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-050NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-050KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-050NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-050KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-050NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-050KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-050NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-050KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-050NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-070KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-070NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-070KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-070NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-070KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-070NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-070KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-070NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-070KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-070NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-070KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-070NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-100KS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-100NS Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-100KP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-100NP Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-100KA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-100NA Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-100KS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-100NS Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-100KP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-100NP Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-100KA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-100NA Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0471A Frame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0641A Frame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0901A Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1101A Frame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1401A Frame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD2001A Frame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0642B Frame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0902B Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1102B Frame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1402B Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD2002B Frame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0472A Frame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0642A Frame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0902A Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1102A Frame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1402A Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD2002A Frame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
601 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HSD Inline Planetary Gearbox, Flange Output (047-200)

Brand LS Electric·Planetary Gearboxes

Available part numbers (601)

HSD0471A-004KS, HSD0471A-004NS, HSD0471A-004KP, HSD0471A-004NP, HSD0471A-005KS, HSD0471A-005NS, HSD0471A-005KP, HSD0471A-005NP, HSD0471A-007KS, HSD0471A-007NS + 591 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSD0471A-004KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-004NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-004KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-004NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0471A-005KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-005NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-005KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-005NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0471A-007KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-007NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-007KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-007NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0471A-010KSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0471A-010NSFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0471A-010KPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0471A-010NPFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0472A-020KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-020NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-020KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-020NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-025KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-025NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-025KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-025NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-035KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-035NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-035KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-035NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-040KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-040NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-040KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-040NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-050KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-050NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-050KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-050NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-070KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-070NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-070KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-070NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0472A-100KSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0472A-100NSFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0472A-100KPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0472A-100NPFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0641A-004KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-004NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-004KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-004NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-004KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-004NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0641A-005KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-005NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-005KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-005NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-005KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-005NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0641A-007KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-007NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-007KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-007NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-007KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-007NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0641A-010KSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0641A-010NSFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0641A-010KPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0641A-010NPFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0641A-010KAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0641A-010NAFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0642B-020KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-020NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-020KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-020NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-020KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-020NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-020KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-020NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-020KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-020NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-020KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-020NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-025KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-025NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-025KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-025NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-025KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-025NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-025KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-025NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-025KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-025NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-025KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-025NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-035KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-035NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-035KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-035NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-035KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-035NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-035KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-035NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-035KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-035NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-035KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-035NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-040KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-040NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-040KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-040NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-040KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-040NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-040KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-040NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-040KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-040NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-040KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-040NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-050KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-050NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-050KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-050NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-050KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-050NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-050KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-050NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-050KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-050NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-050KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-050NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-070KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-070NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-070KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-070NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-070KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-070NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-070KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-070NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-070KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-070NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-070KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-070NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642B-100KSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642B-100NSFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642B-100KPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642B-100NPFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642B-100KAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642B-100NAFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0642A-100KSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0642A-100NSFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0642A-100KPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0642A-100NPFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0642A-100KAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0642A-100NAFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0901A-004KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-004NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-004KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-004NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-004KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-004NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0901A-005KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-005NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-005KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-005NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-005KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-005NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0901A-007KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-007NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-007KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-007NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-007KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-007NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0901A-010KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD0901A-010NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD0901A-010KPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD0901A-010NPFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD0901A-010KAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD0901A-010NAFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD0902B-020KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-020NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-020KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-020NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-020KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-020NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-020KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-020NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-020KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-020NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-020KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-020NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-025KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-025NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-025KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-025NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-025KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-025NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-025KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-025NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-025KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-025NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-025KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-025NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-035KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-035NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-035KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-035NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-035KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-035NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-035KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-035NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-035KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-035NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-035KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-035NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-040KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-040NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-040KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-040NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-040KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-040NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-040KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-040NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-040KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-040NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-040KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-040NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-050KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-050NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-050KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-050NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-050KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-050NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-050KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-050NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-050KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-050NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-050KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-050NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-070KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-070NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-070KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-070NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-070KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-070NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-070KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-070NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-070KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-070NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-070KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-070NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902B-100KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902B-100NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902B-100KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902B-100NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902B-100KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902B-100NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0902A-100KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD0902A-100NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD0902A-100KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD0902A-100NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD0902A-100KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD0902A-100NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1101A-004KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-004NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-004KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-004NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-004KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-004NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1101A-005KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-005NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-005KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-005NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-005KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-005NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1101A-007KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-007NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-007KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-007NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-007KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-007NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1101A-010KSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1101A-010NSFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1101A-010KPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1101A-010NPFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1101A-010KAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1101A-010NAFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1102B-020KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-020NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-020KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-020NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-020KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-020NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-020KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-020NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-020KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-020NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-020KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-020NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-025KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-025NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-025KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-025NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-025KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-025NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-025KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-025NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-025KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-025NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-025KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-025NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-035KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-035NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-035KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-035NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-035KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-035NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-035KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-035NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-035KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-035NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-035KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-035NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-040KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-040NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-040KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-040NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-040KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-040NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-040KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-040NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-040KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-040NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-040KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-040NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-050KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-050NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-050KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-050NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-050KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-050NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-050KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-050NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-050KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-050NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-050KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-050NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-070KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-070NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-070KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-070NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-070KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-070NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-070KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-070NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-070KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-070NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-070KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-070NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102B-100KSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102B-100NSFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102B-100KPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102B-100NPFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102B-100KAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102B-100NAFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1102A-100KSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1102A-100NSFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1102A-100KPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1102A-100NPFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1102A-100KAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1102A-100NAFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1401A-004KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-004NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-004KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-004NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-004KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-004NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1401A-005KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-005NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-005KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-005NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-005KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-005NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1401A-007KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-007NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-007KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-007NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-007KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-007NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1401A-010KSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD1401A-010NSFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD1401A-010KPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD1401A-010NPFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD1401A-010KAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD1401A-010NAFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD1402B-020KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-020NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-020KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-020NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-020KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-020NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-020KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-020NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-020KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-020NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-020KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-020NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-025KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-025NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-025KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-025NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-025KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-025NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-025KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-025NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-025KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-025NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-025KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-025NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-035KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-035NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-035KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-035NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-035KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-035NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-035KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-035NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-035KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-035NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-035KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-035NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-040KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-040NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-040KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-040NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-040KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-040NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-040KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-040NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-040KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-040NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-040KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-040NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-050KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-050NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-050KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-050NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-050KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-050NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-050KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-050NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-050KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-050NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-050KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-050NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-070KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-070NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-070KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-070NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-070KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-070NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-070KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-070NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-070KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-070NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-070KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-070NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402B-100KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402B-100NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402B-100KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402B-100NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402B-100KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402B-100NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD1402A-100KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD1402A-100NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD1402A-100KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD1402A-100NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD1402A-100KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD1402A-100NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2001A-004KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-004NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-004KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-004NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-004KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-004NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2001A-005KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-005NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-005KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-005NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-005KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-005NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2001A-007KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-007NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-007KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-007NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-007KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-007NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2001A-010KSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
HSD2001A-010NSFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
HSD2001A-010KPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 5 arcmin)
HSD2001A-010NPFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 5 arcmin)
HSD2001A-010KAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 3 arcmin)
HSD2001A-010NAFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 3 arcmin)
HSD2002B-020KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-020NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-020KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-020NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-020KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-020NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-020KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-020NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-020KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-020NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-020KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-020NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-025KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-025NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-025KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-025NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-025KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-025NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-025KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-025NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-025KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-025NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-025KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-025NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-035KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-035NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-035KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-035NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-035KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-035NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-035KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-035NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-035KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-035NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-035KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-035NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-040KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-040NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-040KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-040NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-040KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-040NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-040KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-040NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-040KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-040NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-040KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-040NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-050KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-050NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-050KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-050NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-050KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-050NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-050KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-050NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-050KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-050NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-050KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-050NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-070KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-070NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-070KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-070NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-070KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-070NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-070KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-070NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-070KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-070NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-070KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-070NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002B-100KSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002B-100NSFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002B-100KPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002B-100NPFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002B-100KAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002B-100NAFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD2002A-100KSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSD2002A-100NSFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSD2002A-100KPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSD2002A-100NPFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSD2002A-100KAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSD2002A-100NAFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSD0471AFrame: 047 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0641AFrame: 064 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0901AFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1101AFrame: 110 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1401AFrame: 140 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD2001AFrame: 200 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0642BFrame: 064 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0902BFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1102BFrame: 110 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1402BFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD2002BFrame: 200 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0472AFrame: 047 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0642AFrame: 064 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD0902AFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1102AFrame: 110 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD1402AFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSD2002AFrame: 200 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
