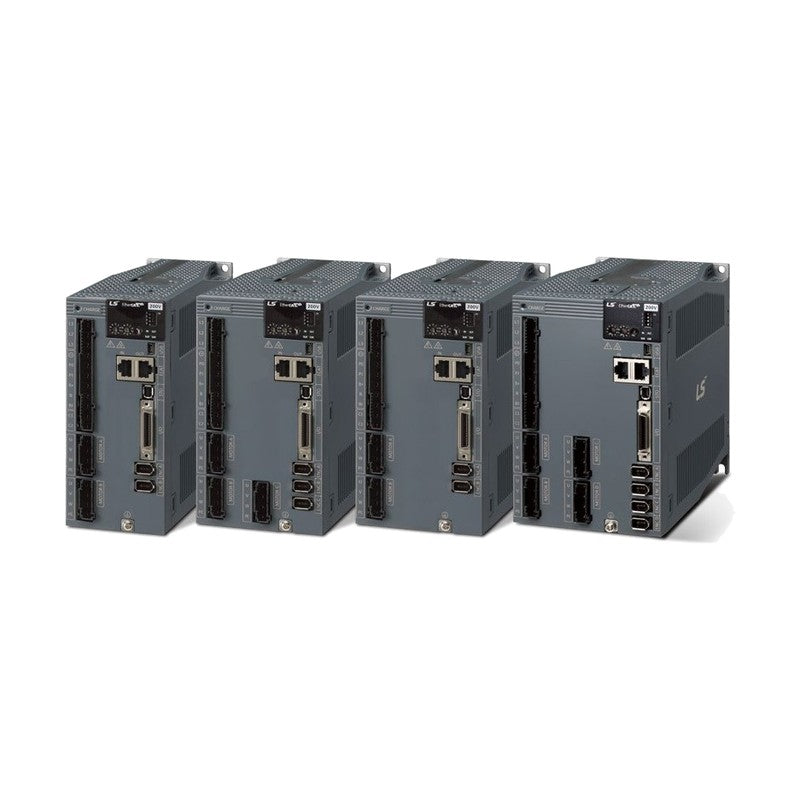

LS Electric Xmotion iX7M Multi-Axis EtherCAT Servo Drives (200V)

LS Electric Xmotion iX7M Multi-Axis EtherCAT Servo Drives (200V)

LS Electric (LS Mecapion) Xmotion iX7M multi-axis EtherCAT servo drives controlling 2, 3 or 4 servo axes from one 200 V unit, 200 W to 1 kW per axis.

Key features

  • One drive controls up to 4 axes, about 31% less panel area than single-axis drives
  • EtherCAT CoE (CiA 402), FoE firmware download and EoE parameter access; minimum DC cycle 125 us
  • One-parameter auto-tuning, vibration suppression, FRF analysis and adaptive filter
  • Predictive maintenance data, encoder temperature monitoring and alarm trace with time stamp
  • Modbus TCP support, USB OTG parameter backup/restore and alarm history backup
  • STO safety (STO1, STO2 inputs, EDM output); 750 W and above available as 2-axis only

Specifications

Main power 3-phase AC 200-240 V (-15 to +10%), 50/60 Hz
Control power 1-phase AC 200-240 V (-15 to +10%), 50/60 Hz
Overload 350%
Encoder BiSS-C (absolute, incremental)
Digital I/O 3 inputs per axis + 1 common; 2 outputs per axis + 2 common
Encoder pulse output Differential AO, BO (2-axis models only), up to 6.5 Mpps
CiA 402 modes PP, PV, PT, CSP, CSV, CST, Homing
Code format iX7M-A-(axis1..4 capacity)-B; 2=200 W, 4=400 W, 8=750 W, A=1 kW, X=no axis
Source LS Mecapion iX7M multi-axis servo drive catalog (2021.08), p. 2-3
iX7M-A-22XXB Axes: 2 axes | Capacity per axis: 200 W | Frame and size: Frame-3, 70 x 198 x 174 mm | Rated max current per axis: 1.7 / 5.95 A
iX7M-A-44XXB Axes: 2 axes | Capacity per axis: 400 W | Frame and size: Frame-3, 70 x 198 x 174 mm | Rated max current per axis: 3.0 / 10.5 A
iX7M-A-88XXB Axes: 2 axes | Capacity per axis: 750 W | Frame and size: Frame-2, 90 x 198 x 174 mm | Rated max current per axis: 5.2 / 18.2 A
iX7M-A-AAXXB Axes: 2 axes | Capacity per axis: 1 kW | Frame and size: Frame-2, 90 x 198 x 174 mm | Rated max current per axis: 6.75 / 23.6 A
iX7M-A-222XB Axes: 3 axes | Capacity per axis: 200 W | Frame and size: Frame-2, 90 x 198 x 174 mm | Rated max current per axis: 1.7 / 5.95 A
iX7M-A-444XB Axes: 3 axes | Capacity per axis: 400 W | Frame and size: Frame-2, 90 x 198 x 174 mm | Rated max current per axis: 3.0 / 10.5 A
iX7M-A-2222B Axes: 4 axes | Capacity per axis: 200 W | Frame and size: Frame-1, 110 x 198 x 174 mm | Rated max current per axis: 1.7 / 5.95 A
iX7M-A-4444B Axes: 4 axes | Capacity per axis: 400 W | Frame and size: Frame-1, 110 x 198 x 174 mm | Rated max current per axis: 3.0 / 10.5 A
