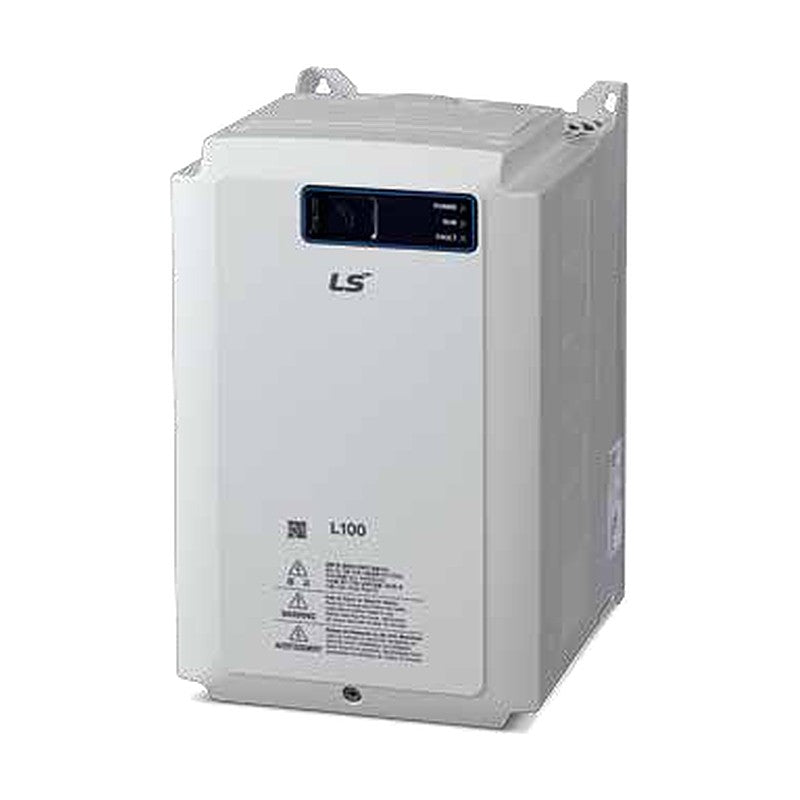

LS Electric L100 Lift (Elevator) AC Drive (400V Class, 5.5-22 kW)

LS Electric L100 Lift (Elevator) AC Drive (400V Class, 5.5-22 kW)

LS Electric LSLV-L100 dedicated lift and elevator AC drives, 5.5 to 22 kW in the 3-phase 380-480 V class, for geared induction and gearless synchronous machines.

Key features

  • Elevator-specific control modes, brake control, load balance and zero-speed control
  • Induction motor 0-3600 rpm; synchronous (gearless) motor 0-680 rpm with HEIDENHAIN encoder
  • Incremental, Sin/Cos and EnDat 2.2 encoder options (ECN413, ECN1313, ERN487, ERN1387)
  • Elevator I/O (ELIO) option board with 8 isolated open-collector and 2 relay outputs
  • Emergency operation with auxiliary (battery) power supply
  • Built-in EMC filter; LCD keypad option via front slide-door connector

Specifications

Series LSLV-L100
Input voltage 3-ph 380-480 V (-10% to +10%)
Input frequency 50-60 Hz (+/-5%)
Output voltage 0-380 V (480 V input)
Keypad None (N), LCD keypad option
UL rating Non-UL (N)
EMC filter Built-in (F)
DC reactor None (N)
Source LS Electric AC Drive L100 Catalog KR 2021-03, p. 11-12
LSLV0055L100-4NNFN Motor rating: 5.5 kW | Motor HP: 7.5 HP | Rated capacity: 9.1 kVA | Rated current: 12 A
LSLV0075L100-4NNFN Motor rating: 7.5 kW | Motor HP: 10 HP | Rated capacity: 12.2 kVA | Rated current: 16 A
LSLV0110L100-4NNFN Motor rating: 11 kW | Motor HP: 15 HP | Rated capacity: 18.3 kVA | Rated current: 24 A
LSLV0150L100-4NNFN Motor rating: 15 kW | Motor HP: 20 HP | Rated capacity: 22.9 kVA | Rated current: 30 A
LSLV0185L100-4NNFN Motor rating: 18.5 kW | Motor HP: 25 HP | Rated capacity: 29.7 kVA | Rated current: 39 A
LSLV0220L100-4NNFN Motor rating: 22 kW | Motor HP: 30 HP | Rated capacity: 34.3 kVA | Rated current: 45 A
AC DrivesLS Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric L100 Lift (Elevator) AC Drive (400V Class, 5.5-22 kW)

Brand LS Electric·AC Drives

Available part numbers (6)

LSLV0055L100-4NNFN, LSLV0075L100-4NNFN, LSLV0110L100-4NNFN, LSLV0150L100-4NNFN, LSLV0185L100-4NNFN, LSLV0220L100-4NNFN

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSLV0055L100-4NNFNMotor rating: 5.5 kW | Motor HP: 7.5 HP | Rated capacity: 9.1 kVA | Rated current: 12 A
LSLV0075L100-4NNFNMotor rating: 7.5 kW | Motor HP: 10 HP | Rated capacity: 12.2 kVA | Rated current: 16 A
LSLV0110L100-4NNFNMotor rating: 11 kW | Motor HP: 15 HP | Rated capacity: 18.3 kVA | Rated current: 24 A
LSLV0150L100-4NNFNMotor rating: 15 kW | Motor HP: 20 HP | Rated capacity: 22.9 kVA | Rated current: 30 A
LSLV0185L100-4NNFNMotor rating: 18.5 kW | Motor HP: 25 HP | Rated capacity: 29.7 kVA | Rated current: 39 A
LSLV0220L100-4NNFNMotor rating: 22 kW | Motor HP: 30 HP | Rated capacity: 34.3 kVA | Rated current: 45 A
