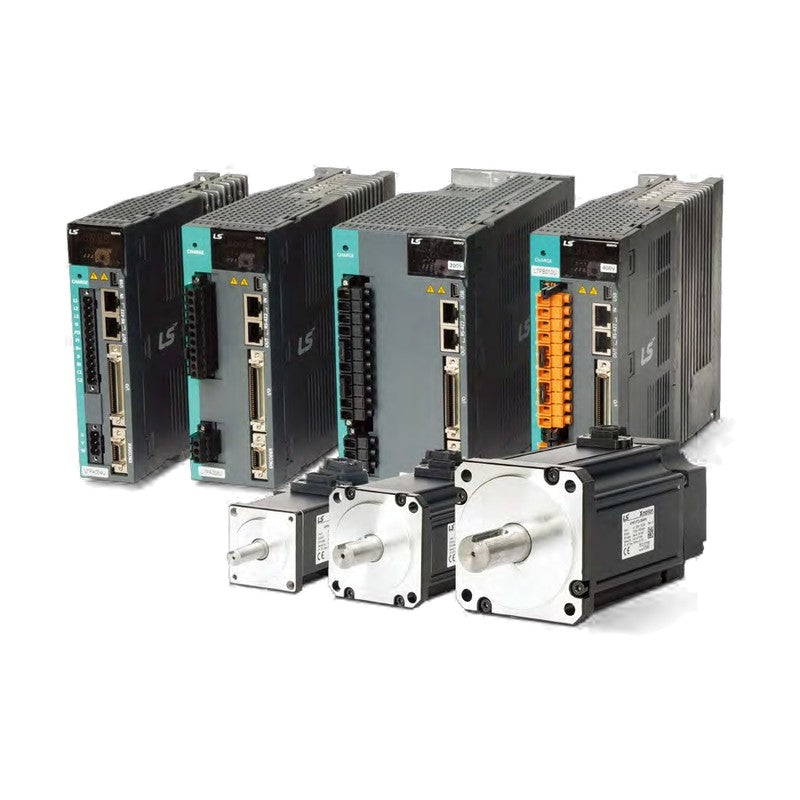

LS Electric Xmotion L7P Indexer Servo Drives (200V/400V, 0.1-15 kW)

LS Electric Xmotion L7P Indexer Servo Drives (200V/400V, 0.1-15 kW)

LS Electric Xmotion L7P servo drives with pulse-train input and a built-in indexer for stand-alone positioning, 200 V class 100 W to 15 kW and 400 V class 1 kW to 15 kW.

Key features

  • Built-in indexer: positioning through I/O or HMI without a separate positioning module
  • Pulse input position control: 1 Mpps line driver / 200 kpps open collector
  • RS-422 Modbus RTU (9,600-57,600 bps, RJ45 x 2, built-in 120 ohm termination)
  • 16 assignable digital inputs (33 functions) and 8 outputs (19 functions); 2 analog inputs and outputs
  • Universal encoder interface for rotary, DD and third-party linear motors
  • Built-in dynamic brake and regenerative resistor (except 15 kW); USB 2.0 / OTG

Specifications

Control power 1ph AC 200-230 V (A) / 380-480 V (B), 50-60 Hz
Encoder Quadrature, BiSS-B/C, Tamagawa, Panasonic, EnDat 2.2, sin/cos, analog hall
Pulse input Sign + pulse, CW + CCW, A/B phase
Acceleration Linear or S-curve, 0-10,000 ms
Speed control range 1:5000
Operating temperature 0 to 50 C
Code format L7 P A/B (capacity) U; option suffix AA = dedicated option
Source LS Electric Xmotion Servo System catalog (2024.09), p. 60-67
L7PA001U Capacity: 100 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 1.4 Arms | Peak current: 4.2 Arms | Weight: 1.0 kg
L7PA002U Capacity: 200 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 1.7 Arms | Peak current: 5.1 Arms | Weight: 1.0 kg
L7PA004U Capacity: 400 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 3.0 Arms | Peak current: 9.0 Arms | Weight: 1.0 kg
L7PA008U Capacity: 750 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 5.2 Arms | Peak current: 15.6 Arms | Weight: 1.5 kg
L7PA010U Capacity: 1 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 6.8 Arms | Peak current: 20.3 Arms | Weight: 1.5 kg
L7PA020U Capacity: 2 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 13.5 Arms | Peak current: 40.5 Arms | Weight: 2.5 kg
L7PA035U Capacity: 3.5 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 16.7 Arms | Peak current: 50.1 Arms | Weight: 2.5 kg
L7PA050U Capacity: 5 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 32.0 Arms | Peak current: 90.9 Arms | Weight: 5.5 kg
L7PA075U Capacity: 7.5 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 39.4 Arms | Peak current: 98.5 Arms | Weight: 8.5 kg
L7PA150U Capacity: 15 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 76.0 Arms | Peak current: 190.0 Arms | Weight: 16.2 kg
L7PB010U Capacity: 1 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 3.7 Arms | Peak current: 11.1 Arms | Weight: 1.5 kg
L7PB020U Capacity: 2 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 8.0 Arms | Peak current: 24.0 Arms | Weight: 2.5 kg
L7PB035U Capacity: 3.5 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 10.1 Arms | Peak current: 30.3 Arms | Weight: 2.5 kg
L7PB050U Capacity: 5 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 17.5 Arms | Peak current: 47.3 Arms | Weight: 5.5 kg
L7PB075U Capacity: 7.5 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 22.8 Arms | Peak current: 57.0 Arms | Weight: 8.5 kg
L7PB150U Capacity: 15 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 39.0 Arms | Peak current: 97.5 Arms | Weight: 15.5 kg
Servo DrivesLS Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Xmotion L7P Indexer Servo Drives (200V/400V, 0.1-15 kW)

Brand LS Electric·Servo Drives

Available part numbers (16)

L7PA001U, L7PA002U, L7PA004U, L7PA008U, L7PA010U, L7PA020U, L7PA035U, L7PA050U, L7PA075U, L7PA150U + 6 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
L7PA001UCapacity: 100 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 1.4 Arms | Peak current: 4.2 Arms | Weight: 1.0 kg
L7PA002UCapacity: 200 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 1.7 Arms | Peak current: 5.1 Arms | Weight: 1.0 kg
L7PA004UCapacity: 400 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 3.0 Arms | Peak current: 9.0 Arms | Weight: 1.0 kg
L7PA008UCapacity: 750 W | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 5.2 Arms | Peak current: 15.6 Arms | Weight: 1.5 kg
L7PA010UCapacity: 1 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 6.8 Arms | Peak current: 20.3 Arms | Weight: 1.5 kg
L7PA020UCapacity: 2 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 13.5 Arms | Peak current: 40.5 Arms | Weight: 2.5 kg
L7PA035UCapacity: 3.5 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 16.7 Arms | Peak current: 50.1 Arms | Weight: 2.5 kg
L7PA050UCapacity: 5 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 32.0 Arms | Peak current: 90.9 Arms | Weight: 5.5 kg
L7PA075UCapacity: 7.5 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 39.4 Arms | Peak current: 98.5 Arms | Weight: 8.5 kg
L7PA150UCapacity: 15 kW | Voltage class: 200 V (3ph AC 200-230 V) | Rated current: 76.0 Arms | Peak current: 190.0 Arms | Weight: 16.2 kg
L7PB010UCapacity: 1 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 3.7 Arms | Peak current: 11.1 Arms | Weight: 1.5 kg
L7PB020UCapacity: 2 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 8.0 Arms | Peak current: 24.0 Arms | Weight: 2.5 kg
L7PB035UCapacity: 3.5 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 10.1 Arms | Peak current: 30.3 Arms | Weight: 2.5 kg
L7PB050UCapacity: 5 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 17.5 Arms | Peak current: 47.3 Arms | Weight: 5.5 kg
L7PB075UCapacity: 7.5 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 22.8 Arms | Peak current: 57.0 Arms | Weight: 8.5 kg
L7PB150UCapacity: 15 kW | Voltage class: 400 V (3ph AC 380-480 V) | Rated current: 39.0 Arms | Peak current: 97.5 Arms | Weight: 15.5 kg
