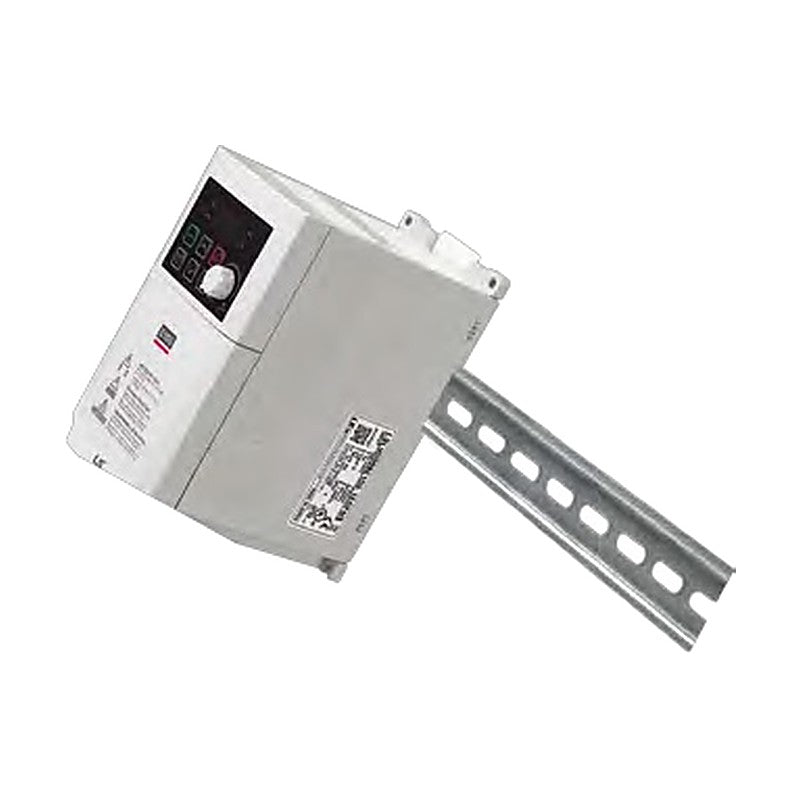

LS Electric M100 Micro AC Drive (0.1-2.2 kW, Single-Phase 200V)

LS Electric M100 Micro AC Drive (0.1-2.2 kW, Single-Phase 200V)

LS Electric LSLV-M100 micro AC drives, 0.1 to 2.2 kW, single-phase 200-240 V input, 3-phase output, with built-in C2 EMC filter and standard or advanced I/O.

Key features

  • Built-in C2 class EMC filter as standard
  • Built-in braking unit from 1.5 kW
  • Advanced I/O version adds RS-485 communication and extra inputs/relay
  • DIN rail and side-by-side mounting; RJ45 port for remote keypad, smart copier and DriveView
  • Complies with UL 61800-5-1

Specifications

Series LSLV-M100
Keypad LED keypad (E)
UL rating UL Open, IP20 (O)
EMC filter Built-in C2 (F)
Reactor None (N)
Output 3-ph 200-240 V, 0-400 Hz
Input frequency 50-60 Hz (+/-5%)
Ambient temperature -10 to 50 C
Source LS Electric M100 Leaflet KR 2024-02, p. 1-2
LSLV0001M100-1EOFNS Motor rating: 0.1 kW | Rated current: 0.8 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0001M100-1EOFNA Motor rating: 0.1 kW | Rated current: 0.8 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0002M100-1EOFNS Motor rating: 0.2 kW | Rated current: 1.4 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0002M100-1EOFNA Motor rating: 0.2 kW | Rated current: 1.4 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0004M100-1EOFNS Motor rating: 0.4 kW | Rated current: 2.4 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0004M100-1EOFNA Motor rating: 0.4 kW | Rated current: 2.4 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0008M100-1EOFNS Motor rating: 0.75 kW | Rated current: 4.2 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0008M100-1EOFNA Motor rating: 0.75 kW | Rated current: 4.2 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0015M100-1EOFNS Motor rating: 1.5 kW | Rated current: 7.5 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0015M100-1EOFNA Motor rating: 1.5 kW | Rated current: 7.5 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0022M100-1EOFNS Motor rating: 2.2 kW | Rated current: 11 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0022M100-1EOFNA Motor rating: 2.2 kW | Rated current: 11 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0002M100-SEONNA Motor rating: 0.2 kW | Rated current: Not listed (legacy) | Input: Legacy NA code (S) | I/O: Advanced I/O (A)
LSLV0004M100-SEONNA Motor rating: 0.4 kW | Rated current: Not listed (legacy) | Input: Legacy NA code (S) | I/O: Advanced I/O (A)
LSLV0008M100-SEONNA Motor rating: 0.75 kW | Rated current: Not listed (legacy) | Input: Legacy NA code (S) | I/O: Advanced I/O (A)
AC DrivesLS Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric M100 Micro AC Drive (0.1-2.2 kW, Single-Phase 200V)

Brand LS Electric·AC Drives

Available part numbers (15)

LSLV0001M100-1EOFNS, LSLV0001M100-1EOFNA, LSLV0002M100-1EOFNS, LSLV0002M100-1EOFNA, LSLV0004M100-1EOFNS, LSLV0004M100-1EOFNA, LSLV0008M100-1EOFNS, LSLV0008M100-1EOFNA, LSLV0015M100-1EOFNS, LSLV0015M100-1EOFNA + 5 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSLV0001M100-1EOFNSMotor rating: 0.1 kW | Rated current: 0.8 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0001M100-1EOFNAMotor rating: 0.1 kW | Rated current: 0.8 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0002M100-1EOFNSMotor rating: 0.2 kW | Rated current: 1.4 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0002M100-1EOFNAMotor rating: 0.2 kW | Rated current: 1.4 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0004M100-1EOFNSMotor rating: 0.4 kW | Rated current: 2.4 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0004M100-1EOFNAMotor rating: 0.4 kW | Rated current: 2.4 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0008M100-1EOFNSMotor rating: 0.75 kW | Rated current: 4.2 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0008M100-1EOFNAMotor rating: 0.75 kW | Rated current: 4.2 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0015M100-1EOFNSMotor rating: 1.5 kW | Rated current: 7.5 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0015M100-1EOFNAMotor rating: 1.5 kW | Rated current: 7.5 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0022M100-1EOFNSMotor rating: 2.2 kW | Rated current: 11 A | Input: 1-ph 200-240 V | I/O: Standard I/O (S)
LSLV0022M100-1EOFNAMotor rating: 2.2 kW | Rated current: 11 A | Input: 1-ph 200-240 V | I/O: Advanced I/O (A)
LSLV0002M100-SEONNAMotor rating: 0.2 kW | Rated current: Not listed (legacy) | Input: Legacy NA code (S) | I/O: Advanced I/O (A)
LSLV0004M100-SEONNAMotor rating: 0.4 kW | Rated current: Not listed (legacy) | Input: Legacy NA code (S) | I/O: Advanced I/O (A)
LSLV0008M100-SEONNAMotor rating: 0.75 kW | Rated current: Not listed (legacy) | Input: Legacy NA code (S) | I/O: Advanced I/O (A)
