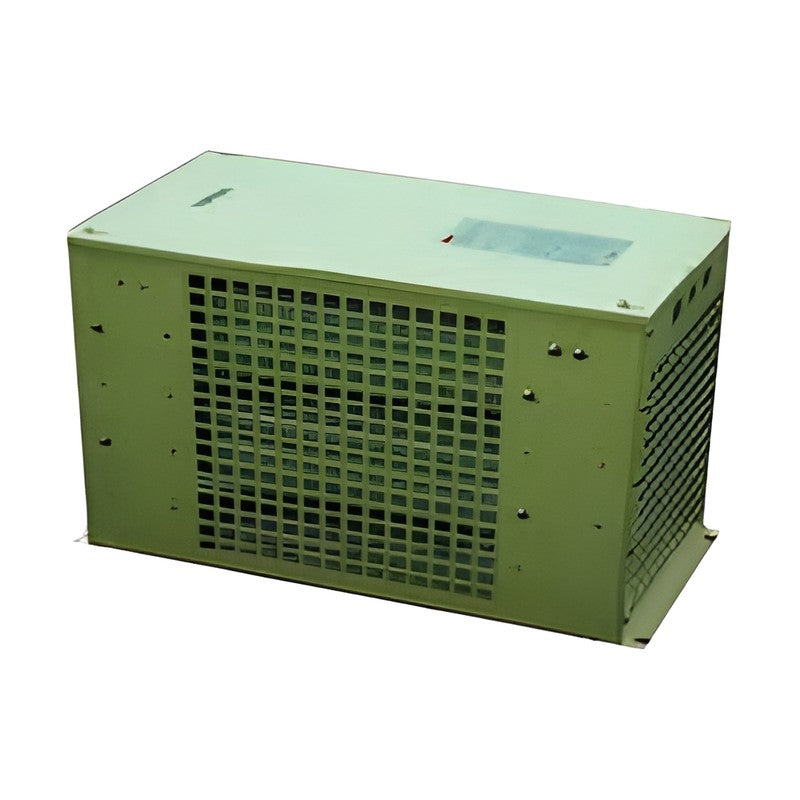

LS Electric MCRF-ST Dynamic Braking Resistor Sets (IP00)

LS Electric MCRF-ST set-type dynamic braking resistor assemblies (IP00, 1.2-60 kW) with built-in thermostat for 200V and 400V class AC drives and DB units.

Key features

Open-frame (IP00) resistor banks from 1.2 kW to 60 kW
Built-in thermostat sensor, B (NC) contact
Resistance 1.2-60 ohm range for 11-220 kW drives with external DB units, and 15-60 ohm sets for built-in IGBT drives
Sized for 100% or 150% braking torque at 5% or 10% ED
Cabinet sizes 550 x 503 mm footprint family, heights 126-602 mm
Each resistance/wattage combination has its own LS ERP order code

Specifications

Type	Set (resistor bank)
Protection degree	IP00
Resistor wattage range	1.2-60 kW
Built-in thermostat	B contact
Insulation resistance	Over 100 Mohm
Dielectric strength	AC 2,500 V for 1 min
Temperature coefficient	+/-260 ppm/C max
Temperature range	-55 to 200 C
Manufacturer	Fullohm for LS Electric
Source	LS Electric Dynamic Braking Resistor Leaflet KO 2021.10, p. 1-2

64090172		Model: MCRF-ST 1.2kW \| Rated power: 1.2 kW \| Resistance: 60 ohm
64090184		Model: MCRF-ST 1.2kW \| Rated power: 1.2 kW \| Resistance: 15 ohm
64090177		Model: MCRF-ST 1.6kW \| Rated power: 1.6 kW \| Resistance: 33.9 ohm
64090173		Model: MCRF-ST 2kW \| Rated power: 2 kW \| Resistance: 45 ohm
64090174		Model: MCRF-ST 2kW \| Rated power: 2 kW \| Resistance: 40 ohm
64090193		Model: MCRF-ST 2kW \| Rated power: 2 kW \| Resistance: 8.5 ohm
64090176		Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 35 ohm
64090178		Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 30 ohm
64090180		Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 22.8 ohm
64090189		Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 10 ohm
64090197		Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 8 ohm
64090201		Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 5.7 ohm
64090183		Model: MCRF-ST 3.2kW \| Rated power: 3.2 kW \| Resistance: 16.9 ohm
64090206		Model: MCRF-ST 3.2kW \| Rated power: 3.2 kW \| Resistance: 4.2 ohm
64090181		Model: MCRF-ST 3.6kW \| Rated power: 3.6 kW \| Resistance: 20 ohm
64090202		Model: MCRF-ST 3.6kW \| Rated power: 3.6 kW \| Resistance: 5 ohm
6409017500		Model: MCRF-ST 4kW \| Rated power: 4 kW \| Resistance: 40 ohm
6409017900		Model: MCRF-ST 4.8kW \| Rated power: 4.8 kW \| Resistance: 30 ohm
64090188		Model: MCRF-ST 4.8kW \| Rated power: 4.8 kW \| Resistance: 11.4 ohm
6409019000		Model: MCRF-ST 4.8kW \| Rated power: 4.8 kW \| Resistance: 10 ohm
6409019800		Model: MCRF-ST 4.8kW \| Rated power: 4.8 kW \| Resistance: 8 ohm
64090213		Model: MCRF-ST 4.8kW \| Rated power: 4.8 kW \| Resistance: 2.8 ohm
64090186		Model: MCRF-ST 5kW \| Rated power: 5 kW \| Resistance: 12 ohm
64090211		Model: MCRF-ST 5kW \| Rated power: 5 kW \| Resistance: 3 ohm
64090216		Model: MCRF-ST 6kW \| Rated power: 6 kW \| Resistance: 2.4 ohm
64090191		Model: MCRF-ST 6.4kW \| Rated power: 6.4 kW \| Resistance: 10 ohm
64090194		Model: MCRF-ST 6.4kW \| Rated power: 6.4 kW \| Resistance: 8.4 ohm
6409018200		Model: MCRF-ST 7.2kW \| Rated power: 7.2 kW \| Resistance: 20 ohm
64090195		Model: MCRF-ST 7.2kW \| Rated power: 7.2 kW \| Resistance: 8.4 ohm
6409020300		Model: MCRF-ST 7.2kW \| Rated power: 7.2 kW \| Resistance: 5 ohm
64090220		Model: MCRF-ST 7.5kW \| Rated power: 7.5 kW \| Resistance: 2 ohm
6409018700		Model: MCRF-ST 10kW \| Rated power: 10 kW \| Resistance: 12 ohm
64090199		Model: MCRF-ST 10kW \| Rated power: 10 kW \| Resistance: 6 ohm
6409021200		Model: MCRF-ST 10kW \| Rated power: 10 kW \| Resistance: 3 ohm
64090224		Model: MCRF-ST 10kW \| Rated power: 10 kW \| Resistance: 1.5 ohm
6409021700		Model: MCRF-ST 12kW \| Rated power: 12 kW \| Resistance: 2.4 ohm
6409022100		Model: MCRF-ST 12kW \| Rated power: 12 kW \| Resistance: 2 ohm
6409019200		Model: MCRF-ST 12.8kW \| Rated power: 12.8 kW \| Resistance: 10 ohm
64090204		Model: MCRF-ST 13kW \| Rated power: 13 kW \| Resistance: 5 ohm
64090226		Model: MCRF-ST 13kW \| Rated power: 13 kW \| Resistance: 1.2 ohm
6409019600		Model: MCRF-ST 14.4kW \| Rated power: 14.4 kW \| Resistance: 8.4 ohm
64090207		Model: MCRF-ST 16kW \| Rated power: 16 kW \| Resistance: 4 ohm
6409020000		Model: MCRF-ST 20kW \| Rated power: 20 kW \| Resistance: 6 ohm
64090209		Model: MCRF-ST 20kW \| Rated power: 20 kW \| Resistance: 3.4 ohm
6409022500		Model: MCRF-ST 20kW \| Rated power: 20 kW \| Resistance: 1.5 ohm
64090214		Model: MCRF-ST 24kW \| Rated power: 24 kW \| Resistance: 2.8 ohm
6409020500		Model: MCRF-ST 26kW \| Rated power: 26 kW \| Resistance: 5 ohm
64090218		Model: MCRF-ST 26kW \| Rated power: 26 kW \| Resistance: 2.4 ohm
6409022700		Model: MCRF-ST 26kW \| Rated power: 26 kW \| Resistance: 1.2 ohm
64090222		Model: MCRF-ST 30kW \| Rated power: 30 kW \| Resistance: 2 ohm
6409020800		Model: MCRF-ST 32kW \| Rated power: 32 kW \| Resistance: 4 ohm
6409021000		Model: MCRF-ST 40kW \| Rated power: 40 kW \| Resistance: 3.4 ohm
6409021500		Model: MCRF-ST 48kW \| Rated power: 48 kW \| Resistance: 2.8 ohm
6409021900		Model: MCRF-ST 52kW \| Rated power: 52 kW \| Resistance: 2.4 ohm
6409022300		Model: MCRF-ST 60kW \| Rated power: 60 kW \| Resistance: 2 ohm
MCRF-ST2400W10		Legacy code; current ERP code 64090189 \| Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 10 ohm
MCRF-ST2400W8		Legacy code; current ERP code 64090197 \| Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 8 ohm
MCRF-ST3600W5		Legacy code; current ERP code 64090202 \| Model: MCRF-ST 3.6kW \| Rated power: 3.6 kW \| Resistance: 5 ohm
MCRF-ST2000W40		Legacy code; current ERP code 64090174 \| Model: MCRF-ST 2kW \| Rated power: 2 kW \| Resistance: 40 ohm
MCRF-ST2400W30		Legacy code; current ERP code 64090178 \| Model: MCRF-ST 2.4kW \| Rated power: 2.4 kW \| Resistance: 30 ohm
MCRF-ST3600W20		Legacy code; current ERP code 64090181 \| Model: MCRF-ST 3.6kW \| Rated power: 3.6 kW \| Resistance: 20 ohm
