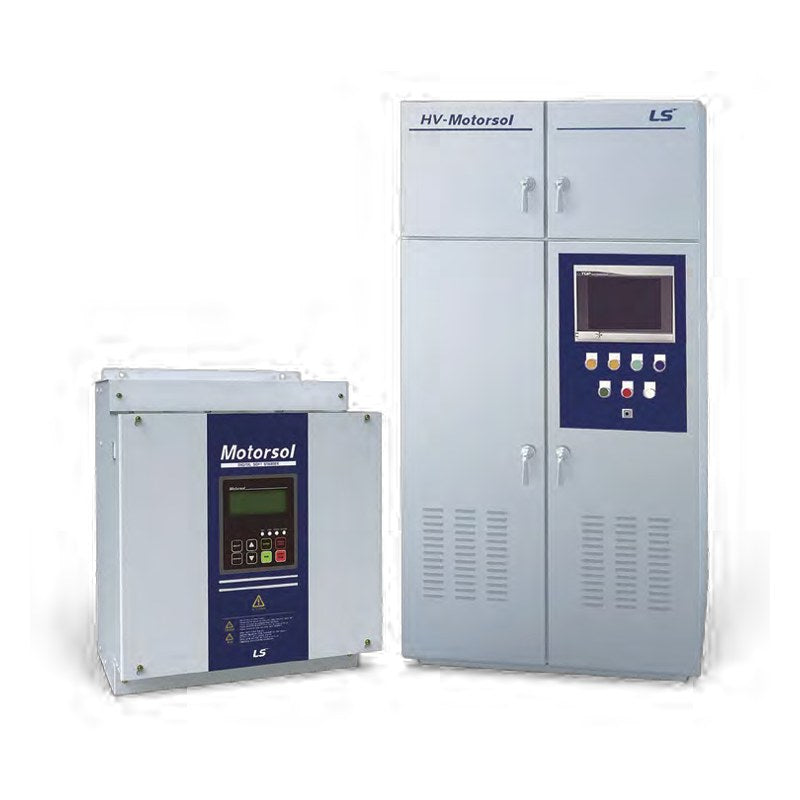

LS Electric Motorsol LSFS Low Voltage Soft Starter (2.2-600 kW)

LS Electric Motorsol LSFS Low Voltage Soft Starter (2.2-600 kW)

LS Electric Motorsol LSFS thyristor soft starters for 220/380/440 V induction motors from 2.2 kW to 600 kW, in one-way or built-in bypass versions.

Key features

  • One-way (S) up to 600 kW or by-pass type (BPS, built-in MC) up to 300 kW
  • Soft, kick, slow and current-limit start; soft and slow stop
  • Protection: overcurrent, undercurrent, phase loss, unbalance, ground fault (ZCT), overheating
  • 4 x 20 LCD display unit, detachable for door mounting; RS-485 communication option
  • 3-phase voltage and current monitoring with fault indication

Specifications

Supply voltage 220 / 380 / 440 V AC
Frequency 50/60 Hz (60 Hz standard)
Control voltage 110 or 220 V AC (specify at order)
Ambient temperature -10 to 50 C
Humidity 90% RH max., non-condensing
Cooling Heat sink natural or fan forced
Insulation resistance 1000 V, 5 Mohm min.
Standards EN 61131-2, EN 50178
Ordering options Communication, display mount, cable length
Source LS Electric Motorsol Soft Starter catalog C01581-07 (2018-03), p. 6, 8-11
LSFS2002S Supply voltage: 220 V | Motor rating: 2.2 kW | Rated current: 9 A | Type: One-way (no bypass)
LSFS2003S Supply voltage: 220 V | Motor rating: 3.7 kW | Rated current: 15 A | Type: One-way (no bypass)
LSFS2005S Supply voltage: 220 V | Motor rating: 5.5 kW | Rated current: 22 A | Type: One-way (no bypass)
LSFS2007S Supply voltage: 220 V | Motor rating: 7.5 kW | Rated current: 30 A | Type: One-way (no bypass)
LSFS2011S Supply voltage: 220 V | Motor rating: 11 kW | Rated current: 45 A | Type: One-way (no bypass)
LSFS2015S Supply voltage: 220 V | Motor rating: 15 kW | Rated current: 60 A | Type: One-way (no bypass)
LSFS2022S Supply voltage: 220 V | Motor rating: 22 kW | Rated current: 88 A | Type: One-way (no bypass)
LSFS2030S Supply voltage: 220 V | Motor rating: 30 kW | Rated current: 120 A | Type: One-way (no bypass)
LSFS2037S Supply voltage: 220 V | Motor rating: 37 kW | Rated current: 150 A | Type: One-way (no bypass)
LSFS2056S Supply voltage: 220 V | Motor rating: 56 kW | Rated current: 225 A | Type: One-way (no bypass)
LSFS2075S Supply voltage: 220 V | Motor rating: 75 kW | Rated current: 300 A | Type: One-way (no bypass)
LSFS2098S Supply voltage: 220 V | Motor rating: 98 kW | Rated current: 390 A | Type: One-way (no bypass)
LSFS2112S Supply voltage: 220 V | Motor rating: 112 kW | Rated current: 450 A | Type: One-way (no bypass)
LSFS2150S Supply voltage: 220 V | Motor rating: 150 kW | Rated current: 600 A | Type: One-way (no bypass)
LSFS2187S Supply voltage: 220 V | Motor rating: 187 kW | Rated current: 740 A | Type: One-way (no bypass)
LSFS2225S Supply voltage: 220 V | Motor rating: 225 kW | Rated current: 900 A | Type: One-way (no bypass)
LSFS3003S Supply voltage: 380 V | Motor rating: 3.7 kW | Rated current: 7.5 A | Type: One-way (no bypass)
LSFS3005S Supply voltage: 380 V | Motor rating: 5.5 kW | Rated current: 11 A | Type: One-way (no bypass)
LSFS3007S Supply voltage: 380 V | Motor rating: 7.5 kW | Rated current: 15 A | Type: One-way (no bypass)
LSFS3011S Supply voltage: 380 V | Motor rating: 11 kW | Rated current: 22 A | Type: One-way (no bypass)
LSFS3015S Supply voltage: 380 V | Motor rating: 15 kW | Rated current: 30 A | Type: One-way (no bypass)
LSFS3022S Supply voltage: 380 V | Motor rating: 22 kW | Rated current: 45 A | Type: One-way (no bypass)
LSFS3030S Supply voltage: 380 V | Motor rating: 30 kW | Rated current: 60 A | Type: One-way (no bypass)
LSFS3037S Supply voltage: 380 V | Motor rating: 37 kW | Rated current: 75 A | Type: One-way (no bypass)
LSFS3056S Supply voltage: 380 V | Motor rating: 56 kW | Rated current: 112 A | Type: One-way (no bypass)
LSFS3075S Supply voltage: 380 V | Motor rating: 75 kW | Rated current: 150 A | Type: One-way (no bypass)
LSFS3112S Supply voltage: 380 V | Motor rating: 112 kW | Rated current: 225 A | Type: One-way (no bypass)
LSFS3150S Supply voltage: 380 V | Motor rating: 150 kW | Rated current: 300 A | Type: One-way (no bypass)
LSFS3195S Supply voltage: 380 V | Motor rating: 195 kW | Rated current: 390 A | Type: One-way (no bypass)
LSFS3240S Supply voltage: 380 V | Motor rating: 240 kW | Rated current: 480 A | Type: One-way (no bypass)
LSFS3300S Supply voltage: 380 V | Motor rating: 300 kW | Rated current: 600 A | Type: One-way (no bypass)
LSFS3375S Supply voltage: 380 V | Motor rating: 375 kW | Rated current: 750 A | Type: One-way (no bypass)
LSFS3450S Supply voltage: 380 V | Motor rating: 450 kW | Rated current: 900 A | Type: One-way (no bypass)
LSFS3600S Supply voltage: 380 V | Motor rating: 600 kW | Rated current: 1200 A | Type: One-way (no bypass)
LSFS4003S Supply voltage: 440 V | Motor rating: 3.7 kW | Rated current: 7.5 A | Type: One-way (no bypass)
LSFS4005S Supply voltage: 440 V | Motor rating: 5.5 kW | Rated current: 11 A | Type: One-way (no bypass)
LSFS4007S Supply voltage: 440 V | Motor rating: 7.5 kW | Rated current: 15 A | Type: One-way (no bypass)
LSFS4011S Supply voltage: 440 V | Motor rating: 11 kW | Rated current: 22 A | Type: One-way (no bypass)
LSFS4015S Supply voltage: 440 V | Motor rating: 15 kW | Rated current: 30 A | Type: One-way (no bypass)
LSFS4022S Supply voltage: 440 V | Motor rating: 22 kW | Rated current: 45 A | Type: One-way (no bypass)
LSFS4030S Supply voltage: 440 V | Motor rating: 30 kW | Rated current: 60 A | Type: One-way (no bypass)
LSFS4037S Supply voltage: 440 V | Motor rating: 37 kW | Rated current: 75 A | Type: One-way (no bypass)
LSFS4056S Supply voltage: 440 V | Motor rating: 56 kW | Rated current: 112 A | Type: One-way (no bypass)
LSFS4075S Supply voltage: 440 V | Motor rating: 75 kW | Rated current: 150 A | Type: One-way (no bypass)
LSFS4112S Supply voltage: 440 V | Motor rating: 112 kW | Rated current: 225 A | Type: One-way (no bypass)
LSFS4150S Supply voltage: 440 V | Motor rating: 150 kW | Rated current: 300 A | Type: One-way (no bypass)
LSFS4195S Supply voltage: 440 V | Motor rating: 195 kW | Rated current: 390 A | Type: One-way (no bypass)
LSFS4240S Supply voltage: 440 V | Motor rating: 240 kW | Rated current: 480 A | Type: One-way (no bypass)
LSFS4300S Supply voltage: 440 V | Motor rating: 300 kW | Rated current: 600 A | Type: One-way (no bypass)
LSFS4375S Supply voltage: 440 V | Motor rating: 375 kW | Rated current: 750 A | Type: One-way (no bypass)
LSFS4450S Supply voltage: 440 V | Motor rating: 450 kW | Rated current: 900 A | Type: One-way (no bypass)
LSFS4600S Supply voltage: 440 V | Motor rating: 600 kW | Rated current: 1200 A | Type: One-way (no bypass)
LSFS2002BPS Supply voltage: 220 V | Motor rating: 2.2 kW | Rated current: 9 A | Type: By-pass (built-in MC)
LSFS2003BPS Supply voltage: 220 V | Motor rating: 3.7 kW | Rated current: 15 A | Type: By-pass (built-in MC)
LSFS2005BPS Supply voltage: 220 V | Motor rating: 5.5 kW | Rated current: 22 A | Type: By-pass (built-in MC)
LSFS2007BPS Supply voltage: 220 V | Motor rating: 7.5 kW | Rated current: 30 A | Type: By-pass (built-in MC)
LSFS2011BPS Supply voltage: 220 V | Motor rating: 11 kW | Rated current: 45 A | Type: By-pass (built-in MC)
LSFS2015BPS Supply voltage: 220 V | Motor rating: 15 kW | Rated current: 60 A | Type: By-pass (built-in MC)
LSFS2022BPS Supply voltage: 220 V | Motor rating: 22 kW | Rated current: 88 A | Type: By-pass (built-in MC)
LSFS2030BPS Supply voltage: 220 V | Motor rating: 30 kW | Rated current: 120 A | Type: By-pass (built-in MC)
LSFS2037BPS Supply voltage: 220 V | Motor rating: 37 kW | Rated current: 150 A | Type: By-pass (built-in MC)
LSFS2056BPS Supply voltage: 220 V | Motor rating: 56 kW | Rated current: 225 A | Type: By-pass (built-in MC)
LSFS2075BPS Supply voltage: 220 V | Motor rating: 75 kW | Rated current: 300 A | Type: By-pass (built-in MC)
LSFS2098BPS Supply voltage: 220 V | Motor rating: 98 kW | Rated current: 390 A | Type: By-pass (built-in MC)
LSFS2112BPS Supply voltage: 220 V | Motor rating: 112 kW | Rated current: 450 A | Type: By-pass (built-in MC)
LSFS3003BPS Supply voltage: 380 V | Motor rating: 3.7 kW | Rated current: 7.5 A | Type: By-pass (built-in MC)
LSFS3005BPS Supply voltage: 380 V | Motor rating: 5.5 kW | Rated current: 11 A | Type: By-pass (built-in MC)
LSFS3007BPS Supply voltage: 380 V | Motor rating: 7.5 kW | Rated current: 15 A | Type: By-pass (built-in MC)
LSFS3011BPS Supply voltage: 380 V | Motor rating: 11 kW | Rated current: 22 A | Type: By-pass (built-in MC)
LSFS3015BPS Supply voltage: 380 V | Motor rating: 15 kW | Rated current: 30 A | Type: By-pass (built-in MC)
LSFS3022BPS Supply voltage: 380 V | Motor rating: 22 kW | Rated current: 45 A | Type: By-pass (built-in MC)
LSFS3030BPS Supply voltage: 380 V | Motor rating: 30 kW | Rated current: 60 A | Type: By-pass (built-in MC)
LSFS3037BPS Supply voltage: 380 V | Motor rating: 37 kW | Rated current: 75 A | Type: By-pass (built-in MC)
LSFS3056BPS Supply voltage: 380 V | Motor rating: 56 kW | Rated current: 112 A | Type: By-pass (built-in MC)
LSFS3075BPS Supply voltage: 380 V | Motor rating: 75 kW | Rated current: 150 A | Type: By-pass (built-in MC)
LSFS3112BPS Supply voltage: 380 V | Motor rating: 112 kW | Rated current: 225 A | Type: By-pass (built-in MC)
LSFS3150BPS Supply voltage: 380 V | Motor rating: 150 kW | Rated current: 300 A | Type: By-pass (built-in MC)
LSFS3195BPS Supply voltage: 380 V | Motor rating: 195 kW | Rated current: 390 A | Type: By-pass (built-in MC)
LSFS3240BPS Supply voltage: 380 V | Motor rating: 240 kW | Rated current: 480 A | Type: By-pass (built-in MC)
LSFS3300BPS Supply voltage: 380 V | Motor rating: 300 kW | Rated current: 600 A | Type: By-pass (built-in MC)
LSFS4003BPS Supply voltage: 440 V | Motor rating: 3.7 kW | Rated current: 7.5 A | Type: By-pass (built-in MC)
LSFS4005BPS Supply voltage: 440 V | Motor rating: 5.5 kW | Rated current: 11 A | Type: By-pass (built-in MC)
LSFS4007BPS Supply voltage: 440 V | Motor rating: 7.5 kW | Rated current: 15 A | Type: By-pass (built-in MC)
LSFS4011BPS Supply voltage: 440 V | Motor rating: 11 kW | Rated current: 22 A | Type: By-pass (built-in MC)
LSFS4015BPS Supply voltage: 440 V | Motor rating: 15 kW | Rated current: 30 A | Type: By-pass (built-in MC)
LSFS4022BPS Supply voltage: 440 V | Motor rating: 22 kW | Rated current: 45 A | Type: By-pass (built-in MC)
LSFS4030BPS Supply voltage: 440 V | Motor rating: 30 kW | Rated current: 60 A | Type: By-pass (built-in MC)
LSFS4037BPS Supply voltage: 440 V | Motor rating: 37 kW | Rated current: 75 A | Type: By-pass (built-in MC)
LSFS4056BPS Supply voltage: 440 V | Motor rating: 56 kW | Rated current: 112 A | Type: By-pass (built-in MC)
LSFS4075BPS Supply voltage: 440 V | Motor rating: 75 kW | Rated current: 150 A | Type: By-pass (built-in MC)
LSFS4112BPS Supply voltage: 440 V | Motor rating: 112 kW | Rated current: 225 A | Type: By-pass (built-in MC)
LSFS4150BPS Supply voltage: 440 V | Motor rating: 150 kW | Rated current: 300 A | Type: By-pass (built-in MC)
LSFS4195BPS Supply voltage: 440 V | Motor rating: 195 kW | Rated current: 390 A | Type: By-pass (built-in MC)
LSFS4240BPS Supply voltage: 440 V | Motor rating: 240 kW | Rated current: 480 A | Type: By-pass (built-in MC)
LSFS4300BPS Supply voltage: 440 V | Motor rating: 300 kW | Rated current: 600 A | Type: By-pass (built-in MC)
