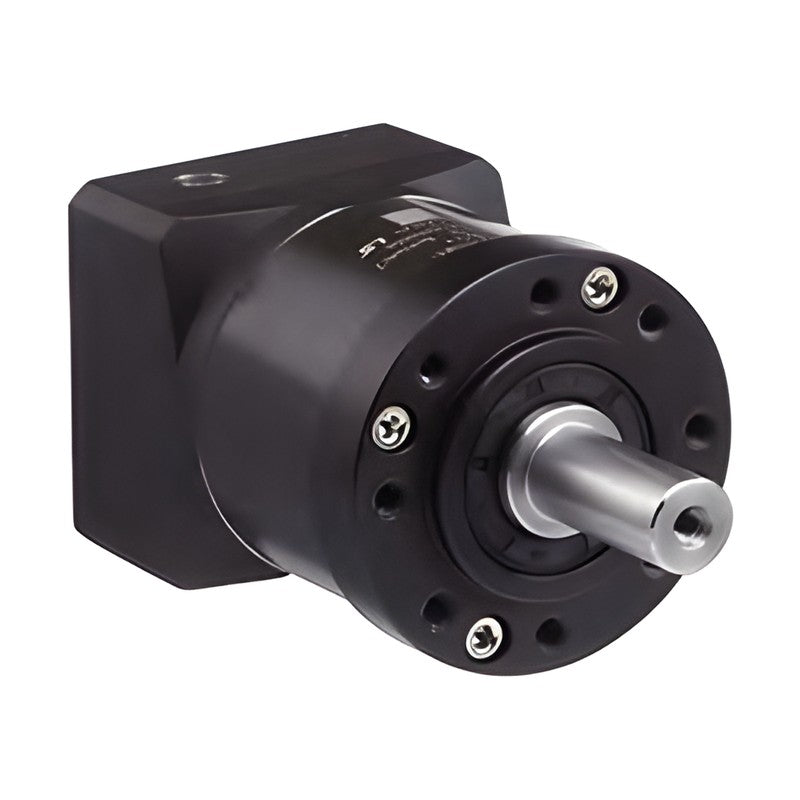

LS Electric MSO Inline Planetary Gearbox, Round Flange (040-160)

LS Electric MSO Inline Planetary Gearbox, Round Flange (040-160)

LS Electric MSO precision planetary gearbox (basic line, helical gear, inline, round flange, keyed or smooth output shaft) in frames 040-160; full order code MSO<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Basic line helical-gear planetary reducer, inline housing
  • Coaxial input/output for compact inline mounting
  • Backlash classes: S (standard)
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65

Specifications

Series MSO (Basic line)
Gear type Helical planetary
Housing Inline
Output Round Flange
Frame sizes 040, 060, 080, 120, 160
Ratios 3:1 to 100:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 3,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 52 to 62 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 37, 38-41
MSO0401A-003KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-003NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-004KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-004NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-005KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-005NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-006KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-006NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-007KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-007NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-008KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-008NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-009KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-009NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-010KS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-010NS Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0402A-015KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-015NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-020KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-020NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-025KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-025NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-030KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-030NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-035KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-035NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-040KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-040NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-045KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-045NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-050KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-050NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-060KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-060NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-070KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-070NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-080KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-080NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-090KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-090NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-100KS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-100NS Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0601A-003KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-003NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-004KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-004NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-005KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-005NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-006KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-006NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-007KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-007NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-008KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-008NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-009KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-009NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-010KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-010NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0602B-015KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-015NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-015KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-015NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-020KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-020NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-020KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-020NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-025KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-025NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-025KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-025NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-030KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-030NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-030KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-030NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-035KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-035NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-035KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-035NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-040KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-040NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-040KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-040NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-045KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-045NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-045KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-045NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-050KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-050NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-050KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-050NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-060KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-060NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-060KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-060NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-070KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-070NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-070KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-070NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-080KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-080NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-080KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-080NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-090KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-090NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-090KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-090NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-100KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-100NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-100KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-100NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0801A-003KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-003NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-004KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-004NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-005KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-005NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-006KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-006NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-007KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-007NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-008KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-008NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-009KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-009NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-010KS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-010NS Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0802B-015KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-015NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-015KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-015NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-020KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-020NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-020KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-020NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-025KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-025NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-025KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-025NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-030KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-030NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-030KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-030NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-035KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-035NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-035KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-035NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-040KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-040NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-040KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-040NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-045KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-045NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-045KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-045NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-050KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-050NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-050KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-050NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-060KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-060NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-060KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-060NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-070KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-070NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-070KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-070NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-080KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-080NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-080KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-080NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-090KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-090NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-090KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-090NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-100KS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-100NS Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-100KS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-100NS Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1201A-003KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-003NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-004KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-004NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-005KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-005NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-006KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-006NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-007KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-007NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-008KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-008NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-009KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-009NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-010KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-010NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1202B-015KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-015NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-015KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-015NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-020KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-020NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-020KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-020NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-025KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-025NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-025KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-025NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-030KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-030NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-030KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-030NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-035KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-035NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-035KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-035NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-040KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-040NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-040KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-040NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-045KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-045NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-045KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-045NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-050KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-050NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-050KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-050NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-060KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-060NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-060KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-060NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-070KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-070NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-070KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-070NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-080KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-080NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-080KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-080NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-090KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-090NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-090KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-090NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-100KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-100NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-100KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-100NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1601A-003KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-003NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-004KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-004NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-005KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-005NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-006KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-006NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-007KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-007NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-008KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-008NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-009KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-009NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-010KS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-010NS Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1602B-015KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-015NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-015KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-015NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-020KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-020NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-020KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-020NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-025KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-025NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-025KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-025NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-030KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-030NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-030KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-030NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-035KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-035NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-035KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-035NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-040KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-040NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-040KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-040NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-045KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-045NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-045KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-045NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-050KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-050NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-050KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-050NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-060KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-060NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-060KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-060NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-070KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-070NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-070KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-070NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-080KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-080NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-080KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-080NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-090KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-090NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-090KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-090NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-100KS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-100NS Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-100KS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-100NS Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0401A Frame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0601A Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0801A Frame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1201A Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1601A Frame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0602B Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0802B Frame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1202B Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1602B Frame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0402A Frame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0602A Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0802A Frame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1202A Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1602A Frame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
328 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric MSO Inline Planetary Gearbox, Round Flange (040-160)

Brand LS Electric·Planetary Gearboxes

Available part numbers (328)

MSO0401A-003KS, MSO0401A-003NS, MSO0401A-004KS, MSO0401A-004NS, MSO0401A-005KS, MSO0401A-005NS, MSO0401A-006KS, MSO0401A-006NS, MSO0401A-007KS, MSO0401A-007NS + 318 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSO0401A-003KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-003NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-004KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-004NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-005KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-005NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-006KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-006NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-007KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-007NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-008KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-008NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-009KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-009NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0401A-010KSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0401A-010NSFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0402A-015KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-015NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-020KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-020NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-025KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-025NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-030KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-030NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-035KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-035NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-040KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-040NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-045KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-045NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-050KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-050NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-060KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-060NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-070KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-070NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-080KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-080NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-090KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-090NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0402A-100KSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0402A-100NSFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0601A-003KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-003NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-004KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-004NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-005KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-005NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-006KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-006NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-007KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-007NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-008KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-008NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-009KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-009NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0601A-010KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0601A-010NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0602B-015KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-015NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-015KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-015NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-020KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-020NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-020KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-020NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-025KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-025NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-025KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-025NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-030KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-030NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-030KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-030NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-035KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-035NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-035KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-035NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-040KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-040NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-040KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-040NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-045KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-045NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-045KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-045NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-050KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-050NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-050KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-050NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-060KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-060NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-060KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-060NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-070KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-070NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-070KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-070NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-080KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-080NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-080KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-080NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-090KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-090NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-090KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-090NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602B-100KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602B-100NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0602A-100KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0602A-100NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0801A-003KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-003NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-004KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-004NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-005KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-005NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-006KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-006NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-007KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-007NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-008KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-008NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-009KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-009NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0801A-010KSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO0801A-010NSFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO0802B-015KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-015NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-015KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-015NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-020KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-020NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-020KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-020NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-025KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-025NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-025KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-025NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-030KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-030NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-030KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-030NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-035KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-035NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-035KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-035NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-040KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-040NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-040KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-040NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-045KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-045NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-045KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-045NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-050KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-050NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-050KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-050NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-060KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-060NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-060KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-060NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-070KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-070NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-070KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-070NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-080KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-080NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-080KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-080NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-090KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-090NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-090KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-090NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802B-100KSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802B-100NSFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0802A-100KSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO0802A-100NSFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1201A-003KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-003NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-004KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-004NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-005KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-005NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-006KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-006NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-007KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-007NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-008KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-008NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-009KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-009NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1201A-010KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1201A-010NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1202B-015KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-015NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-015KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-015NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-020KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-020NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-020KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-020NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-025KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-025NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-025KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-025NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-030KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-030NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-030KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-030NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-035KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-035NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-035KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-035NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-040KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-040NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-040KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-040NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-045KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-045NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-045KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-045NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-050KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-050NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-050KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-050NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-060KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-060NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-060KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-060NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-070KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-070NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-070KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-070NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-080KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-080NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-080KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-080NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-090KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-090NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-090KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-090NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202B-100KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202B-100NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1202A-100KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1202A-100NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1601A-003KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-003NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-004KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-004NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-005KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-005NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-006KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-006NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-007KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-007NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-008KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-008NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-009KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-009NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1601A-010KSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSO1601A-010NSFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSO1602B-015KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-015NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-015KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-015NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-020KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-020NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-020KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-020NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-025KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-025NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-025KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-025NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-030KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-030NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-030KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-030NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-035KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-035NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-035KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-035NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-040KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-040NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-040KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-040NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-045KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-045NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-045KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-045NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-050KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-050NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-050KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-050NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-060KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-060NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-060KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-060NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-070KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-070NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-070KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-070NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-080KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-080NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-080KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-080NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-090KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-090NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-090KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-090NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602B-100KSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602B-100NSFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO1602A-100KSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSO1602A-100NSFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSO0401AFrame: 040 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0601AFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0801AFrame: 080 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1201AFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1601AFrame: 160 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0602BFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0802BFrame: 080 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1202BFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1602BFrame: 160 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0402AFrame: 040 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0602AFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO0802AFrame: 080 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1202AFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSO1602AFrame: 160 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
