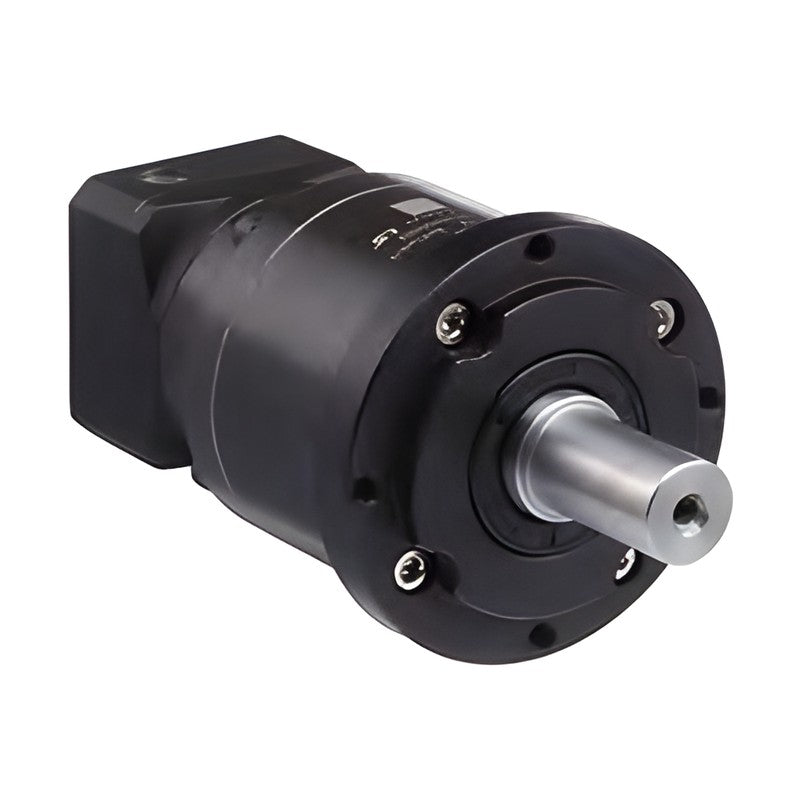

LS Electric MSR Inline Planetary Gearbox, Round Flange (050-205)

LS Electric MSR Inline Planetary Gearbox, Round Flange (050-205)

LS Electric MSR precision planetary gearbox (basic line, helical gear, inline, round flange, keyed or smooth output shaft) in frames 050-205; full order code MSR<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Basic line helical-gear planetary reducer, inline housing
  • Coaxial input/output for compact inline mounting
  • Backlash classes: S (standard)
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65

Specifications

Series MSR (Basic line)
Gear type Helical planetary
Housing Inline
Output Round Flange
Frame sizes 050, 070, 090, 120, 155, 205
Ratios 3:1 to 100:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 3,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 52 to 64 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 27, 28-31
MSR0501A-003KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-003NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-004KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-004NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-005KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-005NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-006KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-006NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-007KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-007NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-008KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-008NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-009KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-009NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-010KS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-010NS Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0502A-015KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-015NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-020KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-020NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-025KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-025NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-030KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-030NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-035KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-035NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-040KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-040NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-045KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-045NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-050KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-050NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-060KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-060NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-070KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-070NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-080KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-080NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-090KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-090NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-100KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-100NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0701A-003KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-003NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-004KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-004NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-005KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-005NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-006KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-006NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-007KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-007NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-008KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-008NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-009KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-009NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-010KS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-010NS Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0702B-015KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-015NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-015KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-015NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-020KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-020NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-020KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-020NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-025KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-025NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-025KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-025NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-030KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-030NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-030KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-030NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-035KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-035NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-035KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-035NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-040KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-040NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-040KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-040NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-045KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-045NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-045KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-045NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-050KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-050NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-050KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-050NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-060KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-060NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-060KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-060NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-070KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-070NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-070KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-070NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-080KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-080NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-080KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-080NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-090KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-090NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-090KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-090NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-100KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-100NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-100KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-100NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0901A-003KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-003NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-004KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-004NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-005KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-005NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-006KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-006NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-007KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-007NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-008KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-008NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-009KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-009NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-010KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-010NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0902B-015KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-015NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-015KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-015NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-020KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-020NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-020KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-020NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-025KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-025NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-025KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-025NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-030KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-030NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-030KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-030NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-035KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-035NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-035KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-035NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-040KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-040NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-040KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-040NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-045KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-045NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-045KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-045NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-050KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-050NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-050KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-050NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-060KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-060NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-060KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-060NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-070KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-070NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-070KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-070NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-080KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-080NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-080KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-080NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-090KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-090NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-090KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-090NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-100KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-100NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-100KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-100NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1201A-003KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-003NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-004KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-004NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-005KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-005NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-006KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-006NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-007KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-007NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-008KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-008NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-009KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-009NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-010KS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-010NS Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1202B-015KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-015NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-015KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-015NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-020KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-020NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-020KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-020NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-025KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-025NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-025KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-025NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-030KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-030NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-030KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-030NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-035KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-035NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-035KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-035NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-040KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-040NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-040KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-040NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-045KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-045NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-045KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-045NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-050KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-050NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-050KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-050NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-060KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-060NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-060KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-060NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-070KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-070NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-070KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-070NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-080KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-080NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-080KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-080NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-090KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-090NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-090KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-090NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-100KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-100NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-100KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-100NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1551A-003KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-003NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-004KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-004NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-005KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-005NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-006KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-006NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-007KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-007NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-008KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-008NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-009KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-009NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-010KS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-010NS Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1552B-015KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-015NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-015KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-015NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-020KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-020NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-020KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-020NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-025KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-025NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-025KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-025NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-030KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-030NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-030KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-030NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-035KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-035NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-035KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-035NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-040KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-040NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-040KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-040NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-045KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-045NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-045KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-045NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-050KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-050NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-050KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-050NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-060KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-060NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-060KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-060NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-070KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-070NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-070KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-070NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-080KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-080NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-080KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-080NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-090KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-090NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-090KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-090NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-100KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-100NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-100KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-100NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2051A-003KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-003NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-004KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-004NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-005KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-005NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-006KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-006NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-007KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-007NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-008KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-008NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-009KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-009NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-010KS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-010NS Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2052B-015KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-015NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-015KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-015NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-020KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-020NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-020KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-020NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-025KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-025NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-025KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-025NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-030KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-030NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-030KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-030NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-035KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-035NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-035KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-035NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-040KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-040NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-040KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-040NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-045KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-045NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-045KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-045NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-050KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-050NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-050KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-050NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-060KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-060NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-060KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-060NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-070KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-070NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-070KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-070NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-080KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-080NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-080KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-080NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-090KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-090NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-090KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-090NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-100KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-100NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-100KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-100NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0501A Frame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0701A Frame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0901A Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1201A Frame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1551A Frame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR2051A Frame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0702B Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0902B Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1202B Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1552B Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR2052B Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0502A Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0702A Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0902A Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1202A Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1552A Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR2052A Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
399 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric MSR Inline Planetary Gearbox, Round Flange (050-205)

Brand LS Electric·Planetary Gearboxes

Available part numbers (399)

MSR0501A-003KS, MSR0501A-003NS, MSR0501A-004KS, MSR0501A-004NS, MSR0501A-005KS, MSR0501A-005NS, MSR0501A-006KS, MSR0501A-006NS, MSR0501A-007KS, MSR0501A-007NS + 389 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSR0501A-003KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-003NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-004KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-004NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-005KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-005NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-006KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-006NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-007KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-007NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-008KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-008NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-009KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-009NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0501A-010KSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0501A-010NSFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0502A-015KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-015NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-020KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-020NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-025KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-025NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-030KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-030NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-035KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-035NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-040KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-040NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-045KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-045NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-050KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-050NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-060KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-060NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-070KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-070NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-080KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-080NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-090KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-090NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0502A-100KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0502A-100NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0701A-003KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-003NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-004KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-004NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-005KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-005NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-006KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-006NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-007KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-007NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-008KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-008NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-009KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-009NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0701A-010KSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0701A-010NSFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0702B-015KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-015NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-015KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-015NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-020KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-020NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-020KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-020NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-025KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-025NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-025KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-025NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-030KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-030NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-030KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-030NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-035KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-035NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-035KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-035NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-040KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-040NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-040KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-040NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-045KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-045NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-045KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-045NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-050KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-050NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-050KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-050NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-060KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-060NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-060KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-060NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-070KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-070NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-070KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-070NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-080KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-080NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-080KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-080NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-090KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-090NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-090KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-090NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702B-100KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702B-100NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0702A-100KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0702A-100NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0901A-003KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-003NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-004KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-004NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-005KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-005NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-006KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-006NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-007KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-007NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-008KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-008NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-009KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-009NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0901A-010KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR0901A-010NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR0902B-015KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-015NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-015KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-015NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-020KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-020NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-020KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-020NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-025KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-025NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-025KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-025NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-030KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-030NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-030KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-030NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-035KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-035NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-035KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-035NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-040KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-040NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-040KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-040NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-045KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-045NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-045KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-045NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-050KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-050NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-050KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-050NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-060KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-060NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-060KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-060NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-070KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-070NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-070KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-070NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-080KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-080NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-080KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-080NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-090KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-090NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-090KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-090NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902B-100KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902B-100NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0902A-100KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR0902A-100NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1201A-003KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-003NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-004KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-004NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-005KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-005NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-006KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-006NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-007KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-007NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-008KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-008NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-009KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-009NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1201A-010KSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1201A-010NSFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1202B-015KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-015NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-015KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-015NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-020KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-020NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-020KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-020NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-025KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-025NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-025KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-025NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-030KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-030NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-030KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-030NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-035KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-035NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-035KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-035NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-040KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-040NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-040KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-040NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-045KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-045NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-045KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-045NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-050KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-050NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-050KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-050NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-060KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-060NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-060KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-060NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-070KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-070NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-070KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-070NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-080KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-080NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-080KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-080NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-090KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-090NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-090KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-090NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202B-100KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202B-100NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1202A-100KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1202A-100NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1551A-003KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-003NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-004KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-004NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-005KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-005NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-006KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-006NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-007KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-007NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-008KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-008NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-009KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-009NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1551A-010KSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR1551A-010NSFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR1552B-015KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-015NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-015KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-015NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-020KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-020NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-020KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-020NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-025KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-025NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-025KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-025NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-030KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-030NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-030KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-030NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-035KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-035NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-035KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-035NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-040KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-040NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-040KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-040NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-045KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-045NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-045KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-045NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-050KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-050NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-050KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-050NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-060KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-060NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-060KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-060NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-070KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-070NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-070KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-070NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-080KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-080NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-080KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-080NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-090KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-090NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-090KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-090NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552B-100KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552B-100NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR1552A-100KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR1552A-100NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2051A-003KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-003NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-004KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-004NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-005KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-005NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-006KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-006NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-007KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-007NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-008KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-008NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-009KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-009NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2051A-010KSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSR2051A-010NSFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSR2052B-015KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-015NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-015KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-015NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-020KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-020NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-020KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-020NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-025KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-025NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-025KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-025NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-030KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-030NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-030KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-030NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-035KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-035NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-035KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-035NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-040KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-040NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-040KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-040NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-045KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-045NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-045KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-045NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-050KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-050NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-050KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-050NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-060KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-060NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-060KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-060NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-070KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-070NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-070KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-070NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-080KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-080NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-080KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-080NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-090KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-090NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-090KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-090NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052B-100KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052B-100NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR2052A-100KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSR2052A-100NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSR0501AFrame: 050 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0701AFrame: 070 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0901AFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1201AFrame: 120 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1551AFrame: 155 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR2051AFrame: 205 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0702BFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0902BFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1202BFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1552BFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR2052BFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0502AFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0702AFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR0902AFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1202AFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR1552AFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSR2052AFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
