LS Electric Susol VCB Motorized Draw-out Cradles (VCL H/Ha, 7.2-25.8kV)

LS Electric Susol VCB Motorized Draw-out Cradles (VCL H/Ha, 7.2-25.8kV)

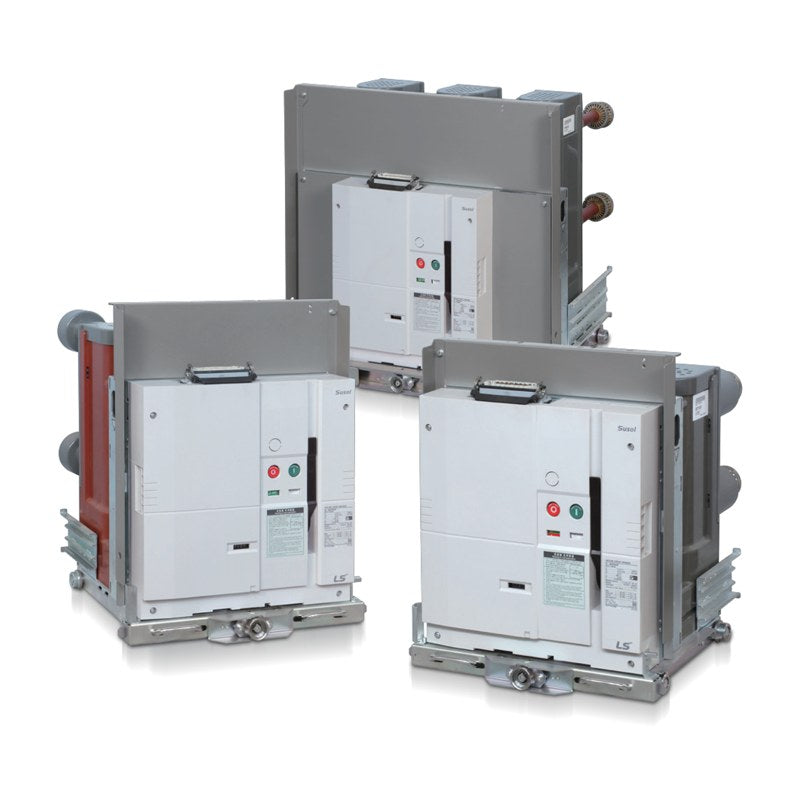

LS Electric Susol VCL H and Ha type cradles for Susol VL vacuum circuit breakers in motorized draw-out switchgear, including 3-position (-AR) versions with a disconnected-position switch, from 7.2 kV to 25.8 kV.

Key features

  • Ha-type cradles for 7.2/12/17.5 kV VL breakers with 150 mm or 210 mm pole pitch
  • H-type cradles for 12-17.5 kV 2500 A and 24/25.8 kV (275 mm pitch) VL breakers
  • -AR versions add 3-position operation (service / test / disconnected) with position switch
  • Cradle options: earthing switch with 2a2b/6a6b position S/W, keylock, locking magnet, shutter padlock, door interlock, temperature sensor
  • Pair with VL-xxH breakers of the same voltage, kA and current rating

Specifications

Breaker series Susol VL (H type body)
Operation MCSG draw-out + motorized draw-out
Rated frequency 50/60 Hz
Standard IEC 62271-100:2012
Options (ordered separately) A1-AD earthing switch codes, AE-AN accessories
Source LS Electric Susol VCB motorized draw-out catalog C050M1-06 (2025-07), p. 12-21, 24
VCL-06Ha32A06 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 2-position
VCL-06Ha32B25 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 210 mm | Positions: 2-position
VCL-12Ha32A06 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 2-position
VCL-12Ha32B25 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 210 mm | Positions: 2-position
VCL-17Ha32A06 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 2-position
VCL-17Ha32A13 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 2-position
VCL-17Ha32B25 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 210 mm | Positions: 2-position
VCL-06H32B25-AR Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: H (MCSG / motorized) | Pole pitch: 210 mm | Positions: 3-position (with disconnected S/W)
VCL-06Ha20A06-AR Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-06Ha20A13-AR Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-06Ha25A06-AR Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-06Ha25A13-AR Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-06Ha32A06-AR Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-06Ha32A13-AR Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-06Ha32B25-AR Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 210 mm | Positions: 3-position (with disconnected S/W)
VCL-12H32B25-AR Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: H (MCSG / motorized) | Pole pitch: 210 mm | Positions: 3-position (with disconnected S/W)
VCL-12Ha32A06-AR Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-12Ha32A13-AR Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-12Ha32B25-AR Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 210 mm | Positions: 3-position (with disconnected S/W)
VCL-17H32B25-AR Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: H (MCSG / motorized) | Pole pitch: 210 mm | Positions: 3-position (with disconnected S/W)
VCL-17Ha32A06-AR Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-17Ha32A13-AR Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 150 mm | Positions: 3-position (with disconnected S/W)
VCL-17Ha32B25-AR Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Cradle type: Ha (MCSG / motorized) | Pole pitch: 210 mm | Positions: 3-position (with disconnected S/W)
VCL-20H13D06-AR Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-20H13D13-AR Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-20H16D06-AR Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-20H16D13-AR Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-20H25D06-AR Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-20H25D13-AR Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-20H25D20-AR Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-25H13D06-AR Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-25H13D13-AR Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-25H16D06-AR Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-25H16D13-AR Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-25H25D06-AR Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-25H25D13-AR Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
VCL-25H25D20-AR Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Cradle type: H (MCSG / motorized) | Pole pitch: 275 mm | Positions: 3-position (with disconnected S/W)
