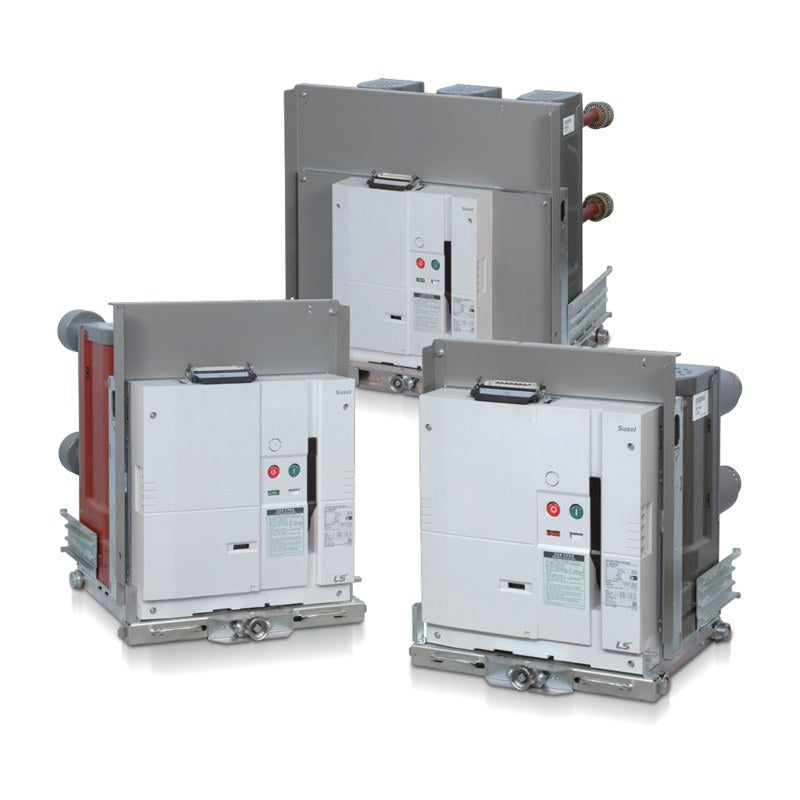

LS Electric Susol VL Vacuum Circuit Breaker VL-06H32B25 (7.2kV 2500A)

LS Electric Susol VL-06H32B25 7.2 kV, 31.5 kA, 2500 A H-type draw-out vacuum circuit breaker with 210 mm pole pitch for MCSG and motorized draw-out switchgear.

Key features

7.2 kV, 2500 A, 31.5 kA (393 MVA) rating with 210 mm pole pitch
H-type body for MCSG draw-out and motorized draw-out cradles
Rated break time 3 cycles; operating duty O-0.3s-CO-15s-CO
Class E2 (List 3), C2, M2 to IEC 62271-100
Control voltages AC/DC 48 V, AC/DC 110 V, DC 125 V, AC/DC 220 V; 7a7b auxiliary switch

Specifications

Rated voltage	7.2 kV
Rated current	2500 A
Breaking current	31.5 kA
Short-time current	31.5 kA 3 s
Making current	78.75/81.9 kA peak
Withstand (PF / impulse)	20 kV / 60 kV
Pole pitch	210 mm
Weight	160 kg
Standard	IEC 62271-100:2012
Source	LS Electric Susol VCB motorized draw-out catalog C050M1-06 (2025-07), p. 3, 16, 23

VL-06H32B25

Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch: 210 mm

Vacuum Circuit BreakersLS Electric

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VL Vacuum Circuit Breaker VL-06H32B25 (7.2kV 2500A)

Brand LS Electric·Vacuum Circuit Breakers

Available part numbers (1)

VL-06H32B25

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
