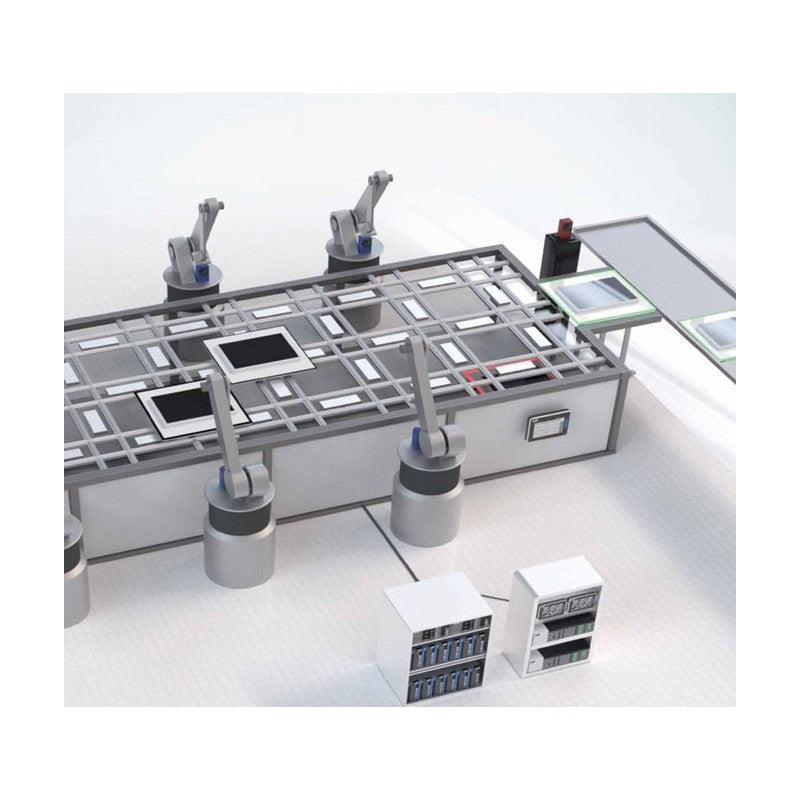

LS Electric X-Trak moving-magnet transport system: LSMMT stationary coil/sensor modules (40-280 N class, 1-5 mm air gap options) and LSMG magnet plates for the moving pallets.

Key features

  • Coils and sensors fixed in the track; magnets on the pallet move freely with no moving cables
  • Resolution 1 um, speed up to 5 m/s and acceleration up to 5 G (system dependent)
  • Real-time mover tracking by mover ID; flexible track extension, branching and merging
  • No particles and no electrical devices on the mover: suits clean room, vacuum, high temperature
  • Continuous force at 1.0 mm air gap: 35.6 N (M040) to 281.4 N (M280); peak up to 1,463.5 N
  • Driven by L7MMT servo drives and LSMMT-E32A/C motion controllers over EtherCAT

Specifications

Continuous current 2.66 / 2.28 / 1.9 / 2.55 / 2.56 Arms (M040/060/090/170/280)
Peak current 11.4 Arms (M040-M090), 15.3 (M170), 13.3 (M280)
Module width 113 mm (M040-M170), 195 mm (M280)
Module height 41 mm (M040-M090), 59.5 (M170), 63.5 (M280)
Magnet plate LSMG-C072 for M040-M170, LSMG-C165 for M280
Encoder connector D-sub 15 pin male (3R)
Motor connector Molex Mini-Fit 39-02-804
Code format LSMMT-M(model)-(air gap 10-50); LSMG-C(width)-(length)
Source LS Electric X-Trak Solution catalog (2021.11), p. 4-13
LSMMT-M040-10 Component: Moving magnet coil module | Size: M040 (40 N class) | Option: Air gap 1.0 mm | Length: 167 mm | Weight: 1.29 kg
LSMMT-M040-20 Component: Moving magnet coil module | Size: M040 (40 N class) | Option: Air gap 2.0 mm | Length: 167 mm | Weight: 1.29 kg
LSMMT-M040-30 Component: Moving magnet coil module | Size: M040 (40 N class) | Option: Air gap 3.0 mm | Length: 167 mm | Weight: 1.29 kg
LSMMT-M040-40 Component: Moving magnet coil module | Size: M040 (40 N class) | Option: Air gap 4.0 mm | Length: 167 mm | Weight: 1.29 kg
LSMMT-M040-50 Component: Moving magnet coil module | Size: M040 (40 N class) | Option: Air gap 5.0 mm | Length: 167 mm | Weight: 1.29 kg
LSMMT-M060-10 Component: Moving magnet coil module | Size: M060 (60 N class) | Option: Air gap 1.0 mm | Length: 227 mm | Weight: 2.12 kg
LSMMT-M060-20 Component: Moving magnet coil module | Size: M060 (60 N class) | Option: Air gap 2.0 mm | Length: 227 mm | Weight: 2.12 kg
LSMMT-M060-30 Component: Moving magnet coil module | Size: M060 (60 N class) | Option: Air gap 3.0 mm | Length: 227 mm | Weight: 2.12 kg
LSMMT-M060-40 Component: Moving magnet coil module | Size: M060 (60 N class) | Option: Air gap 4.0 mm | Length: 227 mm | Weight: 2.12 kg
LSMMT-M060-50 Component: Moving magnet coil module | Size: M060 (60 N class) | Option: Air gap 5.0 mm | Length: 227 mm | Weight: 2.12 kg
LSMMT-M090-10 Component: Moving magnet coil module | Size: M090 (90 N class) | Option: Air gap 1.0 mm | Length: 347 mm | Weight: 3.75 kg
LSMMT-M090-20 Component: Moving magnet coil module | Size: M090 (90 N class) | Option: Air gap 2.0 mm | Length: 347 mm | Weight: 3.75 kg
LSMMT-M090-30 Component: Moving magnet coil module | Size: M090 (90 N class) | Option: Air gap 3.0 mm | Length: 347 mm | Weight: 3.75 kg
LSMMT-M090-40 Component: Moving magnet coil module | Size: M090 (90 N class) | Option: Air gap 4.0 mm | Length: 347 mm | Weight: 3.75 kg
LSMMT-M090-50 Component: Moving magnet coil module | Size: M090 (90 N class) | Option: Air gap 5.0 mm | Length: 347 mm | Weight: 3.75 kg
LSMMT-M170-10 Component: Moving magnet coil module | Size: M170 (170 N class) | Option: Air gap 1.0 mm | Length: 407 mm | Weight: 7.24 kg
LSMMT-M170-20 Component: Moving magnet coil module | Size: M170 (170 N class) | Option: Air gap 2.0 mm | Length: 407 mm | Weight: 7.24 kg
LSMMT-M170-30 Component: Moving magnet coil module | Size: M170 (170 N class) | Option: Air gap 3.0 mm | Length: 407 mm | Weight: 7.24 kg
LSMMT-M170-40 Component: Moving magnet coil module | Size: M170 (170 N class) | Option: Air gap 4.0 mm | Length: 407 mm | Weight: 7.24 kg
LSMMT-M170-50 Component: Moving magnet coil module | Size: M170 (170 N class) | Option: Air gap 5.0 mm | Length: 407 mm | Weight: 7.24 kg
LSMMT-M280-10 Component: Moving magnet coil module | Size: M280 (280 N class) | Option: Air gap 1.0 mm | Length: 425 mm | Weight: 11.48 kg
LSMMT-M280-20 Component: Moving magnet coil module | Size: M280 (280 N class) | Option: Air gap 2.0 mm | Length: 425 mm | Weight: 11.48 kg
LSMMT-M280-30 Component: Moving magnet coil module | Size: M280 (280 N class) | Option: Air gap 3.0 mm | Length: 425 mm | Weight: 11.48 kg
LSMMT-M280-40 Component: Moving magnet coil module | Size: M280 (280 N class) | Option: Air gap 4.0 mm | Length: 425 mm | Weight: 11.48 kg
LSMMT-M280-50 Component: Moving magnet coil module | Size: M280 (280 N class) | Option: Air gap 5.0 mm | Length: 425 mm | Weight: 11.48 kg
LSMG-C072-180 Component: Magnet plate (mover) | Size: C072 (72 mm wide) | Option: Core type | Length: 180 mm | Weight: 0.75 kg
LSMG-C072-240 Component: Magnet plate (mover) | Size: C072 (72 mm wide) | Option: Core type | Length: 240 mm | Weight: 1 kg
LSMG-C072-300 Component: Magnet plate (mover) | Size: C072 (72 mm wide) | Option: Core type | Length: 300 mm | Weight: 1.25 kg
LSMG-C165-180 Component: Magnet plate (mover) | Size: C165 (165 mm wide) | Option: Core type | Length: 180 mm | Weight: 3.4 kg
LSMG-C165-240 Component: Magnet plate (mover) | Size: C165 (165 mm wide) | Option: Core type | Length: 240 mm | Weight: 4.5 kg
LSMG-C165-300 Component: Magnet plate (mover) | Size: C165 (165 mm wide) | Option: Core type | Length: 300 mm | Weight: 4.6 kg
