LS Electric XGT Safety PLC Modules (Safety CPU, Safety I/O, Power)

LS Electric XGT Safety PLC Modules (Safety CPU, Safety I/O, Power)

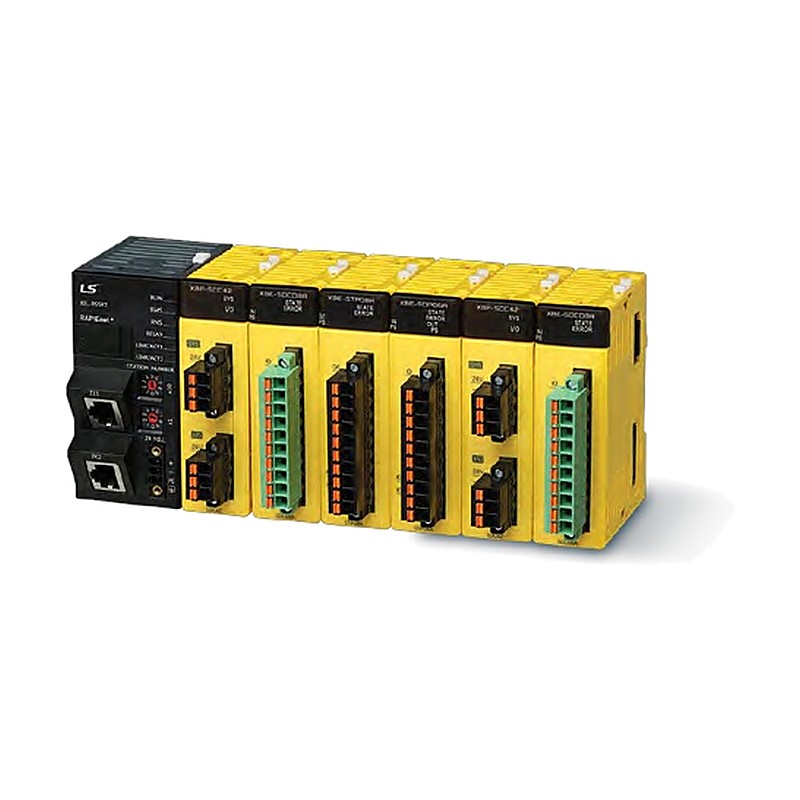

LS Electric XGT integrated Safety PLC modules combine an XGI-SCPU1 safety CPU on the XGT main base with SIL3 / PL e safety I/O modules connected over RAPIEnet+ remote smart expansion.

Key features

  • XGI-SCPU1 safety CPU runs standard and safety programs in one XG5000 project alongside XGI-CPUUN, XGI-CPUZ3/5/7 or XGC-CPUX7
  • Controls up to 128 safety I/O modules per CPU; up to 8 modules per XEL-BSSRT remote adapter
  • Safety input, output and mixed I/O modules with 1oo1 (PL d, Cat. 2) or 1oo2 dual-channel (PL e, Cat. 4) modes
  • Configurable test pulse outputs, input on/off delay filters and discrepancy time monitoring
  • XGP-SAC24 SELV power module for the main base and XBP-SDC42 safety power module for remote stations
  • Certified to SIL3 (IEC 61508), Maximum SIL3 (IEC 62061) and PL e Cat. 4 (ISO 13849-1); 20-year lifetime, no proof test

Specifications

Safety standards SIL3 (IEC 61508), Max. SIL3 (IEC 62061), PL e Cat. 4 (ISO 13849-1)
Subsystem type Type B (IEC 61508)
SFF > 99.5%
Lifetime 20 years, no proof test required
Safety network RAPIEnet+ smart expansion via XGL-EFMTB / XEL-BSSRT
Compatible standard CPUs XGI-CPUUN, XGI-CPUZ3/5/7, XGC-CPUX7
Safety I/O signal voltage DC 24 V (+20.4 to +28.8 V)
Operating temperature 0 to 55 C
Enclosure Open type, install in min. IP54 enclosure
Source LS Electric Safety PLC catalog (2025-11), p. 6-14
XGI-SCPU1 Module type: Safety CPU | Function: Safety CPU, 512 KB program, ladder | I/O points: 1,024 (max.) | Installed on: XGT main base
XGP-SAC24 Module type: SELV power supply | Function: AC 220 V in, DC 5 V 10 A out | I/O points: None | Installed on: XGT main base
XBP-SDC42 Module type: Safety power module | Function: DC 24 V in; SYS 5 V 1 A, I/O 24 V 7 A | I/O points: None | Installed on: Remote station (XEL-BSSRT)
XBE-SDC08D Module type: Safety digital input | Function: 8 DC 24 V inputs, 8 test pulse outputs | I/O points: 8 in | Installed on: Remote station (XEL-BSSRT)
XBE-STP08D Module type: Safety digital output | Function: 8 PNP outputs, 0.3 A/point | I/O points: 8 out | Installed on: Remote station (XEL-BSSRT)
XBE-SDP06D Module type: Safety digital I/O | Function: 4 inputs + 2 PNP outputs 0.3 A/point | I/O points: 4 in / 2 out | Installed on: Remote station (XEL-BSSRT)
PLCsLS Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT Safety PLC Modules (Safety CPU, Safety I/O, Power)

Brand LS Electric·PLCs

Available part numbers (6)

XGI-SCPU1, XGP-SAC24, XBP-SDC42, XBE-SDC08D, XBE-STP08D, XBE-SDP06D

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XGI-SCPU1Module type: Safety CPU | Function: Safety CPU, 512 KB program, ladder | I/O points: 1,024 (max.) | Installed on: XGT main base
XGP-SAC24Module type: SELV power supply | Function: AC 220 V in, DC 5 V 10 A out | I/O points: None | Installed on: XGT main base
XBP-SDC42Module type: Safety power module | Function: DC 24 V in; SYS 5 V 1 A, I/O 24 V 7 A | I/O points: None | Installed on: Remote station (XEL-BSSRT)
XBE-SDC08DModule type: Safety digital input | Function: 8 DC 24 V inputs, 8 test pulse outputs | I/O points: 8 in | Installed on: Remote station (XEL-BSSRT)
XBE-STP08DModule type: Safety digital output | Function: 8 PNP outputs, 0.3 A/point | I/O points: 8 out | Installed on: Remote station (XEL-BSSRT)
XBE-SDP06DModule type: Safety digital I/O | Function: 4 inputs + 2 PNP outputs 0.3 A/point | I/O points: 4 in / 2 out | Installed on: Remote station (XEL-BSSRT)
