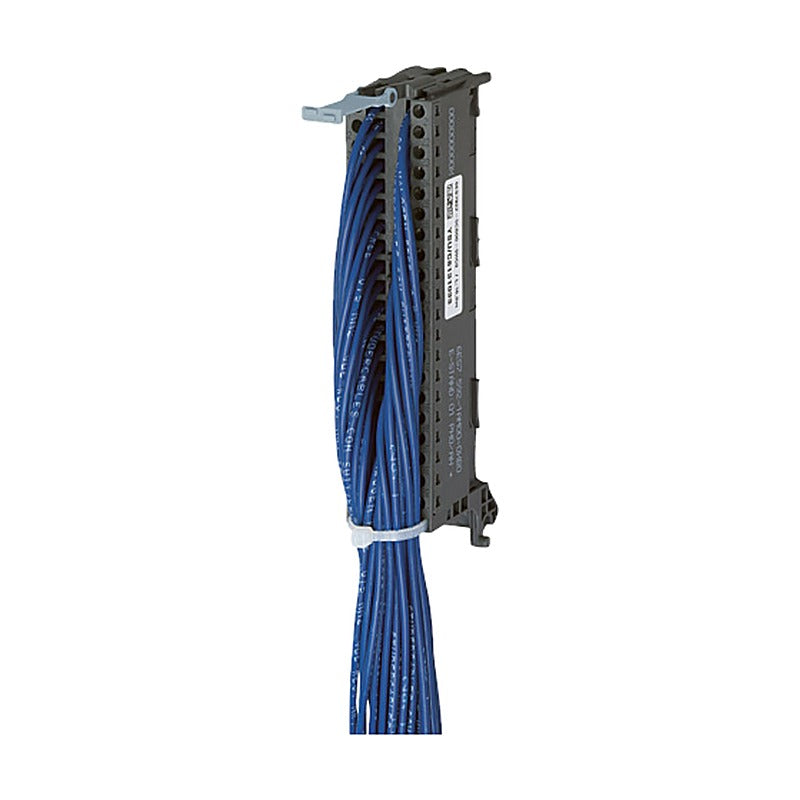

Siemens SIMATIC S7-1500 Front Connectors with Single Cores (2.5-10 m)

Siemens SIMATIC S7-1500 Front Connectors with Single Cores (2.5-10 m)

Pre-wired S7-1500 / ET 200MP front connectors with single cores (0.5 mm2, screw connection) for flexible connection of I/O modules.

Key features

  • 32-channel (pins 1-40) and 16-channel (pins 1-20) versions
  • Core types H05V-K, H05Z-K halogen-free and UL/CSA
  • 0.5 mm2 single cores, screw connection
  • Lengths 2.5 m to 10 m

Specifications

Brand Siemens
Product line SIMATIC S7-1500
Category PLC Accessories
System SIMATIC S7-1500 / ET 200MP
Connection Screw-type
Variants listed 30
Source Siemens Catalog ST 70 · 2026, p. 1036
6ES7922-5BC50-0AC0 Channels: 32 ch (pins 1-40) | Core type: H05V-K, 0.5 mm2 | Length: 2.5 m
6ES7922-5BD20-0AC0 Channels: 32 ch (pins 1-40) | Core type: H05V-K, 0.5 mm2 | Length: 3.2 m
6ES7922-5BF00-0AC0 Channels: 32 ch (pins 1-40) | Core type: H05V-K, 0.5 mm2 | Length: 5.0 m
6ES7922-5BG50-0AC0 Channels: 32 ch (pins 1-40) | Core type: H05V-K, 0.5 mm2 | Length: 6.5 m
6ES7922-5BJ00-0AC0 Channels: 32 ch (pins 1-40) | Core type: H05V-K, 0.5 mm2 | Length: 8.0 m
6ES7922-5CB00-0AC0 Channels: 32 ch (pins 1-40) | Core type: H05V-K, 0.5 mm2 | Length: 10.0 m
6ES7922-5BC50-0HC0 Channels: 32 ch (pins 1-40) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 2.5 m
6ES7922-5BD20-0HC0 Channels: 32 ch (pins 1-40) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 3.2 m
6ES7922-5BF00-0HC0 Channels: 32 ch (pins 1-40) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 5.0 m
6ES7922-5BG50-0HC0 Channels: 32 ch (pins 1-40) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 6.5 m
6ES7922-5BJ00-0HC0 Channels: 32 ch (pins 1-40) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 8.0 m
6ES7922-5CB00-0HC0 Channels: 32 ch (pins 1-40) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 10.0 m
6ES7922-5BD20-0UC0 Channels: 32 ch (pins 1-40) | Core type: UL/CSA, 0.5 mm2 | Length: 3.2 m
6ES7922-5BF00-0UC0 Channels: 32 ch (pins 1-40) | Core type: UL/CSA, 0.5 mm2 | Length: 5.0 m
6ES7922-5BG50-0UC0 Channels: 32 ch (pins 1-40) | Core type: UL/CSA, 0.5 mm2 | Length: 6.5 m
6ES7922-5BC50-0AB0 Channels: 16 ch (pins 1-20) | Core type: H05V-K, 0.5 mm2 | Length: 2.5 m
6ES7922-5BD20-0AB0 Channels: 16 ch (pins 1-20) | Core type: H05V-K, 0.5 mm2 | Length: 3.2 m
6ES7922-5BF00-0AB0 Channels: 16 ch (pins 1-20) | Core type: H05V-K, 0.5 mm2 | Length: 5.0 m
6ES7922-5BG50-0AB0 Channels: 16 ch (pins 1-20) | Core type: H05V-K, 0.5 mm2 | Length: 6.5 m
6ES7922-5BJ00-0AB0 Channels: 16 ch (pins 1-20) | Core type: H05V-K, 0.5 mm2 | Length: 8.0 m
6ES7922-5CB00-0AB0 Channels: 16 ch (pins 1-20) | Core type: H05V-K, 0.5 mm2 | Length: 10.0 m
6ES7922-5BC50-0HB0 Channels: 16 ch (pins 1-20) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 2.5 m
6ES7922-5BD20-0HB0 Channels: 16 ch (pins 1-20) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 3.2 m
6ES7922-5BF00-0HB0 Channels: 16 ch (pins 1-20) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 5.0 m
6ES7922-5BG50-0HB0 Channels: 16 ch (pins 1-20) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 6.5 m
6ES7922-5BJ00-0HB0 Channels: 16 ch (pins 1-20) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 8.0 m
6ES7922-5CB00-0HB0 Channels: 16 ch (pins 1-20) | Core type: H05Z-K halogen-free, 0.5 mm2 | Length: 10.0 m
6ES7922-5BD20-0UB0 Channels: 16 ch (pins 1-20) | Core type: UL/CSA, 0.5 mm2 | Length: 3.2 m
6ES7922-5BF00-0UB0 Channels: 16 ch (pins 1-20) | Core type: UL/CSA, 0.5 mm2 | Length: 5.0 m
6ES7922-5BG50-0UB0 Channels: 16 ch (pins 1-20) | Core type: UL/CSA, 0.5 mm2 | Length: 6.5 m
PLC AccessoriesSiemens
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC S7-1500 Front Connectors with Single Cores (2.5-10 m)

Brand Siemens·PLC Accessories

Available part numbers (30)

6ES7922-5BC50-0AC0, 6ES7922-5BD20-0AC0, 6ES7922-5BF00-0AC0, 6ES7922-5BG50-0AC0, 6ES7922-5BJ00-0AC0, 6ES7922-5CB00-0AC0, 6ES7922-5BC50-0HC0, 6ES7922-5BD20-0HC0, 6ES7922-5BF00-0HC0, 6ES7922-5BG50-0HC0 + 20 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
