LS Electric accessories for Xmotion servo drives: CN1 and I/O terminal blocks with cable, Servocon I/O terminals, mating connectors, USB cable and absolute encoder battery.

Key features

  • CN1 / I/O terminal blocks with pre-wired cable for pulse, EtherCAT and multi-axis drives
  • Terminal-block cable lengths 0.5 to 3 m (length code in the suffix; 0.5 m has no suffix)
  • Servocon direct-mount I/O terminals for L7NH, iX7NH and iX7M (2/3/4-axis)
  • Solder-type CN1, CN2 and I/O connectors (Suntone SM-series cases)
  • EtherCAT RJ45 plug and STO bypass connector
  • ER6V 3.6 V lithium battery for absolute multi-turn encoders (E and F series motors)

Specifications

Applicable series L7NH, L7NHF, L7P, L7S, L7C, iX7NH, iX7M, PEGA, PHOX
Length code none = 0.5 m, 01 = 1 m, 015 = 1.5 m, 02 = 2 m, 03 = 3 m
APCS-L7NCN1T lengths 0.5, 1, 1.5, 2 m
Terminal block mounting DIN rail
USB cable note Twisted pair, EMI filter, max. 1.8 m
Source LS Electric Xmotion Servo System catalog (2024.09), p. 196, 199-204
APC-VSCN1T Item: CN1 terminal block with cable | For drives: L7S, L7P, L7C | Detail: 50-pin, DIN rail | Cable length: 0.5 m
APC-VSCN1T-01 Item: CN1 terminal block with cable | For drives: L7S, L7P, L7C | Detail: 50-pin, DIN rail | Cable length: 1 m
APC-VSCN1T-015 Item: CN1 terminal block with cable | For drives: L7S, L7P, L7C | Detail: 50-pin, DIN rail | Cable length: 1.5 m
APC-VSCN1T-02 Item: CN1 terminal block with cable | For drives: L7S, L7P, L7C | Detail: 50-pin, DIN rail | Cable length: 2 m
APC-VSCN1T-03 Item: CN1 terminal block with cable | For drives: L7S, L7P, L7C | Detail: 50-pin, DIN rail | Cable length: 3 m
APCS-L7NCN1T Item: CN1 terminal block with cable | For drives: L7NH, iX7NH | Detail: 20-pin, DIN rail | Cable length: 0.5 m
APCS-L7NCN1T-01 Item: CN1 terminal block with cable | For drives: L7NH, iX7NH | Detail: 20-pin, DIN rail | Cable length: 1 m
APCS-L7NCN1T-015 Item: CN1 terminal block with cable | For drives: L7NH, iX7NH | Detail: 20-pin, DIN rail | Cable length: 1.5 m
APCS-L7NCN1T-02 Item: CN1 terminal block with cable | For drives: L7NH, iX7NH | Detail: 20-pin, DIN rail | Cable length: 2 m
APCS-iX7M-IOT Item: I/O terminal block with cable | For drives: iX7M | Detail: 40-pin, DIN rail | Cable length: 0.5 m
APCS-iX7M-IOT-01 Item: I/O terminal block with cable | For drives: iX7M | Detail: 40-pin, DIN rail | Cable length: 1 m
APCS-iX7M-IOT-015 Item: I/O terminal block with cable | For drives: iX7M | Detail: 40-pin, DIN rail | Cable length: 1.5 m
APCS-iX7M-IOT-02 Item: I/O terminal block with cable | For drives: iX7M | Detail: 40-pin, DIN rail | Cable length: 2 m
APCS-iX7M-IOT-03 Item: I/O terminal block with cable | For drives: iX7M | Detail: 40-pin, DIN rail | Cable length: 3 m
APCS-CN5L7U Item: USB communication cable | For drives: iX7NH, L7, PEGA, PHOX | Detail: USB A to mini USB 5P | Cable length: 1.8 m
APC-CN1NNA Item: CN1 connector | For drives: L7S, L7P, L7C | Detail: SM-50J (Suntone), 50-pin | Cable length: None
APC-CN2NNA Item: CN1 connector | For drives: L7NH, iX7NH | Detail: SM-20J (Suntone), 20-pin | Cable length: None
APC-CN3NNA Item: CN2 encoder connector | For drives: iX7NH, L7 (all) | Detail: SM-14J (Suntone), 14-pin | Cable length: None
APCS-iX7M-IONNA Item: I/O connector | For drives: iX7M | Detail: SM-36J (Suntone), 36-pin | Cable length: None
APCS-CN4NNA Item: EtherCAT connector (CN3/CN4) | For drives: L7NH, L7NHF, iX7NH, iX7M | Detail: Shielded RJ45 plug | Cable length: None
APCS-CN6K Item: CN6 STO bypass connector | For drives: L7NH, L7NHF, iX7NH, iX7M | Detail: Mini I/O by-pass, TE 1971153 | Cable length: None
SIO-L7NH Item: I/O terminal (Servocon) | For drives: L7NH, iX7NH | Detail: MDR 20P male, 22 mm wide | Cable length: None
SIO-iX7M2 Item: I/O terminal (Servocon) | For drives: iX7M 2-axis | Detail: MDR 36P male, 30 mm wide | Cable length: None
SIO-iX7M3 Item: I/O terminal (Servocon) | For drives: iX7M 3-axis | Detail: MDR 36P male, 38 mm wide | Cable length: None
SIO-iX7M4 Item: I/O terminal (Servocon) | For drives: iX7M 4-axis | Detail: MDR 36P male, 48 mm wide | Cable length: None
SIO-36P Item: I/O terminal (Servocon) | For drives: iX7M | Detail: MDR 36P male, 38 mm wide | Cable length: None
APCS-BATT36 Item: Absolute encoder battery | For drives: L7, iX7NH, iX7M | Detail: ER6V 3.6 V 2000 mAh, Molex 5264-02 | Cable length: None
Drive OptionsLS Electric
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Xmotion Servo Connectors, Terminal Blocks and Battery

Brand LS Electric·Drive Options

Available part numbers (27)

APC-VSCN1T, APC-VSCN1T-01, APC-VSCN1T-015, APC-VSCN1T-02, APC-VSCN1T-03, APCS-L7NCN1T, APCS-L7NCN1T-01, APCS-L7NCN1T-015, APCS-L7NCN1T-02, APCS-iX7M-IOT + 17 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec

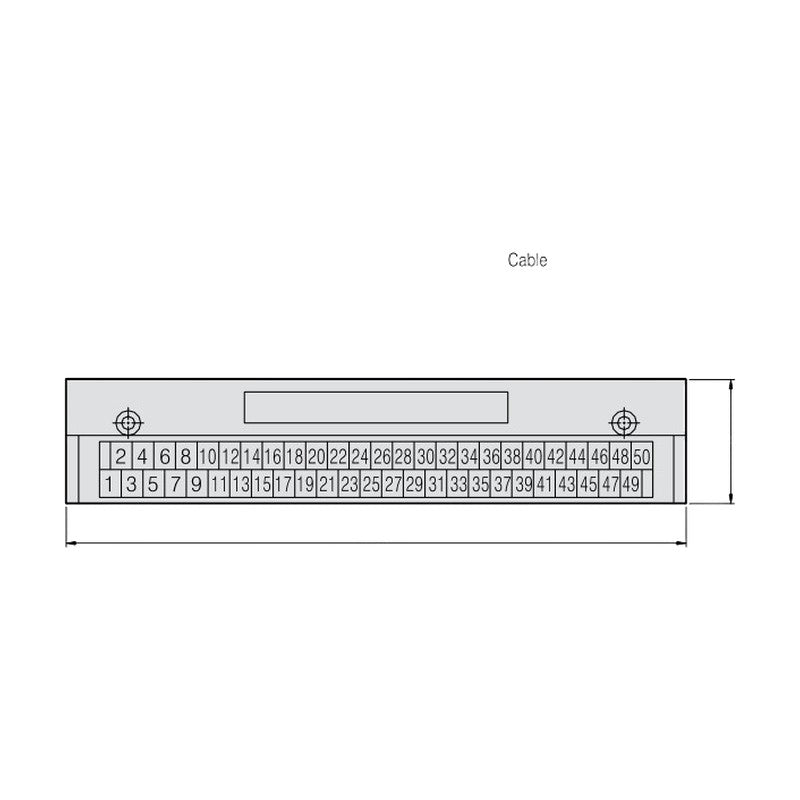

APC-VSCN1TItem: CN1 terminal block with cable | For drives: L7S, L7P, L7C | Detail: 50-pin, DIN rail | Cable length: 0.5 m
