LS Electric Xmotion Servo Drive Noise Filters (APCS-TB6)

LS Electric Xmotion Servo Drive Noise Filters (APCS-TB6)

LS Electric APCS-TB6 three-phase input noise filters matched to Xmotion L7 series, iX7NH and iX7M servo drive capacities.

Key features

  • Three-phase line filters (L1/L2/L3) with terminal block assembly
  • Selected by drive voltage class and capacity
  • Covers 200 V drives 100 W to 15 kW and 400 V drives 1 kW to 15 kW
  • Also matched to iX7M multi-axis drive configurations

Specifications

Applicable series L7NH, L7NHF, L7P, L7S, L7C, iX7NH, iX7M
Phases 3-phase input

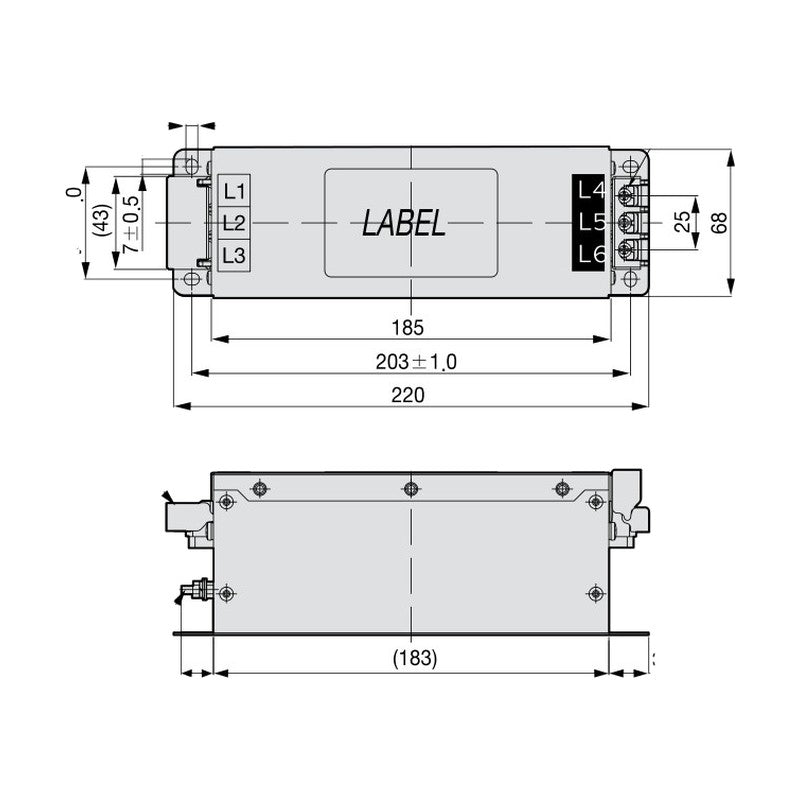

B010/B020/B030 size 220 x 75 x 68 mm
B040 size 200 x 97 x 75 mm
B060/B080 size 200 x 122 x 120 mm
Source LS Electric Xmotion Servo System catalog (2024.09), p. 207
APCS-TB6-B010LBEI Drives 200V: 100 W-1 kW (001-010) | Drives 400V: 1 kW (B010) | iX7M drives: 22XXB, 44XXB, 222XB, 2222B | Terminal screw: M4
APCS-TB6-B020NBDC Drives 200V: None | Drives 400V: 2-3.5 kW (B020, B035) | iX7M drives: 88XXB, AAXXB, 444XB, 4444B | Terminal screw: M4
APCS-TB6-B030NBDC Drives 200V: 2-3.5 kW (020, 035) | Drives 400V: 5 kW (B050) | iX7M drives: None | Terminal screw: M4
APCS-TB6-B040AS Drives 200V: 5 kW (050) | Drives 400V: 7.5 kW (B075) | iX7M drives: None | Terminal screw: M5
APCS-TB6-B060LAS Drives 200V: 7.5 kW (075) | Drives 400V: 15 kW (B150) | iX7M drives: None | Terminal screw: M6
APCS-TB6-B080LAS Drives 200V: 15 kW (150) | Drives 400V: None | iX7M drives: None | Terminal screw: M6
Drive OptionsLS Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Xmotion Servo Drive Noise Filters (APCS-TB6)

Brand LS Electric·Drive Options

Available part numbers (6)

APCS-TB6-B010LBEI, APCS-TB6-B020NBDC, APCS-TB6-B030NBDC, APCS-TB6-B040AS, APCS-TB6-B060LAS, APCS-TB6-B080LAS

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APCS-TB6-B010LBEIDrives 200V: 100 W-1 kW (001-010) | Drives 400V: 1 kW (B010) | iX7M drives: 22XXB, 44XXB, 222XB, 2222B | Terminal screw: M4
APCS-TB6-B020NBDCDrives 200V: None | Drives 400V: 2-3.5 kW (B020, B035) | iX7M drives: 88XXB, AAXXB, 444XB, 4444B | Terminal screw: M4
APCS-TB6-B030NBDCDrives 200V: 2-3.5 kW (020, 035) | Drives 400V: 5 kW (B050) | iX7M drives: None | Terminal screw: M4
APCS-TB6-B040ASDrives 200V: 5 kW (050) | Drives 400V: 7.5 kW (B075) | iX7M drives: None | Terminal screw: M5
APCS-TB6-B060LASDrives 200V: 7.5 kW (075) | Drives 400V: 15 kW (B150) | iX7M drives: None | Terminal screw: M6
APCS-TB6-B080LASDrives 200V: 15 kW (150) | Drives 400V: None | iX7M drives: None | Terminal screw: M6
