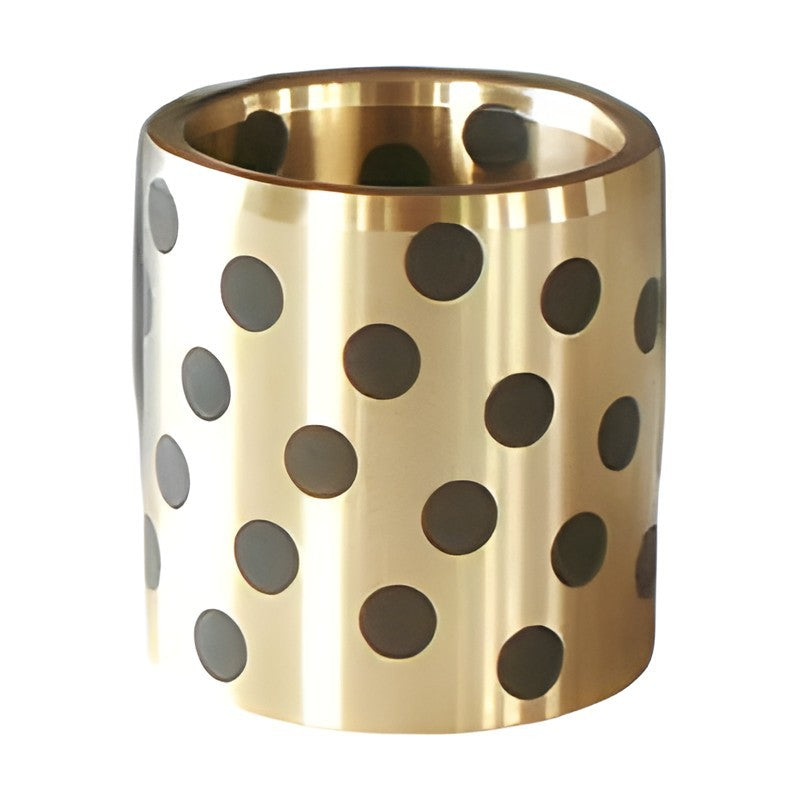

LuBo HBN #500 Straight Bushing (Inch, C86300 + Graphite)

LuBo HBN #500 Straight Bushing (Inch, C86300 + Graphite)

LuBo HBN is a #500 self-lubricating straight bushing in inch sizes, made of C86300 high-strength bronze with graphite plugs.

Key features

  • Copper alloy C86300 with graphite plugs
  • Inch sizes: ID 1/2 to 5 in
  • Oil-free sliding motion
  • Mating shaft d8 / e7 / f7 by load and precision
  • Length tolerance +/-0.005 in

Specifications

Series HBN
Material Copper alloy C86300 + graphite
Size system Inch
Length tolerance +/-0.005 in
Shaft fit d8 heavy load, e7 light load, f7 high precision
Order format Product code (e.g. HBN-081212)
Code key ID, OD and length in 1/16 in
Source LuBo #500 Series for Inch Size (Straight Bushings HBN)
HBN-081208 ID: 1/2 in | OD: 3/4 in | Length: 1/2 in
HBN-081210 ID: 1/2 in | OD: 3/4 in | Length: 5/8 in
HBN-081212 ID: 1/2 in | OD: 3/4 in | Length: 3/4 in
HBN-081214 ID: 1/2 in | OD: 3/4 in | Length: 7/8 in
HBN-081216 ID: 1/2 in | OD: 3/4 in | Length: 1 in
HBN-081220 ID: 1/2 in | OD: 3/4 in | Length: 1 1/4 in
HBN-101410 ID: 5/8 in | OD: 7/8 in | Length: 5/8 in
HBN-101412 ID: 5/8 in | OD: 7/8 in | Length: 3/4 in
HBN-101416 ID: 5/8 in | OD: 7/8 in | Length: 1 in
HBN-101424 ID: 5/8 in | OD: 7/8 in | Length: 1 1/2 in
HBN-121810 ID: 3/4 in | OD: 1 1/8 in | Length: 5/8 in
HBN-121812 ID: 3/4 in | OD: 1 1/8 in | Length: 3/4 in
HBN-121814 ID: 3/4 in | OD: 1 1/8 in | Length: 7/8 in
HBN-121816 ID: 3/4 in | OD: 1 1/8 in | Length: 1 in
HBN-121822 ID: 3/4 in | OD: 1 1/8 in | Length: 1 3/8 in
HBN-121824 ID: 3/4 in | OD: 1 1/8 in | Length: 1 1/2 in
HBN-142012 ID: 7/8 in | OD: 1 1/4 in | Length: 3/4 in
HBN-142016 ID: 7/8 in | OD: 1 1/4 in | Length: 1 in
HBN-142020 ID: 7/8 in | OD: 1 1/4 in | Length: 1 1/4 in
HBN-142022 ID: 7/8 in | OD: 1 1/4 in | Length: 1 3/8 in
HBN-142024 ID: 7/8 in | OD: 1 1/4 in | Length: 1 1/2 in
HBN-162212 ID: 1 in | OD: 1 3/8 in | Length: 3/4 in
HBN-162216 ID: 1 in | OD: 1 3/8 in | Length: 1 in
HBN-162220 ID: 1 in | OD: 1 3/8 in | Length: 1 1/4 in
HBN-162222 ID: 1 in | OD: 1 3/8 in | Length: 1 3/8 in
HBN-162224 ID: 1 in | OD: 1 3/8 in | Length: 1 1/2 in
HBN-162228 ID: 1 in | OD: 1 3/8 in | Length: 1 3/4 in
HBN-162232 ID: 1 in | OD: 1 3/8 in | Length: 2 in
HBN-162248 ID: 1 in | OD: 1 3/8 in | Length: 3 in
HBN-162412 ID: 1 in | OD: 1 1/2 in | Length: 3/4 in
HBN-162416 ID: 1 in | OD: 1 1/2 in | Length: 1 in
HBN-162424 ID: 1 in | OD: 1 1/2 in | Length: 1 1/2 in
HBN-162432 ID: 1 in | OD: 1 1/2 in | Length: 2 in
HBN-202616 ID: 1 1/4 in | OD: 1 5/8 in | Length: 1 in
HBN-202620 ID: 1 1/4 in | OD: 1 5/8 in | Length: 1 1/4 in
HBN-202622 ID: 1 1/4 in | OD: 1 5/8 in | Length: 1 3/8 in
HBN-202624 ID: 1 1/4 in | OD: 1 5/8 in | Length: 1 1/2 in
HBN-202628 ID: 1 1/4 in | OD: 1 5/8 in | Length: 1 3/4 in
HBN-202630 ID: 1 1/4 in | OD: 1 5/8 in | Length: 1 7/8 in
HBN-202632 ID: 1 1/4 in | OD: 1 5/8 in | Length: 2 in
HBN-202648 ID: 1 1/4 in | OD: 1 5/8 in | Length: 3 in
HBN-243216 ID: 1 1/2 in | OD: 2 in | Length: 1 in
HBN-243220 ID: 1 1/2 in | OD: 2 in | Length: 1 1/4 in
HBN-243222 ID: 1 1/2 in | OD: 2 in | Length: 1 3/8 in
HBN-243224 ID: 1 1/2 in | OD: 2 in | Length: 1 1/2 in
HBN-243228 ID: 1 1/2 in | OD: 2 in | Length: 1 3/4 in
HBN-243230 ID: 1 1/2 in | OD: 2 in | Length: 1 7/8 in
HBN-243240 ID: 1 1/2 in | OD: 2 in | Length: 2 1/2 in
HBN-243248 ID: 1 1/2 in | OD: 2 in | Length: 3 in
HBN-243264 ID: 1 1/2 in | OD: 2 in | Length: 4 in
HBN-283620 ID: 1 3/4 in | OD: 2 1/4 in | Length: 1 1/4 in
HBN-283624 ID: 1 3/4 in | OD: 2 1/4 in | Length: 1 1/2 in
HBN-283628 ID: 1 3/4 in | OD: 2 1/4 in | Length: 1 3/4 in
HBN-283632 ID: 1 3/4 in | OD: 2 1/4 in | Length: 2 in
HBN-283640 ID: 1 3/4 in | OD: 2 1/4 in | Length: 2 1/2 in
HBN-283648 ID: 1 3/4 in | OD: 2 1/4 in | Length: 3 in
HBN-283656 ID: 1 3/4 in | OD: 2 1/4 in | Length: 3 1/2 in
HBN-283664 ID: 1 3/4 in | OD: 2 1/4 in | Length: 4 in
HBN-324020 ID: 2 in | OD: 2 1/2 in | Length: 1 1/4 in
HBN-324024 ID: 2 in | OD: 2 1/2 in | Length: 1 1/2 in
HBN-324032 ID: 2 in | OD: 2 1/2 in | Length: 2 in
HBN-324040 ID: 2 in | OD: 2 1/2 in | Length: 2 1/2 in
HBN-324044 ID: 2 in | OD: 2 1/2 in | Length: 2 3/4 in
HBN-324048 ID: 2 in | OD: 2 1/2 in | Length: 3 in
HBN-324062 ID: 2 in | OD: 2 1/2 in | Length: 3 7/8 in
HBN-364424 ID: 2 1/4 in | OD: 2 3/4 in | Length: 1 1/2 in
HBN-364432 ID: 2 1/4 in | OD: 2 3/4 in | Length: 2 in
HBN-364440 ID: 2 1/4 in | OD: 2 3/4 in | Length: 2 1/2 in
HBN-364448 ID: 2 1/4 in | OD: 2 3/4 in | Length: 3 in
HBN-404824 ID: 2 1/2 in | OD: 3 in | Length: 1 1/2 in
HBN-404832 ID: 2 1/2 in | OD: 3 in | Length: 2 in
HBN-404848 ID: 2 1/2 in | OD: 3 in | Length: 3 in
HBN-405224 ID: 2 1/2 in | OD: 3 1/4 in | Length: 1 1/2 in
HBN-405232 ID: 2 1/2 in | OD: 3 1/4 in | Length: 2 in
HBN-405248 ID: 2 1/2 in | OD: 3 1/4 in | Length: 3 in
HBN-405278 ID: 2 1/2 in | OD: 3 1/4 in | Length: 4 7/8 in
HBN-445424 ID: 2 3/4 in | OD: 3 3/8 in | Length: 1 1/2 in
HBN-445432 ID: 2 3/4 in | OD: 3 3/8 in | Length: 2 in
HBN-445440 ID: 2 3/4 in | OD: 3 3/8 in | Length: 2 1/2 in
HBN-445448 ID: 2 3/4 in | OD: 3 3/8 in | Length: 3 in
HBN-485832 ID: 3 in | OD: 3 5/8 in | Length: 2 in
HBN-485840 ID: 3 in | OD: 3 5/8 in | Length: 2 1/2 in
HBN-485848 ID: 3 in | OD: 3 5/8 in | Length: 3 in
HBN-485856 ID: 3 in | OD: 3 5/8 in | Length: 3 1/2 in
HBN-486032 ID: 3 in | OD: 3 3/4 in | Length: 2 in
HBN-486040 ID: 3 in | OD: 3 3/4 in | Length: 2 1/2 in
HBN-486048 ID: 3 in | OD: 3 3/4 in | Length: 3 in
HBN-486056 ID: 3 in | OD: 3 3/4 in | Length: 3 1/2 in
HBN-486078 ID: 3 in | OD: 3 3/4 in | Length: 4 7/8 in
HBN-566632 ID: 3 1/2 in | OD: 4 1/8 in | Length: 2 in
HBN-566648 ID: 3 1/2 in | OD: 4 1/8 in | Length: 3 in
HBN-566664 ID: 3 1/2 in | OD: 4 1/8 in | Length: 4 in
HBN-647632 ID: 4 in | OD: 4 3/4 in | Length: 2 in
HBN-647648 ID: 4 in | OD: 4 3/4 in | Length: 3 in
HBN-647664 ID: 4 in | OD: 4 3/4 in | Length: 4 in
HBN-728648 ID: 4 1/2 in | OD: 5 3/8 in | Length: 3 in
HBN-728664 ID: 4 1/2 in | OD: 5 3/8 in | Length: 4 in
HBN-728680 ID: 4 1/2 in | OD: 5 3/8 in | Length: 5 in
HBN-809648 ID: 5 in | OD: 6 in | Length: 3 in
HBN-809664 ID: 5 in | OD: 6 in | Length: 4 in
HBN-809680 ID: 5 in | OD: 6 in | Length: 5 in
HBN-809696 ID: 5 in | OD: 6 in | Length: 6 in
Plain BearingLuBo
102 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo HBN #500 Straight Bushing (Inch, C86300 + Graphite)

Brand LuBo·Plain Bearing

Available part numbers (102)

HBN-081208, HBN-081210, HBN-081212, HBN-081214, HBN-081216, HBN-081220, HBN-101410, HBN-101412, HBN-101416, HBN-101424 + 92 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
