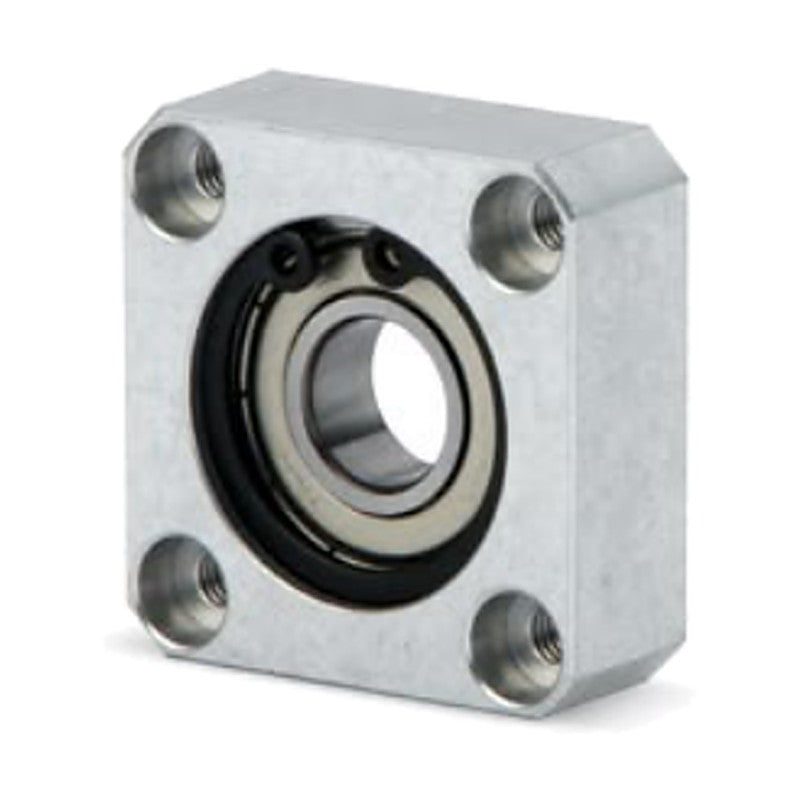

SUNGIL SBS Bearing Unit (square flange, bore 8-30 mm)

SUNGIL SBS Bearing Unit (square flange, bore 8-30 mm)

Square-flange bearing unit with a deep-groove ball bearing, for supporting shaft ends and light-load ball screw supported sides.

Key features

  • Deep-groove ball bearing (ZZ) fitted
  • Flange mounting with 4 counterbored holes
  • Bore 8 to 30 mm
  • Compact housing for shaft ends

Specifications

Series SBS
Bearing 608ZZ to 6206ZZ
Bore d 8-30 mm
Mounting Square flange, counterbored holes
Application Shaft-end and supported-side support
Source SUNGIL Catalogue (EN), Bearing Unit p.282
SBS-8 Bore d: 8 mm | Flange □K: 36 mm | Width B: 7 mm | Bearing: 608ZZ
SBS-10 Bore d: 10 mm | Flange □K: 39 mm | Width B: 8 mm | Bearing: 6000ZZ
SBS-12 Bore d: 12 mm | Flange □K: 40 mm | Width B: 8 mm | Bearing: 6001ZZ
SBS-15 Bore d: 15 mm | Flange □K: 46 mm | Width B: 9 mm | Bearing: 6002ZZ
SBS-17 Bore d: 17 mm | Flange □K: 54 mm | Width B: 12 mm | Bearing: 6203ZZ
SBS-20 Bore d: 20 mm | Flange □K: 59 mm | Width B: 12 mm | Bearing: 6004ZZ
SBS-25 Bore d: 25 mm | Flange □K: 72 mm | Width B: 15 mm | Bearing: 6205ZZ
SBS-30 Bore d: 30 mm | Flange □K: 79 mm | Width B: 16 mm | Bearing: 6206ZZ
Bearing UnitSUNGIL
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SBS Bearing Unit (square flange, bore 8-30 mm)

Brand SUNGIL·Bearing Unit

Available part numbers (8)

SBS-8, SBS-10, SBS-12, SBS-15, SBS-17, SBS-20, SBS-25, SBS-30

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBS-8Bore d: 8 mm | Flange □K: 36 mm | Width B: 7 mm | Bearing: 608ZZ
SBS-10Bore d: 10 mm | Flange □K: 39 mm | Width B: 8 mm | Bearing: 6000ZZ
SBS-12Bore d: 12 mm | Flange □K: 40 mm | Width B: 8 mm | Bearing: 6001ZZ
SBS-15Bore d: 15 mm | Flange □K: 46 mm | Width B: 9 mm | Bearing: 6002ZZ
SBS-17Bore d: 17 mm | Flange □K: 54 mm | Width B: 12 mm | Bearing: 6203ZZ
SBS-20Bore d: 20 mm | Flange □K: 59 mm | Width B: 12 mm | Bearing: 6004ZZ
SBS-25Bore d: 25 mm | Flange □K: 72 mm | Width B: 15 mm | Bearing: 6205ZZ
SBS-30Bore d: 30 mm | Flange □K: 79 mm | Width B: 16 mm | Bearing: 6206ZZ
