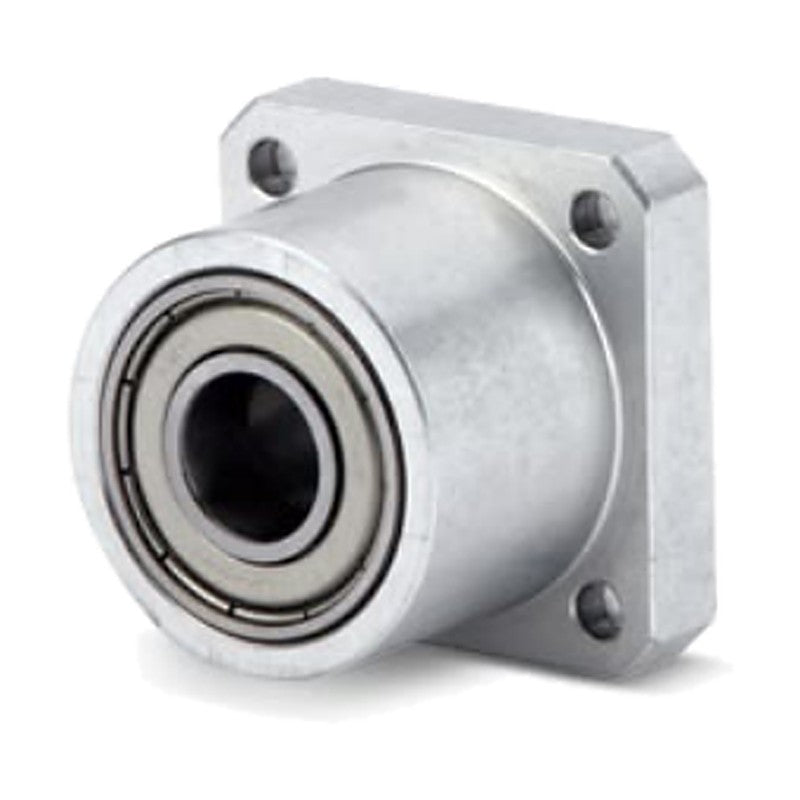

SUNGIL SBD Bearing Unit (round-boss flange, bore 8-30 mm)

SUNGIL SBD Bearing Unit (round-boss flange, bore 8-30 mm)

Flanged bearing unit with an extended boss and deep-groove ball bearing for shaft-end support.

Key features

  • Deep-groove ball bearing (ZZ) fitted
  • Flange mounting with 4 counterbored holes
  • Bore 8 to 30 mm
  • Compact housing for shaft ends

Specifications

Series SBD
Bearing 608ZZ to 6206ZZ
Bore d 8-30 mm
Mounting Square flange, counterbored holes
Application Shaft-end and supported-side support
Source SUNGIL Catalogue (EN), Bearing Unit p.282
SBD-8 Bore d: 8 mm | Flange □K: 36 mm | Length L: 25 mm | Bearing: 608ZZ
SBD-10 Bore d: 10 mm | Flange □K: 39 mm | Length L: 30 mm | Bearing: 6000ZZ
SBD-12 Bore d: 12 mm | Flange □K: 40 mm | Length L: 30 mm | Bearing: 6001ZZ
SBD-15 Bore d: 15 mm | Flange □K: 46 mm | Length L: 35 mm | Bearing: 6002ZZ
SBD-17 Bore d: 17 mm | Flange □K: 54 mm | Length L: 45 mm | Bearing: 6203ZZ
SBD-20 Bore d: 20 mm | Flange □K: 59 mm | Length L: 45 mm | Bearing: 6004ZZ
SBD-25 Bore d: 25 mm | Flange □K: 72 mm | Length L: 45 mm | Bearing: 6205ZZ
SBD-30 Bore d: 30 mm | Flange □K: 79 mm | Length L: 50 mm | Bearing: 6206ZZ
Bearing UnitSUNGIL
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SBD Bearing Unit (round-boss flange, bore 8-30 mm)

Brand SUNGIL·Bearing Unit

Available part numbers (8)

SBD-8, SBD-10, SBD-12, SBD-15, SBD-17, SBD-20, SBD-25, SBD-30

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBD-8Bore d: 8 mm | Flange □K: 36 mm | Length L: 25 mm | Bearing: 608ZZ
SBD-10Bore d: 10 mm | Flange □K: 39 mm | Length L: 30 mm | Bearing: 6000ZZ
SBD-12Bore d: 12 mm | Flange □K: 40 mm | Length L: 30 mm | Bearing: 6001ZZ
SBD-15Bore d: 15 mm | Flange □K: 46 mm | Length L: 35 mm | Bearing: 6002ZZ
SBD-17Bore d: 17 mm | Flange □K: 54 mm | Length L: 45 mm | Bearing: 6203ZZ
SBD-20Bore d: 20 mm | Flange □K: 59 mm | Length L: 45 mm | Bearing: 6004ZZ
SBD-25Bore d: 25 mm | Flange □K: 72 mm | Length L: 45 mm | Bearing: 6205ZZ
SBD-30Bore d: 30 mm | Flange □K: 79 mm | Length L: 50 mm | Bearing: 6206ZZ
