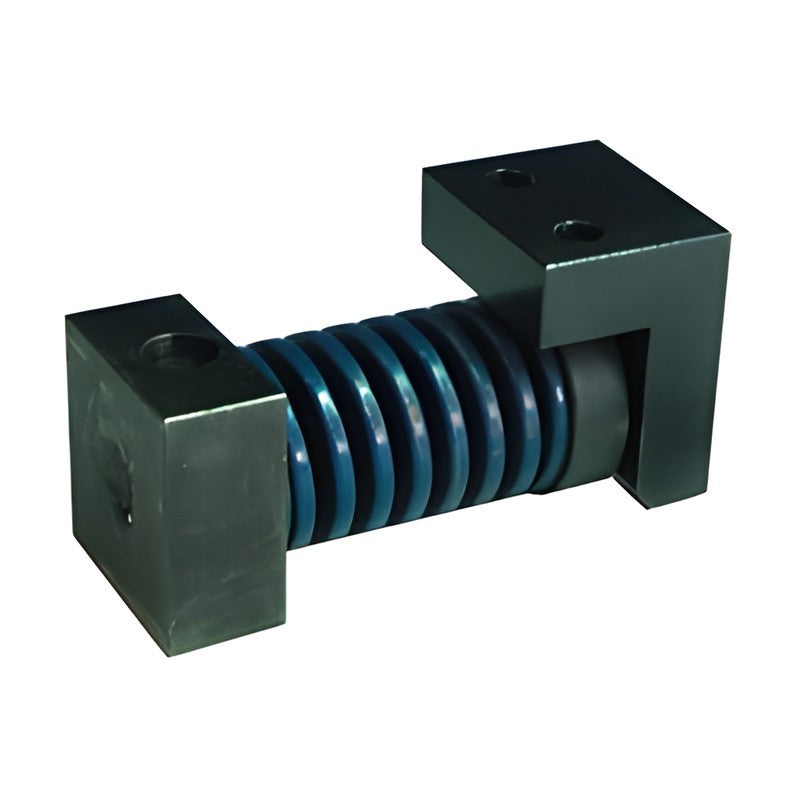

LuBo LASM Return Spring Unit (Mounting Type)

LuBo LASM Return Spring Unit (Mounting Type)

LuBo LASM is a separate-mount return spring unit with bracket, selected by size and stroke, for returning cam slides.

Key features

  • Separate mounting bracket for flexible layout
  • Light (L, LSSL) or medium (M, LSSM) load spring sets
  • Sizes 40, 50 and 60; strokes 20-150 mm
  • Spring set and final force listed per stroke
  • Black oxide finish

Specifications

Series LASM
Finish Black oxide
Springs LSSL (L sizes) / LSSM (M sizes)
Order format LASM - size x stroke (e.g. LASM-L40X60)
Minimum order 1 set
Lead time 7-9 days (catalogue)
Source LuBo Spring Units catalogue (Return Spring Units - Mounting Type)
LASM-L40X20 Size: L40 | Stroke: 20 mm | L: 110 mm | Spring: LSSL 40X100 | Final force: 1695 N
LASM-L40X25 Size: L40 | Stroke: 25 mm | L: 132 mm | Spring: LSSL 40X125 | Final force: 1695 N
LASM-L40X30 Size: L40 | Stroke: 30 mm | L: 154 mm | Spring: LSSL 40X150 | Final force: 1695 N
LASM-L40X35 Size: L40 | Stroke: 35 mm | L: 159 mm | Spring: LSSL 40X150 | Final force: 1695 N
LASM-L40X40 Size: L40 | Stroke: 40 mm | L: 181 mm | Spring: LSSL 40X175 | Final force: 1695 N
LASM-L40X45 Size: L40 | Stroke: 45 mm | L: 203 mm | Spring: LSSL 40X200 | Final force: 1695 N
LASM-L40X50 Size: L40 | Stroke: 50 mm | L: 242 mm | Spring: LSSL 40X250 | Final force: 1695 N
LASM-L40X55 Size: L40 | Stroke: 55 mm | L: 247 mm | Spring: LSSL 40X250 | Final force: 1695 N
LASM-L40X60 Size: L40 | Stroke: 60 mm | L: 296 mm | Spring: LSSL 40X150-2 | Final force: 1695 N
LASM-L40X65 Size: L40 | Stroke: 65 mm | L: 301 mm | Spring: LSSL 40X150-2 | Final force: 1695 N
LASM-L40X70 Size: L40 | Stroke: 70 mm | L: 340 mm | Spring: LSSL 40X175-2 | Final force: 1695 N
LASM-L40X75 Size: L40 | Stroke: 75 mm | L: 345 mm | Spring: LSSL 40X175-2 | Final force: 1695 N
LASM-L40X80 Size: L40 | Stroke: 80 mm | L: 384 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X85 Size: L40 | Stroke: 85 mm | L: 389 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X90 Size: L40 | Stroke: 90 mm | L: 394 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X95 Size: L40 | Stroke: 95 mm | L: 399 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X100 Size: L40 | Stroke: 100 mm | L: 472 mm | Spring: LSSL 40X250-2 | Final force: 1695 N
LASM-L40X105 Size: L40 | Stroke: 105 mm | L: 477 mm | Spring: LSSL 40X250-2 | Final force: 1695 N
LASM-L40X110 Size: L40 | Stroke: 110 mm | L: 482 mm | Spring: LSSL 40X250-2 | Final force: 1695 N
LASM-L50X20 Size: L50 | Stroke: 20 mm | L: 110 mm | Spring: LSSL 50X100 | Final force: 2700 N
LASM-L50X25 Size: L50 | Stroke: 25 mm | L: 132 mm | Spring: LSSL 50X125 | Final force: 2700 N
LASM-L50X30 Size: L50 | Stroke: 30 mm | L: 154 mm | Spring: LSSL 50X150 | Final force: 2700 N
LASM-L50X35 Size: L50 | Stroke: 35 mm | L: 159 mm | Spring: LSSL 50X150 | Final force: 2700 N
LASM-L50X40 Size: L50 | Stroke: 40 mm | L: 181 mm | Spring: LSSL 50X175 | Final force: 2700 N
LASM-L50X45 Size: L50 | Stroke: 45 mm | L: 203 mm | Spring: LSSL 50X200 | Final force: 2700 N
LASM-L50X50 Size: L50 | Stroke: 50 mm | L: 242 mm | Spring: LSSL 50X250 | Final force: 2700 N
LASM-L50X55 Size: L50 | Stroke: 55 mm | L: 247 mm | Spring: LSSL 50X250 | Final force: 2700 N
LASM-L50X60 Size: L50 | Stroke: 60 mm | L: 286 mm | Spring: LSSL 50X300 | Final force: 2700 N
LASM-L50X65 Size: L50 | Stroke: 65 mm | L: 291 mm | Spring: LSSL 50X300 | Final force: 2700 N
LASM-L50X70 Size: L50 | Stroke: 70 mm | L: 296 mm | Spring: LSSL 50X300 | Final force: 2700 N
LASM-L50X75 Size: L50 | Stroke: 75 mm | L: 345 mm | Spring: LSSL 50X175-2 | Final force: 2700 N
LASM-L50X80 Size: L50 | Stroke: 80 mm | L: 384 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X85 Size: L50 | Stroke: 85 mm | L: 389 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X90 Size: L50 | Stroke: 90 mm | L: 394 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X95 Size: L50 | Stroke: 95 mm | L: 399 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X100 Size: L50 | Stroke: 100 mm | L: 472 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X105 Size: L50 | Stroke: 105 mm | L: 477 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X110 Size: L50 | Stroke: 110 mm | L: 482 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X115 Size: L50 | Stroke: 115 mm | L: 487 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X120 Size: L50 | Stroke: 120 mm | L: 560 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X125 Size: L50 | Stroke: 125 mm | L: 565 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X130 Size: L50 | Stroke: 130 mm | L: 570 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X135 Size: L50 | Stroke: 135 mm | L: 575 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X140 Size: L50 | Stroke: 140 mm | L: 580 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X145 Size: L50 | Stroke: 145 mm | L: 585 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X150 Size: L50 | Stroke: 150 mm | L: 590 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L60X20 Size: L60 | Stroke: 20 mm | L: 110 mm | Spring: LSSL 60X100 | Final force: 3890 N
LASM-L60X25 Size: L60 | Stroke: 25 mm | L: 132 mm | Spring: LSSL 60X125 | Final force: 3890 N
LASM-L60X30 Size: L60 | Stroke: 30 mm | L: 154 mm | Spring: LSSL 60X150 | Final force: 3890 N
LASM-L60X35 Size: L60 | Stroke: 35 mm | L: 159 mm | Spring: LSSL 60X150 | Final force: 3890 N
LASM-L60X40 Size: L60 | Stroke: 40 mm | L: 181 mm | Spring: LSSL 60X175 | Final force: 3890 N
LASM-L60X45 Size: L60 | Stroke: 45 mm | L: 203 mm | Spring: LSSL 60X200 | Final force: 3890 N
LASM-L60X50 Size: L60 | Stroke: 50 mm | L: 242 mm | Spring: LSSL 60X250 | Final force: 3890 N
LASM-L60X55 Size: L60 | Stroke: 55 mm | L: 247 mm | Spring: LSSL 60X250 | Final force: 3890 N
LASM-L60X60 Size: L60 | Stroke: 60 mm | L: 286 mm | Spring: LSSL 60X300 | Final force: 3890 N
LASM-L60X65 Size: L60 | Stroke: 65 mm | L: 291 mm | Spring: LSSL 60X300 | Final force: 3890 N
LASM-L60X70 Size: L60 | Stroke: 70 mm | L: 296 mm | Spring: LSSL 60X300 | Final force: 3890 N
LASM-L60X75 Size: L60 | Stroke: 75 mm | L: 345 mm | Spring: LSSL 60X175-2 | Final force: 3890 N
LASM-L60X80 Size: L60 | Stroke: 80 mm | L: 384 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X85 Size: L60 | Stroke: 85 mm | L: 389 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X90 Size: L60 | Stroke: 90 mm | L: 394 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X95 Size: L60 | Stroke: 95 mm | L: 399 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X100 Size: L60 | Stroke: 100 mm | L: 472 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X105 Size: L60 | Stroke: 105 mm | L: 477 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X110 Size: L60 | Stroke: 110 mm | L: 482 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X115 Size: L60 | Stroke: 115 mm | L: 487 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X120 Size: L60 | Stroke: 120 mm | L: 560 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X125 Size: L60 | Stroke: 125 mm | L: 565 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X130 Size: L60 | Stroke: 130 mm | L: 570 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X135 Size: L60 | Stroke: 135 mm | L: 575 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X140 Size: L60 | Stroke: 140 mm | L: 580 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X145 Size: L60 | Stroke: 145 mm | L: 585 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X150 Size: L60 | Stroke: 150 mm | L: 590 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-M40X20 Size: M40 | Stroke: 20 mm | L: 135 mm | Spring: LSSM 40X125-1 | Final force: 2510 N
LASM-M40X25 Size: M40 | Stroke: 25 mm | L: 158 mm | Spring: LSSM 40X150-1 | Final force: 2510 N
LASM-M40X30 Size: M40 | Stroke: 30 mm | L: 201 mm | Spring: LSSM 40X200-1 | Final force: 2510 N
LASM-M40X35 Size: M40 | Stroke: 35 mm | L: 225 mm | Spring: LSSM 40X225-1 | Final force: 2510 N
LASM-M40X40 Size: M40 | Stroke: 40 mm | L: 248 mm | Spring: LSSM 40X250-1 | Final force: 2510 N
LASM-M40X45 Size: M40 | Stroke: 45 mm | L: 291 mm | Spring: LSSM 40X300-1 | Final force: 2510 N
LASM-M40X50 Size: M40 | Stroke: 50 mm | L: 342 mm | Spring: LSSM 40X175-2 | Final force: 2510 N
LASM-M40X55 Size: M40 | Stroke: 55 mm | L: 347 mm | Spring: LSSM 40X175-2 | Final force: 2510 N
LASM-M40X60 Size: M40 | Stroke: 60 mm | L: 390 mm | Spring: LSSM 40X200-2 | Final force: 2510 N
LASM-M40X65 Size: M40 | Stroke: 65 mm | L: 395 mm | Spring: LSSM 40X200-2 | Final force: 2510 N
LASM-M40X70 Size: M40 | Stroke: 70 mm | L: 436 mm | Spring: LSSM 40X225-2 | Final force: 2510 N
LASM-M40X75 Size: M40 | Stroke: 75 mm | L: 479 mm | Spring: LSSM 40X250-2 | Final force: 2510 N
LASM-M40X80 Size: M40 | Stroke: 80 mm | L: 484 mm | Spring: LSSM 40X250-2 | Final force: 2510 N
LASM-M50X20 Size: M50 | Stroke: 20 mm | L: 135 mm | Spring: LSSM 50X125-1 | Final force: 3920 N
LASM-M50X25 Size: M50 | Stroke: 25 mm | L: 158 mm | Spring: LSSM 50X150-1 | Final force: 3920 N
LASM-M50X30 Size: M50 | Stroke: 30 mm | L: 201 mm | Spring: LSSM 50X200-1 | Final force: 3920 N
LASM-M50X35 Size: M50 | Stroke: 35 mm | L: 225 mm | Spring: LSSM 50X225-1 | Final force: 3920 N
LASM-M50X40 Size: M50 | Stroke: 40 mm | L: 248 mm | Spring: LSSM 50X250-1 | Final force: 3920 N
LASM-M50X45 Size: M50 | Stroke: 45 mm | L: 291 mm | Spring: LSSM 50X300-1 | Final force: 3920 N
LASM-M50X50 Size: M50 | Stroke: 50 mm | L: 333 mm | Spring: LSSM 50X350-1 | Final force: 3920 N
LASM-M50X55 Size: M50 | Stroke: 55 mm | L: 338 mm | Spring: LSSM 50X350-1 | Final force: 3920 N
LASM-M50X60 Size: M50 | Stroke: 60 mm | L: 380 mm | Spring: LSSM 50X200-2 | Final force: 3920 N
LASM-M50X65 Size: M50 | Stroke: 65 mm | L: 385 mm | Spring: LSSM 50X200-2 | Final force: 3920 N
LASM-M50X70 Size: M50 | Stroke: 70 mm | L: 426 mm | Spring: LSSM 50X225-2 | Final force: 3920 N
LASM-M50X75 Size: M50 | Stroke: 75 mm | L: 469 mm | Spring: LSSM 50X250-2 | Final force: 3920 N
LASM-M50X80 Size: M50 | Stroke: 80 mm | L: 474 mm | Spring: LSSM 50X250-2 | Final force: 3920 N
LASM-M60X20 Size: M60 | Stroke: 20 mm | L: 135 mm | Spring: LSSM 60X125-1 | Final force: 5640 N
LASM-M60X25 Size: M60 | Stroke: 25 mm | L: 158 mm | Spring: LSSM 60X150-1 | Final force: 5640 N
LASM-M60X30 Size: M60 | Stroke: 30 mm | L: 201 mm | Spring: LSSM 60X200-1 | Final force: 5640 N
LASM-M60X35 Size: M60 | Stroke: 35 mm | L: 225 mm | Spring: LSSM 60X225-1 | Final force: 5640 N
LASM-M60X40 Size: M60 | Stroke: 40 mm | L: 248 mm | Spring: LSSM 60X250-1 | Final force: 5640 N
LASM-M60X45 Size: M60 | Stroke: 45 mm | L: 291 mm | Spring: LSSM 60X300-1 | Final force: 5640 N
LASM-M60X50 Size: M60 | Stroke: 50 mm | L: 333 mm | Spring: LSSM 60X350-1 | Final force: 5640 N
LASM-M60X55 Size: M60 | Stroke: 55 mm | L: 338 mm | Spring: LSSM 60X350-1 | Final force: 5640 N
LASM-M60X60 Size: M60 | Stroke: 60 mm | L: 380 mm | Spring: LSSM 60X200-2 | Final force: 5640 N
LASM-M60X65 Size: M60 | Stroke: 65 mm | L: 385 mm | Spring: LSSM 60X200-2 | Final force: 5640 N
LASM-M60X70 Size: M60 | Stroke: 70 mm | L: 426 mm | Spring: LSSM 60X225-2 | Final force: 5640 N
LASM-M60X75 Size: M60 | Stroke: 75 mm | L: 469 mm | Spring: LSSM 60X250-2 | Final force: 5640 N
LASM-M60X80 Size: M60 | Stroke: 80 mm | L: 474 mm | Spring: LSSM 60X250-2 | Final force: 5640 N
Spring UnitLuBo
112 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LASM Return Spring Unit (Mounting Type)

Brand LuBo·Spring Unit

Available part numbers (112)

LASM-L40X20, LASM-L40X25, LASM-L40X30, LASM-L40X35, LASM-L40X40, LASM-L40X45, LASM-L40X50, LASM-L40X55, LASM-L40X60, LASM-L40X65 + 102 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LASM-L40X20Size: L40 | Stroke: 20 mm | L: 110 mm | Spring: LSSL 40X100 | Final force: 1695 N
LASM-L40X25Size: L40 | Stroke: 25 mm | L: 132 mm | Spring: LSSL 40X125 | Final force: 1695 N
LASM-L40X30Size: L40 | Stroke: 30 mm | L: 154 mm | Spring: LSSL 40X150 | Final force: 1695 N
LASM-L40X35Size: L40 | Stroke: 35 mm | L: 159 mm | Spring: LSSL 40X150 | Final force: 1695 N
LASM-L40X40Size: L40 | Stroke: 40 mm | L: 181 mm | Spring: LSSL 40X175 | Final force: 1695 N
LASM-L40X45Size: L40 | Stroke: 45 mm | L: 203 mm | Spring: LSSL 40X200 | Final force: 1695 N
LASM-L40X50Size: L40 | Stroke: 50 mm | L: 242 mm | Spring: LSSL 40X250 | Final force: 1695 N
LASM-L40X55Size: L40 | Stroke: 55 mm | L: 247 mm | Spring: LSSL 40X250 | Final force: 1695 N
LASM-L40X60Size: L40 | Stroke: 60 mm | L: 296 mm | Spring: LSSL 40X150-2 | Final force: 1695 N
LASM-L40X65Size: L40 | Stroke: 65 mm | L: 301 mm | Spring: LSSL 40X150-2 | Final force: 1695 N
LASM-L40X70Size: L40 | Stroke: 70 mm | L: 340 mm | Spring: LSSL 40X175-2 | Final force: 1695 N
LASM-L40X75Size: L40 | Stroke: 75 mm | L: 345 mm | Spring: LSSL 40X175-2 | Final force: 1695 N
LASM-L40X80Size: L40 | Stroke: 80 mm | L: 384 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X85Size: L40 | Stroke: 85 mm | L: 389 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X90Size: L40 | Stroke: 90 mm | L: 394 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X95Size: L40 | Stroke: 95 mm | L: 399 mm | Spring: LSSL 40X200-2 | Final force: 1695 N
LASM-L40X100Size: L40 | Stroke: 100 mm | L: 472 mm | Spring: LSSL 40X250-2 | Final force: 1695 N
LASM-L40X105Size: L40 | Stroke: 105 mm | L: 477 mm | Spring: LSSL 40X250-2 | Final force: 1695 N
LASM-L40X110Size: L40 | Stroke: 110 mm | L: 482 mm | Spring: LSSL 40X250-2 | Final force: 1695 N
LASM-L50X20Size: L50 | Stroke: 20 mm | L: 110 mm | Spring: LSSL 50X100 | Final force: 2700 N
LASM-L50X25Size: L50 | Stroke: 25 mm | L: 132 mm | Spring: LSSL 50X125 | Final force: 2700 N
LASM-L50X30Size: L50 | Stroke: 30 mm | L: 154 mm | Spring: LSSL 50X150 | Final force: 2700 N
LASM-L50X35Size: L50 | Stroke: 35 mm | L: 159 mm | Spring: LSSL 50X150 | Final force: 2700 N
LASM-L50X40Size: L50 | Stroke: 40 mm | L: 181 mm | Spring: LSSL 50X175 | Final force: 2700 N
LASM-L50X45Size: L50 | Stroke: 45 mm | L: 203 mm | Spring: LSSL 50X200 | Final force: 2700 N
LASM-L50X50Size: L50 | Stroke: 50 mm | L: 242 mm | Spring: LSSL 50X250 | Final force: 2700 N
LASM-L50X55Size: L50 | Stroke: 55 mm | L: 247 mm | Spring: LSSL 50X250 | Final force: 2700 N
LASM-L50X60Size: L50 | Stroke: 60 mm | L: 286 mm | Spring: LSSL 50X300 | Final force: 2700 N
LASM-L50X65Size: L50 | Stroke: 65 mm | L: 291 mm | Spring: LSSL 50X300 | Final force: 2700 N
LASM-L50X70Size: L50 | Stroke: 70 mm | L: 296 mm | Spring: LSSL 50X300 | Final force: 2700 N
LASM-L50X75Size: L50 | Stroke: 75 mm | L: 345 mm | Spring: LSSL 50X175-2 | Final force: 2700 N
LASM-L50X80Size: L50 | Stroke: 80 mm | L: 384 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X85Size: L50 | Stroke: 85 mm | L: 389 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X90Size: L50 | Stroke: 90 mm | L: 394 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X95Size: L50 | Stroke: 95 mm | L: 399 mm | Spring: LSSL 50X200-2 | Final force: 2700 N
LASM-L50X100Size: L50 | Stroke: 100 mm | L: 472 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X105Size: L50 | Stroke: 105 mm | L: 477 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X110Size: L50 | Stroke: 110 mm | L: 482 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X115Size: L50 | Stroke: 115 mm | L: 487 mm | Spring: LSSL 50X250-2 | Final force: 2700 N
LASM-L50X120Size: L50 | Stroke: 120 mm | L: 560 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X125Size: L50 | Stroke: 125 mm | L: 565 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X130Size: L50 | Stroke: 130 mm | L: 570 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X135Size: L50 | Stroke: 135 mm | L: 575 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X140Size: L50 | Stroke: 140 mm | L: 580 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X145Size: L50 | Stroke: 145 mm | L: 585 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L50X150Size: L50 | Stroke: 150 mm | L: 590 mm | Spring: LSSL 50X300-2 | Final force: 2700 N
LASM-L60X20Size: L60 | Stroke: 20 mm | L: 110 mm | Spring: LSSL 60X100 | Final force: 3890 N
LASM-L60X25Size: L60 | Stroke: 25 mm | L: 132 mm | Spring: LSSL 60X125 | Final force: 3890 N
LASM-L60X30Size: L60 | Stroke: 30 mm | L: 154 mm | Spring: LSSL 60X150 | Final force: 3890 N
LASM-L60X35Size: L60 | Stroke: 35 mm | L: 159 mm | Spring: LSSL 60X150 | Final force: 3890 N
LASM-L60X40Size: L60 | Stroke: 40 mm | L: 181 mm | Spring: LSSL 60X175 | Final force: 3890 N
LASM-L60X45Size: L60 | Stroke: 45 mm | L: 203 mm | Spring: LSSL 60X200 | Final force: 3890 N
LASM-L60X50Size: L60 | Stroke: 50 mm | L: 242 mm | Spring: LSSL 60X250 | Final force: 3890 N
LASM-L60X55Size: L60 | Stroke: 55 mm | L: 247 mm | Spring: LSSL 60X250 | Final force: 3890 N
LASM-L60X60Size: L60 | Stroke: 60 mm | L: 286 mm | Spring: LSSL 60X300 | Final force: 3890 N
LASM-L60X65Size: L60 | Stroke: 65 mm | L: 291 mm | Spring: LSSL 60X300 | Final force: 3890 N
LASM-L60X70Size: L60 | Stroke: 70 mm | L: 296 mm | Spring: LSSL 60X300 | Final force: 3890 N
LASM-L60X75Size: L60 | Stroke: 75 mm | L: 345 mm | Spring: LSSL 60X175-2 | Final force: 3890 N
LASM-L60X80Size: L60 | Stroke: 80 mm | L: 384 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X85Size: L60 | Stroke: 85 mm | L: 389 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X90Size: L60 | Stroke: 90 mm | L: 394 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X95Size: L60 | Stroke: 95 mm | L: 399 mm | Spring: LSSL 60X200-2 | Final force: 3890 N
LASM-L60X100Size: L60 | Stroke: 100 mm | L: 472 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X105Size: L60 | Stroke: 105 mm | L: 477 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X110Size: L60 | Stroke: 110 mm | L: 482 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X115Size: L60 | Stroke: 115 mm | L: 487 mm | Spring: LSSL 60X250-2 | Final force: 3890 N
LASM-L60X120Size: L60 | Stroke: 120 mm | L: 560 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X125Size: L60 | Stroke: 125 mm | L: 565 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X130Size: L60 | Stroke: 130 mm | L: 570 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X135Size: L60 | Stroke: 135 mm | L: 575 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X140Size: L60 | Stroke: 140 mm | L: 580 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X145Size: L60 | Stroke: 145 mm | L: 585 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-L60X150Size: L60 | Stroke: 150 mm | L: 590 mm | Spring: LSSL 60X300-2 | Final force: 3890 N
LASM-M40X20Size: M40 | Stroke: 20 mm | L: 135 mm | Spring: LSSM 40X125-1 | Final force: 2510 N
LASM-M40X25Size: M40 | Stroke: 25 mm | L: 158 mm | Spring: LSSM 40X150-1 | Final force: 2510 N
LASM-M40X30Size: M40 | Stroke: 30 mm | L: 201 mm | Spring: LSSM 40X200-1 | Final force: 2510 N
LASM-M40X35Size: M40 | Stroke: 35 mm | L: 225 mm | Spring: LSSM 40X225-1 | Final force: 2510 N
LASM-M40X40Size: M40 | Stroke: 40 mm | L: 248 mm | Spring: LSSM 40X250-1 | Final force: 2510 N
LASM-M40X45Size: M40 | Stroke: 45 mm | L: 291 mm | Spring: LSSM 40X300-1 | Final force: 2510 N
LASM-M40X50Size: M40 | Stroke: 50 mm | L: 342 mm | Spring: LSSM 40X175-2 | Final force: 2510 N
LASM-M40X55Size: M40 | Stroke: 55 mm | L: 347 mm | Spring: LSSM 40X175-2 | Final force: 2510 N
LASM-M40X60Size: M40 | Stroke: 60 mm | L: 390 mm | Spring: LSSM 40X200-2 | Final force: 2510 N
LASM-M40X65Size: M40 | Stroke: 65 mm | L: 395 mm | Spring: LSSM 40X200-2 | Final force: 2510 N
LASM-M40X70Size: M40 | Stroke: 70 mm | L: 436 mm | Spring: LSSM 40X225-2 | Final force: 2510 N
LASM-M40X75Size: M40 | Stroke: 75 mm | L: 479 mm | Spring: LSSM 40X250-2 | Final force: 2510 N
LASM-M40X80Size: M40 | Stroke: 80 mm | L: 484 mm | Spring: LSSM 40X250-2 | Final force: 2510 N
LASM-M50X20Size: M50 | Stroke: 20 mm | L: 135 mm | Spring: LSSM 50X125-1 | Final force: 3920 N
LASM-M50X25Size: M50 | Stroke: 25 mm | L: 158 mm | Spring: LSSM 50X150-1 | Final force: 3920 N
LASM-M50X30Size: M50 | Stroke: 30 mm | L: 201 mm | Spring: LSSM 50X200-1 | Final force: 3920 N
LASM-M50X35Size: M50 | Stroke: 35 mm | L: 225 mm | Spring: LSSM 50X225-1 | Final force: 3920 N
LASM-M50X40Size: M50 | Stroke: 40 mm | L: 248 mm | Spring: LSSM 50X250-1 | Final force: 3920 N
LASM-M50X45Size: M50 | Stroke: 45 mm | L: 291 mm | Spring: LSSM 50X300-1 | Final force: 3920 N
LASM-M50X50Size: M50 | Stroke: 50 mm | L: 333 mm | Spring: LSSM 50X350-1 | Final force: 3920 N
LASM-M50X55Size: M50 | Stroke: 55 mm | L: 338 mm | Spring: LSSM 50X350-1 | Final force: 3920 N
LASM-M50X60Size: M50 | Stroke: 60 mm | L: 380 mm | Spring: LSSM 50X200-2 | Final force: 3920 N
LASM-M50X65Size: M50 | Stroke: 65 mm | L: 385 mm | Spring: LSSM 50X200-2 | Final force: 3920 N
LASM-M50X70Size: M50 | Stroke: 70 mm | L: 426 mm | Spring: LSSM 50X225-2 | Final force: 3920 N
LASM-M50X75Size: M50 | Stroke: 75 mm | L: 469 mm | Spring: LSSM 50X250-2 | Final force: 3920 N
LASM-M50X80Size: M50 | Stroke: 80 mm | L: 474 mm | Spring: LSSM 50X250-2 | Final force: 3920 N
LASM-M60X20Size: M60 | Stroke: 20 mm | L: 135 mm | Spring: LSSM 60X125-1 | Final force: 5640 N
LASM-M60X25Size: M60 | Stroke: 25 mm | L: 158 mm | Spring: LSSM 60X150-1 | Final force: 5640 N
LASM-M60X30Size: M60 | Stroke: 30 mm | L: 201 mm | Spring: LSSM 60X200-1 | Final force: 5640 N
LASM-M60X35Size: M60 | Stroke: 35 mm | L: 225 mm | Spring: LSSM 60X225-1 | Final force: 5640 N
LASM-M60X40Size: M60 | Stroke: 40 mm | L: 248 mm | Spring: LSSM 60X250-1 | Final force: 5640 N
LASM-M60X45Size: M60 | Stroke: 45 mm | L: 291 mm | Spring: LSSM 60X300-1 | Final force: 5640 N
LASM-M60X50Size: M60 | Stroke: 50 mm | L: 333 mm | Spring: LSSM 60X350-1 | Final force: 5640 N
LASM-M60X55Size: M60 | Stroke: 55 mm | L: 338 mm | Spring: LSSM 60X350-1 | Final force: 5640 N
LASM-M60X60Size: M60 | Stroke: 60 mm | L: 380 mm | Spring: LSSM 60X200-2 | Final force: 5640 N
LASM-M60X65Size: M60 | Stroke: 65 mm | L: 385 mm | Spring: LSSM 60X200-2 | Final force: 5640 N
LASM-M60X70Size: M60 | Stroke: 70 mm | L: 426 mm | Spring: LSSM 60X225-2 | Final force: 5640 N
LASM-M60X75Size: M60 | Stroke: 75 mm | L: 469 mm | Spring: LSSM 60X250-2 | Final force: 5640 N
LASM-M60X80Size: M60 | Stroke: 80 mm | L: 474 mm | Spring: LSSM 60X250-2 | Final force: 5640 N

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
