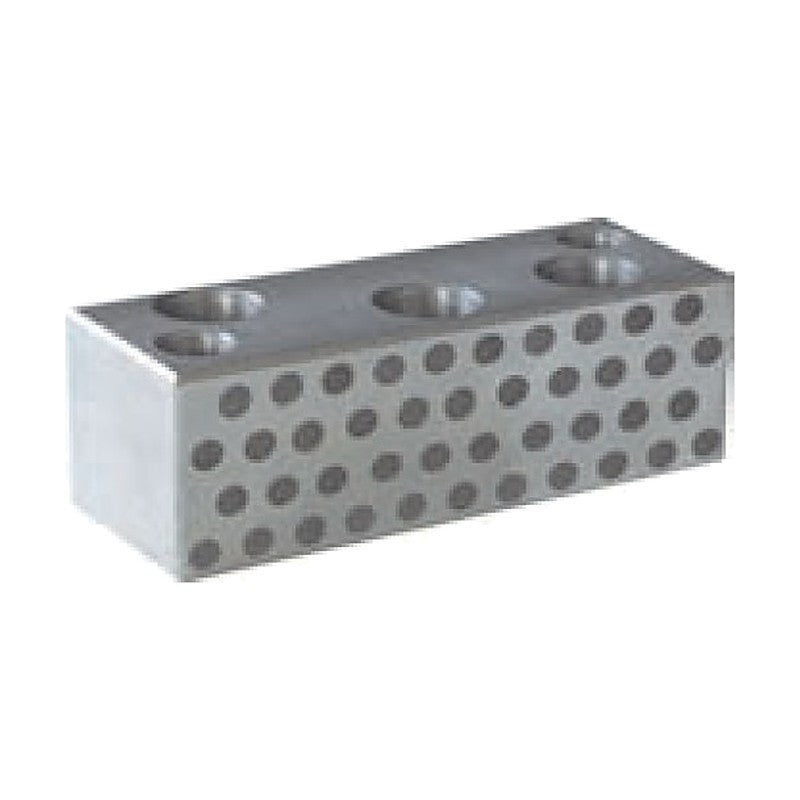

LuBo LB G01 / LB G02 NAAMS Guide Blocks (Width 45-60 mm)

LuBo LB G01 / LB G02 NAAMS Guide Blocks (Width 45-60 mm)

LuBo LB G01 / LB G02 NAAMS Guide Blocks from the LuBo NAAMS Products catalogue, listed in 72 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Guide Blocks - series LB G01 / LB G02
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • 72 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LB G01 / LB G02
Product NAAMS Guide Blocks
Catalogue chapter NAAMS Products
Orderable codes 72
Size range Width 45-60 mm
Code example LB G014007
Row spec keys Width, Height H, Length L, Holes
Source LuBo NAAMS Products catalogue
LB G014007 Width: 45 mm | Height H: 40 mm | Length L: 75 mm | Holes: 2
LB G014010 Width: 45 mm | Height H: 40 mm | Length L: 100 mm | Holes: 2
LB G014012 Width: 45 mm | Height H: 40 mm | Length L: 125 mm | Holes: 3
LB G014015 Width: 45 mm | Height H: 40 mm | Length L: 150 mm | Holes: 3
LB G014017 Width: 45 mm | Height H: 40 mm | Length L: 175 mm | Holes: 3
LB G014020 Width: 45 mm | Height H: 40 mm | Length L: 200 mm | Holes: 4
LB G014022 Width: 45 mm | Height H: 40 mm | Length L: 225 mm | Holes: 4
LB G014025 Width: 45 mm | Height H: 40 mm | Length L: 250 mm | Holes: 4
LB G014507 Width: 45 mm | Height H: 45 mm | Length L: 75 mm | Holes: 2
LB G014510 Width: 45 mm | Height H: 45 mm | Length L: 100 mm | Holes: 2
LB G014512 Width: 45 mm | Height H: 45 mm | Length L: 125 mm | Holes: 3
LB G014515 Width: 45 mm | Height H: 45 mm | Length L: 150 mm | Holes: 3
LB G014517 Width: 45 mm | Height H: 45 mm | Length L: 175 mm | Holes: 3
LB G014520 Width: 45 mm | Height H: 45 mm | Length L: 200 mm | Holes: 4
LB G014522 Width: 45 mm | Height H: 45 mm | Length L: 225 mm | Holes: 4
LB G014525 Width: 45 mm | Height H: 45 mm | Length L: 250 mm | Holes: 4
LB G015007 Width: 45 mm | Height H: 50 mm | Length L: 75 mm | Holes: 2
LB G015010 Width: 45 mm | Height H: 50 mm | Length L: 100 mm | Holes: 2
LB G015012 Width: 45 mm | Height H: 50 mm | Length L: 125 mm | Holes: 3
LB G015015 Width: 45 mm | Height H: 50 mm | Length L: 150 mm | Holes: 3
LB G015017 Width: 45 mm | Height H: 50 mm | Length L: 175 mm | Holes: 3
LB G015020 Width: 45 mm | Height H: 50 mm | Length L: 200 mm | Holes: 4
LB G015022 Width: 45 mm | Height H: 50 mm | Length L: 225 mm | Holes: 4
LB G015025 Width: 45 mm | Height H: 50 mm | Length L: 250 mm | Holes: 4
LB G016007 Width: 45 mm | Height H: 60 mm | Length L: 75 mm | Holes: 2
LB G016010 Width: 45 mm | Height H: 60 mm | Length L: 100 mm | Holes: 2
LB G016012 Width: 45 mm | Height H: 60 mm | Length L: 125 mm | Holes: 3
LB G016015 Width: 45 mm | Height H: 60 mm | Length L: 150 mm | Holes: 3
LB G016017 Width: 45 mm | Height H: 60 mm | Length L: 175 mm | Holes: 3
LB G016020 Width: 45 mm | Height H: 60 mm | Length L: 200 mm | Holes: 4
LB G016022 Width: 45 mm | Height H: 60 mm | Length L: 225 mm | Holes: 4
LB G016025 Width: 45 mm | Height H: 60 mm | Length L: 250 mm | Holes: 4
LB G017507 Width: 45 mm | Height H: 75 mm | Length L: 75 mm | Holes: 2
LB G017510 Width: 45 mm | Height H: 75 mm | Length L: 100 mm | Holes: 2
LB G017512 Width: 45 mm | Height H: 75 mm | Length L: 125 mm | Holes: 3
LB G017515 Width: 45 mm | Height H: 75 mm | Length L: 150 mm | Holes: 3
LB G017517 Width: 45 mm | Height H: 75 mm | Length L: 175 mm | Holes: 3
LB G017520 Width: 45 mm | Height H: 75 mm | Length L: 200 mm | Holes: 4
LB G017522 Width: 45 mm | Height H: 75 mm | Length L: 225 mm | Holes: 4
LB G017525 Width: 45 mm | Height H: 75 mm | Length L: 250 mm | Holes: 4
LB G025007 Width: 60 mm | Height H: 50 mm | Length L: 75 mm | Holes: 2
LB G025010 Width: 60 mm | Height H: 50 mm | Length L: 100 mm | Holes: 2
LB G025012 Width: 60 mm | Height H: 50 mm | Length L: 125 mm | Holes: 3
LB G025015 Width: 60 mm | Height H: 50 mm | Length L: 150 mm | Holes: 3
LB G025017 Width: 60 mm | Height H: 50 mm | Length L: 175 mm | Holes: 3
LB G025020 Width: 60 mm | Height H: 50 mm | Length L: 200 mm | Holes: 4
LB G025022 Width: 60 mm | Height H: 50 mm | Length L: 225 mm | Holes: 4
LB G025025 Width: 60 mm | Height H: 50 mm | Length L: 250 mm | Holes: 4
LB G026007 Width: 60 mm | Height H: 60 mm | Length L: 75 mm | Holes: 2
LB G026010 Width: 60 mm | Height H: 60 mm | Length L: 100 mm | Holes: 2
LB G026012 Width: 60 mm | Height H: 60 mm | Length L: 125 mm | Holes: 3
LB G026015 Width: 60 mm | Height H: 60 mm | Length L: 150 mm | Holes: 3
LB G026017 Width: 60 mm | Height H: 60 mm | Length L: 175 mm | Holes: 3
LB G026020 Width: 60 mm | Height H: 60 mm | Length L: 200 mm | Holes: 4
LB G026022 Width: 60 mm | Height H: 60 mm | Length L: 225 mm | Holes: 4
LB G026025 Width: 60 mm | Height H: 60 mm | Length L: 250 mm | Holes: 4
LB G028007 Width: 60 mm | Height H: 80 mm | Length L: 75 mm | Holes: 2
LB G028010 Width: 60 mm | Height H: 80 mm | Length L: 100 mm | Holes: 2
LB G028012 Width: 60 mm | Height H: 80 mm | Length L: 125 mm | Holes: 3
LB G028015 Width: 60 mm | Height H: 80 mm | Length L: 150 mm | Holes: 3
LB G028017 Width: 60 mm | Height H: 80 mm | Length L: 175 mm | Holes: 3
LB G028020 Width: 60 mm | Height H: 80 mm | Length L: 200 mm | Holes: 4
LB G028022 Width: 60 mm | Height H: 80 mm | Length L: 225 mm | Holes: 4
LB G028025 Width: 60 mm | Height H: 80 mm | Length L: 250 mm | Holes: 4
LB G020007 Width: 60 mm | Height H: 100 mm | Length L: 75 mm | Holes: 2
LB G020010 Width: 60 mm | Height H: 100 mm | Length L: 100 mm | Holes: 2
LB G020012 Width: 60 mm | Height H: 100 mm | Length L: 125 mm | Holes: 3
LB G020015 Width: 60 mm | Height H: 100 mm | Length L: 150 mm | Holes: 3
LB G020017 Width: 60 mm | Height H: 100 mm | Length L: 175 mm | Holes: 3
LB G020020 Width: 60 mm | Height H: 100 mm | Length L: 200 mm | Holes: 4
LB G020022 Width: 60 mm | Height H: 100 mm | Length L: 225 mm | Holes: 4
LB G020025 Width: 60 mm | Height H: 100 mm | Length L: 250 mm | Holes: 4
NAAMS Die ComponentLuBo
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB G01 / LB G02 NAAMS Guide Blocks (Width 45-60 mm)

Brand LuBo·NAAMS Die Component

Available part numbers (72)

LB G014007, LB G014010, LB G014012, LB G014015, LB G014017, LB G014020, LB G014022, LB G014025, LB G014507, LB G014510 + 62 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB G014007Width: 45 mm | Height H: 40 mm | Length L: 75 mm | Holes: 2
LB G014010Width: 45 mm | Height H: 40 mm | Length L: 100 mm | Holes: 2
LB G014012Width: 45 mm | Height H: 40 mm | Length L: 125 mm | Holes: 3
LB G014015Width: 45 mm | Height H: 40 mm | Length L: 150 mm | Holes: 3
LB G014017Width: 45 mm | Height H: 40 mm | Length L: 175 mm | Holes: 3
LB G014020Width: 45 mm | Height H: 40 mm | Length L: 200 mm | Holes: 4
LB G014022Width: 45 mm | Height H: 40 mm | Length L: 225 mm | Holes: 4
LB G014025Width: 45 mm | Height H: 40 mm | Length L: 250 mm | Holes: 4
LB G014507Width: 45 mm | Height H: 45 mm | Length L: 75 mm | Holes: 2
LB G014510Width: 45 mm | Height H: 45 mm | Length L: 100 mm | Holes: 2
LB G014512Width: 45 mm | Height H: 45 mm | Length L: 125 mm | Holes: 3
LB G014515Width: 45 mm | Height H: 45 mm | Length L: 150 mm | Holes: 3
LB G014517Width: 45 mm | Height H: 45 mm | Length L: 175 mm | Holes: 3
LB G014520Width: 45 mm | Height H: 45 mm | Length L: 200 mm | Holes: 4
LB G014522Width: 45 mm | Height H: 45 mm | Length L: 225 mm | Holes: 4
LB G014525Width: 45 mm | Height H: 45 mm | Length L: 250 mm | Holes: 4
LB G015007Width: 45 mm | Height H: 50 mm | Length L: 75 mm | Holes: 2
LB G015010Width: 45 mm | Height H: 50 mm | Length L: 100 mm | Holes: 2
LB G015012Width: 45 mm | Height H: 50 mm | Length L: 125 mm | Holes: 3
LB G015015Width: 45 mm | Height H: 50 mm | Length L: 150 mm | Holes: 3
LB G015017Width: 45 mm | Height H: 50 mm | Length L: 175 mm | Holes: 3
LB G015020Width: 45 mm | Height H: 50 mm | Length L: 200 mm | Holes: 4
LB G015022Width: 45 mm | Height H: 50 mm | Length L: 225 mm | Holes: 4
LB G015025Width: 45 mm | Height H: 50 mm | Length L: 250 mm | Holes: 4
LB G016007Width: 45 mm | Height H: 60 mm | Length L: 75 mm | Holes: 2
LB G016010Width: 45 mm | Height H: 60 mm | Length L: 100 mm | Holes: 2
LB G016012Width: 45 mm | Height H: 60 mm | Length L: 125 mm | Holes: 3
LB G016015Width: 45 mm | Height H: 60 mm | Length L: 150 mm | Holes: 3
LB G016017Width: 45 mm | Height H: 60 mm | Length L: 175 mm | Holes: 3
LB G016020Width: 45 mm | Height H: 60 mm | Length L: 200 mm | Holes: 4
LB G016022Width: 45 mm | Height H: 60 mm | Length L: 225 mm | Holes: 4
LB G016025Width: 45 mm | Height H: 60 mm | Length L: 250 mm | Holes: 4
LB G017507Width: 45 mm | Height H: 75 mm | Length L: 75 mm | Holes: 2
LB G017510Width: 45 mm | Height H: 75 mm | Length L: 100 mm | Holes: 2
LB G017512Width: 45 mm | Height H: 75 mm | Length L: 125 mm | Holes: 3
LB G017515Width: 45 mm | Height H: 75 mm | Length L: 150 mm | Holes: 3
LB G017517Width: 45 mm | Height H: 75 mm | Length L: 175 mm | Holes: 3
LB G017520Width: 45 mm | Height H: 75 mm | Length L: 200 mm | Holes: 4
LB G017522Width: 45 mm | Height H: 75 mm | Length L: 225 mm | Holes: 4
LB G017525Width: 45 mm | Height H: 75 mm | Length L: 250 mm | Holes: 4
LB G025007Width: 60 mm | Height H: 50 mm | Length L: 75 mm | Holes: 2
LB G025010Width: 60 mm | Height H: 50 mm | Length L: 100 mm | Holes: 2
LB G025012Width: 60 mm | Height H: 50 mm | Length L: 125 mm | Holes: 3
LB G025015Width: 60 mm | Height H: 50 mm | Length L: 150 mm | Holes: 3
LB G025017Width: 60 mm | Height H: 50 mm | Length L: 175 mm | Holes: 3
LB G025020Width: 60 mm | Height H: 50 mm | Length L: 200 mm | Holes: 4
LB G025022Width: 60 mm | Height H: 50 mm | Length L: 225 mm | Holes: 4
LB G025025Width: 60 mm | Height H: 50 mm | Length L: 250 mm | Holes: 4
LB G026007Width: 60 mm | Height H: 60 mm | Length L: 75 mm | Holes: 2
LB G026010Width: 60 mm | Height H: 60 mm | Length L: 100 mm | Holes: 2
LB G026012Width: 60 mm | Height H: 60 mm | Length L: 125 mm | Holes: 3
LB G026015Width: 60 mm | Height H: 60 mm | Length L: 150 mm | Holes: 3
LB G026017Width: 60 mm | Height H: 60 mm | Length L: 175 mm | Holes: 3
LB G026020Width: 60 mm | Height H: 60 mm | Length L: 200 mm | Holes: 4
LB G026022Width: 60 mm | Height H: 60 mm | Length L: 225 mm | Holes: 4
LB G026025Width: 60 mm | Height H: 60 mm | Length L: 250 mm | Holes: 4
LB G028007Width: 60 mm | Height H: 80 mm | Length L: 75 mm | Holes: 2
LB G028010Width: 60 mm | Height H: 80 mm | Length L: 100 mm | Holes: 2
LB G028012Width: 60 mm | Height H: 80 mm | Length L: 125 mm | Holes: 3
LB G028015Width: 60 mm | Height H: 80 mm | Length L: 150 mm | Holes: 3
LB G028017Width: 60 mm | Height H: 80 mm | Length L: 175 mm | Holes: 3
LB G028020Width: 60 mm | Height H: 80 mm | Length L: 200 mm | Holes: 4
LB G028022Width: 60 mm | Height H: 80 mm | Length L: 225 mm | Holes: 4
LB G028025Width: 60 mm | Height H: 80 mm | Length L: 250 mm | Holes: 4
LB G020007Width: 60 mm | Height H: 100 mm | Length L: 75 mm | Holes: 2
LB G020010Width: 60 mm | Height H: 100 mm | Length L: 100 mm | Holes: 2
LB G020012Width: 60 mm | Height H: 100 mm | Length L: 125 mm | Holes: 3
LB G020015Width: 60 mm | Height H: 100 mm | Length L: 150 mm | Holes: 3
LB G020017Width: 60 mm | Height H: 100 mm | Length L: 175 mm | Holes: 3
LB G020020Width: 60 mm | Height H: 100 mm | Length L: 200 mm | Holes: 4
LB G020022Width: 60 mm | Height H: 100 mm | Length L: 225 mm | Holes: 4
LB G020025Width: 60 mm | Height H: 100 mm | Length L: 250 mm | Holes: 4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
