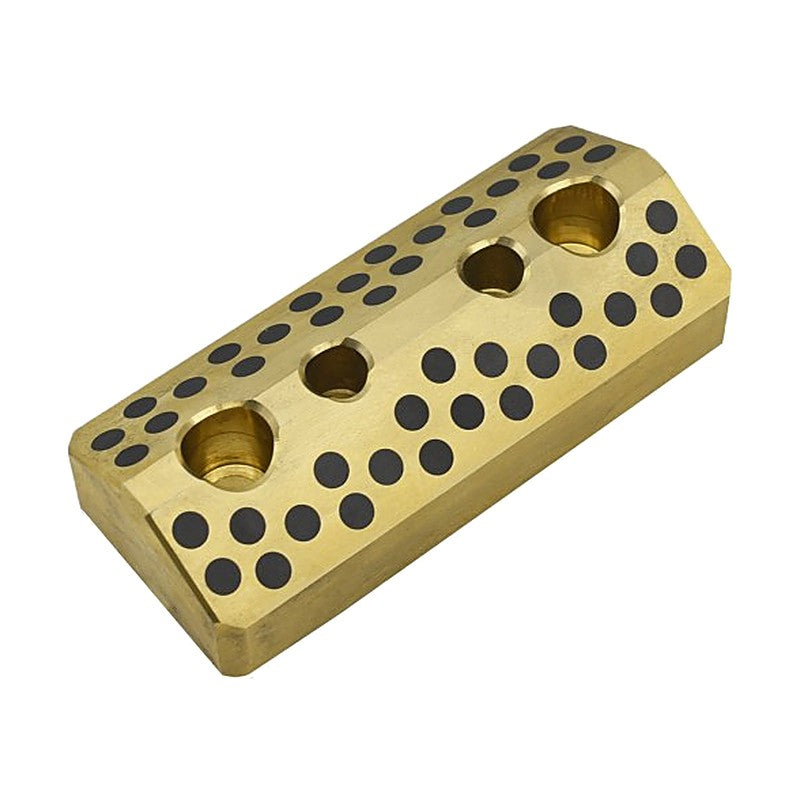

LuBo LB-G21 NAAMS 75 mm U & V Blocks (12 sizes)

LuBo LB-G21 NAAMS 75 mm U & V Blocks (12 sizes)

LuBo LB G21 / LB G22 / LB G23 NAAMS 75 mm U & V Blocks from the LuBo NAAMS Products catalogue, listed in 12 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS 75 mm U & V Blocks - series LB G21 / LB G22 / LB G23
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • 12 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LB G21 / LB G22 / LB G23
Product NAAMS 75 mm U & V Blocks
Catalogue chapter NAAMS Products
Orderable codes 12
Size range 12 sizes
Code example LB G217515
Row spec keys Width, Type, Length L, Holes
Source LuBo NAAMS Products catalogue
LB G217515 Width: 75 mm | Type: Female U (steel) | Length L: 150 mm | Holes: 2
LB G217520 Width: 75 mm | Type: Female U (steel) | Length L: 200 mm | Holes: 2
LB G217525 Width: 75 mm | Type: Female U (steel) | Length L: 250 mm | Holes: 3
LB G217530 Width: 75 mm | Type: Female U (steel) | Length L: 300 mm | Holes: 3
LB G227515 Width: 75 mm | Type: Male V (X: #500CS) | Length L: 150 mm | Holes: 2
LB G227520 Width: 75 mm | Type: Male V (X: #500CS) | Length L: 200 mm | Holes: 2
LB G227525 Width: 75 mm | Type: Male V (X: #500CS) | Length L: 250 mm | Holes: 3
LB G227530 Width: 75 mm | Type: Male V (X: #500CS) | Length L: 300 mm | Holes: 3
LB G237515 Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 150 mm | Holes: 2
LB G237520 Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 200 mm | Holes: 2
LB G237525 Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 250 mm | Holes: 3
LB G237530 Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 300 mm | Holes: 3
NAAMS Die ComponentLuBo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB-G21 NAAMS 75 mm U & V Blocks (12 sizes)

Brand LuBo·NAAMS Die Component

Available part numbers (12)

LB G217515, LB G217520, LB G217525, LB G217530, LB G227515, LB G227520, LB G227525, LB G227530, LB G237515, LB G237520 + 2 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB G217515Width: 75 mm | Type: Female U (steel) | Length L: 150 mm | Holes: 2
LB G217520Width: 75 mm | Type: Female U (steel) | Length L: 200 mm | Holes: 2
LB G217525Width: 75 mm | Type: Female U (steel) | Length L: 250 mm | Holes: 3
LB G217530Width: 75 mm | Type: Female U (steel) | Length L: 300 mm | Holes: 3
LB G227515Width: 75 mm | Type: Male V (X: #500CS) | Length L: 150 mm | Holes: 2
LB G227520Width: 75 mm | Type: Male V (X: #500CS) | Length L: 200 mm | Holes: 2
LB G227525Width: 75 mm | Type: Male V (X: #500CS) | Length L: 250 mm | Holes: 3
LB G227530Width: 75 mm | Type: Male V (X: #500CS) | Length L: 300 mm | Holes: 3
LB G237515Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 150 mm | Holes: 2
LB G237520Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 200 mm | Holes: 2
LB G237525Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 250 mm | Holes: 3
LB G237530Width: 75 mm | Type: Male V (Y: #500SP) | Length L: 300 mm | Holes: 3
