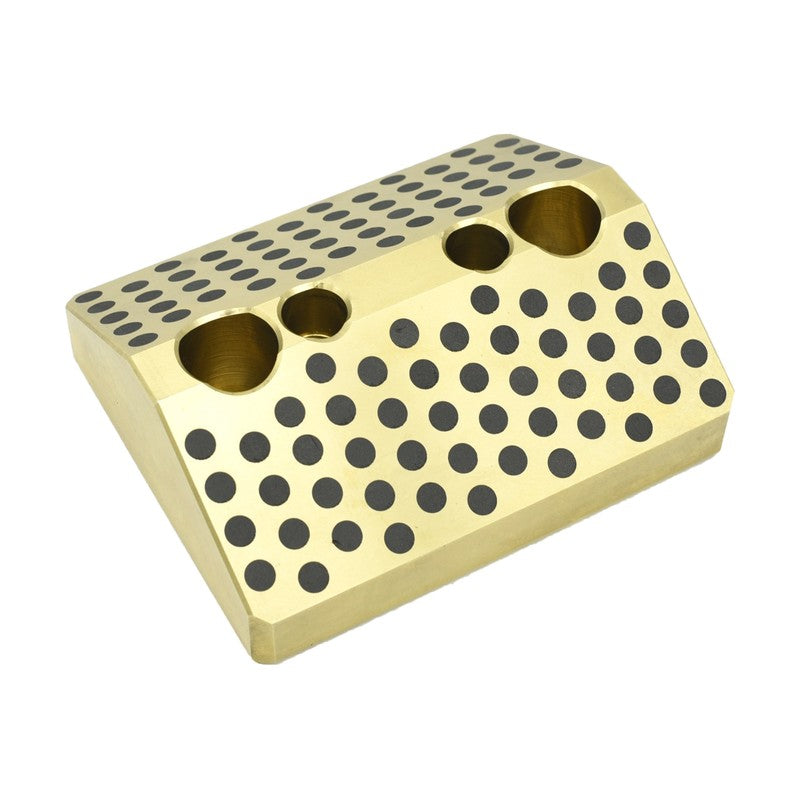

LuBo LB-G31 NAAMS 125 mm U & V Blocks (12 sizes)

LuBo LB-G31 NAAMS 125 mm U & V Blocks (12 sizes)

LuBo LB G31 / LB G32 / LB G33 NAAMS 125 mm U & V Blocks from the LuBo NAAMS Products catalogue, listed in 12 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS 125 mm U & V Blocks - series LB G31 / LB G32 / LB G33
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • 12 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LB G31 / LB G32 / LB G33
Product NAAMS 125 mm U & V Blocks
Catalogue chapter NAAMS Products
Orderable codes 12
Size range 12 sizes
Code example LB G311215
Row spec keys Width, Type, Length L, Holes
Source LuBo NAAMS Products catalogue
LB G311215 Width: 125 mm | Type: Female U (steel) | Length L: 150 mm | Holes: 2
LB G311220 Width: 125 mm | Type: Female U (steel) | Length L: 200 mm | Holes: 2
LB G311225 Width: 125 mm | Type: Female U (steel) | Length L: 250 mm | Holes: 3
LB G311230 Width: 125 mm | Type: Female U (steel) | Length L: 300 mm | Holes: 3
LB G321215 Width: 125 mm | Type: Male V (X: #500CS) | Length L: 150 mm | Holes: 2
LB G321220 Width: 125 mm | Type: Male V (X: #500CS) | Length L: 200 mm | Holes: 2
LB G321225 Width: 125 mm | Type: Male V (X: #500CS) | Length L: 250 mm | Holes: 3
LB G321230 Width: 125 mm | Type: Male V (X: #500CS) | Length L: 300 mm | Holes: 3
LB G331215 Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 150 mm | Holes: 2
LB G331220 Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 200 mm | Holes: 2
LB G331225 Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 250 mm | Holes: 3
LB G331230 Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 300 mm | Holes: 3
NAAMS Die ComponentLuBo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB-G31 NAAMS 125 mm U & V Blocks (12 sizes)

Brand LuBo·NAAMS Die Component

Available part numbers (12)

LB G311215, LB G311220, LB G311225, LB G311230, LB G321215, LB G321220, LB G321225, LB G321230, LB G331215, LB G331220 + 2 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB G311215Width: 125 mm | Type: Female U (steel) | Length L: 150 mm | Holes: 2
LB G311220Width: 125 mm | Type: Female U (steel) | Length L: 200 mm | Holes: 2
LB G311225Width: 125 mm | Type: Female U (steel) | Length L: 250 mm | Holes: 3
LB G311230Width: 125 mm | Type: Female U (steel) | Length L: 300 mm | Holes: 3
LB G321215Width: 125 mm | Type: Male V (X: #500CS) | Length L: 150 mm | Holes: 2
LB G321220Width: 125 mm | Type: Male V (X: #500CS) | Length L: 200 mm | Holes: 2
LB G321225Width: 125 mm | Type: Male V (X: #500CS) | Length L: 250 mm | Holes: 3
LB G321230Width: 125 mm | Type: Male V (X: #500CS) | Length L: 300 mm | Holes: 3
LB G331215Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 150 mm | Holes: 2
LB G331220Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 200 mm | Holes: 2
LB G331225Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 250 mm | Holes: 3
LB G331230Width: 125 mm | Type: Male V (Y: #500SP) | Length L: 300 mm | Holes: 3
