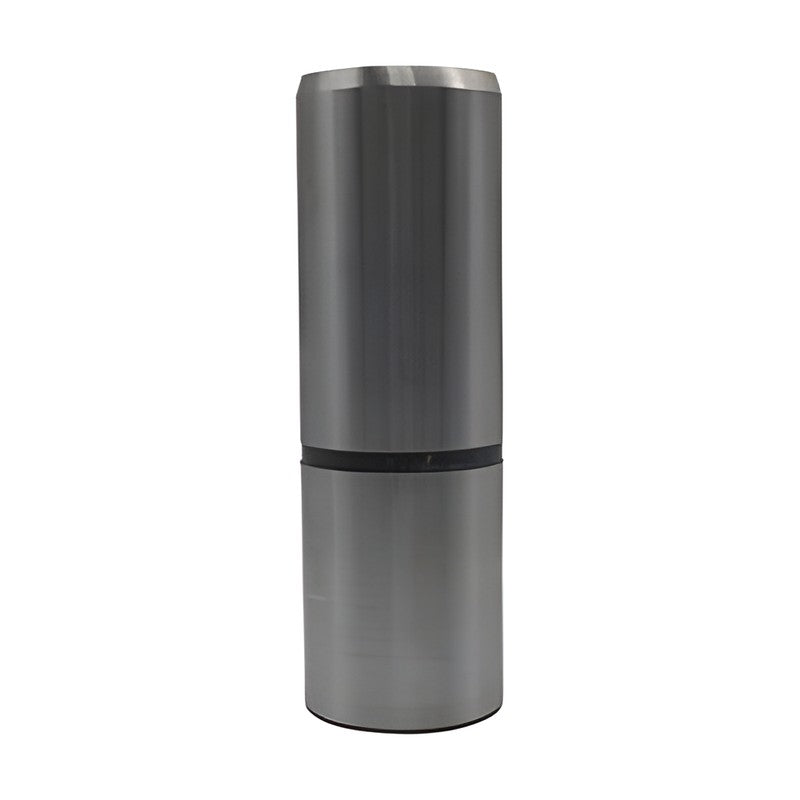

LuBo LB G50 / LB G51 NAAMS Guide Post Pins (Series 50-51)

LuBo LB G50 / LB G51 NAAMS Guide Post Pins (Series 50-51)

LuBo LB G50 / LB G51 NAAMS Guide Post Pins from the LuBo NAAMS Products catalogue, listed in 70 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Guide Post Pins - series LB G50 / LB G51
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • 70 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LB G50 / LB G51
Product NAAMS Guide Post Pins
Catalogue chapter NAAMS Products
Orderable codes 70
Size range Series 50-51
Code example LB G504016
Row spec keys Series, Post dia. D1, Length L1
Source LuBo NAAMS Products catalogue
LB G504016 Series: G50 | Post dia. D1: 40 mm | Length L1: 160 mm
LB G504018 Series: G50 | Post dia. D1: 40 mm | Length L1: 180 mm
LB G504020 Series: G50 | Post dia. D1: 40 mm | Length L1: 200 mm
LB G504022 Series: G50 | Post dia. D1: 40 mm | Length L1: 225 mm
LB G504025 Series: G50 | Post dia. D1: 40 mm | Length L1: 250 mm
LB G505016 Series: G50 | Post dia. D1: 50 mm | Length L1: 160 mm
LB G505018 Series: G50 | Post dia. D1: 50 mm | Length L1: 180 mm
LB G505020 Series: G50 | Post dia. D1: 50 mm | Length L1: 200 mm
LB G505022 Series: G50 | Post dia. D1: 50 mm | Length L1: 225 mm
LB G505025 Series: G50 | Post dia. D1: 50 mm | Length L1: 250 mm
LB G505028 Series: G50 | Post dia. D1: 50 mm | Length L1: 280 mm
LB G505031 Series: G50 | Post dia. D1: 50 mm | Length L1: 315 mm
LB G506320 Series: G50 | Post dia. D1: 63 mm | Length L1: 200 mm
LB G506322 Series: G50 | Post dia. D1: 63 mm | Length L1: 225 mm
LB G506325 Series: G50 | Post dia. D1: 63 mm | Length L1: 250 mm
LB G506328 Series: G50 | Post dia. D1: 63 mm | Length L1: 280 mm
LB G506331 Series: G50 | Post dia. D1: 63 mm | Length L1: 315 mm
LB G506335 Series: G50 | Post dia. D1: 63 mm | Length L1: 355 mm
LB G506340 Series: G50 | Post dia. D1: 63 mm | Length L1: 400 mm
LB G508025 Series: G50 | Post dia. D1: 80 mm | Length L1: 250 mm
LB G508028 Series: G50 | Post dia. D1: 80 mm | Length L1: 280 mm
LB G508031 Series: G50 | Post dia. D1: 80 mm | Length L1: 315 mm
LB G508035 Series: G50 | Post dia. D1: 80 mm | Length L1: 355 mm
LB G508040 Series: G50 | Post dia. D1: 80 mm | Length L1: 400 mm
LB G501031 Series: G50 | Post dia. D1: 100 mm | Length L1: 315 mm
LB G501035 Series: G50 | Post dia. D1: 100 mm | Length L1: 355 mm
LB G501040 Series: G50 | Post dia. D1: 100 mm | Length L1: 400 mm
LB G513214 Series: G51 | Post dia. D1: 32 mm | Length L1: 140 mm
LB G513216 Series: G51 | Post dia. D1: 32 mm | Length L1: 160 mm
LB G513218 Series: G51 | Post dia. D1: 32 mm | Length L1: 180 mm
LB G513220 Series: G51 | Post dia. D1: 32 mm | Length L1: 200 mm
LB G514016 Series: G51 | Post dia. D1: 40 mm | Length L1: 160 mm
LB G514018 Series: G51 | Post dia. D1: 40 mm | Length L1: 180 mm
LB G514020 Series: G51 | Post dia. D1: 40 mm | Length L1: 200 mm
LB G514022 Series: G51 | Post dia. D1: 40 mm | Length L1: 225 mm
LB G514025 Series: G51 | Post dia. D1: 40 mm | Length L1: 250 mm
LB G515016 Series: G51 | Post dia. D1: 50 mm | Length L1: 160 mm
LB G515018 Series: G51 | Post dia. D1: 50 mm | Length L1: 180 mm
LB G515020 Series: G51 | Post dia. D1: 50 mm | Length L1: 200 mm
LB G515022 Series: G51 | Post dia. D1: 50 mm | Length L1: 225 mm
LB G515025 Series: G51 | Post dia. D1: 50 mm | Length L1: 250 mm
LB G515028 Series: G51 | Post dia. D1: 50 mm | Length L1: 280 mm
LB G515031 Series: G51 | Post dia. D1: 50 mm | Length L1: 315 mm
LB G516320 Series: G51 | Post dia. D1: 63 mm | Length L1: 200 mm
LB G516322 Series: G51 | Post dia. D1: 63 mm | Length L1: 225 mm
LB G516325 Series: G51 | Post dia. D1: 63 mm | Length L1: 250 mm
LB G516328 Series: G51 | Post dia. D1: 63 mm | Length L1: 280 mm
LB G516331 Series: G51 | Post dia. D1: 63 mm | Length L1: 315 mm
LB G516335 Series: G51 | Post dia. D1: 63 mm | Length L1: 355 mm
LB G516340 Series: G51 | Post dia. D1: 63 mm | Length L1: 400 mm
LB G516350 Series: G51 | Post dia. D1: 63 mm | Length L1: 500 mm
LB G518025 Series: G51 | Post dia. D1: 80 mm | Length L1: 250 mm
LB G518028 Series: G51 | Post dia. D1: 80 mm | Length L1: 280 mm
LB G518031 Series: G51 | Post dia. D1: 80 mm | Length L1: 315 mm
LB G518035 Series: G51 | Post dia. D1: 80 mm | Length L1: 355 mm
LB G518040 Series: G51 | Post dia. D1: 80 mm | Length L1: 400 mm
LB G518050 Series: G51 | Post dia. D1: 80 mm | Length L1: 500 mm
LB G511031 Series: G51 | Post dia. D1: 100 mm | Length L1: 315 mm
LB G511035 Series: G51 | Post dia. D1: 100 mm | Length L1: 355 mm
LB G511040 Series: G51 | Post dia. D1: 100 mm | Length L1: 400 mm
LB G511050 Series: G51 | Post dia. D1: 100 mm | Length L1: 500 mm
LB G511140 Series: G51 | Post dia. D1: 115 mm | Length L1: 400 mm
LB G511150 Series: G51 | Post dia. D1: 115 mm | Length L1: 500 mm
LB G511240 Series: G51 | Post dia. D1: 125 mm | Length L1: 400 mm
LB G511245 Series: G51 | Post dia. D1: 125 mm | Length L1: 450 mm
LB G511250 Series: G51 | Post dia. D1: 125 mm | Length L1: 500 mm
LB G511255 Series: G51 | Post dia. D1: 125 mm | Length L1: 550 mm
LB G511260 Series: G51 | Post dia. D1: 125 mm | Length L1: 600 mm
LB G511265 Series: G51 | Post dia. D1: 125 mm | Length L1: 650 mm
LB G511270 Series: G51 | Post dia. D1: 125 mm | Length L1: 700 mm
