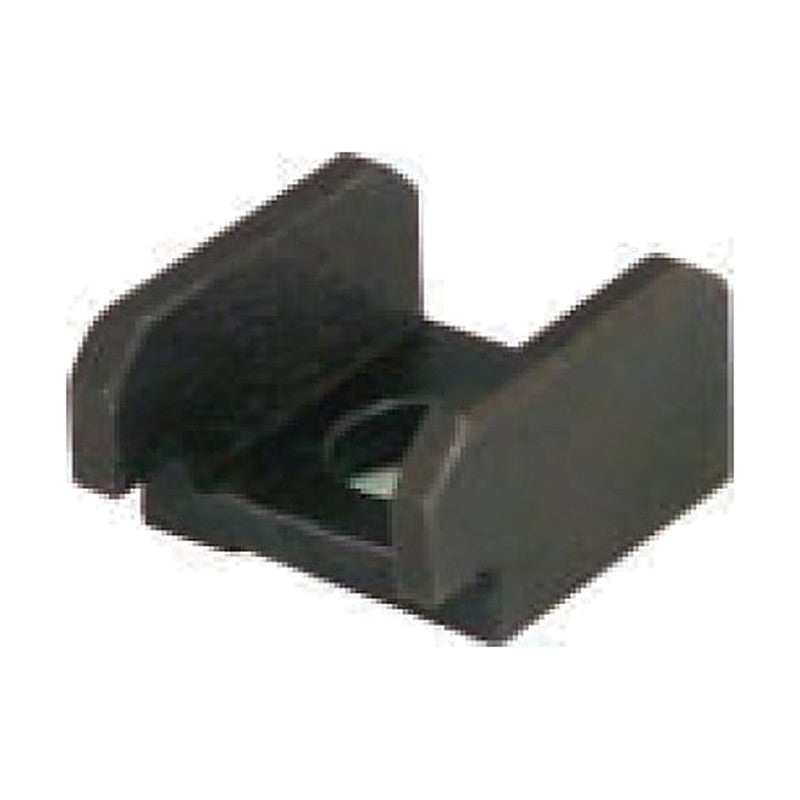

LuBo LB G72 / LB G73 NAAMS Bushing Toe Clamps (Clamp 24.6-27.9 mm)

LuBo LB G72 / LB G73 NAAMS Bushing Toe Clamps (Clamp 24.6-27.9 mm)

LuBo LB G72 / LB G73 NAAMS Bushing Toe Clamps from the LuBo NAAMS Products catalogue, listed in 2 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Bushing Toe Clamps - series LB G72 / LB G73
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • 2 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LB G72 / LB G73
Product NAAMS Bushing Toe Clamps
Catalogue chapter NAAMS Products
Orderable codes 2
Size range Clamp 24.6-27.9 mm
Code example LB G720000
Row spec keys Clamp, Screw, Post dia.
Source LuBo NAAMS Products catalogue
LB G720000 Clamp: A24.6 x B18.9 x C13 mm | Screw: M8x1.25x20 | Post dia.: 32-115 mm
LB G730000 Clamp: A27.9 x B23.5 x C15.5 mm | Screw: M10x1.5x20 | Post dia.: 32-125 mm
NAAMS Die ComponentLuBo
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB G72 / LB G73 NAAMS Bushing Toe Clamps (Clamp 24.6-27.9 mm)

Brand LuBo·NAAMS Die Component

Available part numbers (2)

LB G720000, LB G730000

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB G720000Clamp: A24.6 x B18.9 x C13 mm | Screw: M8x1.25x20 | Post dia.: 32-115 mm
LB G730000Clamp: A27.9 x B23.5 x C15.5 mm | Screw: M10x1.5x20 | Post dia.: 32-125 mm
