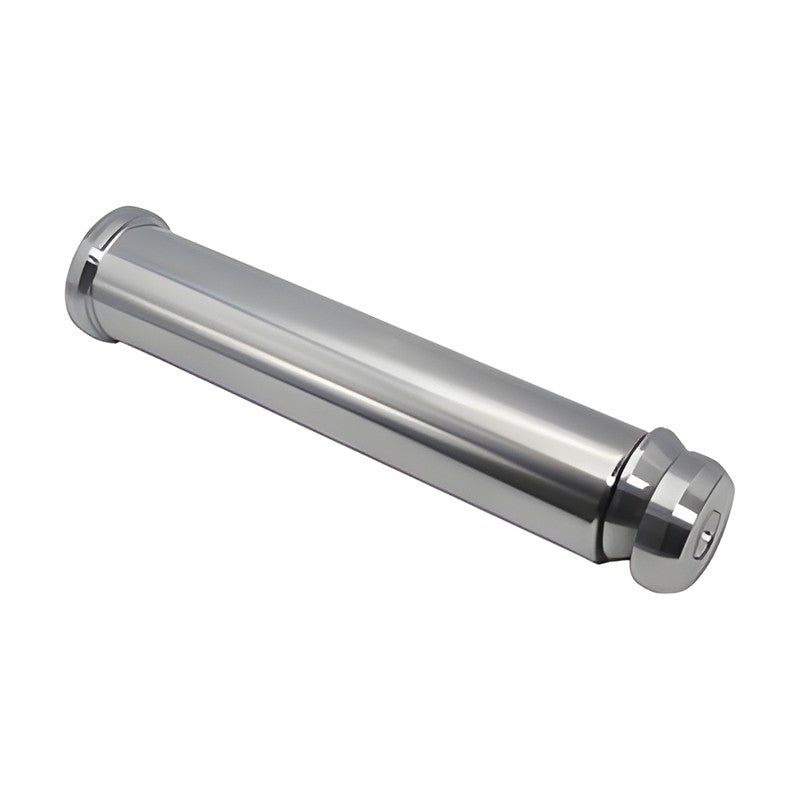

• LuBo LB L01 NAAMS Die Lift Pins (Pin dia. 45-89 mm)
1 1

LuBo LB L01 NAAMS Die Lift Pins (Pin dia. 45-89 mm)

LuBo LB L01 NAAMS Die Lift Pins (Pin dia. 45-89 mm)

LuBo LB L01 NAAMS Die Lift Pins from the LuBo NAAMS Products catalogue, listed in 4 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Die Lift Pins - series LB L01
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • Material options: SCM440

Specifications

Brand LuBo
Series LB L01
Product NAAMS Die Lift Pins
Catalogue chapter NAAMS Products
Material SCM440
Orderable codes 4
Size range Pin dia. 45-89 mm
Code example LB L013512
Row spec keys Pin dia. D, Length C, Material
Source LuBo NAAMS Products catalogue
LB L013512 Pin dia. D: 45 mm | Length C: 165 mm | Material: SCM440
LB L015019 Pin dia. D: 63 mm | Length C: 230 mm | Material: SCM440
LB L016328 Pin dia. D: 76 mm | Length C: 320 mm | Material: SCM440
LB L018032 Pin dia. D: 89 mm | Length C: 370 mm | Material: SCM440
NAAMS Die ComponentLuBo
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB L01 NAAMS Die Lift Pins (Pin dia. 45-89 mm)

Brand LuBo·NAAMS Die Component

Available part numbers (4)

LB L013512, LB L015019, LB L016328, LB L018032

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB L013512Pin dia. D: 45 mm | Length C: 165 mm | Material: SCM440
LB L015019Pin dia. D: 63 mm | Length C: 230 mm | Material: SCM440
LB L016328Pin dia. D: 76 mm | Length C: 320 mm | Material: SCM440
LB L018032Pin dia. D: 89 mm | Length C: 370 mm | Material: SCM440
