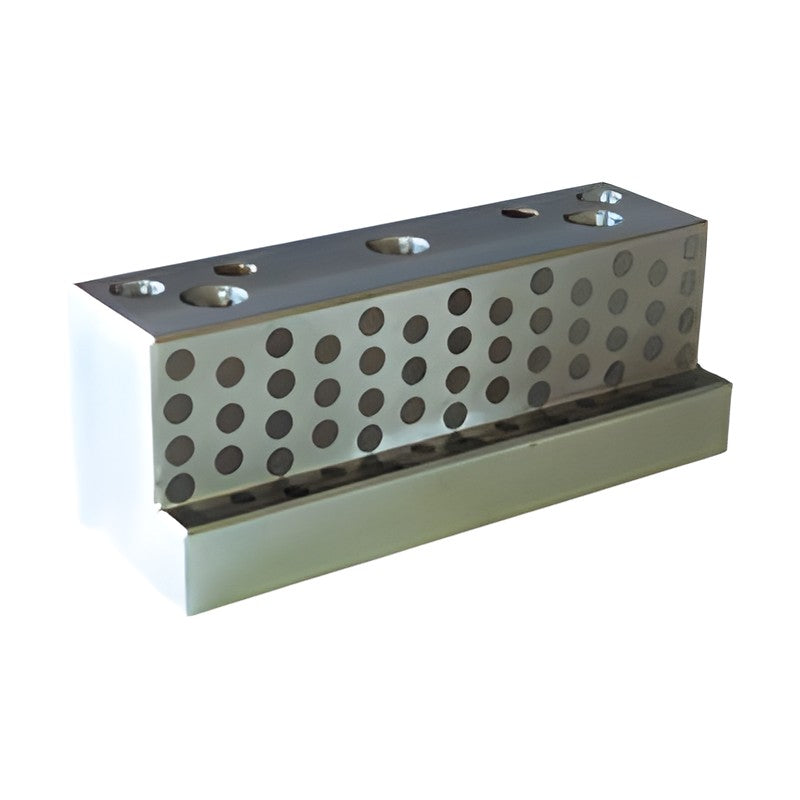

LuBo LB R11 / LB R12 NAAMS Cam Gibs (Series 11-12)

LuBo LB R11 / LB R12 NAAMS Cam Gibs (Series 11-12)

LuBo LB R11 / LB R12 NAAMS Cam Gibs from the LuBo NAAMS Products catalogue, listed in 8 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Cam Gibs - series LB R11 / LB R12
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • 8 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LB R11 / LB R12
Product NAAMS Cam Gibs
Catalogue chapter NAAMS Products
Orderable codes 8
Size range Series 11-12
Code example LB R114016
Row spec keys Series, Length L, Holes, Section
Source LuBo NAAMS Products catalogue
LB R114016 Series: R11 (M12) | Length L: 160 mm | Holes: 3 | Section: 40 x 60 mm
LB R114020 Series: R11 (M12) | Length L: 200 mm | Holes: 3 | Section: 40 x 60 mm
LB R114025 Series: R11 (M12) | Length L: 250 mm | Holes: 4 | Section: 40 x 60 mm
LB R114031 Series: R11 (M12) | Length L: 315 mm | Holes: 5 | Section: 40 x 60 mm
LB R127516 Series: R12 (M16) | Length L: 160 mm | Holes: 3 | Section: 75 x 100 mm
LB R127520 Series: R12 (M16) | Length L: 200 mm | Holes: 3 | Section: 75 x 100 mm
LB R127525 Series: R12 (M16) | Length L: 250 mm | Holes: 4 | Section: 75 x 100 mm
LB R127531 Series: R12 (M16) | Length L: 315 mm | Holes: 5 | Section: 75 x 100 mm
NAAMS Die ComponentLuBo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB R11 / LB R12 NAAMS Cam Gibs (Series 11-12)

Brand LuBo·NAAMS Die Component

Available part numbers (8)

LB R114016, LB R114020, LB R114025, LB R114031, LB R127516, LB R127520, LB R127525, LB R127531

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB R114016Series: R11 (M12) | Length L: 160 mm | Holes: 3 | Section: 40 x 60 mm
LB R114020Series: R11 (M12) | Length L: 200 mm | Holes: 3 | Section: 40 x 60 mm
LB R114025Series: R11 (M12) | Length L: 250 mm | Holes: 4 | Section: 40 x 60 mm
LB R114031Series: R11 (M12) | Length L: 315 mm | Holes: 5 | Section: 40 x 60 mm
LB R127516Series: R12 (M16) | Length L: 160 mm | Holes: 3 | Section: 75 x 100 mm
LB R127520Series: R12 (M16) | Length L: 200 mm | Holes: 3 | Section: 75 x 100 mm
LB R127525Series: R12 (M16) | Length L: 250 mm | Holes: 4 | Section: 75 x 100 mm
LB R127531Series: R12 (M16) | Length L: 315 mm | Holes: 5 | Section: 75 x 100 mm
