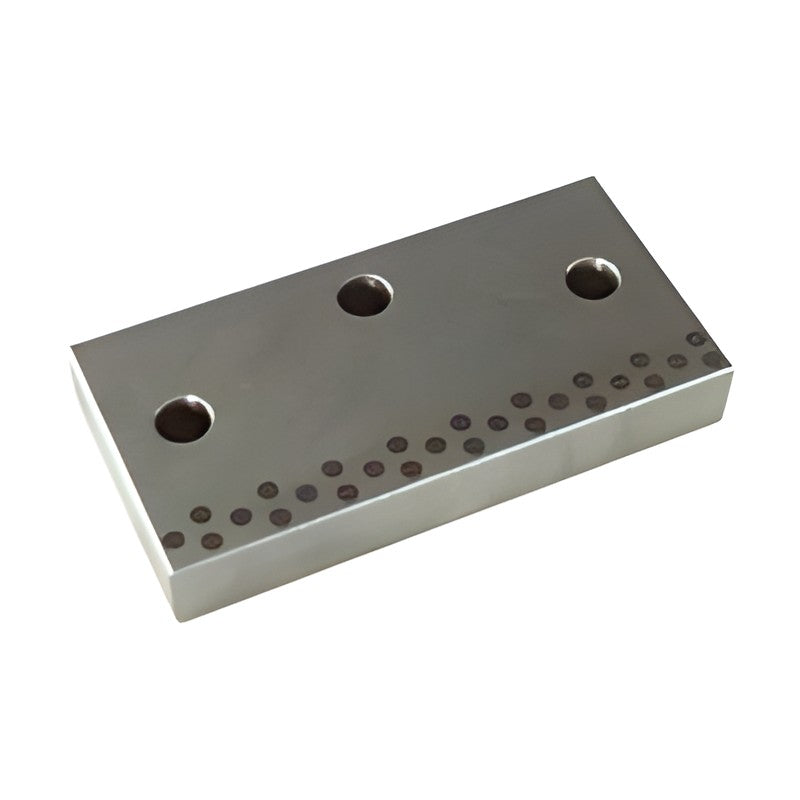

LuBo LB R21 / LB R22 NAAMS Gib Plates (Width 100-150 mm)

LuBo LB R21 / LB R22 NAAMS Gib Plates (Width 100-150 mm)

LuBo LB R21 / LB R22 NAAMS Gib Plates from the LuBo NAAMS Products catalogue, listed in 36 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Gib Plates - series LB R21 / LB R22
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • 36 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LB R21 / LB R22
Product NAAMS Gib Plates
Catalogue chapter NAAMS Products
Orderable codes 36
Size range Width 100-150 mm
Code example LB R211020
Row spec keys Width W, Length L, Holes, Bolt holes
Source LuBo NAAMS Products catalogue
LB R211020 Width W: 100 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Drilled
LB R211025 Width W: 100 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Drilled
LB R211031 Width W: 100 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Drilled
LB R211035 Width W: 100 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Drilled
LB R211040 Width W: 100 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Drilled
LB R211045 Width W: 100 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Drilled
LB R211220 Width W: 125 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Drilled
LB R211225 Width W: 125 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Drilled
LB R211231 Width W: 125 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Drilled
LB R211235 Width W: 125 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Drilled
LB R211240 Width W: 125 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Drilled
LB R211245 Width W: 125 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Drilled
LB R211520 Width W: 150 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Drilled
LB R211525 Width W: 150 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Drilled
LB R211531 Width W: 150 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Drilled
LB R211535 Width W: 150 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Drilled
LB R211540 Width W: 150 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Drilled
LB R211545 Width W: 150 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Drilled
LB R221020 Width W: 100 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Undrilled
LB R221025 Width W: 100 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Undrilled
LB R221031 Width W: 100 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Undrilled
LB R221035 Width W: 100 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Undrilled
LB R221040 Width W: 100 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Undrilled
LB R221045 Width W: 100 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Undrilled
LB R221220 Width W: 125 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Undrilled
LB R221225 Width W: 125 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Undrilled
LB R221231 Width W: 125 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Undrilled
LB R221235 Width W: 125 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Undrilled
LB R221240 Width W: 125 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Undrilled
LB R221245 Width W: 125 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Undrilled
LB R221520 Width W: 150 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Undrilled
LB R221525 Width W: 150 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Undrilled
LB R221531 Width W: 150 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Undrilled
LB R221535 Width W: 150 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Undrilled
LB R221540 Width W: 150 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Undrilled
LB R221545 Width W: 150 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Undrilled
NAAMS Die ComponentLuBo
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB R21 / LB R22 NAAMS Gib Plates (Width 100-150 mm)

Brand LuBo·NAAMS Die Component

Available part numbers (36)

LB R211020, LB R211025, LB R211031, LB R211035, LB R211040, LB R211045, LB R211220, LB R211225, LB R211231, LB R211235 + 26 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB R211020Width W: 100 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Drilled
LB R211025Width W: 100 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Drilled
LB R211031Width W: 100 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Drilled
LB R211035Width W: 100 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Drilled
LB R211040Width W: 100 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Drilled
LB R211045Width W: 100 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Drilled
LB R211220Width W: 125 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Drilled
LB R211225Width W: 125 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Drilled
LB R211231Width W: 125 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Drilled
LB R211235Width W: 125 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Drilled
LB R211240Width W: 125 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Drilled
LB R211245Width W: 125 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Drilled
LB R211520Width W: 150 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Drilled
LB R211525Width W: 150 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Drilled
LB R211531Width W: 150 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Drilled
LB R211535Width W: 150 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Drilled
LB R211540Width W: 150 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Drilled
LB R211545Width W: 150 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Drilled
LB R221020Width W: 100 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Undrilled
LB R221025Width W: 100 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Undrilled
LB R221031Width W: 100 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Undrilled
LB R221035Width W: 100 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Undrilled
LB R221040Width W: 100 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Undrilled
LB R221045Width W: 100 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Undrilled
LB R221220Width W: 125 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Undrilled
LB R221225Width W: 125 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Undrilled
LB R221231Width W: 125 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Undrilled
LB R221235Width W: 125 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Undrilled
LB R221240Width W: 125 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Undrilled
LB R221245Width W: 125 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Undrilled
LB R221520Width W: 150 mm | Length L: 200 mm | Holes: 3 | Bolt holes: Undrilled
LB R221525Width W: 150 mm | Length L: 250 mm | Holes: 4 | Bolt holes: Undrilled
LB R221531Width W: 150 mm | Length L: 315 mm | Holes: 5 | Bolt holes: Undrilled
LB R221535Width W: 150 mm | Length L: 350 mm | Holes: 5 | Bolt holes: Undrilled
LB R221540Width W: 150 mm | Length L: 400 mm | Holes: 5 | Bolt holes: Undrilled
LB R221545Width W: 150 mm | Length L: 450 mm | Holes: 5 | Bolt holes: Undrilled
