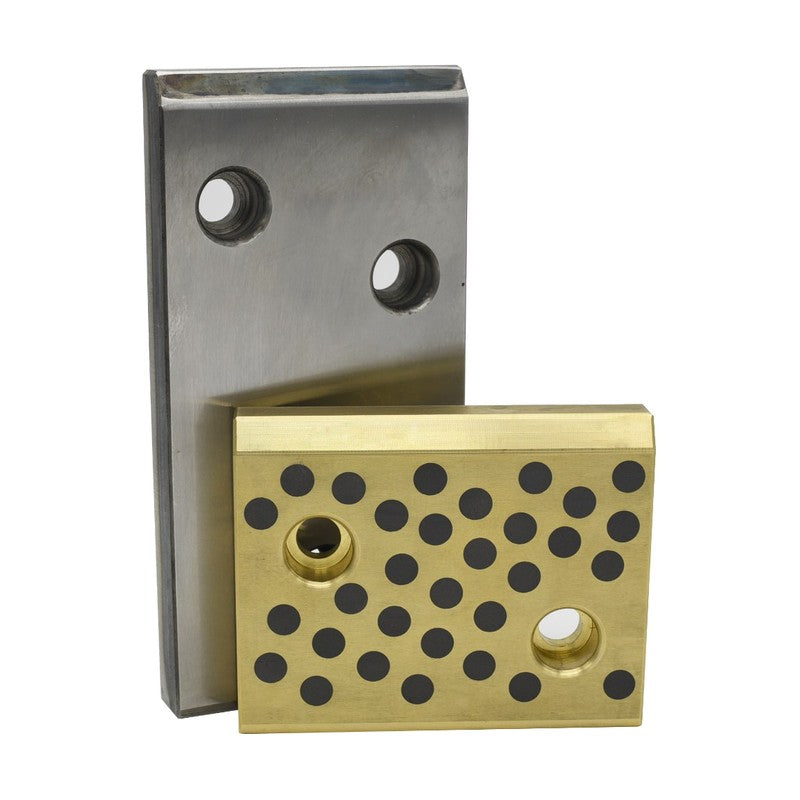

LuBo LB-W01 NAAMS Wear Plates (Width 50-160 mm)

LuBo LB-W01 NAAMS Wear Plates (Width 50-160 mm)

LuBo LB W01 / LB W02 / LB W03 NAAMS Wear Plates from the LuBo NAAMS Products catalogue, listed in 78 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Wear Plates - series LB W01 / LB W02 / LB W03
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • Material options: G, X, Y

Specifications

Brand LuBo
Series LB W01 / LB W02 / LB W03
Product NAAMS Wear Plates
Catalogue chapter NAAMS Products
Material G, X, Y
Orderable codes 78
Size range Width 50-160 mm
Code example LB W015010
Row spec keys Width, Length, Material type
Source LuBo NAAMS Products catalogue
LB W015010 Width: 50 mm | Length: 100 mm | Material type: G
LB W015015 Width: 50 mm | Length: 150 mm | Material type: G
LB W015020 Width: 50 mm | Length: 200 mm | Material type: G
LB W018010 Width: 80 mm | Length: 100 mm | Material type: G
LB W018015 Width: 80 mm | Length: 150 mm | Material type: G
LB W018020 Width: 80 mm | Length: 200 mm | Material type: G
LB W018025 Width: 80 mm | Length: 250 mm | Material type: G
LB W018031 Width: 80 mm | Length: 315 mm | Material type: G
LB W011050 Width: 100 mm | Length: 50 mm | Material type: G
LB W011080 Width: 100 mm | Length: 80 mm | Material type: G
LB W011010 Width: 100 mm | Length: 100 mm | Material type: G
LB W011015 Width: 100 mm | Length: 150 mm | Material type: G
LB W011020 Width: 100 mm | Length: 200 mm | Material type: G
LB W011025 Width: 100 mm | Length: 250 mm | Material type: G
LB W011031 Width: 100 mm | Length: 315 mm | Material type: G
LB W011280 Width: 125 mm | Length: 80 mm | Material type: G
LB W011210 Width: 125 mm | Length: 100 mm | Material type: G
LB W011215 Width: 125 mm | Length: 150 mm | Material type: G
LB W011220 Width: 125 mm | Length: 200 mm | Material type: G
LB W011225 Width: 125 mm | Length: 250 mm | Material type: G
LB W011231 Width: 125 mm | Length: 315 mm | Material type: G
LB W011610 Width: 160 mm | Length: 100 mm | Material type: G
LB W011615 Width: 160 mm | Length: 150 mm | Material type: G
LB W011620 Width: 160 mm | Length: 200 mm | Material type: G
LB W011625 Width: 160 mm | Length: 250 mm | Material type: G
LB W011631 Width: 160 mm | Length: 315 mm | Material type: G
LB W025010 Width: 50 mm | Length: 100 mm | Material type: X
LB W025015 Width: 50 mm | Length: 150 mm | Material type: X
LB W025020 Width: 50 mm | Length: 200 mm | Material type: X
LB W028010 Width: 80 mm | Length: 100 mm | Material type: X
LB W028015 Width: 80 mm | Length: 150 mm | Material type: X
LB W028020 Width: 80 mm | Length: 200 mm | Material type: X
LB W028025 Width: 80 mm | Length: 250 mm | Material type: X
LB W028031 Width: 80 mm | Length: 315 mm | Material type: X
LB W021050 Width: 100 mm | Length: 50 mm | Material type: X
LB W021080 Width: 100 mm | Length: 80 mm | Material type: X
LB W021010 Width: 100 mm | Length: 100 mm | Material type: X
LB W021015 Width: 100 mm | Length: 150 mm | Material type: X
LB W021020 Width: 100 mm | Length: 200 mm | Material type: X
LB W021025 Width: 100 mm | Length: 250 mm | Material type: X
LB W021031 Width: 100 mm | Length: 315 mm | Material type: X
LB W021280 Width: 125 mm | Length: 80 mm | Material type: X
LB W021210 Width: 125 mm | Length: 100 mm | Material type: X
LB W021215 Width: 125 mm | Length: 150 mm | Material type: X
LB W021220 Width: 125 mm | Length: 200 mm | Material type: X
LB W021225 Width: 125 mm | Length: 250 mm | Material type: X
LB W021231 Width: 125 mm | Length: 315 mm | Material type: X
LB W021610 Width: 160 mm | Length: 100 mm | Material type: X
LB W021615 Width: 160 mm | Length: 150 mm | Material type: X
LB W021620 Width: 160 mm | Length: 200 mm | Material type: X
LB W021625 Width: 160 mm | Length: 250 mm | Material type: X
LB W021631 Width: 160 mm | Length: 315 mm | Material type: X
LB W035010 Width: 50 mm | Length: 100 mm | Material type: Y
LB W035015 Width: 50 mm | Length: 150 mm | Material type: Y
LB W035020 Width: 50 mm | Length: 200 mm | Material type: Y
LB W038010 Width: 80 mm | Length: 100 mm | Material type: Y
LB W038015 Width: 80 mm | Length: 150 mm | Material type: Y
LB W038020 Width: 80 mm | Length: 200 mm | Material type: Y
LB W038025 Width: 80 mm | Length: 250 mm | Material type: Y
LB W038031 Width: 80 mm | Length: 315 mm | Material type: Y
LB W031050 Width: 100 mm | Length: 50 mm | Material type: Y
LB W031080 Width: 100 mm | Length: 80 mm | Material type: Y
LB W031010 Width: 100 mm | Length: 100 mm | Material type: Y
LB W031015 Width: 100 mm | Length: 150 mm | Material type: Y
LB W031020 Width: 100 mm | Length: 200 mm | Material type: Y
LB W031025 Width: 100 mm | Length: 250 mm | Material type: Y
LB W031031 Width: 100 mm | Length: 315 mm | Material type: Y
LB W031280 Width: 125 mm | Length: 80 mm | Material type: Y
LB W031210 Width: 125 mm | Length: 100 mm | Material type: Y
LB W031215 Width: 125 mm | Length: 150 mm | Material type: Y
LB W031220 Width: 125 mm | Length: 200 mm | Material type: Y
LB W031225 Width: 125 mm | Length: 250 mm | Material type: Y
LB W031231 Width: 125 mm | Length: 315 mm | Material type: Y
LB W031610 Width: 160 mm | Length: 100 mm | Material type: Y
LB W031615 Width: 160 mm | Length: 150 mm | Material type: Y
LB W031620 Width: 160 mm | Length: 200 mm | Material type: Y
LB W031625 Width: 160 mm | Length: 250 mm | Material type: Y
LB W031631 Width: 160 mm | Length: 315 mm | Material type: Y
NAAMS Die ComponentLuBo
78 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB-W01 NAAMS Wear Plates (Width 50-160 mm)

Brand LuBo·NAAMS Die Component

Available part numbers (78)

LB W015010, LB W015015, LB W015020, LB W018010, LB W018015, LB W018020, LB W018025, LB W018031, LB W011050, LB W011080 + 68 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
