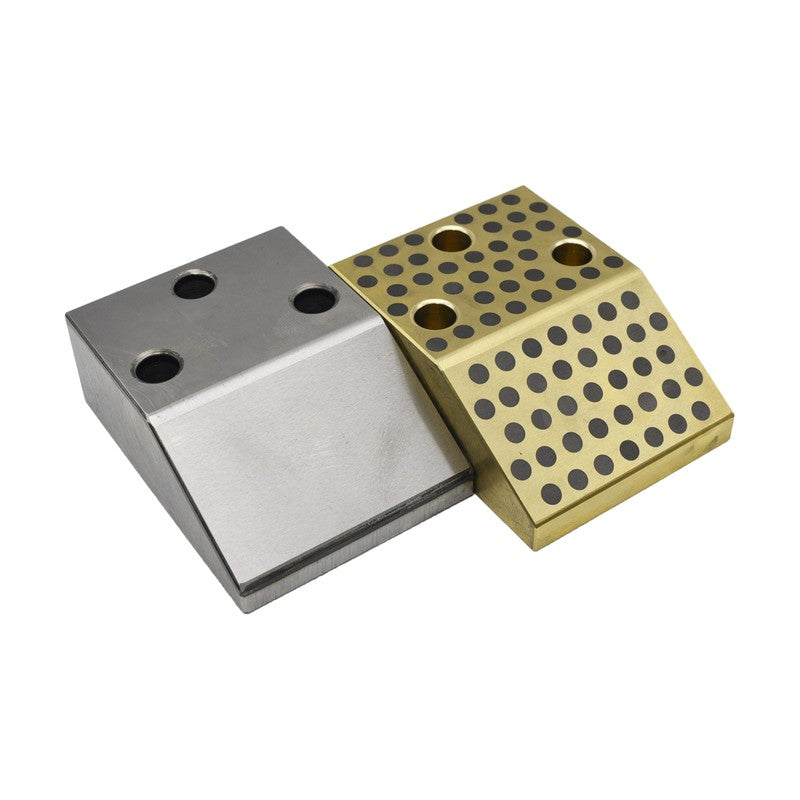

LuBo LB-W11 NAAMS Cam Dwell Wear Plates (Thickness 30-60 mm)

LuBo LB-W11 NAAMS Cam Dwell Wear Plates (Thickness 30-60 mm)

LuBo LB W11 / LB W21 / LB W31 NAAMS Cam Dwell Wear Plates from the LuBo NAAMS Products catalogue, listed in 27 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • NAAMS Cam Dwell Wear Plates - series LB W11 / LB W21 / LB W31
  • Built to NAAMS automotive die standard dimensions
  • Ordered by LuBo NAAMS code
  • Dimensions per LuBo NAAMS catalogue table
  • Material options: G, X, Y

Specifications

Brand LuBo
Series LB W11 / LB W21 / LB W31
Product NAAMS Cam Dwell Wear Plates
Catalogue chapter NAAMS Products
Material G, X, Y
Orderable codes 27
Size range Thickness 30-60 mm
Code example LB W111210
Row spec keys Thickness T, Width W, Length L, Material type
Source LuBo NAAMS Products catalogue
LB W111210 Thickness T: 30 mm | Width W: 100 mm | Length L: 125 mm | Material type: G
LB W111212 Thickness T: 30 mm | Width W: 125 mm | Length L: 125 mm | Material type: G
LB W111216 Thickness T: 30 mm | Width W: 160 mm | Length L: 125 mm | Material type: G
LB W111510 Thickness T: 45 mm | Width W: 100 mm | Length L: 150 mm | Material type: G
LB W111512 Thickness T: 45 mm | Width W: 125 mm | Length L: 150 mm | Material type: G
LB W111516 Thickness T: 45 mm | Width W: 160 mm | Length L: 150 mm | Material type: G
LB W111710 Thickness T: 60 mm | Width W: 100 mm | Length L: 170 mm | Material type: G
LB W111712 Thickness T: 60 mm | Width W: 125 mm | Length L: 170 mm | Material type: G
LB W111716 Thickness T: 60 mm | Width W: 160 mm | Length L: 170 mm | Material type: G
LB W211210 Thickness T: 30 mm | Width W: 100 mm | Length L: 125 mm | Material type: X
LB W211212 Thickness T: 30 mm | Width W: 125 mm | Length L: 125 mm | Material type: X
LB W211216 Thickness T: 30 mm | Width W: 160 mm | Length L: 125 mm | Material type: X
LB W211510 Thickness T: 45 mm | Width W: 100 mm | Length L: 150 mm | Material type: X
LB W211512 Thickness T: 45 mm | Width W: 125 mm | Length L: 150 mm | Material type: X
LB W211516 Thickness T: 45 mm | Width W: 160 mm | Length L: 150 mm | Material type: X
LB W211710 Thickness T: 60 mm | Width W: 100 mm | Length L: 170 mm | Material type: X
LB W211712 Thickness T: 60 mm | Width W: 125 mm | Length L: 170 mm | Material type: X
LB W211716 Thickness T: 60 mm | Width W: 160 mm | Length L: 170 mm | Material type: X
LB W311210 Thickness T: 30 mm | Width W: 100 mm | Length L: 125 mm | Material type: Y
LB W311212 Thickness T: 30 mm | Width W: 125 mm | Length L: 125 mm | Material type: Y
LB W311216 Thickness T: 30 mm | Width W: 160 mm | Length L: 125 mm | Material type: Y
LB W311510 Thickness T: 45 mm | Width W: 100 mm | Length L: 150 mm | Material type: Y
LB W311512 Thickness T: 45 mm | Width W: 125 mm | Length L: 150 mm | Material type: Y
LB W311516 Thickness T: 45 mm | Width W: 160 mm | Length L: 150 mm | Material type: Y
LB W311710 Thickness T: 60 mm | Width W: 100 mm | Length L: 170 mm | Material type: Y
LB W311712 Thickness T: 60 mm | Width W: 125 mm | Length L: 170 mm | Material type: Y
LB W311716 Thickness T: 60 mm | Width W: 160 mm | Length L: 170 mm | Material type: Y
NAAMS Die ComponentLuBo
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LB-W11 NAAMS Cam Dwell Wear Plates (Thickness 30-60 mm)

Brand LuBo·NAAMS Die Component

Available part numbers (27)

LB W111210, LB W111212, LB W111216, LB W111510, LB W111512, LB W111516, LB W111710, LB W111712, LB W111716, LB W211210 + 17 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB W111210Thickness T: 30 mm | Width W: 100 mm | Length L: 125 mm | Material type: G
LB W111212Thickness T: 30 mm | Width W: 125 mm | Length L: 125 mm | Material type: G
LB W111216Thickness T: 30 mm | Width W: 160 mm | Length L: 125 mm | Material type: G
LB W111510Thickness T: 45 mm | Width W: 100 mm | Length L: 150 mm | Material type: G
LB W111512Thickness T: 45 mm | Width W: 125 mm | Length L: 150 mm | Material type: G
LB W111516Thickness T: 45 mm | Width W: 160 mm | Length L: 150 mm | Material type: G
LB W111710Thickness T: 60 mm | Width W: 100 mm | Length L: 170 mm | Material type: G
LB W111712Thickness T: 60 mm | Width W: 125 mm | Length L: 170 mm | Material type: G
LB W111716Thickness T: 60 mm | Width W: 160 mm | Length L: 170 mm | Material type: G
LB W211210Thickness T: 30 mm | Width W: 100 mm | Length L: 125 mm | Material type: X
LB W211212Thickness T: 30 mm | Width W: 125 mm | Length L: 125 mm | Material type: X
LB W211216Thickness T: 30 mm | Width W: 160 mm | Length L: 125 mm | Material type: X
LB W211510Thickness T: 45 mm | Width W: 100 mm | Length L: 150 mm | Material type: X
LB W211512Thickness T: 45 mm | Width W: 125 mm | Length L: 150 mm | Material type: X
LB W211516Thickness T: 45 mm | Width W: 160 mm | Length L: 150 mm | Material type: X
LB W211710Thickness T: 60 mm | Width W: 100 mm | Length L: 170 mm | Material type: X
LB W211712Thickness T: 60 mm | Width W: 125 mm | Length L: 170 mm | Material type: X
LB W211716Thickness T: 60 mm | Width W: 160 mm | Length L: 170 mm | Material type: X
LB W311210Thickness T: 30 mm | Width W: 100 mm | Length L: 125 mm | Material type: Y
LB W311212Thickness T: 30 mm | Width W: 125 mm | Length L: 125 mm | Material type: Y
LB W311216Thickness T: 30 mm | Width W: 160 mm | Length L: 125 mm | Material type: Y
LB W311510Thickness T: 45 mm | Width W: 100 mm | Length L: 150 mm | Material type: Y
LB W311512Thickness T: 45 mm | Width W: 125 mm | Length L: 150 mm | Material type: Y
LB W311516Thickness T: 45 mm | Width W: 160 mm | Length L: 150 mm | Material type: Y
LB W311710Thickness T: 60 mm | Width W: 100 mm | Length L: 170 mm | Material type: Y
LB W311712Thickness T: 60 mm | Width W: 125 mm | Length L: 170 mm | Material type: Y
LB W311716Thickness T: 60 mm | Width W: 160 mm | Length L: 170 mm | Material type: Y
