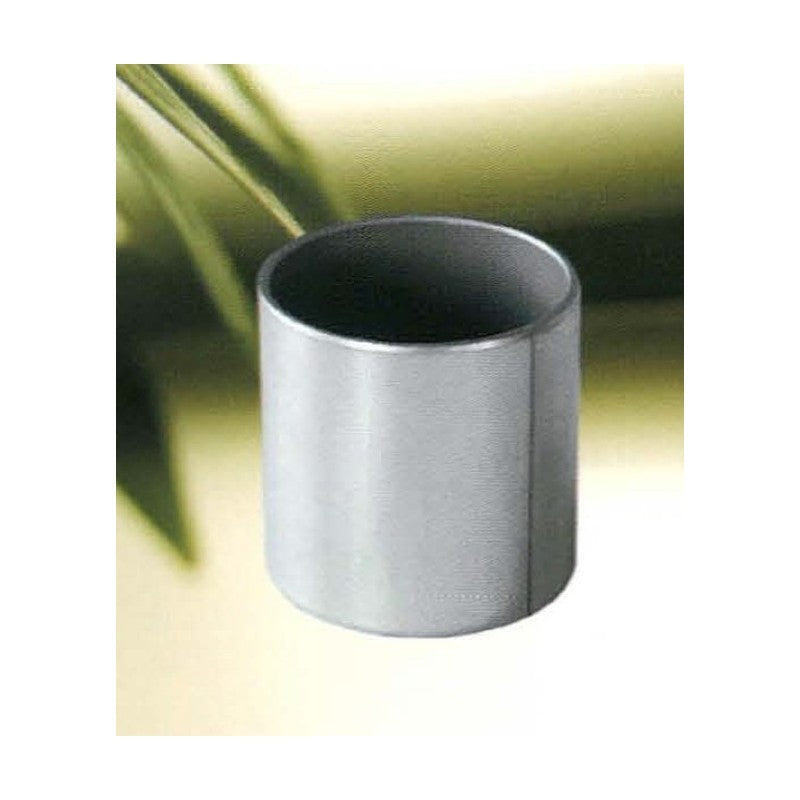

LuBo LBB Dry Bearing Standard Bushing (LB Series, Metric)

LuBo LBB Dry Bearing Standard Bushing (LB Series, Metric)

LuBo LBB is a split (wrapped) dry bearing bushing from the LB series for oil-free running on metric shafts.

Key features

  • Thin-wall wrapped construction with slit
  • Dry running, no lubrication required
  • Bore 3-300 mm, length 3-100 mm
  • Housing bore H7 for installation
  • Other sizes on special order

Specifications

Series LBB (LB series)
Type Dry bearing, wrapped bushing
Housing fit H7
Length tolerance +0 / -0.3 mm
Order format Code No. (e.g. LBB 1310)
Code key Bore + length in mm
Source LuBo Dry Bearings (LB Series) Standard Bushings
LBB 0303 Bore d: 3 mm | OD D: 5 mm | Length L: 3 mm
LBB 0304 Bore d: 3 mm | OD D: 5 mm | Length L: 4 mm
LBB 0305 Bore d: 3 mm | OD D: 5 mm | Length L: 5 mm
LBB 0306 Bore d: 3 mm | OD D: 5 mm | Length L: 6 mm
LBB 0404 Bore d: 4 mm | OD D: 6 mm | Length L: 4 mm
LBB 0406 Bore d: 4 mm | OD D: 6 mm | Length L: 6 mm
LBB 0408 Bore d: 4 mm | OD D: 6 mm | Length L: 8 mm
LBB 0504 Bore d: 5 mm | OD D: 7 mm | Length L: 4 mm
LBB 0505 Bore d: 5 mm | OD D: 7 mm | Length L: 5 mm
LBB 0506 Bore d: 5 mm | OD D: 7 mm | Length L: 6 mm
LBB 0508 Bore d: 5 mm | OD D: 7 mm | Length L: 8 mm
LBB 0510 Bore d: 5 mm | OD D: 7 mm | Length L: 10 mm
LBB 0605 Bore d: 6 mm | OD D: 8 mm | Length L: 5 mm
LBB 0606 Bore d: 6 mm | OD D: 8 mm | Length L: 6 mm
LBB 0607 Bore d: 6 mm | OD D: 8 mm | Length L: 7 mm
LBB 0608 Bore d: 6 mm | OD D: 8 mm | Length L: 8 mm
LBB 0610 Bore d: 6 mm | OD D: 8 mm | Length L: 10 mm
LBB 0705 Bore d: 7 mm | OD D: 9 mm | Length L: 5 mm
LBB 0707 Bore d: 7 mm | OD D: 9 mm | Length L: 7 mm
LBB 0710 Bore d: 7 mm | OD D: 9 mm | Length L: 10 mm
LBB 0712 Bore d: 7 mm | OD D: 9 mm | Length L: 12 mm
LBB 0805 Bore d: 8 mm | OD D: 10 mm | Length L: 5 mm
LBB 0806 Bore d: 8 mm | OD D: 10 mm | Length L: 6 mm
LBB 0807 Bore d: 8 mm | OD D: 10 mm | Length L: 7 mm
LBB 0808 Bore d: 8 mm | OD D: 10 mm | Length L: 8 mm
LBB 0810 Bore d: 8 mm | OD D: 10 mm | Length L: 10 mm
LBB 0812 Bore d: 8 mm | OD D: 10 mm | Length L: 12 mm
LBB 0910 Bore d: 9 mm | OD D: 11 mm | Length L: 10 mm
LBB 1006 Bore d: 10 mm | OD D: 12 mm | Length L: 6 mm
LBB 1007 Bore d: 10 mm | OD D: 12 mm | Length L: 7 mm
LBB 1008 Bore d: 10 mm | OD D: 12 mm | Length L: 8 mm
LBB 1010 Bore d: 10 mm | OD D: 12 mm | Length L: 10 mm
LBB 1012 Bore d: 10 mm | OD D: 12 mm | Length L: 12 mm
LBB 1015 Bore d: 10 mm | OD D: 12 mm | Length L: 15 mm
LBB 1020 Bore d: 10 mm | OD D: 12 mm | Length L: 20 mm
LBB 1206 Bore d: 12 mm | OD D: 14 mm | Length L: 6 mm
LBB 1208 Bore d: 12 mm | OD D: 14 mm | Length L: 8 mm
LBB 1210 Bore d: 12 mm | OD D: 14 mm | Length L: 10 mm
LBB 1212 Bore d: 12 mm | OD D: 14 mm | Length L: 12 mm
LBB 1215 Bore d: 12 mm | OD D: 14 mm | Length L: 15 mm
LBB 1220 Bore d: 12 mm | OD D: 14 mm | Length L: 20 mm
LBB 1308 Bore d: 13 mm | OD D: 15 mm | Length L: 8 mm
LBB 1310 Bore d: 13 mm | OD D: 15 mm | Length L: 10 mm
LBB 1315 Bore d: 13 mm | OD D: 15 mm | Length L: 15 mm
LBB 1410 Bore d: 14 mm | OD D: 16 mm | Length L: 10 mm
LBB 1412 Bore d: 14 mm | OD D: 16 mm | Length L: 12 mm
LBB 1415 Bore d: 14 mm | OD D: 16 mm | Length L: 15 mm
LBB 1420 Bore d: 14 mm | OD D: 16 mm | Length L: 20 mm
LBB 1425 Bore d: 14 mm | OD D: 16 mm | Length L: 25 mm
LBB 1508 Bore d: 15 mm | OD D: 17 mm | Length L: 8 mm
LBB 1510 Bore d: 15 mm | OD D: 17 mm | Length L: 10 mm
LBB 1512 Bore d: 15 mm | OD D: 17 mm | Length L: 12 mm
LBB 1515 Bore d: 15 mm | OD D: 17 mm | Length L: 15 mm
LBB 1520 Bore d: 15 mm | OD D: 17 mm | Length L: 20 mm
LBB 1525 Bore d: 15 mm | OD D: 17 mm | Length L: 25 mm
LBB 1610 Bore d: 16 mm | OD D: 18 mm | Length L: 10 mm
LBB 1612 Bore d: 16 mm | OD D: 18 mm | Length L: 12 mm
LBB 1615 Bore d: 16 mm | OD D: 18 mm | Length L: 15 mm
LBB 1620 Bore d: 16 mm | OD D: 18 mm | Length L: 20 mm
LBB 1625 Bore d: 16 mm | OD D: 18 mm | Length L: 25 mm
LBB 1715 Bore d: 17 mm | OD D: 19 mm | Length L: 15 mm
LBB 1720 Bore d: 17 mm | OD D: 19 mm | Length L: 20 mm
LBB 1810 Bore d: 18 mm | OD D: 20 mm | Length L: 10 mm
LBB 1812 Bore d: 18 mm | OD D: 20 mm | Length L: 12 mm
LBB 1815 Bore d: 18 mm | OD D: 20 mm | Length L: 15 mm
LBB 1820 Bore d: 18 mm | OD D: 20 mm | Length L: 20 mm
LBB 1825 Bore d: 18 mm | OD D: 20 mm | Length L: 25 mm
LBB 1830 Bore d: 18 mm | OD D: 20 mm | Length L: 30 mm
LBB 1910 Bore d: 19 mm | OD D: 22 mm | Length L: 10 mm
LBB 1915 Bore d: 19 mm | OD D: 22 mm | Length L: 15 mm
LBB 2010 Bore d: 20 mm | OD D: 23 mm | Length L: 10 mm
LBB 2012 Bore d: 20 mm | OD D: 23 mm | Length L: 12 mm
LBB 2015 Bore d: 20 mm | OD D: 23 mm | Length L: 15 mm
LBB 2020 Bore d: 20 mm | OD D: 23 mm | Length L: 20 mm
LBB 2025 Bore d: 20 mm | OD D: 23 mm | Length L: 25 mm
LBB 2030 Bore d: 20 mm | OD D: 23 mm | Length L: 30 mm
LBB 2210 Bore d: 22 mm | OD D: 25 mm | Length L: 10 mm
LBB 2212 Bore d: 22 mm | OD D: 25 mm | Length L: 12 mm
LBB 2215 Bore d: 22 mm | OD D: 25 mm | Length L: 15 mm
LBB 2220 Bore d: 22 mm | OD D: 25 mm | Length L: 20 mm
LBB 2225 Bore d: 22 mm | OD D: 25 mm | Length L: 25 mm
LBB 2230 Bore d: 22 mm | OD D: 25 mm | Length L: 30 mm
LBB 2415 Bore d: 24 mm | OD D: 27 mm | Length L: 15 mm
LBB 2420 Bore d: 24 mm | OD D: 27 mm | Length L: 20 mm
LBB 2425 Bore d: 24 mm | OD D: 27 mm | Length L: 25 mm
LBB 2430 Bore d: 24 mm | OD D: 27 mm | Length L: 30 mm
LBB 2510 Bore d: 25 mm | OD D: 28 mm | Length L: 10 mm
LBB 2512 Bore d: 25 mm | OD D: 28 mm | Length L: 12 mm
LBB 2515 Bore d: 25 mm | OD D: 28 mm | Length L: 15 mm
LBB 2520 Bore d: 25 mm | OD D: 28 mm | Length L: 20 mm
LBB 2525 Bore d: 25 mm | OD D: 28 mm | Length L: 25 mm
LBB 2530 Bore d: 25 mm | OD D: 28 mm | Length L: 30 mm
LBB 2535 Bore d: 25 mm | OD D: 28 mm | Length L: 35 mm
LBB 2540 Bore d: 25 mm | OD D: 28 mm | Length L: 40 mm
LBB 2615 Bore d: 26 mm | OD D: 30 mm | Length L: 15 mm
LBB 2620 Bore d: 26 mm | OD D: 30 mm | Length L: 20 mm
LBB 2630 Bore d: 26 mm | OD D: 30 mm | Length L: 30 mm
LBB 2640 Bore d: 26 mm | OD D: 30 mm | Length L: 40 mm
LBB 2812 Bore d: 28 mm | OD D: 32 mm | Length L: 12 mm
LBB 2815 Bore d: 28 mm | OD D: 32 mm | Length L: 15 mm
LBB 2820 Bore d: 28 mm | OD D: 32 mm | Length L: 20 mm
LBB 2825 Bore d: 28 mm | OD D: 32 mm | Length L: 25 mm
LBB 2830 Bore d: 28 mm | OD D: 32 mm | Length L: 30 mm
LBB 2840 Bore d: 28 mm | OD D: 32 mm | Length L: 40 mm
LBB 3012 Bore d: 30 mm | OD D: 34 mm | Length L: 12 mm
LBB 3015 Bore d: 30 mm | OD D: 34 mm | Length L: 15 mm
LBB 3020 Bore d: 30 mm | OD D: 34 mm | Length L: 20 mm
LBB 3025 Bore d: 30 mm | OD D: 34 mm | Length L: 25 mm
LBB 3030 Bore d: 30 mm | OD D: 34 mm | Length L: 30 mm
LBB 3035 Bore d: 30 mm | OD D: 34 mm | Length L: 35 mm
LBB 3040 Bore d: 30 mm | OD D: 34 mm | Length L: 40 mm
LBB 3115 Bore d: 31 mm | OD D: 35 mm | Length L: 15 mm
LBB 3125 Bore d: 31 mm | OD D: 35 mm | Length L: 25 mm
LBB 3140 Bore d: 31 mm | OD D: 35 mm | Length L: 40 mm
LBB 3220 Bore d: 32 mm | OD D: 36 mm | Length L: 20 mm
LBB 3225 Bore d: 32 mm | OD D: 36 mm | Length L: 25 mm
LBB 3230 Bore d: 32 mm | OD D: 36 mm | Length L: 30 mm
LBB 3240 Bore d: 32 mm | OD D: 36 mm | Length L: 40 mm
LBB 3512 Bore d: 35 mm | OD D: 39 mm | Length L: 12 mm
LBB 3520 Bore d: 35 mm | OD D: 39 mm | Length L: 20 mm
LBB 3525 Bore d: 35 mm | OD D: 39 mm | Length L: 25 mm
LBB 3530 Bore d: 35 mm | OD D: 39 mm | Length L: 30 mm
LBB 3535 Bore d: 35 mm | OD D: 39 mm | Length L: 35 mm
LBB 3540 Bore d: 35 mm | OD D: 39 mm | Length L: 40 mm
LBB 3550 Bore d: 35 mm | OD D: 39 mm | Length L: 50 mm
LBB 3820 Bore d: 38 mm | OD D: 42 mm | Length L: 20 mm
LBB 3825 Bore d: 38 mm | OD D: 42 mm | Length L: 25 mm
LBB 3830 Bore d: 38 mm | OD D: 42 mm | Length L: 30 mm
LBB 3835 Bore d: 38 mm | OD D: 42 mm | Length L: 35 mm
LBB 3840 Bore d: 38 mm | OD D: 42 mm | Length L: 40 mm
LBB 3850 Bore d: 38 mm | OD D: 42 mm | Length L: 50 mm
LBB 4012 Bore d: 40 mm | OD D: 44 mm | Length L: 12 mm
LBB 4015 Bore d: 40 mm | OD D: 44 mm | Length L: 15 mm
LBB 4020 Bore d: 40 mm | OD D: 44 mm | Length L: 20 mm
LBB 4025 Bore d: 40 mm | OD D: 44 mm | Length L: 25 mm
LBB 4030 Bore d: 40 mm | OD D: 44 mm | Length L: 30 mm
LBB 4035 Bore d: 40 mm | OD D: 44 mm | Length L: 35 mm
LBB 4040 Bore d: 40 mm | OD D: 44 mm | Length L: 40 mm
LBB 4050 Bore d: 40 mm | OD D: 44 mm | Length L: 50 mm
LBB 4220 Bore d: 42 mm | OD D: 47 mm | Length L: 20 mm
LBB 4240 Bore d: 42 mm | OD D: 47 mm | Length L: 40 mm
LBB 4250 Bore d: 42 mm | OD D: 47 mm | Length L: 50 mm
LBB 4420 Bore d: 44 mm | OD D: 49 mm | Length L: 20 mm
LBB 4430 Bore d: 44 mm | OD D: 49 mm | Length L: 30 mm
LBB 4450 Bore d: 44 mm | OD D: 49 mm | Length L: 50 mm
LBB 4520 Bore d: 45 mm | OD D: 50 mm | Length L: 20 mm
LBB 4525 Bore d: 45 mm | OD D: 50 mm | Length L: 25 mm
LBB 4530 Bore d: 45 mm | OD D: 50 mm | Length L: 30 mm
LBB 4535 Bore d: 45 mm | OD D: 50 mm | Length L: 35 mm
LBB 4540 Bore d: 45 mm | OD D: 50 mm | Length L: 40 mm
LBB 4550 Bore d: 45 mm | OD D: 50 mm | Length L: 50 mm
LBB 5020 Bore d: 50 mm | OD D: 55 mm | Length L: 20 mm
LBB 5025 Bore d: 50 mm | OD D: 55 mm | Length L: 25 mm
LBB 5030 Bore d: 50 mm | OD D: 55 mm | Length L: 30 mm
LBB 5035 Bore d: 50 mm | OD D: 55 mm | Length L: 35 mm
LBB 5040 Bore d: 50 mm | OD D: 55 mm | Length L: 40 mm
LBB 5050 Bore d: 50 mm | OD D: 55 mm | Length L: 50 mm
LBB 5060 Bore d: 50 mm | OD D: 55 mm | Length L: 60 mm
LBB 5525 Bore d: 55 mm | OD D: 60 mm | Length L: 25 mm
LBB 5530 Bore d: 55 mm | OD D: 60 mm | Length L: 30 mm
LBB 5535 Bore d: 55 mm | OD D: 60 mm | Length L: 35 mm
LBB 5540 Bore d: 55 mm | OD D: 60 mm | Length L: 40 mm
LBB 5550 Bore d: 55 mm | OD D: 60 mm | Length L: 50 mm
LBB 5560 Bore d: 55 mm | OD D: 60 mm | Length L: 60 mm
LBB 6030 Bore d: 60 mm | OD D: 65 mm | Length L: 30 mm
LBB 6035 Bore d: 60 mm | OD D: 65 mm | Length L: 35 mm
LBB 6040 Bore d: 60 mm | OD D: 65 mm | Length L: 40 mm
LBB 6060 Bore d: 60 mm | OD D: 65 mm | Length L: 60 mm
LBB 7030 Bore d: 70 mm | OD D: 75 mm | Length L: 30 mm
LBB 7035 Bore d: 70 mm | OD D: 75 mm | Length L: 35 mm
LBB 7040 Bore d: 70 mm | OD D: 75 mm | Length L: 40 mm
LBB 7050 Bore d: 70 mm | OD D: 75 mm | Length L: 50 mm
LBB 7060 Bore d: 70 mm | OD D: 75 mm | Length L: 60 mm
LBB 7080 Bore d: 70 mm | OD D: 75 mm | Length L: 80 mm
LBB 7530 Bore d: 75 mm | OD D: 80 mm | Length L: 30 mm
LBB 7535 Bore d: 75 mm | OD D: 80 mm | Length L: 35 mm
LBB 7540 Bore d: 75 mm | OD D: 80 mm | Length L: 40 mm
LBB 7550 Bore d: 75 mm | OD D: 80 mm | Length L: 50 mm
LBB 7560 Bore d: 75 mm | OD D: 80 mm | Length L: 60 mm
LBB 7580 Bore d: 75 mm | OD D: 80 mm | Length L: 80 mm
LBB 8040 Bore d: 80 mm | OD D: 85 mm | Length L: 40 mm
LBB 8050 Bore d: 80 mm | OD D: 85 mm | Length L: 50 mm
LBB 8060 Bore d: 80 mm | OD D: 85 mm | Length L: 60 mm
LBB 8080 Bore d: 80 mm | OD D: 85 mm | Length L: 80 mm
LBB 8540 Bore d: 85 mm | OD D: 90 mm | Length L: 40 mm
LBB 8550 Bore d: 85 mm | OD D: 90 mm | Length L: 50 mm
LBB 8560 Bore d: 85 mm | OD D: 90 mm | Length L: 60 mm
LBB 8580 Bore d: 85 mm | OD D: 90 mm | Length L: 80 mm
LBB 9040 Bore d: 90 mm | OD D: 95 mm | Length L: 40 mm
LBB 9060 Bore d: 90 mm | OD D: 95 mm | Length L: 60 mm
LBB 9090 Bore d: 90 mm | OD D: 95 mm | Length L: 90 mm
LBB 9540 Bore d: 95 mm | OD D: 100 mm | Length L: 40 mm
LBB 9560 Bore d: 95 mm | OD D: 100 mm | Length L: 60 mm
LBB 9590 Bore d: 95 mm | OD D: 100 mm | Length L: 90 mm
LBB 10050 Bore d: 100 mm | OD D: 105 mm | Length L: 50 mm
LBB 10070 Bore d: 100 mm | OD D: 105 mm | Length L: 70 mm
LBB 10090 Bore d: 100 mm | OD D: 105 mm | Length L: 90 mm
LBB 10570 Bore d: 105 mm | OD D: 110 mm | Length L: 70 mm
LBB 10595 Bore d: 105 mm | OD D: 110 mm | Length L: 95 mm
LBB 11050 Bore d: 110 mm | OD D: 115 mm | Length L: 50 mm
LBB 11070 Bore d: 110 mm | OD D: 115 mm | Length L: 70 mm
LBB 11095 Bore d: 110 mm | OD D: 115 mm | Length L: 95 mm
LBB 11570 Bore d: 115 mm | OD D: 120 mm | Length L: 70 mm
LBB 11595 Bore d: 115 mm | OD D: 120 mm | Length L: 95 mm
LBB 12050 Bore d: 120 mm | OD D: 125 mm | Length L: 50 mm
LBB 12070 Bore d: 120 mm | OD D: 125 mm | Length L: 70 mm
LBB 12095 Bore d: 120 mm | OD D: 125 mm | Length L: 95 mm
LBB 13050 Bore d: 130 mm | OD D: 135 mm | Length L: 50 mm
LBB 13080 Bore d: 130 mm | OD D: 135 mm | Length L: 80 mm
LBB 130100 Bore d: 130 mm | OD D: 135 mm | Length L: 100 mm
LBB 14050 Bore d: 140 mm | OD D: 145 mm | Length L: 50 mm
LBB 14080 Bore d: 140 mm | OD D: 145 mm | Length L: 80 mm
LBB 140100 Bore d: 140 mm | OD D: 145 mm | Length L: 100 mm
LBB 14580 Bore d: 145 mm | OD D: 150 mm | Length L: 80 mm
LBB 145100 Bore d: 145 mm | OD D: 150 mm | Length L: 100 mm
LBB 15050 Bore d: 150 mm | OD D: 155 mm | Length L: 50 mm
LBB 15080 Bore d: 150 mm | OD D: 155 mm | Length L: 80 mm
LBB 150100 Bore d: 150 mm | OD D: 155 mm | Length L: 100 mm
LBB 16050 Bore d: 160 mm | OD D: 165 mm | Length L: 50 mm
LBB 16080 Bore d: 160 mm | OD D: 165 mm | Length L: 80 mm
LBB 160100 Bore d: 160 mm | OD D: 165 mm | Length L: 100 mm
LBB 17080 Bore d: 170 mm | OD D: 175 mm | Length L: 80 mm
LBB 170100 Bore d: 170 mm | OD D: 175 mm | Length L: 100 mm
LBB 18080 Bore d: 180 mm | OD D: 185 mm | Length L: 80 mm
LBB 180100 Bore d: 180 mm | OD D: 185 mm | Length L: 100 mm
LBB 19080 Bore d: 190 mm | OD D: 195 mm | Length L: 80 mm
LBB 190100 Bore d: 190 mm | OD D: 195 mm | Length L: 100 mm
LBB 200100 Bore d: 200 mm | OD D: 205 mm | Length L: 100 mm
LBB 210100 Bore d: 210 mm | OD D: 215 mm | Length L: 100 mm
LBB 250100 Bore d: 250 mm | OD D: 255 mm | Length L: 100 mm
LBB 280100 Bore d: 280 mm | OD D: 285 mm | Length L: 100 mm
LBB 300100 Bore d: 300 mm | OD D: 305 mm | Length L: 100 mm
Plain BearingLuBo
232 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LBB Dry Bearing Standard Bushing (LB Series, Metric)

Brand LuBo·Plain Bearing

Available part numbers (232)

LBB 0303, LBB 0304, LBB 0305, LBB 0306, LBB 0404, LBB 0406, LBB 0408, LBB 0504, LBB 0505, LBB 0506 + 222 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LBB 0303Bore d: 3 mm | OD D: 5 mm | Length L: 3 mm
LBB 0304Bore d: 3 mm | OD D: 5 mm | Length L: 4 mm
LBB 0305Bore d: 3 mm | OD D: 5 mm | Length L: 5 mm
LBB 0306Bore d: 3 mm | OD D: 5 mm | Length L: 6 mm
LBB 0404Bore d: 4 mm | OD D: 6 mm | Length L: 4 mm
LBB 0406Bore d: 4 mm | OD D: 6 mm | Length L: 6 mm
LBB 0408Bore d: 4 mm | OD D: 6 mm | Length L: 8 mm
LBB 0504Bore d: 5 mm | OD D: 7 mm | Length L: 4 mm
LBB 0505Bore d: 5 mm | OD D: 7 mm | Length L: 5 mm
LBB 0506Bore d: 5 mm | OD D: 7 mm | Length L: 6 mm
LBB 0508Bore d: 5 mm | OD D: 7 mm | Length L: 8 mm
LBB 0510Bore d: 5 mm | OD D: 7 mm | Length L: 10 mm
LBB 0605Bore d: 6 mm | OD D: 8 mm | Length L: 5 mm
LBB 0606Bore d: 6 mm | OD D: 8 mm | Length L: 6 mm
LBB 0607Bore d: 6 mm | OD D: 8 mm | Length L: 7 mm
LBB 0608Bore d: 6 mm | OD D: 8 mm | Length L: 8 mm
LBB 0610Bore d: 6 mm | OD D: 8 mm | Length L: 10 mm
LBB 0705Bore d: 7 mm | OD D: 9 mm | Length L: 5 mm
LBB 0707Bore d: 7 mm | OD D: 9 mm | Length L: 7 mm
LBB 0710Bore d: 7 mm | OD D: 9 mm | Length L: 10 mm
LBB 0712Bore d: 7 mm | OD D: 9 mm | Length L: 12 mm
LBB 0805Bore d: 8 mm | OD D: 10 mm | Length L: 5 mm
LBB 0806Bore d: 8 mm | OD D: 10 mm | Length L: 6 mm
LBB 0807Bore d: 8 mm | OD D: 10 mm | Length L: 7 mm
LBB 0808Bore d: 8 mm | OD D: 10 mm | Length L: 8 mm
LBB 0810Bore d: 8 mm | OD D: 10 mm | Length L: 10 mm
LBB 0812Bore d: 8 mm | OD D: 10 mm | Length L: 12 mm
LBB 0910Bore d: 9 mm | OD D: 11 mm | Length L: 10 mm
LBB 1006Bore d: 10 mm | OD D: 12 mm | Length L: 6 mm
LBB 1007Bore d: 10 mm | OD D: 12 mm | Length L: 7 mm
LBB 1008Bore d: 10 mm | OD D: 12 mm | Length L: 8 mm
LBB 1010Bore d: 10 mm | OD D: 12 mm | Length L: 10 mm
LBB 1012Bore d: 10 mm | OD D: 12 mm | Length L: 12 mm
LBB 1015Bore d: 10 mm | OD D: 12 mm | Length L: 15 mm
LBB 1020Bore d: 10 mm | OD D: 12 mm | Length L: 20 mm
LBB 1206Bore d: 12 mm | OD D: 14 mm | Length L: 6 mm
LBB 1208Bore d: 12 mm | OD D: 14 mm | Length L: 8 mm
LBB 1210Bore d: 12 mm | OD D: 14 mm | Length L: 10 mm
LBB 1212Bore d: 12 mm | OD D: 14 mm | Length L: 12 mm
LBB 1215Bore d: 12 mm | OD D: 14 mm | Length L: 15 mm
LBB 1220Bore d: 12 mm | OD D: 14 mm | Length L: 20 mm
LBB 1308Bore d: 13 mm | OD D: 15 mm | Length L: 8 mm
LBB 1310Bore d: 13 mm | OD D: 15 mm | Length L: 10 mm
LBB 1315Bore d: 13 mm | OD D: 15 mm | Length L: 15 mm
LBB 1410Bore d: 14 mm | OD D: 16 mm | Length L: 10 mm
LBB 1412Bore d: 14 mm | OD D: 16 mm | Length L: 12 mm
LBB 1415Bore d: 14 mm | OD D: 16 mm | Length L: 15 mm
LBB 1420Bore d: 14 mm | OD D: 16 mm | Length L: 20 mm
LBB 1425Bore d: 14 mm | OD D: 16 mm | Length L: 25 mm
LBB 1508Bore d: 15 mm | OD D: 17 mm | Length L: 8 mm
LBB 1510Bore d: 15 mm | OD D: 17 mm | Length L: 10 mm
LBB 1512Bore d: 15 mm | OD D: 17 mm | Length L: 12 mm
LBB 1515Bore d: 15 mm | OD D: 17 mm | Length L: 15 mm
LBB 1520Bore d: 15 mm | OD D: 17 mm | Length L: 20 mm
LBB 1525Bore d: 15 mm | OD D: 17 mm | Length L: 25 mm
LBB 1610Bore d: 16 mm | OD D: 18 mm | Length L: 10 mm
LBB 1612Bore d: 16 mm | OD D: 18 mm | Length L: 12 mm
LBB 1615Bore d: 16 mm | OD D: 18 mm | Length L: 15 mm
LBB 1620Bore d: 16 mm | OD D: 18 mm | Length L: 20 mm
LBB 1625Bore d: 16 mm | OD D: 18 mm | Length L: 25 mm
LBB 1715Bore d: 17 mm | OD D: 19 mm | Length L: 15 mm
LBB 1720Bore d: 17 mm | OD D: 19 mm | Length L: 20 mm
LBB 1810Bore d: 18 mm | OD D: 20 mm | Length L: 10 mm
LBB 1812Bore d: 18 mm | OD D: 20 mm | Length L: 12 mm
LBB 1815Bore d: 18 mm | OD D: 20 mm | Length L: 15 mm
LBB 1820Bore d: 18 mm | OD D: 20 mm | Length L: 20 mm
LBB 1825Bore d: 18 mm | OD D: 20 mm | Length L: 25 mm
LBB 1830Bore d: 18 mm | OD D: 20 mm | Length L: 30 mm
LBB 1910Bore d: 19 mm | OD D: 22 mm | Length L: 10 mm
LBB 1915Bore d: 19 mm | OD D: 22 mm | Length L: 15 mm
LBB 2010Bore d: 20 mm | OD D: 23 mm | Length L: 10 mm
LBB 2012Bore d: 20 mm | OD D: 23 mm | Length L: 12 mm
LBB 2015Bore d: 20 mm | OD D: 23 mm | Length L: 15 mm
LBB 2020Bore d: 20 mm | OD D: 23 mm | Length L: 20 mm
LBB 2025Bore d: 20 mm | OD D: 23 mm | Length L: 25 mm
LBB 2030Bore d: 20 mm | OD D: 23 mm | Length L: 30 mm
LBB 2210Bore d: 22 mm | OD D: 25 mm | Length L: 10 mm
LBB 2212Bore d: 22 mm | OD D: 25 mm | Length L: 12 mm
LBB 2215Bore d: 22 mm | OD D: 25 mm | Length L: 15 mm
LBB 2220Bore d: 22 mm | OD D: 25 mm | Length L: 20 mm
LBB 2225Bore d: 22 mm | OD D: 25 mm | Length L: 25 mm
LBB 2230Bore d: 22 mm | OD D: 25 mm | Length L: 30 mm
LBB 2415Bore d: 24 mm | OD D: 27 mm | Length L: 15 mm
LBB 2420Bore d: 24 mm | OD D: 27 mm | Length L: 20 mm
LBB 2425Bore d: 24 mm | OD D: 27 mm | Length L: 25 mm
LBB 2430Bore d: 24 mm | OD D: 27 mm | Length L: 30 mm
LBB 2510Bore d: 25 mm | OD D: 28 mm | Length L: 10 mm
LBB 2512Bore d: 25 mm | OD D: 28 mm | Length L: 12 mm
LBB 2515Bore d: 25 mm | OD D: 28 mm | Length L: 15 mm
LBB 2520Bore d: 25 mm | OD D: 28 mm | Length L: 20 mm
LBB 2525Bore d: 25 mm | OD D: 28 mm | Length L: 25 mm
LBB 2530Bore d: 25 mm | OD D: 28 mm | Length L: 30 mm
LBB 2535Bore d: 25 mm | OD D: 28 mm | Length L: 35 mm
LBB 2540Bore d: 25 mm | OD D: 28 mm | Length L: 40 mm
LBB 2615Bore d: 26 mm | OD D: 30 mm | Length L: 15 mm
LBB 2620Bore d: 26 mm | OD D: 30 mm | Length L: 20 mm
LBB 2630Bore d: 26 mm | OD D: 30 mm | Length L: 30 mm
LBB 2640Bore d: 26 mm | OD D: 30 mm | Length L: 40 mm
LBB 2812Bore d: 28 mm | OD D: 32 mm | Length L: 12 mm
LBB 2815Bore d: 28 mm | OD D: 32 mm | Length L: 15 mm
LBB 2820Bore d: 28 mm | OD D: 32 mm | Length L: 20 mm
LBB 2825Bore d: 28 mm | OD D: 32 mm | Length L: 25 mm
LBB 2830Bore d: 28 mm | OD D: 32 mm | Length L: 30 mm
LBB 2840Bore d: 28 mm | OD D: 32 mm | Length L: 40 mm
LBB 3012Bore d: 30 mm | OD D: 34 mm | Length L: 12 mm
LBB 3015Bore d: 30 mm | OD D: 34 mm | Length L: 15 mm
LBB 3020Bore d: 30 mm | OD D: 34 mm | Length L: 20 mm
LBB 3025Bore d: 30 mm | OD D: 34 mm | Length L: 25 mm
LBB 3030Bore d: 30 mm | OD D: 34 mm | Length L: 30 mm
LBB 3035Bore d: 30 mm | OD D: 34 mm | Length L: 35 mm
LBB 3040Bore d: 30 mm | OD D: 34 mm | Length L: 40 mm
LBB 3115Bore d: 31 mm | OD D: 35 mm | Length L: 15 mm
LBB 3125Bore d: 31 mm | OD D: 35 mm | Length L: 25 mm
LBB 3140Bore d: 31 mm | OD D: 35 mm | Length L: 40 mm
LBB 3220Bore d: 32 mm | OD D: 36 mm | Length L: 20 mm
LBB 3225Bore d: 32 mm | OD D: 36 mm | Length L: 25 mm
LBB 3230Bore d: 32 mm | OD D: 36 mm | Length L: 30 mm
LBB 3240Bore d: 32 mm | OD D: 36 mm | Length L: 40 mm
LBB 3512Bore d: 35 mm | OD D: 39 mm | Length L: 12 mm
LBB 3520Bore d: 35 mm | OD D: 39 mm | Length L: 20 mm
LBB 3525Bore d: 35 mm | OD D: 39 mm | Length L: 25 mm
LBB 3530Bore d: 35 mm | OD D: 39 mm | Length L: 30 mm
LBB 3535Bore d: 35 mm | OD D: 39 mm | Length L: 35 mm
LBB 3540Bore d: 35 mm | OD D: 39 mm | Length L: 40 mm
LBB 3550Bore d: 35 mm | OD D: 39 mm | Length L: 50 mm
LBB 3820Bore d: 38 mm | OD D: 42 mm | Length L: 20 mm
LBB 3825Bore d: 38 mm | OD D: 42 mm | Length L: 25 mm
LBB 3830Bore d: 38 mm | OD D: 42 mm | Length L: 30 mm
LBB 3835Bore d: 38 mm | OD D: 42 mm | Length L: 35 mm
LBB 3840Bore d: 38 mm | OD D: 42 mm | Length L: 40 mm
LBB 3850Bore d: 38 mm | OD D: 42 mm | Length L: 50 mm
LBB 4012Bore d: 40 mm | OD D: 44 mm | Length L: 12 mm
LBB 4015Bore d: 40 mm | OD D: 44 mm | Length L: 15 mm
LBB 4020Bore d: 40 mm | OD D: 44 mm | Length L: 20 mm
LBB 4025Bore d: 40 mm | OD D: 44 mm | Length L: 25 mm
LBB 4030Bore d: 40 mm | OD D: 44 mm | Length L: 30 mm
LBB 4035Bore d: 40 mm | OD D: 44 mm | Length L: 35 mm
LBB 4040Bore d: 40 mm | OD D: 44 mm | Length L: 40 mm
LBB 4050Bore d: 40 mm | OD D: 44 mm | Length L: 50 mm
LBB 4220Bore d: 42 mm | OD D: 47 mm | Length L: 20 mm
LBB 4240Bore d: 42 mm | OD D: 47 mm | Length L: 40 mm
LBB 4250Bore d: 42 mm | OD D: 47 mm | Length L: 50 mm
LBB 4420Bore d: 44 mm | OD D: 49 mm | Length L: 20 mm
LBB 4430Bore d: 44 mm | OD D: 49 mm | Length L: 30 mm
LBB 4450Bore d: 44 mm | OD D: 49 mm | Length L: 50 mm
LBB 4520Bore d: 45 mm | OD D: 50 mm | Length L: 20 mm
LBB 4525Bore d: 45 mm | OD D: 50 mm | Length L: 25 mm
LBB 4530Bore d: 45 mm | OD D: 50 mm | Length L: 30 mm
LBB 4535Bore d: 45 mm | OD D: 50 mm | Length L: 35 mm
LBB 4540Bore d: 45 mm | OD D: 50 mm | Length L: 40 mm
LBB 4550Bore d: 45 mm | OD D: 50 mm | Length L: 50 mm
LBB 5020Bore d: 50 mm | OD D: 55 mm | Length L: 20 mm
LBB 5025Bore d: 50 mm | OD D: 55 mm | Length L: 25 mm
LBB 5030Bore d: 50 mm | OD D: 55 mm | Length L: 30 mm
LBB 5035Bore d: 50 mm | OD D: 55 mm | Length L: 35 mm
LBB 5040Bore d: 50 mm | OD D: 55 mm | Length L: 40 mm
LBB 5050Bore d: 50 mm | OD D: 55 mm | Length L: 50 mm
LBB 5060Bore d: 50 mm | OD D: 55 mm | Length L: 60 mm
LBB 5525Bore d: 55 mm | OD D: 60 mm | Length L: 25 mm
LBB 5530Bore d: 55 mm | OD D: 60 mm | Length L: 30 mm
LBB 5535Bore d: 55 mm | OD D: 60 mm | Length L: 35 mm
LBB 5540Bore d: 55 mm | OD D: 60 mm | Length L: 40 mm
LBB 5550Bore d: 55 mm | OD D: 60 mm | Length L: 50 mm
LBB 5560Bore d: 55 mm | OD D: 60 mm | Length L: 60 mm
LBB 6030Bore d: 60 mm | OD D: 65 mm | Length L: 30 mm
LBB 6035Bore d: 60 mm | OD D: 65 mm | Length L: 35 mm
LBB 6040Bore d: 60 mm | OD D: 65 mm | Length L: 40 mm
LBB 6060Bore d: 60 mm | OD D: 65 mm | Length L: 60 mm
LBB 7030Bore d: 70 mm | OD D: 75 mm | Length L: 30 mm
LBB 7035Bore d: 70 mm | OD D: 75 mm | Length L: 35 mm
LBB 7040Bore d: 70 mm | OD D: 75 mm | Length L: 40 mm
LBB 7050Bore d: 70 mm | OD D: 75 mm | Length L: 50 mm
LBB 7060Bore d: 70 mm | OD D: 75 mm | Length L: 60 mm
LBB 7080Bore d: 70 mm | OD D: 75 mm | Length L: 80 mm
LBB 7530Bore d: 75 mm | OD D: 80 mm | Length L: 30 mm
LBB 7535Bore d: 75 mm | OD D: 80 mm | Length L: 35 mm
LBB 7540Bore d: 75 mm | OD D: 80 mm | Length L: 40 mm
LBB 7550Bore d: 75 mm | OD D: 80 mm | Length L: 50 mm
LBB 7560Bore d: 75 mm | OD D: 80 mm | Length L: 60 mm
LBB 7580Bore d: 75 mm | OD D: 80 mm | Length L: 80 mm
LBB 8040Bore d: 80 mm | OD D: 85 mm | Length L: 40 mm
LBB 8050Bore d: 80 mm | OD D: 85 mm | Length L: 50 mm
LBB 8060Bore d: 80 mm | OD D: 85 mm | Length L: 60 mm
LBB 8080Bore d: 80 mm | OD D: 85 mm | Length L: 80 mm
LBB 8540Bore d: 85 mm | OD D: 90 mm | Length L: 40 mm
LBB 8550Bore d: 85 mm | OD D: 90 mm | Length L: 50 mm
LBB 8560Bore d: 85 mm | OD D: 90 mm | Length L: 60 mm
LBB 8580Bore d: 85 mm | OD D: 90 mm | Length L: 80 mm
LBB 9040Bore d: 90 mm | OD D: 95 mm | Length L: 40 mm
LBB 9060Bore d: 90 mm | OD D: 95 mm | Length L: 60 mm
LBB 9090Bore d: 90 mm | OD D: 95 mm | Length L: 90 mm
LBB 9540Bore d: 95 mm | OD D: 100 mm | Length L: 40 mm
LBB 9560Bore d: 95 mm | OD D: 100 mm | Length L: 60 mm
LBB 9590Bore d: 95 mm | OD D: 100 mm | Length L: 90 mm
LBB 10050Bore d: 100 mm | OD D: 105 mm | Length L: 50 mm
LBB 10070Bore d: 100 mm | OD D: 105 mm | Length L: 70 mm
LBB 10090Bore d: 100 mm | OD D: 105 mm | Length L: 90 mm
LBB 10570Bore d: 105 mm | OD D: 110 mm | Length L: 70 mm
LBB 10595Bore d: 105 mm | OD D: 110 mm | Length L: 95 mm
LBB 11050Bore d: 110 mm | OD D: 115 mm | Length L: 50 mm
LBB 11070Bore d: 110 mm | OD D: 115 mm | Length L: 70 mm
LBB 11095Bore d: 110 mm | OD D: 115 mm | Length L: 95 mm
LBB 11570Bore d: 115 mm | OD D: 120 mm | Length L: 70 mm
LBB 11595Bore d: 115 mm | OD D: 120 mm | Length L: 95 mm
LBB 12050Bore d: 120 mm | OD D: 125 mm | Length L: 50 mm
LBB 12070Bore d: 120 mm | OD D: 125 mm | Length L: 70 mm
LBB 12095Bore d: 120 mm | OD D: 125 mm | Length L: 95 mm
LBB 13050Bore d: 130 mm | OD D: 135 mm | Length L: 50 mm
LBB 13080Bore d: 130 mm | OD D: 135 mm | Length L: 80 mm
LBB 130100Bore d: 130 mm | OD D: 135 mm | Length L: 100 mm
LBB 14050Bore d: 140 mm | OD D: 145 mm | Length L: 50 mm
LBB 14080Bore d: 140 mm | OD D: 145 mm | Length L: 80 mm
LBB 140100Bore d: 140 mm | OD D: 145 mm | Length L: 100 mm
LBB 14580Bore d: 145 mm | OD D: 150 mm | Length L: 80 mm
LBB 145100Bore d: 145 mm | OD D: 150 mm | Length L: 100 mm
LBB 15050Bore d: 150 mm | OD D: 155 mm | Length L: 50 mm
LBB 15080Bore d: 150 mm | OD D: 155 mm | Length L: 80 mm
LBB 150100Bore d: 150 mm | OD D: 155 mm | Length L: 100 mm
LBB 16050Bore d: 160 mm | OD D: 165 mm | Length L: 50 mm
LBB 16080Bore d: 160 mm | OD D: 165 mm | Length L: 80 mm
LBB 160100Bore d: 160 mm | OD D: 165 mm | Length L: 100 mm
LBB 17080Bore d: 170 mm | OD D: 175 mm | Length L: 80 mm
LBB 170100Bore d: 170 mm | OD D: 175 mm | Length L: 100 mm
LBB 18080Bore d: 180 mm | OD D: 185 mm | Length L: 80 mm
LBB 180100Bore d: 180 mm | OD D: 185 mm | Length L: 100 mm
LBB 19080Bore d: 190 mm | OD D: 195 mm | Length L: 80 mm
LBB 190100Bore d: 190 mm | OD D: 195 mm | Length L: 100 mm
LBB 200100Bore d: 200 mm | OD D: 205 mm | Length L: 100 mm
LBB 210100Bore d: 210 mm | OD D: 215 mm | Length L: 100 mm
LBB 250100Bore d: 250 mm | OD D: 255 mm | Length L: 100 mm
LBB 280100Bore d: 280 mm | OD D: 285 mm | Length L: 100 mm
LBB 300100Bore d: 300 mm | OD D: 305 mm | Length L: 100 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
