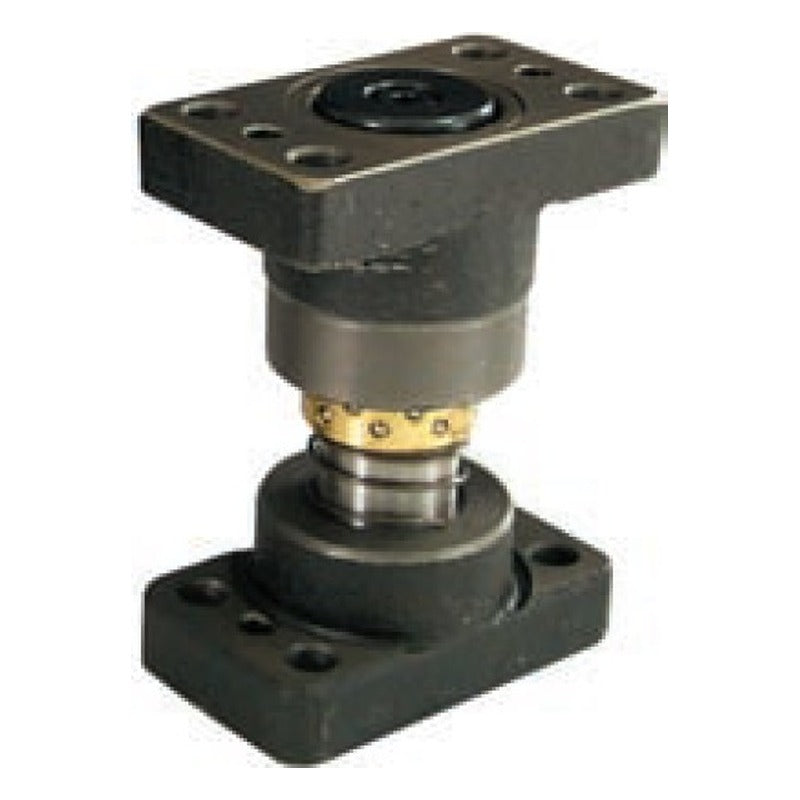

LuBo LBGF Ball Guide Post Set - Fixed Stopper (Post dia. 25-60 mm)

LuBo LBGF Ball Guide Post Set - Fixed Stopper (Post dia. 25-60 mm)

LuBo LBGF Ball Guide Post Set - Fixed Stopper from the LuBo Guide Components catalogue, listed in 48 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Ball Guide Post Set - Fixed Stopper - series LBGF
  • Guide component for die sets and press dies
  • Diameter and length selected from the catalogue table
  • Dimensions and tolerances per LuBo drawing
  • 48 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LBGF
Product Ball Guide Post Set - Fixed Stopper
Catalogue chapter Guide Components
Orderable codes 48
Size range Post dia. 25-60 mm
Code example LBGF-25X90
Row spec keys Post dia., Post length, Retainer, Option
Source LuBo Guide Components catalogue
LBGF-25X90 Post dia.: 25 mm | Post length: 90 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X100 Post dia.: 25 mm | Post length: 100 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X110 Post dia.: 25 mm | Post length: 110 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X120 Post dia.: 25 mm | Post length: 120 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X130 Post dia.: 25 mm | Post length: 130 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X140 Post dia.: 25 mm | Post length: 140 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X150 Post dia.: 25 mm | Post length: 150 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X160 Post dia.: 25 mm | Post length: 160 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X170 Post dia.: 25 mm | Post length: 170 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X180 Post dia.: 25 mm | Post length: 180 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-25X200 Post dia.: 25 mm | Post length: 200 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X110 Post dia.: 32 mm | Post length: 110 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X120 Post dia.: 32 mm | Post length: 120 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X130 Post dia.: 32 mm | Post length: 130 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X140 Post dia.: 32 mm | Post length: 140 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X150 Post dia.: 32 mm | Post length: 150 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X160 Post dia.: 32 mm | Post length: 160 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X170 Post dia.: 32 mm | Post length: 170 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X180 Post dia.: 32 mm | Post length: 180 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X200 Post dia.: 32 mm | Post length: 200 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X220 Post dia.: 32 mm | Post length: 220 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X240 Post dia.: 32 mm | Post length: 240 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-32X260 Post dia.: 32 mm | Post length: 260 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X130 Post dia.: 38 mm | Post length: 130 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X140 Post dia.: 38 mm | Post length: 140 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X150 Post dia.: 38 mm | Post length: 150 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X160 Post dia.: 38 mm | Post length: 160 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X170 Post dia.: 38 mm | Post length: 170 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X180 Post dia.: 38 mm | Post length: 180 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X200 Post dia.: 38 mm | Post length: 200 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X220 Post dia.: 38 mm | Post length: 220 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X240 Post dia.: 38 mm | Post length: 240 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X260 Post dia.: 38 mm | Post length: 260 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-38X300 Post dia.: 38 mm | Post length: 300 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X170 Post dia.: 50 mm | Post length: 170 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X180 Post dia.: 50 mm | Post length: 180 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X200 Post dia.: 50 mm | Post length: 200 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X220 Post dia.: 50 mm | Post length: 220 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X240 Post dia.: 50 mm | Post length: 240 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X260 Post dia.: 50 mm | Post length: 260 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X300 Post dia.: 50 mm | Post length: 300 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-50X350 Post dia.: 50 mm | Post length: 350 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-60X200 Post dia.: 60 mm | Post length: 200 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-60X220 Post dia.: 60 mm | Post length: 220 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-60X240 Post dia.: 60 mm | Post length: 240 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-60X260 Post dia.: 60 mm | Post length: 260 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-60X300 Post dia.: 60 mm | Post length: 300 mm | Retainer: Brass (A: aluminum) | Option: -S
LBGF-60X350 Post dia.: 60 mm | Post length: 350 mm | Retainer: Brass (A: aluminum) | Option: -S
