• LuBo LBM Self-Lube Guide Bushings (Bore d 12-80 mm)
1 1

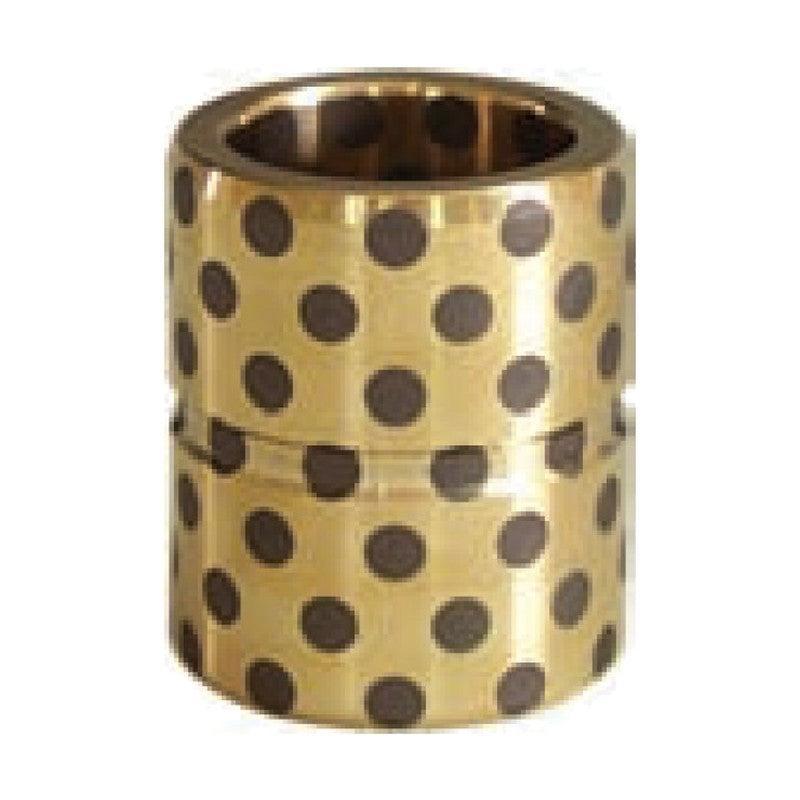

LuBo LBM Self-Lube Guide Bushings (Bore d 12-80 mm)

LuBo LBM Self-Lube Guide Bushings (Bore d 12-80 mm)

LuBo LBM Self-Lube Guide Bushings from the LuBo Mold Components catalogue, listed in 57 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Self-Lube Guide Bushings - series LBM
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 57 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LBM
Product Self-Lube Guide Bushings
Catalogue chapter Mold Components
Orderable codes 57
Size range Bore d 12-80 mm
Code example LBM-12X19
Row spec keys Bore d, Outer D, Length L
Source LuBo Mold Components catalogue
LBM-12X19 Bore d: 12 mm | Outer D: 18 mm | Length L: 19 mm
LBM-12X24 Bore d: 12 mm | Outer D: 18 mm | Length L: 24 mm
LBM-16X19 Bore d: 16 mm | Outer D: 25 mm | Length L: 19 mm
LBM-16X24 Bore d: 16 mm | Outer D: 25 mm | Length L: 24 mm
LBM-16X29 Bore d: 16 mm | Outer D: 25 mm | Length L: 29 mm
LBM-16X34 Bore d: 16 mm | Outer D: 25 mm | Length L: 34 mm
LBM-16X39 Bore d: 16 mm | Outer D: 25 mm | Length L: 39 mm
LBM-20X19 Bore d: 20 mm | Outer D: 30 mm | Length L: 19 mm
LBM-20X24 Bore d: 20 mm | Outer D: 30 mm | Length L: 24 mm
LBM-20X29 Bore d: 20 mm | Outer D: 30 mm | Length L: 29 mm
LBM-20X34 Bore d: 20 mm | Outer D: 30 mm | Length L: 34 mm
LBM-20X39 Bore d: 20 mm | Outer D: 30 mm | Length L: 39 mm
LBM-20X49 Bore d: 20 mm | Outer D: 30 mm | Length L: 49 mm
LBM-25X24 Bore d: 25 mm | Outer D: 35 mm | Length L: 24 mm
LBM-25X29 Bore d: 25 mm | Outer D: 35 mm | Length L: 29 mm
LBM-25X34 Bore d: 25 mm | Outer D: 35 mm | Length L: 34 mm
LBM-25X39 Bore d: 25 mm | Outer D: 35 mm | Length L: 39 mm
LBM-25X49 Bore d: 25 mm | Outer D: 35 mm | Length L: 49 mm
LBM-25X59 Bore d: 25 mm | Outer D: 35 mm | Length L: 59 mm
LBM-30X29 Bore d: 30 mm | Outer D: 42 mm | Length L: 29 mm
LBM-30X34 Bore d: 30 mm | Outer D: 42 mm | Length L: 34 mm
LBM-30X39 Bore d: 30 mm | Outer D: 42 mm | Length L: 39 mm
LBM-30X49 Bore d: 30 mm | Outer D: 42 mm | Length L: 49 mm
LBM-30X59 Bore d: 30 mm | Outer D: 42 mm | Length L: 59 mm
LBM-30X69 Bore d: 30 mm | Outer D: 42 mm | Length L: 69 mm
LBM-30X79 Bore d: 30 mm | Outer D: 42 mm | Length L: 79 mm
LBM-35X29 Bore d: 35 mm | Outer D: 48 mm | Length L: 29 mm
LBM-35X34 Bore d: 35 mm | Outer D: 48 mm | Length L: 34 mm
LBM-35X39 Bore d: 35 mm | Outer D: 48 mm | Length L: 39 mm
LBM-35X49 Bore d: 35 mm | Outer D: 48 mm | Length L: 49 mm
LBM-35X59 Bore d: 35 mm | Outer D: 48 mm | Length L: 59 mm
LBM-35X69 Bore d: 35 mm | Outer D: 48 mm | Length L: 69 mm
LBM-35X79 Bore d: 35 mm | Outer D: 48 mm | Length L: 79 mm
LBM-40X39 Bore d: 40 mm | Outer D: 55 mm | Length L: 39 mm
LBM-40X49 Bore d: 40 mm | Outer D: 55 mm | Length L: 49 mm
LBM-40X59 Bore d: 40 mm | Outer D: 55 mm | Length L: 59 mm
LBM-40X69 Bore d: 40 mm | Outer D: 55 mm | Length L: 69 mm
LBM-40X79 Bore d: 40 mm | Outer D: 55 mm | Length L: 79 mm
LBM-40X89 Bore d: 40 mm | Outer D: 55 mm | Length L: 89 mm
LBM-50X49 Bore d: 50 mm | Outer D: 70 mm | Length L: 49 mm
LBM-50X59 Bore d: 50 mm | Outer D: 70 mm | Length L: 59 mm
LBM-50X69 Bore d: 50 mm | Outer D: 70 mm | Length L: 69 mm
LBM-50X79 Bore d: 50 mm | Outer D: 70 mm | Length L: 79 mm
LBM-50X89 Bore d: 50 mm | Outer D: 70 mm | Length L: 89 mm
LBM-50X99 Bore d: 50 mm | Outer D: 70 mm | Length L: 99 mm
LBM-60X59 Bore d: 60 mm | Outer D: 80 mm | Length L: 59 mm
LBM-60X69 Bore d: 60 mm | Outer D: 80 mm | Length L: 69 mm
LBM-60X79 Bore d: 60 mm | Outer D: 80 mm | Length L: 79 mm
LBM-60X89 Bore d: 60 mm | Outer D: 80 mm | Length L: 89 mm
LBM-60X99 Bore d: 60 mm | Outer D: 80 mm | Length L: 99 mm
LBM-60X109 Bore d: 60 mm | Outer D: 80 mm | Length L: 109 mm
LBM-80X69 Bore d: 80 mm | Outer D: 100 mm | Length L: 69 mm
LBM-80X79 Bore d: 80 mm | Outer D: 100 mm | Length L: 79 mm
LBM-80X89 Bore d: 80 mm | Outer D: 100 mm | Length L: 89 mm
LBM-80X99 Bore d: 80 mm | Outer D: 100 mm | Length L: 99 mm
LBM-80X109 Bore d: 80 mm | Outer D: 100 mm | Length L: 109 mm
LBM-80X119 Bore d: 80 mm | Outer D: 100 mm | Length L: 119 mm
Mold ComponentLuBo
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LBM Self-Lube Guide Bushings (Bore d 12-80 mm)

Brand LuBo·Mold Component

Available part numbers (57)

LBM-12X19, LBM-12X24, LBM-16X19, LBM-16X24, LBM-16X29, LBM-16X34, LBM-16X39, LBM-20X19, LBM-20X24, LBM-20X29 + 47 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
