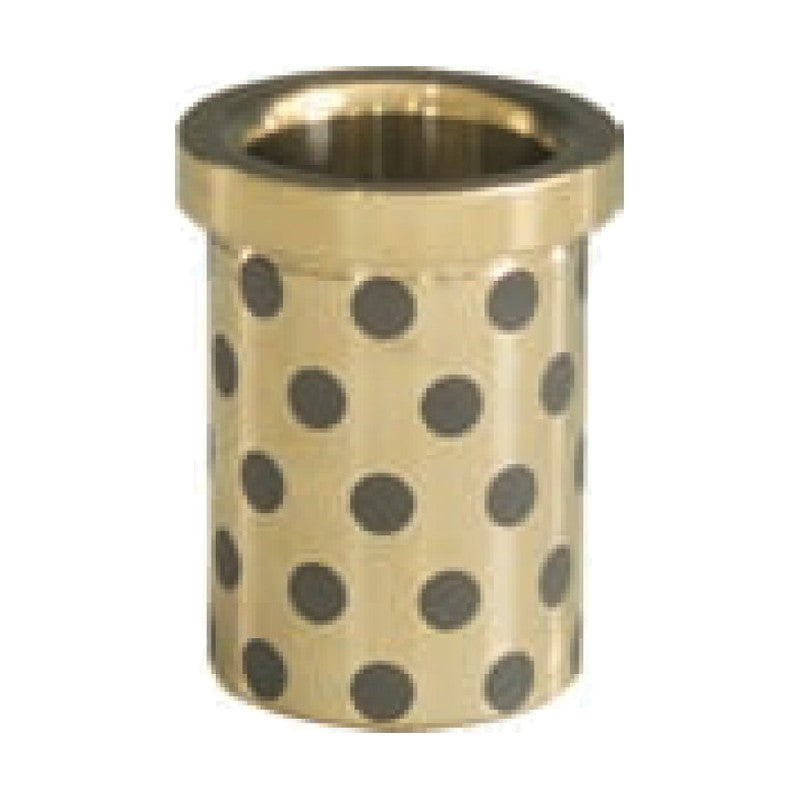

LuBo LBMF Self-Lube Guide Flanged Bushings (Bore d 12-80 mm)

LuBo LBMF Self-Lube Guide Flanged Bushings (Bore d 12-80 mm)

LuBo LBMF Self-Lube Guide Flanged Bushings from the LuBo Mold Components catalogue, listed in 63 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Self-Lube Guide Flanged Bushings - series LBMF
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 63 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LBMF
Product Self-Lube Guide Flanged Bushings
Catalogue chapter Mold Components
Orderable codes 63
Size range Bore d 12-80 mm
Code example LBMF-12X19
Row spec keys Bore d, Outer D, Length L
Source LuBo Mold Components catalogue
LBMF-12X19 Bore d: 12 mm | Outer D: 18 mm | Length L: 19 mm
LBMF-12X24 Bore d: 12 mm | Outer D: 18 mm | Length L: 24 mm
LBMF-12X29 Bore d: 12 mm | Outer D: 18 mm | Length L: 29 mm
LBMF-12X34 Bore d: 12 mm | Outer D: 18 mm | Length L: 34 mm
LBMF-16X19 Bore d: 16 mm | Outer D: 25 mm | Length L: 19 mm
LBMF-16X24 Bore d: 16 mm | Outer D: 25 mm | Length L: 24 mm
LBMF-16X29 Bore d: 16 mm | Outer D: 25 mm | Length L: 29 mm
LBMF-16X34 Bore d: 16 mm | Outer D: 25 mm | Length L: 34 mm
LBMF-16X39 Bore d: 16 mm | Outer D: 25 mm | Length L: 39 mm
LBMF-16X49 Bore d: 16 mm | Outer D: 25 mm | Length L: 49 mm
LBMF-20X24 Bore d: 20 mm | Outer D: 30 mm | Length L: 24 mm
LBMF-20X29 Bore d: 20 mm | Outer D: 30 mm | Length L: 29 mm
LBMF-20X34 Bore d: 20 mm | Outer D: 30 mm | Length L: 34 mm
LBMF-20X39 Bore d: 20 mm | Outer D: 30 mm | Length L: 39 mm
LBMF-20X49 Bore d: 20 mm | Outer D: 30 mm | Length L: 49 mm
LBMF-20X59 Bore d: 20 mm | Outer D: 30 mm | Length L: 59 mm
LBMF-25X24 Bore d: 25 mm | Outer D: 35 mm | Length L: 24 mm
LBMF-25X29 Bore d: 25 mm | Outer D: 35 mm | Length L: 29 mm
LBMF-25X34 Bore d: 25 mm | Outer D: 35 mm | Length L: 34 mm
LBMF-25X39 Bore d: 25 mm | Outer D: 35 mm | Length L: 39 mm
LBMF-25X49 Bore d: 25 mm | Outer D: 35 mm | Length L: 49 mm
LBMF-25X59 Bore d: 25 mm | Outer D: 35 mm | Length L: 59 mm
LBMF-25X69 Bore d: 25 mm | Outer D: 35 mm | Length L: 69 mm
LBMF-30X29 Bore d: 30 mm | Outer D: 42 mm | Length L: 29 mm
LBMF-30X34 Bore d: 30 mm | Outer D: 42 mm | Length L: 34 mm
LBMF-30X39 Bore d: 30 mm | Outer D: 42 mm | Length L: 39 mm
LBMF-30X49 Bore d: 30 mm | Outer D: 42 mm | Length L: 49 mm
LBMF-30X59 Bore d: 30 mm | Outer D: 42 mm | Length L: 59 mm
LBMF-30X69 Bore d: 30 mm | Outer D: 42 mm | Length L: 69 mm
LBMF-30X79 Bore d: 30 mm | Outer D: 42 mm | Length L: 79 mm
LBMF-35X39 Bore d: 35 mm | Outer D: 48 mm | Length L: 39 mm
LBMF-35X49 Bore d: 35 mm | Outer D: 48 mm | Length L: 49 mm
LBMF-35X59 Bore d: 35 mm | Outer D: 48 mm | Length L: 59 mm
LBMF-35X69 Bore d: 35 mm | Outer D: 48 mm | Length L: 69 mm
LBMF-35X79 Bore d: 35 mm | Outer D: 48 mm | Length L: 79 mm
LBMF-35X89 Bore d: 35 mm | Outer D: 48 mm | Length L: 89 mm
LBMF-35X99 Bore d: 35 mm | Outer D: 48 mm | Length L: 99 mm
LBMF-40X39 Bore d: 40 mm | Outer D: 55 mm | Length L: 39 mm
LBMF-40X49 Bore d: 40 mm | Outer D: 55 mm | Length L: 49 mm
LBMF-40X59 Bore d: 40 mm | Outer D: 55 mm | Length L: 59 mm
LBMF-40X69 Bore d: 40 mm | Outer D: 55 mm | Length L: 69 mm
LBMF-40X79 Bore d: 40 mm | Outer D: 55 mm | Length L: 79 mm
LBMF-40X89 Bore d: 40 mm | Outer D: 55 mm | Length L: 89 mm
LBMF-40X99 Bore d: 40 mm | Outer D: 55 mm | Length L: 99 mm
LBMF-40X109 Bore d: 40 mm | Outer D: 55 mm | Length L: 109 mm
LBMF-50X49 Bore d: 50 mm | Outer D: 70 mm | Length L: 49 mm
LBMF-50X59 Bore d: 50 mm | Outer D: 70 mm | Length L: 59 mm
LBMF-50X69 Bore d: 50 mm | Outer D: 70 mm | Length L: 69 mm
LBMF-50X79 Bore d: 50 mm | Outer D: 70 mm | Length L: 79 mm
LBMF-50X89 Bore d: 50 mm | Outer D: 70 mm | Length L: 89 mm
LBMF-50X99 Bore d: 50 mm | Outer D: 70 mm | Length L: 99 mm
LBMF-50X109 Bore d: 50 mm | Outer D: 70 mm | Length L: 109 mm
LBMF-50X119 Bore d: 50 mm | Outer D: 70 mm | Length L: 119 mm
LBMF-60X99 Bore d: 60 mm | Outer D: 80 mm | Length L: 99 mm
LBMF-60X109 Bore d: 60 mm | Outer D: 80 mm | Length L: 109 mm
LBMF-60X119 Bore d: 60 mm | Outer D: 80 mm | Length L: 119 mm
LBMF-60X129 Bore d: 60 mm | Outer D: 80 mm | Length L: 129 mm
LBMF-60X149 Bore d: 60 mm | Outer D: 80 mm | Length L: 149 mm
LBMF-80X99 Bore d: 80 mm | Outer D: 100 mm | Length L: 99 mm
LBMF-80X109 Bore d: 80 mm | Outer D: 100 mm | Length L: 109 mm
LBMF-80X119 Bore d: 80 mm | Outer D: 100 mm | Length L: 119 mm
LBMF-80X129 Bore d: 80 mm | Outer D: 100 mm | Length L: 129 mm
LBMF-80X149 Bore d: 80 mm | Outer D: 100 mm | Length L: 149 mm
Mold ComponentLuBo
63 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LBMF Self-Lube Guide Flanged Bushings (Bore d 12-80 mm)

Brand LuBo·Mold Component

Available part numbers (63)

LBMF-12X19, LBMF-12X24, LBMF-12X29, LBMF-12X34, LBMF-16X19, LBMF-16X24, LBMF-16X29, LBMF-16X34, LBMF-16X39, LBMF-16X49 + 53 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
