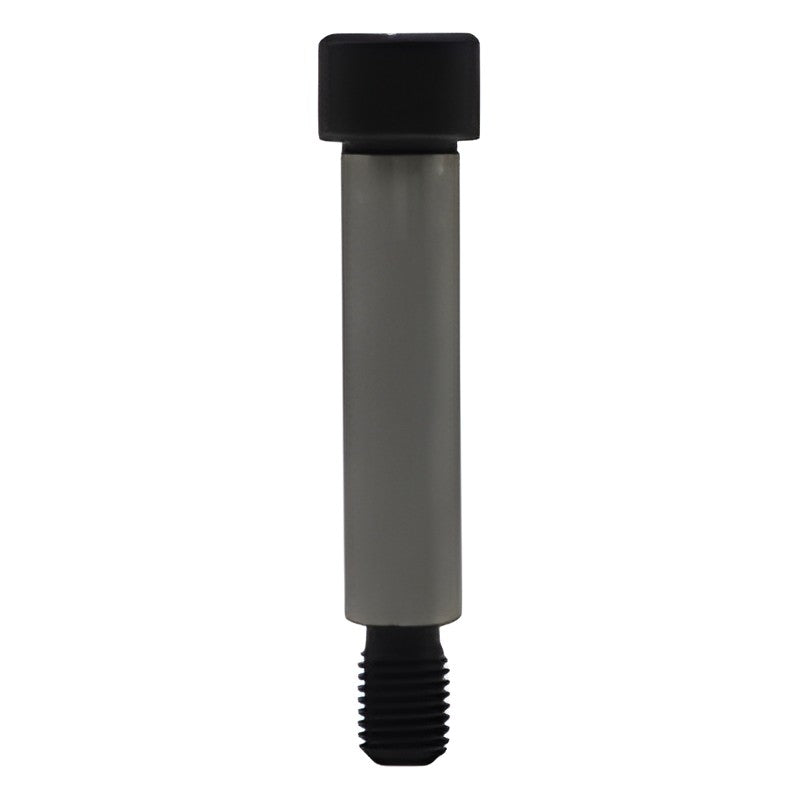

LuBo LBT Stripper Bolts (Shoulder 6.5-20 mm)

LuBo LBT Stripper Bolts (Shoulder 6.5-20 mm)

LuBo LBT Stripper Bolts from the LuBo Die Stock & Stroke Control Components catalogue, listed in 97 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Stripper Bolts - series LBT
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 97 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LBT
Product Stripper Bolts
Catalogue chapter Die Stock & Stroke Control Components
Orderable codes 97
Size range Shoulder 6.5-20 mm
Code example LBT-6.5X10
Row spec keys Shoulder D, Length L, Thread
Source LuBo Die Stock & Stroke Control Components catalogue
LBT-6.5X10 Shoulder D: 6.5 mm | Length L: 10 mm | Thread: M5x0.8
LBT-6.5X15 Shoulder D: 6.5 mm | Length L: 15 mm | Thread: M5x0.8
LBT-6.5X20 Shoulder D: 6.5 mm | Length L: 20 mm | Thread: M5x0.8
LBT-6.5X25 Shoulder D: 6.5 mm | Length L: 25 mm | Thread: M5x0.8
LBT-6.5X30 Shoulder D: 6.5 mm | Length L: 30 mm | Thread: M5x0.8
LBT-6.5X35 Shoulder D: 6.5 mm | Length L: 35 mm | Thread: M5x0.8
LBT-6.5X40 Shoulder D: 6.5 mm | Length L: 40 mm | Thread: M5x0.8
LBT-6.5X45 Shoulder D: 6.5 mm | Length L: 45 mm | Thread: M5x0.8
LBT-6.5X50 Shoulder D: 6.5 mm | Length L: 50 mm | Thread: M5x0.8
LBT-6.5X55 Shoulder D: 6.5 mm | Length L: 55 mm | Thread: M5x0.8
LBT-6.5X60 Shoulder D: 6.5 mm | Length L: 60 mm | Thread: M5x0.8
LBT-6.5X65 Shoulder D: 6.5 mm | Length L: 65 mm | Thread: M5x0.8
LBT-6.5X70 Shoulder D: 6.5 mm | Length L: 70 mm | Thread: M5x0.8
LBT-8X15 Shoulder D: 8 mm | Length L: 15 mm | Thread: M6x1.0
LBT-8X20 Shoulder D: 8 mm | Length L: 20 mm | Thread: M6x1.0
LBT-8X25 Shoulder D: 8 mm | Length L: 25 mm | Thread: M6x1.0
LBT-8X30 Shoulder D: 8 mm | Length L: 30 mm | Thread: M6x1.0
LBT-8X35 Shoulder D: 8 mm | Length L: 35 mm | Thread: M6x1.0
LBT-8X40 Shoulder D: 8 mm | Length L: 40 mm | Thread: M6x1.0
LBT-8X45 Shoulder D: 8 mm | Length L: 45 mm | Thread: M6x1.0
LBT-8X50 Shoulder D: 8 mm | Length L: 50 mm | Thread: M6x1.0
LBT-8X55 Shoulder D: 8 mm | Length L: 55 mm | Thread: M6x1.0
LBT-8X60 Shoulder D: 8 mm | Length L: 60 mm | Thread: M6x1.0
LBT-8X65 Shoulder D: 8 mm | Length L: 65 mm | Thread: M6x1.0
LBT-8X70 Shoulder D: 8 mm | Length L: 70 mm | Thread: M6x1.0
LBT-8X75 Shoulder D: 8 mm | Length L: 75 mm | Thread: M6x1.0
LBT-8X80 Shoulder D: 8 mm | Length L: 80 mm | Thread: M6x1.0
LBT-10X15 Shoulder D: 10 mm | Length L: 15 mm | Thread: M8x1.25
LBT-10X20 Shoulder D: 10 mm | Length L: 20 mm | Thread: M8x1.25
LBT-10X25 Shoulder D: 10 mm | Length L: 25 mm | Thread: M8x1.25
LBT-10X30 Shoulder D: 10 mm | Length L: 30 mm | Thread: M8x1.25
LBT-10X35 Shoulder D: 10 mm | Length L: 35 mm | Thread: M8x1.25
LBT-10X40 Shoulder D: 10 mm | Length L: 40 mm | Thread: M8x1.25
LBT-10X45 Shoulder D: 10 mm | Length L: 45 mm | Thread: M8x1.25
LBT-10X50 Shoulder D: 10 mm | Length L: 50 mm | Thread: M8x1.25
LBT-10X55 Shoulder D: 10 mm | Length L: 55 mm | Thread: M8x1.25
LBT-10X60 Shoulder D: 10 mm | Length L: 60 mm | Thread: M8x1.25
LBT-10X65 Shoulder D: 10 mm | Length L: 65 mm | Thread: M8x1.25
LBT-10X70 Shoulder D: 10 mm | Length L: 70 mm | Thread: M8x1.25
LBT-10X75 Shoulder D: 10 mm | Length L: 75 mm | Thread: M8x1.25
LBT-10X80 Shoulder D: 10 mm | Length L: 80 mm | Thread: M8x1.25
LBT-10X85 Shoulder D: 10 mm | Length L: 85 mm | Thread: M8x1.25
LBT-10X90 Shoulder D: 10 mm | Length L: 90 mm | Thread: M8x1.25
LBT-10X100 Shoulder D: 10 mm | Length L: 100 mm | Thread: M8x1.25
LBT-13X20 Shoulder D: 13 mm | Length L: 20 mm | Thread: M10x1.5
LBT-13X25 Shoulder D: 13 mm | Length L: 25 mm | Thread: M10x1.5
LBT-13X30 Shoulder D: 13 mm | Length L: 30 mm | Thread: M10x1.5
LBT-13X35 Shoulder D: 13 mm | Length L: 35 mm | Thread: M10x1.5
LBT-13X40 Shoulder D: 13 mm | Length L: 40 mm | Thread: M10x1.5
LBT-13X45 Shoulder D: 13 mm | Length L: 45 mm | Thread: M10x1.5
LBT-13X50 Shoulder D: 13 mm | Length L: 50 mm | Thread: M10x1.5
LBT-13X55 Shoulder D: 13 mm | Length L: 55 mm | Thread: M10x1.5
LBT-13X60 Shoulder D: 13 mm | Length L: 60 mm | Thread: M10x1.5
LBT-13X65 Shoulder D: 13 mm | Length L: 65 mm | Thread: M10x1.5
LBT-13X70 Shoulder D: 13 mm | Length L: 70 mm | Thread: M10x1.5
LBT-13X75 Shoulder D: 13 mm | Length L: 75 mm | Thread: M10x1.5
LBT-13X80 Shoulder D: 13 mm | Length L: 80 mm | Thread: M10x1.5
LBT-13X85 Shoulder D: 13 mm | Length L: 85 mm | Thread: M10x1.5
LBT-13X90 Shoulder D: 13 mm | Length L: 90 mm | Thread: M10x1.5
LBT-13X100 Shoulder D: 13 mm | Length L: 100 mm | Thread: M10x1.5
LBT-13X110 Shoulder D: 13 mm | Length L: 110 mm | Thread: M10x1.5
LBT-13X120 Shoulder D: 13 mm | Length L: 120 mm | Thread: M10x1.5
LBT-13X130 Shoulder D: 13 mm | Length L: 130 mm | Thread: M10x1.5
LBT-16X25 Shoulder D: 16 mm | Length L: 25 mm | Thread: M12x1.75
LBT-16X30 Shoulder D: 16 mm | Length L: 30 mm | Thread: M12x1.75
LBT-16X35 Shoulder D: 16 mm | Length L: 35 mm | Thread: M12x1.75
LBT-16X40 Shoulder D: 16 mm | Length L: 40 mm | Thread: M12x1.75
LBT-16X45 Shoulder D: 16 mm | Length L: 45 mm | Thread: M12x1.75
LBT-16X50 Shoulder D: 16 mm | Length L: 50 mm | Thread: M12x1.75
LBT-16X55 Shoulder D: 16 mm | Length L: 55 mm | Thread: M12x1.75
LBT-16X60 Shoulder D: 16 mm | Length L: 60 mm | Thread: M12x1.75
LBT-16X65 Shoulder D: 16 mm | Length L: 65 mm | Thread: M12x1.75
LBT-16X70 Shoulder D: 16 mm | Length L: 70 mm | Thread: M12x1.75
LBT-16X75 Shoulder D: 16 mm | Length L: 75 mm | Thread: M12x1.75
LBT-16X80 Shoulder D: 16 mm | Length L: 80 mm | Thread: M12x1.75
LBT-16X85 Shoulder D: 16 mm | Length L: 85 mm | Thread: M12x1.75
LBT-16X90 Shoulder D: 16 mm | Length L: 90 mm | Thread: M12x1.75
LBT-16X100 Shoulder D: 16 mm | Length L: 100 mm | Thread: M12x1.75
LBT-16X110 Shoulder D: 16 mm | Length L: 110 mm | Thread: M12x1.75
LBT-16X120 Shoulder D: 16 mm | Length L: 120 mm | Thread: M12x1.75
LBT-16X130 Shoulder D: 16 mm | Length L: 130 mm | Thread: M12x1.75
LBT-16X140 Shoulder D: 16 mm | Length L: 140 mm | Thread: M12x1.75
LBT-16X150 Shoulder D: 16 mm | Length L: 150 mm | Thread: M12x1.75
LBT-20X60 Shoulder D: 20 mm | Length L: 60 mm | Thread: M16x2.0
LBT-20X65 Shoulder D: 20 mm | Length L: 65 mm | Thread: M16x2.0
LBT-20X70 Shoulder D: 20 mm | Length L: 70 mm | Thread: M16x2.0
LBT-20X75 Shoulder D: 20 mm | Length L: 75 mm | Thread: M16x2.0
LBT-20X80 Shoulder D: 20 mm | Length L: 80 mm | Thread: M16x2.0
LBT-20X85 Shoulder D: 20 mm | Length L: 85 mm | Thread: M16x2.0
LBT-20X90 Shoulder D: 20 mm | Length L: 90 mm | Thread: M16x2.0
LBT-20X95 Shoulder D: 20 mm | Length L: 95 mm | Thread: M16x2.0
LBT-20X100 Shoulder D: 20 mm | Length L: 100 mm | Thread: M16x2.0
LBT-20X110 Shoulder D: 20 mm | Length L: 110 mm | Thread: M16x2.0
LBT-20X120 Shoulder D: 20 mm | Length L: 120 mm | Thread: M16x2.0
LBT-20X130 Shoulder D: 20 mm | Length L: 130 mm | Thread: M16x2.0
LBT-20X140 Shoulder D: 20 mm | Length L: 140 mm | Thread: M16x2.0
LBT-20X150 Shoulder D: 20 mm | Length L: 150 mm | Thread: M16x2.0
