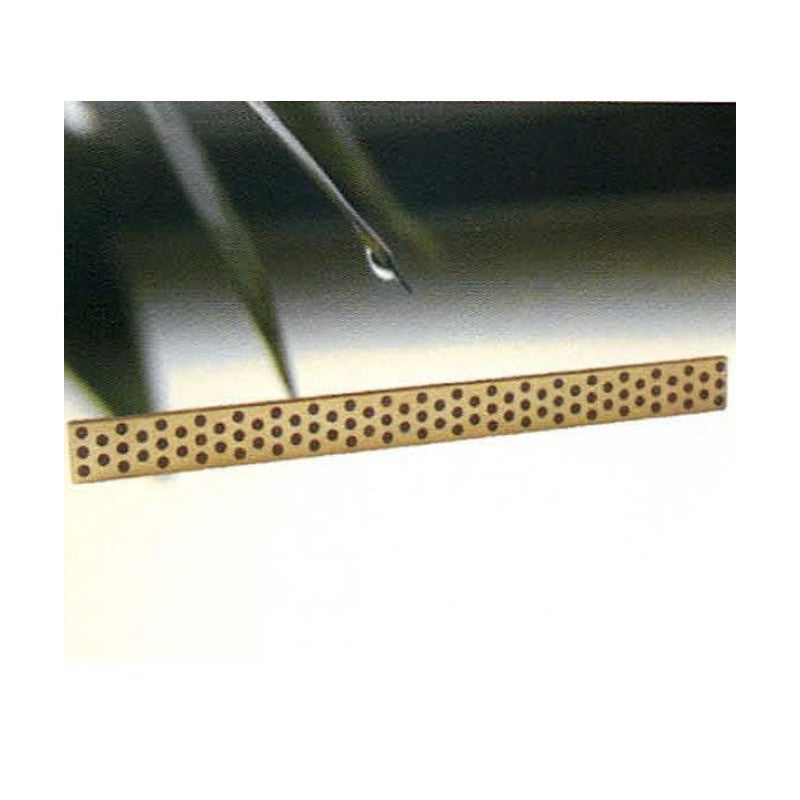

LuBo LBWN #500 Wear Strip (Inch, C86300 + Graphite)

LuBo LBWN #500 Wear Strip (Inch, C86300 + Graphite)

LuBo LBWN is a #500 self-lubricating bronze wear strip in inch sizes, with graphite plugs and counterbored screw holes.

Key features

  • Copper alloy C86300 with graphite plugs (suffix G)
  • Thickness 1/4, 3/8, 1/2 and 5/8 in
  • Width 1-4 in, length 3-12 in
  • Hole pattern set by width and length
  • Undrilled version: add suffix N

Specifications

Series LBWN
Material Copper alloy C86300 + graphite
Thickness tolerance +/-0.001 in
Counterbore 1/4-5/16 in flat or socket head screws by thickness
Undrilled option Suffix N (e.g. LBWN416-48NG)
Code key Thickness, width and length in 1/8 in
Order format Product code (e.g. LBWN416-48G)
Source LuBo #500 Series for Inch Size (Wear Strips LBWN)
LBWN28-32G Thickness: 1/4 in (.250) | Width: 1.00 in | Length: 4.00 in | Plugs: graphite
LBWN28-40G Thickness: 1/4 in (.250) | Width: 1.00 in | Length: 5.00 in | Plugs: graphite
LBWN28-48G Thickness: 1/4 in (.250) | Width: 1.00 in | Length: 6.00 in | Plugs: graphite
LBWN28-64G Thickness: 1/4 in (.250) | Width: 1.00 in | Length: 8.00 in | Plugs: graphite
LBWN28-80G Thickness: 1/4 in (.250) | Width: 1.00 in | Length: 10.00 in | Plugs: graphite
LBWN28-96G Thickness: 1/4 in (.250) | Width: 1.00 in | Length: 12.00 in | Plugs: graphite
LBWN212-32G Thickness: 1/4 in (.250) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN212-40G Thickness: 1/4 in (.250) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN212-48G Thickness: 1/4 in (.250) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN212-64G Thickness: 1/4 in (.250) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN212-80G Thickness: 1/4 in (.250) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN212-96G Thickness: 1/4 in (.250) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN216-32G Thickness: 1/4 in (.250) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN216-40G Thickness: 1/4 in (.250) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN216-48G Thickness: 1/4 in (.250) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN216-64G Thickness: 1/4 in (.250) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN216-80G Thickness: 1/4 in (.250) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN216-96G Thickness: 1/4 in (.250) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN220-32G Thickness: 1/4 in (.250) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN220-40G Thickness: 1/4 in (.250) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN220-48G Thickness: 1/4 in (.250) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN220-64G Thickness: 1/4 in (.250) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN220-80G Thickness: 1/4 in (.250) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN220-96G Thickness: 1/4 in (.250) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN224-32G Thickness: 1/4 in (.250) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN224-40G Thickness: 1/4 in (.250) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN224-48G Thickness: 1/4 in (.250) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN224-64G Thickness: 1/4 in (.250) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN224-80G Thickness: 1/4 in (.250) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN224-96G Thickness: 1/4 in (.250) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN232-32G Thickness: 1/4 in (.250) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN232-40G Thickness: 1/4 in (.250) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN232-48G Thickness: 1/4 in (.250) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN232-64G Thickness: 1/4 in (.250) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN232-80G Thickness: 1/4 in (.250) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN232-96G Thickness: 1/4 in (.250) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite
LBWN38-32G Thickness: 3/8 in (.375) | Width: 1.00 in | Length: 4.00 in | Plugs: graphite
LBWN38-40G Thickness: 3/8 in (.375) | Width: 1.00 in | Length: 5.00 in | Plugs: graphite
LBWN38-48G Thickness: 3/8 in (.375) | Width: 1.00 in | Length: 6.00 in | Plugs: graphite
LBWN38-64G Thickness: 3/8 in (.375) | Width: 1.00 in | Length: 8.00 in | Plugs: graphite
LBWN38-80G Thickness: 3/8 in (.375) | Width: 1.00 in | Length: 10.00 in | Plugs: graphite
LBWN38-96G Thickness: 3/8 in (.375) | Width: 1.00 in | Length: 12.00 in | Plugs: graphite
LBWN312-32G Thickness: 3/8 in (.375) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN312-40G Thickness: 3/8 in (.375) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN312-48G Thickness: 3/8 in (.375) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN312-64G Thickness: 3/8 in (.375) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN312-80G Thickness: 3/8 in (.375) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN312-96G Thickness: 3/8 in (.375) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN316-32G Thickness: 3/8 in (.375) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN316-40G Thickness: 3/8 in (.375) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN316-48G Thickness: 3/8 in (.375) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN316-64G Thickness: 3/8 in (.375) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN316-80G Thickness: 3/8 in (.375) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN316-96G Thickness: 3/8 in (.375) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN320-32G Thickness: 3/8 in (.375) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN320-40G Thickness: 3/8 in (.375) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN320-48G Thickness: 3/8 in (.375) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN320-64G Thickness: 3/8 in (.375) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN320-80G Thickness: 3/8 in (.375) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN320-96G Thickness: 3/8 in (.375) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN324-32G Thickness: 3/8 in (.375) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN324-40G Thickness: 3/8 in (.375) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN324-48G Thickness: 3/8 in (.375) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN324-64G Thickness: 3/8 in (.375) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN324-80G Thickness: 3/8 in (.375) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN324-96G Thickness: 3/8 in (.375) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN332-32G Thickness: 3/8 in (.375) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN332-40G Thickness: 3/8 in (.375) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN332-48G Thickness: 3/8 in (.375) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN332-64G Thickness: 3/8 in (.375) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN332-80G Thickness: 3/8 in (.375) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN332-96G Thickness: 3/8 in (.375) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite
LBWN412-24G Thickness: 1/2 in (.500) | Width: 1.50 in | Length: 3.00 in | Plugs: graphite
LBWN412-32G Thickness: 1/2 in (.500) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN412-40G Thickness: 1/2 in (.500) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN412-48G Thickness: 1/2 in (.500) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN412-64G Thickness: 1/2 in (.500) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN412-80G Thickness: 1/2 in (.500) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN412-96G Thickness: 1/2 in (.500) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN416-24G Thickness: 1/2 in (.500) | Width: 2.00 in | Length: 3.00 in | Plugs: graphite
LBWN416-32G Thickness: 1/2 in (.500) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN416-40G Thickness: 1/2 in (.500) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN416-48G Thickness: 1/2 in (.500) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN416-64G Thickness: 1/2 in (.500) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN416-80G Thickness: 1/2 in (.500) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN416-96G Thickness: 1/2 in (.500) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN420-24G Thickness: 1/2 in (.500) | Width: 2.50 in | Length: 3.00 in | Plugs: graphite
LBWN420-32G Thickness: 1/2 in (.500) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN420-40G Thickness: 1/2 in (.500) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN420-48G Thickness: 1/2 in (.500) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN420-64G Thickness: 1/2 in (.500) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN420-80G Thickness: 1/2 in (.500) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN420-96G Thickness: 1/2 in (.500) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN424-24G Thickness: 1/2 in (.500) | Width: 3.00 in | Length: 3.00 in | Plugs: graphite
LBWN424-32G Thickness: 1/2 in (.500) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN424-40G Thickness: 1/2 in (.500) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN424-48G Thickness: 1/2 in (.500) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN424-64G Thickness: 1/2 in (.500) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN424-80G Thickness: 1/2 in (.500) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN424-96G Thickness: 1/2 in (.500) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN432-32G Thickness: 1/2 in (.500) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN432-40G Thickness: 1/2 in (.500) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN432-48G Thickness: 1/2 in (.500) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN432-64G Thickness: 1/2 in (.500) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN432-80G Thickness: 1/2 in (.500) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN432-96G Thickness: 1/2 in (.500) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite
LBWN512-24G Thickness: 5/8 in (.625) | Width: 1.50 in | Length: 3.00 in | Plugs: graphite
LBWN512-32G Thickness: 5/8 in (.625) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN512-40G Thickness: 5/8 in (.625) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN512-48G Thickness: 5/8 in (.625) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN512-64G Thickness: 5/8 in (.625) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN512-80G Thickness: 5/8 in (.625) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN512-96G Thickness: 5/8 in (.625) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN516-24G Thickness: 5/8 in (.625) | Width: 2.00 in | Length: 3.00 in | Plugs: graphite
LBWN516-32G Thickness: 5/8 in (.625) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN516-40G Thickness: 5/8 in (.625) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN516-48G Thickness: 5/8 in (.625) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN516-64G Thickness: 5/8 in (.625) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN516-80G Thickness: 5/8 in (.625) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN516-96G Thickness: 5/8 in (.625) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN520-24G Thickness: 5/8 in (.625) | Width: 2.50 in | Length: 3.00 in | Plugs: graphite
LBWN520-32G Thickness: 5/8 in (.625) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN520-40G Thickness: 5/8 in (.625) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN520-48G Thickness: 5/8 in (.625) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN520-64G Thickness: 5/8 in (.625) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN520-80G Thickness: 5/8 in (.625) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN520-96G Thickness: 5/8 in (.625) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN524-32G Thickness: 5/8 in (.625) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN524-40G Thickness: 5/8 in (.625) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN524-48G Thickness: 5/8 in (.625) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN524-64G Thickness: 5/8 in (.625) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN524-80G Thickness: 5/8 in (.625) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN524-96G Thickness: 5/8 in (.625) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN532-32G Thickness: 5/8 in (.625) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN532-40G Thickness: 5/8 in (.625) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN532-48G Thickness: 5/8 in (.625) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN532-64G Thickness: 5/8 in (.625) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN532-80G Thickness: 5/8 in (.625) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN532-96G Thickness: 5/8 in (.625) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite
Wear StripLuBo
139 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LBWN #500 Wear Strip (Inch, C86300 + Graphite)

Brand LuBo·Wear Strip

Available part numbers (139)

LBWN28-32G, LBWN28-40G, LBWN28-48G, LBWN28-64G, LBWN28-80G, LBWN28-96G, LBWN212-32G, LBWN212-40G, LBWN212-48G, LBWN212-64G + 129 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LBWN28-32GThickness: 1/4 in (.250) | Width: 1.00 in | Length: 4.00 in | Plugs: graphite
LBWN28-40GThickness: 1/4 in (.250) | Width: 1.00 in | Length: 5.00 in | Plugs: graphite
LBWN28-48GThickness: 1/4 in (.250) | Width: 1.00 in | Length: 6.00 in | Plugs: graphite
LBWN28-64GThickness: 1/4 in (.250) | Width: 1.00 in | Length: 8.00 in | Plugs: graphite
LBWN28-80GThickness: 1/4 in (.250) | Width: 1.00 in | Length: 10.00 in | Plugs: graphite
LBWN28-96GThickness: 1/4 in (.250) | Width: 1.00 in | Length: 12.00 in | Plugs: graphite
LBWN212-32GThickness: 1/4 in (.250) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN212-40GThickness: 1/4 in (.250) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN212-48GThickness: 1/4 in (.250) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN212-64GThickness: 1/4 in (.250) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN212-80GThickness: 1/4 in (.250) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN212-96GThickness: 1/4 in (.250) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN216-32GThickness: 1/4 in (.250) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN216-40GThickness: 1/4 in (.250) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN216-48GThickness: 1/4 in (.250) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN216-64GThickness: 1/4 in (.250) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN216-80GThickness: 1/4 in (.250) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN216-96GThickness: 1/4 in (.250) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN220-32GThickness: 1/4 in (.250) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN220-40GThickness: 1/4 in (.250) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN220-48GThickness: 1/4 in (.250) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN220-64GThickness: 1/4 in (.250) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN220-80GThickness: 1/4 in (.250) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN220-96GThickness: 1/4 in (.250) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN224-32GThickness: 1/4 in (.250) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN224-40GThickness: 1/4 in (.250) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN224-48GThickness: 1/4 in (.250) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN224-64GThickness: 1/4 in (.250) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN224-80GThickness: 1/4 in (.250) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN224-96GThickness: 1/4 in (.250) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN232-32GThickness: 1/4 in (.250) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN232-40GThickness: 1/4 in (.250) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN232-48GThickness: 1/4 in (.250) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN232-64GThickness: 1/4 in (.250) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN232-80GThickness: 1/4 in (.250) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN232-96GThickness: 1/4 in (.250) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite
LBWN38-32GThickness: 3/8 in (.375) | Width: 1.00 in | Length: 4.00 in | Plugs: graphite
LBWN38-40GThickness: 3/8 in (.375) | Width: 1.00 in | Length: 5.00 in | Plugs: graphite
LBWN38-48GThickness: 3/8 in (.375) | Width: 1.00 in | Length: 6.00 in | Plugs: graphite
LBWN38-64GThickness: 3/8 in (.375) | Width: 1.00 in | Length: 8.00 in | Plugs: graphite
LBWN38-80GThickness: 3/8 in (.375) | Width: 1.00 in | Length: 10.00 in | Plugs: graphite
LBWN38-96GThickness: 3/8 in (.375) | Width: 1.00 in | Length: 12.00 in | Plugs: graphite
LBWN312-32GThickness: 3/8 in (.375) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN312-40GThickness: 3/8 in (.375) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN312-48GThickness: 3/8 in (.375) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN312-64GThickness: 3/8 in (.375) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN312-80GThickness: 3/8 in (.375) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN312-96GThickness: 3/8 in (.375) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN316-32GThickness: 3/8 in (.375) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN316-40GThickness: 3/8 in (.375) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN316-48GThickness: 3/8 in (.375) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN316-64GThickness: 3/8 in (.375) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN316-80GThickness: 3/8 in (.375) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN316-96GThickness: 3/8 in (.375) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN320-32GThickness: 3/8 in (.375) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN320-40GThickness: 3/8 in (.375) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN320-48GThickness: 3/8 in (.375) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN320-64GThickness: 3/8 in (.375) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN320-80GThickness: 3/8 in (.375) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN320-96GThickness: 3/8 in (.375) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN324-32GThickness: 3/8 in (.375) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN324-40GThickness: 3/8 in (.375) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN324-48GThickness: 3/8 in (.375) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN324-64GThickness: 3/8 in (.375) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN324-80GThickness: 3/8 in (.375) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN324-96GThickness: 3/8 in (.375) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN332-32GThickness: 3/8 in (.375) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN332-40GThickness: 3/8 in (.375) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN332-48GThickness: 3/8 in (.375) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN332-64GThickness: 3/8 in (.375) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN332-80GThickness: 3/8 in (.375) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN332-96GThickness: 3/8 in (.375) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite
LBWN412-24GThickness: 1/2 in (.500) | Width: 1.50 in | Length: 3.00 in | Plugs: graphite
LBWN412-32GThickness: 1/2 in (.500) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN412-40GThickness: 1/2 in (.500) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN412-48GThickness: 1/2 in (.500) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN412-64GThickness: 1/2 in (.500) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN412-80GThickness: 1/2 in (.500) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN412-96GThickness: 1/2 in (.500) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN416-24GThickness: 1/2 in (.500) | Width: 2.00 in | Length: 3.00 in | Plugs: graphite
LBWN416-32GThickness: 1/2 in (.500) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN416-40GThickness: 1/2 in (.500) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN416-48GThickness: 1/2 in (.500) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN416-64GThickness: 1/2 in (.500) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN416-80GThickness: 1/2 in (.500) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN416-96GThickness: 1/2 in (.500) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN420-24GThickness: 1/2 in (.500) | Width: 2.50 in | Length: 3.00 in | Plugs: graphite
LBWN420-32GThickness: 1/2 in (.500) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN420-40GThickness: 1/2 in (.500) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN420-48GThickness: 1/2 in (.500) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN420-64GThickness: 1/2 in (.500) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN420-80GThickness: 1/2 in (.500) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN420-96GThickness: 1/2 in (.500) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN424-24GThickness: 1/2 in (.500) | Width: 3.00 in | Length: 3.00 in | Plugs: graphite
LBWN424-32GThickness: 1/2 in (.500) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN424-40GThickness: 1/2 in (.500) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN424-48GThickness: 1/2 in (.500) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN424-64GThickness: 1/2 in (.500) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN424-80GThickness: 1/2 in (.500) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN424-96GThickness: 1/2 in (.500) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN432-32GThickness: 1/2 in (.500) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN432-40GThickness: 1/2 in (.500) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN432-48GThickness: 1/2 in (.500) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN432-64GThickness: 1/2 in (.500) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN432-80GThickness: 1/2 in (.500) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN432-96GThickness: 1/2 in (.500) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite
LBWN512-24GThickness: 5/8 in (.625) | Width: 1.50 in | Length: 3.00 in | Plugs: graphite
LBWN512-32GThickness: 5/8 in (.625) | Width: 1.50 in | Length: 4.00 in | Plugs: graphite
LBWN512-40GThickness: 5/8 in (.625) | Width: 1.50 in | Length: 5.00 in | Plugs: graphite
LBWN512-48GThickness: 5/8 in (.625) | Width: 1.50 in | Length: 6.00 in | Plugs: graphite
LBWN512-64GThickness: 5/8 in (.625) | Width: 1.50 in | Length: 8.00 in | Plugs: graphite
LBWN512-80GThickness: 5/8 in (.625) | Width: 1.50 in | Length: 10.00 in | Plugs: graphite
LBWN512-96GThickness: 5/8 in (.625) | Width: 1.50 in | Length: 12.00 in | Plugs: graphite
LBWN516-24GThickness: 5/8 in (.625) | Width: 2.00 in | Length: 3.00 in | Plugs: graphite
LBWN516-32GThickness: 5/8 in (.625) | Width: 2.00 in | Length: 4.00 in | Plugs: graphite
LBWN516-40GThickness: 5/8 in (.625) | Width: 2.00 in | Length: 5.00 in | Plugs: graphite
LBWN516-48GThickness: 5/8 in (.625) | Width: 2.00 in | Length: 6.00 in | Plugs: graphite
LBWN516-64GThickness: 5/8 in (.625) | Width: 2.00 in | Length: 8.00 in | Plugs: graphite
LBWN516-80GThickness: 5/8 in (.625) | Width: 2.00 in | Length: 10.00 in | Plugs: graphite
LBWN516-96GThickness: 5/8 in (.625) | Width: 2.00 in | Length: 12.00 in | Plugs: graphite
LBWN520-24GThickness: 5/8 in (.625) | Width: 2.50 in | Length: 3.00 in | Plugs: graphite
LBWN520-32GThickness: 5/8 in (.625) | Width: 2.50 in | Length: 4.00 in | Plugs: graphite
LBWN520-40GThickness: 5/8 in (.625) | Width: 2.50 in | Length: 5.00 in | Plugs: graphite
LBWN520-48GThickness: 5/8 in (.625) | Width: 2.50 in | Length: 6.00 in | Plugs: graphite
LBWN520-64GThickness: 5/8 in (.625) | Width: 2.50 in | Length: 8.00 in | Plugs: graphite
LBWN520-80GThickness: 5/8 in (.625) | Width: 2.50 in | Length: 10.00 in | Plugs: graphite
LBWN520-96GThickness: 5/8 in (.625) | Width: 2.50 in | Length: 12.00 in | Plugs: graphite
LBWN524-32GThickness: 5/8 in (.625) | Width: 3.00 in | Length: 4.00 in | Plugs: graphite
LBWN524-40GThickness: 5/8 in (.625) | Width: 3.00 in | Length: 5.00 in | Plugs: graphite
LBWN524-48GThickness: 5/8 in (.625) | Width: 3.00 in | Length: 6.00 in | Plugs: graphite
LBWN524-64GThickness: 5/8 in (.625) | Width: 3.00 in | Length: 8.00 in | Plugs: graphite
LBWN524-80GThickness: 5/8 in (.625) | Width: 3.00 in | Length: 10.00 in | Plugs: graphite
LBWN524-96GThickness: 5/8 in (.625) | Width: 3.00 in | Length: 12.00 in | Plugs: graphite
LBWN532-32GThickness: 5/8 in (.625) | Width: 4.00 in | Length: 4.00 in | Plugs: graphite
LBWN532-40GThickness: 5/8 in (.625) | Width: 4.00 in | Length: 5.00 in | Plugs: graphite
LBWN532-48GThickness: 5/8 in (.625) | Width: 4.00 in | Length: 6.00 in | Plugs: graphite
LBWN532-64GThickness: 5/8 in (.625) | Width: 4.00 in | Length: 8.00 in | Plugs: graphite
LBWN532-80GThickness: 5/8 in (.625) | Width: 4.00 in | Length: 10.00 in | Plugs: graphite
LBWN532-96GThickness: 5/8 in (.625) | Width: 4.00 in | Length: 12.00 in | Plugs: graphite

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
