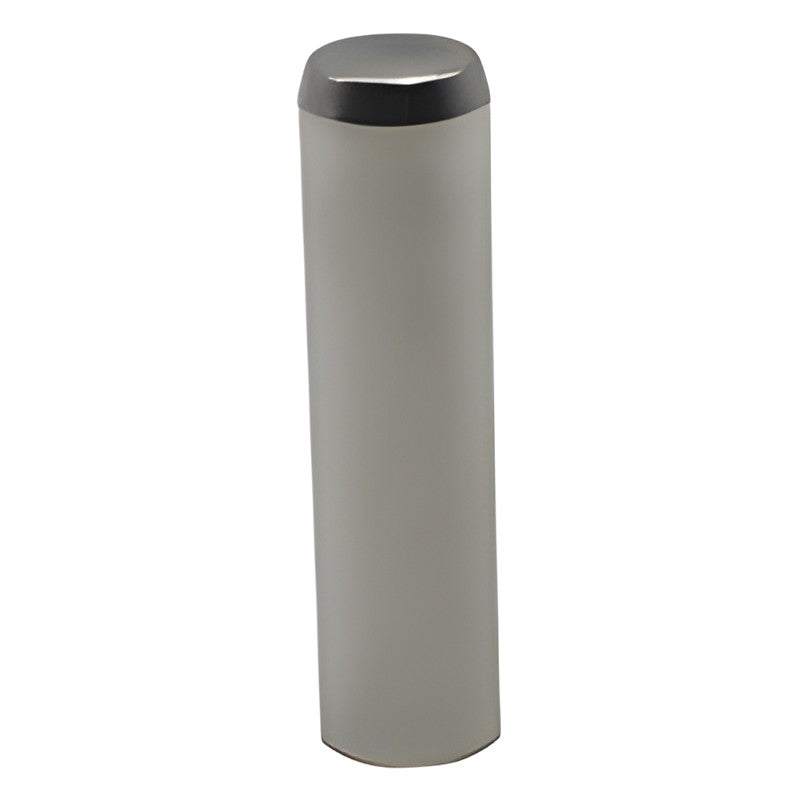

LuBo LDE / LDEH Dowel Pins - Tapped (Dia. 6-20 mm)

LuBo LDE / LDEH Dowel Pins - Tapped (Dia. 6-20 mm)

LuBo LDE / LDEH Dowel Pins - Tapped from the LuBo Elements catalogue, listed in 71 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Dowel Pins - Tapped - series LDE / LDEH
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 71 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LDE / LDEH
Product Dowel Pins - Tapped
Catalogue chapter Elements
Orderable codes 71
Size range Dia. 6-20 mm
Code example LDE-6-20
Row spec keys Dia. D, Length L, Tolerance, Tapped
Source LuBo Elements catalogue
LDE-6-20 Dia. D: 6 mm | Length L: 20 mm | Tolerance: m6 | Tapped: Yes
LDE-6-25 Dia. D: 6 mm | Length L: 25 mm | Tolerance: m6 | Tapped: Yes
LDE-6-30 Dia. D: 6 mm | Length L: 30 mm | Tolerance: m6 | Tapped: Yes
LDE-6-35 Dia. D: 6 mm | Length L: 35 mm | Tolerance: m6 | Tapped: Yes
LDE-6-40 Dia. D: 6 mm | Length L: 40 mm | Tolerance: m6 | Tapped: Yes
LDE-6-50 Dia. D: 6 mm | Length L: 50 mm | Tolerance: m6 | Tapped: Yes
LDE-8-20 Dia. D: 8 mm | Length L: 20 mm | Tolerance: m6 | Tapped: Yes
LDE-8-25 Dia. D: 8 mm | Length L: 25 mm | Tolerance: m6 | Tapped: Yes
LDE-8-30 Dia. D: 8 mm | Length L: 30 mm | Tolerance: m6 | Tapped: Yes
LDE-8-35 Dia. D: 8 mm | Length L: 35 mm | Tolerance: m6 | Tapped: Yes
LDE-8-40 Dia. D: 8 mm | Length L: 40 mm | Tolerance: m6 | Tapped: Yes
LDE-8-45 Dia. D: 8 mm | Length L: 45 mm | Tolerance: m6 | Tapped: Yes
LDE-8-50 Dia. D: 8 mm | Length L: 50 mm | Tolerance: m6 | Tapped: Yes
LDE-10-25 Dia. D: 10 mm | Length L: 25 mm | Tolerance: m6 | Tapped: Yes
LDE-10-30 Dia. D: 10 mm | Length L: 30 mm | Tolerance: m6 | Tapped: Yes
LDE-10-35 Dia. D: 10 mm | Length L: 35 mm | Tolerance: m6 | Tapped: Yes
LDE-10-40 Dia. D: 10 mm | Length L: 40 mm | Tolerance: m6 | Tapped: Yes
LDE-10-45 Dia. D: 10 mm | Length L: 45 mm | Tolerance: m6 | Tapped: Yes
LDE-10-50 Dia. D: 10 mm | Length L: 50 mm | Tolerance: m6 | Tapped: Yes
LDE-10-60 Dia. D: 10 mm | Length L: 60 mm | Tolerance: m6 | Tapped: Yes
LDE-10-70 Dia. D: 10 mm | Length L: 70 mm | Tolerance: m6 | Tapped: Yes
LDE-10-80 Dia. D: 10 mm | Length L: 80 mm | Tolerance: m6 | Tapped: Yes
LDE-12-30 Dia. D: 12 mm | Length L: 30 mm | Tolerance: m6 | Tapped: Yes
LDE-12-40 Dia. D: 12 mm | Length L: 40 mm | Tolerance: m6 | Tapped: Yes
LDE-12-50 Dia. D: 12 mm | Length L: 50 mm | Tolerance: m6 | Tapped: Yes
LDE-12-60 Dia. D: 12 mm | Length L: 60 mm | Tolerance: m6 | Tapped: Yes
LDE-12-70 Dia. D: 12 mm | Length L: 70 mm | Tolerance: m6 | Tapped: Yes
LDE-12-80 Dia. D: 12 mm | Length L: 80 mm | Tolerance: m6 | Tapped: Yes
LDE-13-30 Dia. D: 13 mm | Length L: 30 mm | Tolerance: m6 | Tapped: Yes
LDE-13-40 Dia. D: 13 mm | Length L: 40 mm | Tolerance: m6 | Tapped: Yes
LDE-13-50 Dia. D: 13 mm | Length L: 50 mm | Tolerance: m6 | Tapped: Yes
LDE-13-60 Dia. D: 13 mm | Length L: 60 mm | Tolerance: m6 | Tapped: Yes
LDE-13-70 Dia. D: 13 mm | Length L: 70 mm | Tolerance: m6 | Tapped: Yes
LDE-13-80 Dia. D: 13 mm | Length L: 80 mm | Tolerance: m6 | Tapped: Yes
LDE-16-40 Dia. D: 16 mm | Length L: 40 mm | Tolerance: m6 | Tapped: Yes
LDE-16-50 Dia. D: 16 mm | Length L: 50 mm | Tolerance: m6 | Tapped: Yes
LDE-16-60 Dia. D: 16 mm | Length L: 60 mm | Tolerance: m6 | Tapped: Yes
LDE-16-70 Dia. D: 16 mm | Length L: 70 mm | Tolerance: m6 | Tapped: Yes
LDE-16-80 Dia. D: 16 mm | Length L: 80 mm | Tolerance: m6 | Tapped: Yes
LDE-20-50 Dia. D: 20 mm | Length L: 50 mm | Tolerance: m6 | Tapped: Yes
LDE-20-60 Dia. D: 20 mm | Length L: 60 mm | Tolerance: m6 | Tapped: Yes
LDE-20-70 Dia. D: 20 mm | Length L: 70 mm | Tolerance: m6 | Tapped: Yes
LDE-20-80 Dia. D: 20 mm | Length L: 80 mm | Tolerance: m6 | Tapped: Yes
LDE-20-90 Dia. D: 20 mm | Length L: 90 mm | Tolerance: m6 | Tapped: Yes
LDE-20-100 Dia. D: 20 mm | Length L: 100 mm | Tolerance: m6 | Tapped: Yes
LDEH-6-20 Dia. D: 6 mm | Length L: 20 mm | Tolerance: h7 | Tapped: Yes
LDEH-6-25 Dia. D: 6 mm | Length L: 25 mm | Tolerance: h7 | Tapped: Yes
LDEH-6-30 Dia. D: 6 mm | Length L: 30 mm | Tolerance: h7 | Tapped: Yes
LDEH-6-35 Dia. D: 6 mm | Length L: 35 mm | Tolerance: h7 | Tapped: Yes
LDEH-6-40 Dia. D: 6 mm | Length L: 40 mm | Tolerance: h7 | Tapped: Yes
LDEH-6-50 Dia. D: 6 mm | Length L: 50 mm | Tolerance: h7 | Tapped: Yes
LDEH-8-20 Dia. D: 8 mm | Length L: 20 mm | Tolerance: h7 | Tapped: Yes
LDEH-8-25 Dia. D: 8 mm | Length L: 25 mm | Tolerance: h7 | Tapped: Yes
LDEH-8-30 Dia. D: 8 mm | Length L: 30 mm | Tolerance: h7 | Tapped: Yes
LDEH-8-35 Dia. D: 8 mm | Length L: 35 mm | Tolerance: h7 | Tapped: Yes
LDEH-8-40 Dia. D: 8 mm | Length L: 40 mm | Tolerance: h7 | Tapped: Yes
LDEH-8-50 Dia. D: 8 mm | Length L: 50 mm | Tolerance: h7 | Tapped: Yes
LDEH-10-20 Dia. D: 10 mm | Length L: 20 mm | Tolerance: h7 | Tapped: Yes
LDEH-10-25 Dia. D: 10 mm | Length L: 25 mm | Tolerance: h7 | Tapped: Yes
LDEH-10-30 Dia. D: 10 mm | Length L: 30 mm | Tolerance: h7 | Tapped: Yes
LDEH-10-35 Dia. D: 10 mm | Length L: 35 mm | Tolerance: h7 | Tapped: Yes
LDEH-10-40 Dia. D: 10 mm | Length L: 40 mm | Tolerance: h7 | Tapped: Yes
LDEH-10-50 Dia. D: 10 mm | Length L: 50 mm | Tolerance: h7 | Tapped: Yes
LDEH-12-30 Dia. D: 12 mm | Length L: 30 mm | Tolerance: h7 | Tapped: Yes
LDEH-12-40 Dia. D: 12 mm | Length L: 40 mm | Tolerance: h7 | Tapped: Yes
LDEH-12-50 Dia. D: 12 mm | Length L: 50 mm | Tolerance: h7 | Tapped: Yes
LDEH-12-60 Dia. D: 12 mm | Length L: 60 mm | Tolerance: h7 | Tapped: Yes
LDEH-13-30 Dia. D: 13 mm | Length L: 30 mm | Tolerance: h7 | Tapped: Yes
LDEH-13-40 Dia. D: 13 mm | Length L: 40 mm | Tolerance: h7 | Tapped: Yes
LDEH-13-50 Dia. D: 13 mm | Length L: 50 mm | Tolerance: h7 | Tapped: Yes
LDEH-13-60 Dia. D: 13 mm | Length L: 60 mm | Tolerance: h7 | Tapped: Yes
Die ElementLuBo
71 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LDE / LDEH Dowel Pins - Tapped (Dia. 6-20 mm)

Brand LuBo·Die Element

Available part numbers (71)

LDE-6-20, LDE-6-25, LDE-6-30, LDE-6-35, LDE-6-40, LDE-6-50, LDE-8-20, LDE-8-25, LDE-8-30, LDE-8-35 + 61 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
