• LuBo LEYB Cast-in Lifting Bushings (Size 8-36)
1 1

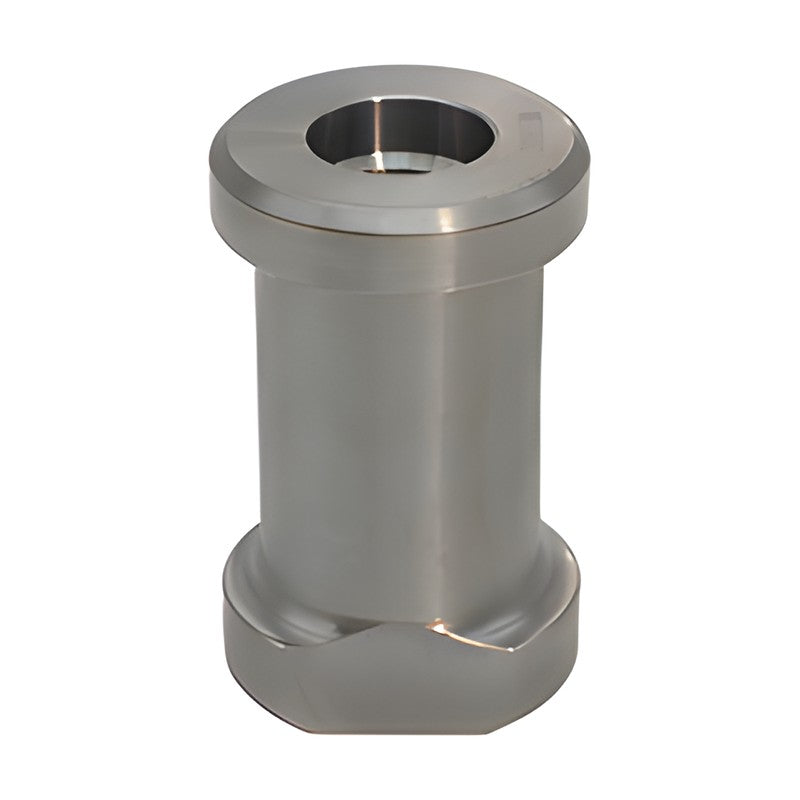

LuBo LEYB Cast-in Lifting Bushings (Size 8-36)

LuBo LEYB Cast-in Lifting Bushings (Size 8-36)

LuBo LEYB Cast-in Lifting Bushings from the LuBo Hook & Lift Components catalogue, listed in 8 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cast-in Lifting Bushings - series LEYB
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 8 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LEYB
Product Cast-in Lifting Bushings
Catalogue chapter Hook & Lift Components
Orderable codes 8
Size range Size 8-36
Code example LEYB-8
Row spec keys Size, Thread, Outer dia. D
Source LuBo Hook & Lift Components catalogue
LEYB-8 Size: 8 | Thread: M8x1.25 | Outer dia. D: 30 mm
LEYB-10 Size: 10 | Thread: M10x1.5 | Outer dia. D: 32 mm
LEYB-12 Size: 12 | Thread: M12x1.75 | Outer dia. D: 38 mm
LEYB-16 Size: 16 | Thread: M16x2.0 | Outer dia. D: 46 mm
LEYB-20 Size: 20 | Thread: M20x2.5 | Outer dia. D: 48 mm
LEYB-24 Size: 24 | Thread: M24x3.0 | Outer dia. D: 55 mm
LEYB-30 Size: 30 | Thread: M30x3.5 | Outer dia. D: 65 mm
LEYB-36 Size: 36 | Thread: M36x4.0 | Outer dia. D: 85 mm
Die Lifting ComponentLuBo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LEYB Cast-in Lifting Bushings (Size 8-36)

Brand LuBo·Die Lifting Component

Available part numbers (8)

LEYB-8, LEYB-10, LEYB-12, LEYB-16, LEYB-20, LEYB-24, LEYB-30, LEYB-36

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LEYB-8Size: 8 | Thread: M8x1.25 | Outer dia. D: 30 mm
LEYB-10Size: 10 | Thread: M10x1.5 | Outer dia. D: 32 mm
LEYB-12Size: 12 | Thread: M12x1.75 | Outer dia. D: 38 mm
LEYB-16Size: 16 | Thread: M16x2.0 | Outer dia. D: 46 mm
LEYB-20Size: 20 | Thread: M20x2.5 | Outer dia. D: 48 mm
LEYB-24Size: 24 | Thread: M24x3.0 | Outer dia. D: 55 mm
LEYB-30Size: 30 | Thread: M30x3.5 | Outer dia. D: 65 mm
LEYB-36Size: 36 | Thread: M36x4.0 | Outer dia. D: 85 mm

Need a different model, or a part not listed here? Send us your parts list →
