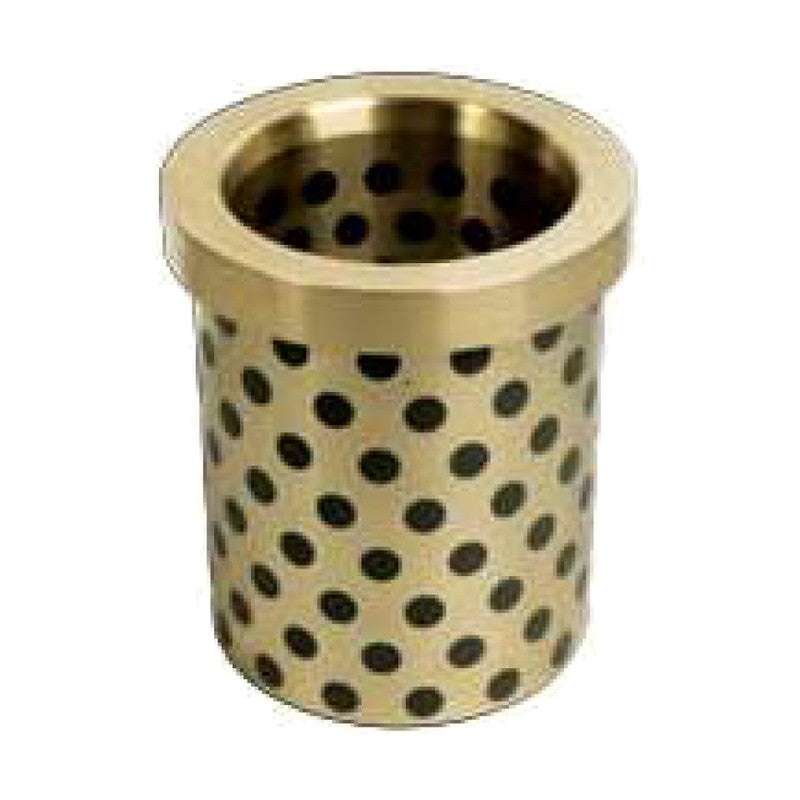

LuBo LFBC / LFBCB Flanged Bushings - CNOMO (Bore d 20-100 mm)

LuBo LFBC / LFBCB Flanged Bushings - CNOMO (Bore d 20-100 mm)

LuBo LFBC / LFBCB Flanged Bushings - CNOMO from the LuBo Oilless Bushings & Plates catalogue, listed in 16 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Flanged Bushings - CNOMO - series LFBC / LFBCB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 16 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LFBC / LFBCB
Product Flanged Bushings - CNOMO
Catalogue chapter Oilless Bushings & Plates
Orderable codes 16
Size range Bore d 20-100 mm
Code example LFBC-20X32
Row spec keys Bore d, Outer D, Length L, Type
Source LuBo Oilless Bushings & Plates catalogue
LFBC-20X32 Bore d: 20 mm | Outer D: 28 mm | Length L: 32 mm | Type: LFBC (#500SP)
LFBC-25X40 Bore d: 25 mm | Outer D: 35 mm | Length L: 40 mm | Type: LFBC (#500SP)
LFBC-32X50 Bore d: 32 mm | Outer D: 44 mm | Length L: 50 mm | Type: LFBC (#500SP)
LFBC-40X63 Bore d: 40 mm | Outer D: 52 mm | Length L: 63 mm | Type: LFBC (#500SP)
LFBC-50X80 Bore d: 50 mm | Outer D: 63 mm | Length L: 80 mm | Type: LFBC (#500SP)
LFBC-63X100 Bore d: 63 mm | Outer D: 80 mm | Length L: 100 mm | Type: LFBC (#500SP)
LFBC-80X125 Bore d: 80 mm | Outer D: 100 mm | Length L: 125 mm | Type: LFBC (#500SP)
LFBC-100X160 Bore d: 100 mm | Outer D: 125 mm | Length L: 160 mm | Type: LFBC (#500SP)
LFBCB-20X32 Bore d: 20 mm | Outer D: 28 mm | Length L: 32 mm | Type: LFBCB (CAC304)
LFBCB-25X40 Bore d: 25 mm | Outer D: 35 mm | Length L: 40 mm | Type: LFBCB (CAC304)
LFBCB-32X50 Bore d: 32 mm | Outer D: 44 mm | Length L: 50 mm | Type: LFBCB (CAC304)
LFBCB-40X63 Bore d: 40 mm | Outer D: 52 mm | Length L: 63 mm | Type: LFBCB (CAC304)
LFBCB-50X80 Bore d: 50 mm | Outer D: 63 mm | Length L: 80 mm | Type: LFBCB (CAC304)
LFBCB-63X100 Bore d: 63 mm | Outer D: 80 mm | Length L: 100 mm | Type: LFBCB (CAC304)
LFBCB-80X125 Bore d: 80 mm | Outer D: 100 mm | Length L: 125 mm | Type: LFBCB (CAC304)
LFBCB-100X160 Bore d: 100 mm | Outer D: 125 mm | Length L: 160 mm | Type: LFBCB (CAC304)
Oilless Slide ComponentLuBo
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LFBC / LFBCB Flanged Bushings - CNOMO (Bore d 20-100 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (16)

LFBC-20X32, LFBC-25X40, LFBC-32X50, LFBC-40X63, LFBC-50X80, LFBC-63X100, LFBC-80X125, LFBC-100X160, LFBCB-20X32, LFBCB-25X40 + 6 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LFBC-20X32Bore d: 20 mm | Outer D: 28 mm | Length L: 32 mm | Type: LFBC (#500SP)
LFBC-25X40Bore d: 25 mm | Outer D: 35 mm | Length L: 40 mm | Type: LFBC (#500SP)
LFBC-32X50Bore d: 32 mm | Outer D: 44 mm | Length L: 50 mm | Type: LFBC (#500SP)
LFBC-40X63Bore d: 40 mm | Outer D: 52 mm | Length L: 63 mm | Type: LFBC (#500SP)
LFBC-50X80Bore d: 50 mm | Outer D: 63 mm | Length L: 80 mm | Type: LFBC (#500SP)
LFBC-63X100Bore d: 63 mm | Outer D: 80 mm | Length L: 100 mm | Type: LFBC (#500SP)
LFBC-80X125Bore d: 80 mm | Outer D: 100 mm | Length L: 125 mm | Type: LFBC (#500SP)
LFBC-100X160Bore d: 100 mm | Outer D: 125 mm | Length L: 160 mm | Type: LFBC (#500SP)
LFBCB-20X32Bore d: 20 mm | Outer D: 28 mm | Length L: 32 mm | Type: LFBCB (CAC304)
LFBCB-25X40Bore d: 25 mm | Outer D: 35 mm | Length L: 40 mm | Type: LFBCB (CAC304)
LFBCB-32X50Bore d: 32 mm | Outer D: 44 mm | Length L: 50 mm | Type: LFBCB (CAC304)
LFBCB-40X63Bore d: 40 mm | Outer D: 52 mm | Length L: 63 mm | Type: LFBCB (CAC304)
LFBCB-50X80Bore d: 50 mm | Outer D: 63 mm | Length L: 80 mm | Type: LFBCB (CAC304)
LFBCB-63X100Bore d: 63 mm | Outer D: 80 mm | Length L: 100 mm | Type: LFBCB (CAC304)
LFBCB-80X125Bore d: 80 mm | Outer D: 100 mm | Length L: 125 mm | Type: LFBCB (CAC304)
LFBCB-100X160Bore d: 100 mm | Outer D: 125 mm | Length L: 160 mm | Type: LFBCB (CAC304)
