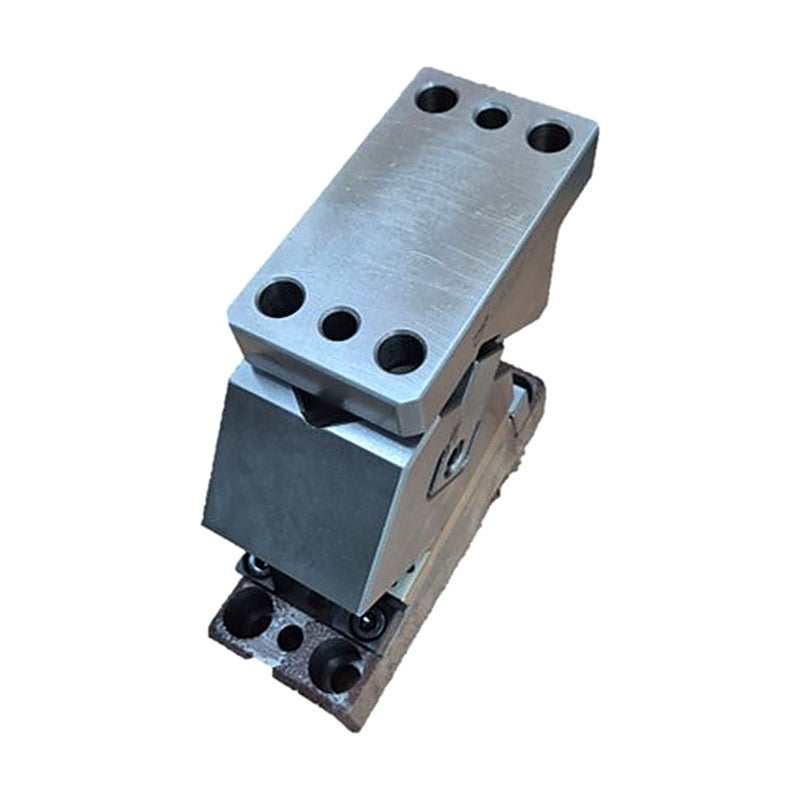

LuBo LFCG Aerial Cam Units (Width 50-200 mm)

LuBo LFCG Aerial Cam Units (Width 50-200 mm)

LuBo LFCG / LFCS / LFCC / LFCH / LFCCG / LFCHG / LVCC Aerial Cam Units from the LuBo Cam Units catalogue, listed in 333 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Aerial Cam Units - series LFCG / LFCS / LFCC / LFCH / LFCCG / LFCHG / LVCC
  • Standardized cam unit for press die side-piercing, trimming and flanging
  • Size, stroke and work angle selected from the catalogue table
  • Mounting dimensions per LuBo cam unit drawings
  • 333 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LFCG / LFCS / LFCC / LFCH / LFCCG / LFCHG / LVCC
Product Aerial Cam Units
Catalogue chapter Cam Units
Orderable codes 333
Size range Width 50-200 mm
Code example LFCG 50X19-0
Row spec keys Width, Stroke, Work angle, Type
Source LuBo Cam Units catalogue
LFCG 50X19-0 Width: 50 mm | Stroke: 19 mm | Work angle: 0° | Type: LFCG
LFCG 50X21-5 Width: 50 mm | Stroke: 21 mm | Work angle: 5° | Type: LFCG
LFCG 50X23-10 Width: 50 mm | Stroke: 23 mm | Work angle: 10° | Type: LFCG
LFCG 50X25-15 Width: 50 mm | Stroke: 25 mm | Work angle: 15° | Type: LFCG
LFCG 50X27-20 Width: 50 mm | Stroke: 27 mm | Work angle: 20° | Type: LFCG
LFCG 50X30-25 Width: 50 mm | Stroke: 30 mm | Work angle: 25° | Type: LFCG
LFCG 50X28-30 Width: 50 mm | Stroke: 28 mm | Work angle: 30° | Type: LFCG
LFCG 50X30-35 Width: 50 mm | Stroke: 30 mm | Work angle: 35° | Type: LFCG
LFCG 50X33-40 Width: 50 mm | Stroke: 33 mm | Work angle: 40° | Type: LFCG
LFCG 50X36-45 Width: 50 mm | Stroke: 36 mm | Work angle: 45° | Type: LFCG
LFCG 50X40-50 Width: 50 mm | Stroke: 40 mm | Work angle: 50° | Type: LFCG
LFCG 50X45-55 Width: 50 mm | Stroke: 45 mm | Work angle: 55° | Type: LFCG
LFCG 50X51-60 Width: 50 mm | Stroke: 51 mm | Work angle: 60° | Type: LFCG
LFCG 65X19-0 Width: 65 mm | Stroke: 19 mm | Work angle: 0° | Type: LFCG
LFCG 65X21-5 Width: 65 mm | Stroke: 21 mm | Work angle: 5° | Type: LFCG
LFCG 65X23-10 Width: 65 mm | Stroke: 23 mm | Work angle: 10° | Type: LFCG
LFCG 65X25-15 Width: 65 mm | Stroke: 25 mm | Work angle: 15° | Type: LFCG
LFCG 65X27-20 Width: 65 mm | Stroke: 27 mm | Work angle: 20° | Type: LFCG
LFCG 65X30-25 Width: 65 mm | Stroke: 30 mm | Work angle: 25° | Type: LFCG
LFCG 65X32-30 Width: 65 mm | Stroke: 32 mm | Work angle: 30° | Type: LFCG
LFCG 65X35-35 Width: 65 mm | Stroke: 35 mm | Work angle: 35° | Type: LFCG
LFCG 65X38-40 Width: 65 mm | Stroke: 38 mm | Work angle: 40° | Type: LFCG
LFCG 65X36-45 Width: 65 mm | Stroke: 36 mm | Work angle: 45° | Type: LFCG
LFCG 65X40-50 Width: 65 mm | Stroke: 40 mm | Work angle: 50° | Type: LFCG
LFCG 65X38-55 Width: 65 mm | Stroke: 38 mm | Work angle: 55° | Type: LFCG
LFCG 65X43-60 Width: 65 mm | Stroke: 43 mm | Work angle: 60° | Type: LFCG
LFCG 80X30-0 Width: 80 mm | Stroke: 30 mm | Work angle: 0° | Type: LFCG
LFCG 80X30-5 Width: 80 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCG
LFCG 80X31-10 Width: 80 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCG
LFCG 80X29-15 Width: 80 mm | Stroke: 29 mm | Work angle: 15° | Type: LFCG
LFCG 80X32-20 Width: 80 mm | Stroke: 32 mm | Work angle: 20° | Type: LFCG
LFCG 80X32-25 Width: 80 mm | Stroke: 32 mm | Work angle: 25° | Type: LFCG
LFCG 80X34-30 Width: 80 mm | Stroke: 34 mm | Work angle: 30° | Type: LFCG
LFCG 80X36-35 Width: 80 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCG
LFCG 80X39-40 Width: 80 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCG
LFCG 80X42-45 Width: 80 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCG
LFCG 80X46-50 Width: 80 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCG
LFCG 80X53-55 Width: 80 mm | Stroke: 53 mm | Work angle: 55° | Type: LFCG
LFCG 80X61-60 Width: 80 mm | Stroke: 61 mm | Work angle: 60° | Type: LFCG
LFCS 65X26-0 Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCS
LFCS 62X29-5 Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCS
LFCS 65X31-10 Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCS
LFCS 65X31-15 Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCS
LFCS 65X33-20 Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCS
LFCS 65X31-25 Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCS
LFCS 65X33-30 Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCS
LFCS 65X39-35 Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCS
LFCS 65X42-40 Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCS
LFCS 65X49-45 Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCS
LFCS 65X54-50 Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCS
LFCS 65X43-55 Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCS
LFCS 65X50-60 Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCS
LFCS 65X59-65 Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCS
LFCS 65X58-70 Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCS
LFCS 100X28-0 Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCS
LFCS 100X30-5 Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCS
LFCS 100X33-10 Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCS
LFCS 100X28-15 Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCS
LFCS 100X30-20 Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCS
LFCS 100X31-25 Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCS
LFCS 100X33-30 Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCS
LFCS 100X36-35 Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCS
LFCS 100X39-40 Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCS
LFCS 100X42-45 Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCS
LFCS 100X46-50 Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCS
LFCS 100X52-55 Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCS
LFCS 100X60-60 Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCS
LFCS 100X59-65 Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCS
LFCS 100X58-70 Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCS
LFCS 200X28-0 Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCS
LFCS 200X30-5 Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCS
LFCS 200X33-10 Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCS
LFCS 200X28-15 Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCS
LFCS 200X30-20 Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCS
LFCS 200X31-25 Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCS
LFCS 200X33-30 Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCS
LFCS 200X36-35 Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCS
LFCS 200X39-40 Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCS
LFCS 200X42-45 Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCS
LFCS 200X46-50 Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCS
LFCS 200X52-55 Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCS
LFCS 200X60-60 Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCS
LFCS 200X59-65 Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCS
LFCS 200X58-70 Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCS
LFCC 65X26-0 Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCC
LFCC 62X29-5 Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCC
LFCC 65X31-10 Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCC
LFCC 65X31-15 Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCC
LFCC 65X33-20 Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCC
LFCC 65X31-25 Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCC
LFCC 65X33-30 Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCC
LFCC 65X39-35 Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCC
LFCC 65X42-40 Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCC
LFCC 65X49-45 Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCC
LFCC 65X54-50 Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCC
LFCC 65X43-55 Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCC
LFCC 65X50-60 Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCC
LFCC 65X59-65 Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCC
LFCC 65X58-70 Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCC
LFCC 100X28-0 Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 100X30-5 Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCC
LFCC 100X33-10 Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCC
LFCC 100X28-15 Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCC
LFCC 100X30-20 Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCC
LFCC 100X31-25 Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCC
LFCC 100X33-30 Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCC
LFCC 100X36-35 Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCC
LFCC 100X39-40 Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCC
LFCC 100X42-45 Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCC
LFCC 100X46-50 Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCC
LFCC 100X52-55 Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCC
LFCC 100X60-60 Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCC
LFCC 100X59-65 Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCC
LFCC 100X58-70 Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCC
LFCC 200X28-0 Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 200X30-5 Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCC
LFCC 200X33-10 Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCC
LFCC 200X28-15 Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCC
LFCC 200X30-20 Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCC
LFCC 200X31-25 Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCC
LFCC 200X33-30 Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCC
LFCC 200X36-35 Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCC
LFCC 200X39-40 Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCC
LFCC 200X42-45 Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCC
LFCC 200X46-50 Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCC
LFCC 200X52-55 Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCC
LFCC 200X60-60 Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCC
LFCC 200X59-65 Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCC
LFCC 200X58-70 Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCC
LFCH 65X26-0 Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCH
LFCH 62X29-5 Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCH
LFCH 65X31-10 Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCH
LFCH 65X31-15 Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCH
LFCH 65X33-20 Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCH
LFCH 65X31-25 Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCH
LFCH 65X33-30 Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCH
LFCH 65X39-35 Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCH
LFCH 65X42-40 Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCH
LFCH 65X49-45 Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCH
LFCH 65X54-50 Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCH
LFCH 65X43-55 Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCH
LFCH 65X50-60 Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCH
LFCH 65X59-65 Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCH
LFCH 65X58-70 Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCH
LFCH 100X28-0 Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 100X30-5 Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCH
LFCH 100X33-10 Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCH
LFCH 100X28-15 Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCH
LFCH 100X30-20 Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCH
LFCH 100X31-25 Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCH
LFCH 100X33-30 Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCH
LFCH 100X36-35 Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCH
LFCH 100X39-40 Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCH
LFCH 100X42-45 Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCH
LFCH 100X46-50 Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCH
LFCH 100X52-55 Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCH
LFCH 100X60-60 Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCH
LFCH 100X59-65 Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCH
LFCH 100X58-70 Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCH
LFCH 200X28-0 Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 200X30-5 Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCH
LFCH 200X33-10 Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCH
LFCH 200X28-15 Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCH
LFCH 200X30-20 Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCH
LFCH 200X31-25 Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCH
LFCH 200X33-30 Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCH
LFCH 200X36-35 Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCH
LFCH 200X39-40 Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCH
LFCH 200X42-45 Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCH
LFCH 200X46-50 Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCH
LFCH 200X52-55 Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCH
LFCH 200X60-60 Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCH
LFCH 200X59-65 Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCH
LFCH 200X58-70 Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCH
LFCCG 65X26-0 Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCCG
LFCCG 62X29-5 Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCCG
LFCCG 65X31-10 Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCCG
LFCCG 65X31-15 Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCCG
LFCCG 65X33-20 Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCCG
LFCCG 65X31-25 Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCCG
LFCCG 65X33-30 Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCCG
LFCCG 65X39-35 Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCCG
LFCCG 65X42-40 Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCCG
LFCCG 65X49-45 Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCCG
LFCCG 65X54-50 Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCCG
LFCCG 65X43-55 Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCCG
LFCCG 65X50-60 Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCCG
LFCCG 65X59-65 Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCCG
LFCCG 65X58-70 Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCCG
LFCCG 100X28-0 Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 100X30-5 Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCCG
LFCCG 100X33-10 Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCCG
LFCCG 100X28-15 Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCCG
LFCCG 100X30-20 Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCCG
LFCCG 100X31-25 Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCCG
LFCCG 100X33-30 Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCCG
LFCCG 100X36-35 Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCCG
LFCCG 100X39-40 Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCCG
LFCCG 100X42-45 Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCCG
LFCCG 100X46-50 Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCCG
LFCCG 100X52-55 Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCCG
LFCCG 100X60-60 Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCCG
LFCCG 100X59-65 Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCCG
LFCCG 100X58-70 Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCCG
LFCCG 200X28-0 Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 200X30-5 Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCCG
LFCCG 200X33-10 Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCCG
LFCCG 200X28-15 Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCCG
LFCCG 200X30-20 Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCCG
LFCCG 200X31-25 Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCCG
LFCCG 200X33-30 Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCCG
LFCCG 200X36-35 Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCCG
LFCCG 200X39-40 Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCCG
LFCCG 200X42-45 Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCCG
LFCCG 200X46-50 Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCCG
LFCCG 200X52-55 Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCCG
LFCCG 200X60-60 Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCCG
LFCCG 200X59-65 Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCCG
LFCCG 200X58-70 Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCCG
LFCHG 65X26-0 Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCHG
LFCHG 62X29-5 Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCHG
LFCHG 65X31-10 Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCHG
LFCHG 65X31-15 Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCHG
LFCHG 65X33-20 Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCHG
LFCHG 65X31-25 Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCHG
LFCHG 65X33-30 Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCHG
LFCHG 65X39-35 Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCHG
LFCHG 65X42-40 Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCHG
LFCHG 65X49-45 Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCHG
LFCHG 65X54-50 Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCHG
LFCHG 65X43-55 Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCHG
LFCHG 65X50-60 Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCHG
LFCHG 65X59-65 Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCHG
LFCHG 65X58-70 Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCHG
LFCHG 100X28-0 Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 100X30-5 Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCHG
LFCHG 100X33-10 Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCHG
LFCHG 100X28-15 Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCHG
LFCHG 100X30-20 Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCHG
LFCHG 100X31-25 Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCHG
LFCHG 100X33-30 Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCHG
LFCHG 100X36-35 Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCHG
LFCHG 100X39-40 Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCHG
LFCHG 100X42-45 Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCHG
LFCHG 100X46-50 Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCHG
LFCHG 100X52-55 Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCHG
LFCHG 100X60-60 Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCHG
LFCHG 100X59-65 Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCHG
LFCHG 100X58-70 Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCHG
LFCHG 200X28-0 Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 200X30-5 Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCHG
LFCHG 200X33-10 Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCHG
LFCHG 200X28-15 Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCHG
LFCHG 200X30-20 Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCHG
LFCHG 200X31-25 Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCHG
LFCHG 200X33-30 Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCHG
LFCHG 200X36-35 Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCHG
LFCHG 200X39-40 Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCHG
LFCHG 200X42-45 Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCHG
LFCHG 200X46-50 Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCHG
LFCHG 200X52-55 Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCHG
LFCHG 200X60-60 Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCHG
LFCHG 200X59-65 Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCHG
LFCHG 200X58-70 Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCHG
LFCC 120X28-0 Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 120X35-10 Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCC
LFCC 120X39-15 Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCC
LFCC 120X52-30 Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCC
LFCC 120X63-40 Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCC
LFCC 120X69-45 Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCC
LFCC 120X77-50 Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCC
LFCC 120X99-60 Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCC
LFCC 180X28-0 Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 180X35-10 Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCC
LFCC 180X39-15 Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCC
LFCC 180X52-30 Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCC
LFCC 180X63-40 Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCC
LFCC 180X69-45 Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCC
LFCC 180X77-50 Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCC
LFCC 180X99-60 Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCC
LFCH 120X28-0 Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 120X35-10 Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCH
LFCH 120X39-15 Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCH
LFCH 120X52-30 Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCH
LFCH 120X63-40 Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCH
LFCH 120X69-45 Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCH
LFCH 120X77-50 Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCH
LFCH 120X99-60 Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCH
LFCH 180X28-0 Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 180X35-10 Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCH
LFCH 180X39-15 Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCH
LFCH 180X52-30 Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCH
LFCH 180X63-40 Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCH
LFCH 180X69-45 Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCH
LFCH 180X77-50 Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCH
LFCH 180X99-60 Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCH
LFCCG 120X28-0 Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 120X35-10 Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCCG
LFCCG 120X39-15 Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCCG
LFCCG 120X52-30 Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCCG
LFCCG 120X63-40 Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCCG
LFCCG 120X69-45 Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCCG
LFCCG 120X77-50 Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCCG
LFCCG 120X99-60 Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCCG
LFCCG 180X28-0 Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 180X35-10 Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCCG
LFCCG 180X39-15 Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCCG
LFCCG 180X52-30 Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCCG
LFCCG 180X63-40 Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCCG
LFCCG 180X69-45 Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCCG
LFCCG 180X77-50 Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCCG
LFCCG 180X99-60 Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCCG
LFCHG 120X28-0 Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 120X35-10 Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCHG
LFCHG 120X39-15 Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCHG
LFCHG 120X52-30 Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCHG
LFCHG 120X63-40 Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCHG
LFCHG 120X69-45 Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCHG
LFCHG 120X77-50 Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCHG
LFCHG 120X99-60 Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCHG
LFCHG 180X28-0 Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 180X35-10 Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCHG
LFCHG 180X39-15 Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCHG
LFCHG 180X52-30 Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCHG
LFCHG 180X63-40 Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCHG
LFCHG 180X69-45 Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCHG
LFCHG 180X77-50 Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCHG
LFCHG 180X99-60 Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCHG
LVCC 90X25 Width: 90 mm | Stroke: 25 mm | Work angle: - | Type: LVCC
LVCC 120X25 Width: 120 mm | Stroke: 25 mm | Work angle: - | Type: LVCC
LVCC 120X35 Width: 120 mm | Stroke: 35 mm | Work angle: - | Type: LVCC
LVCC 120X43 Width: 120 mm | Stroke: 43 mm | Work angle: - | Type: LVCC
LVCC 180X25 Width: 180 mm | Stroke: 25 mm | Work angle: - | Type: LVCC
Cam UnitLuBo
333 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LFCG Aerial Cam Units (Width 50-200 mm)

Brand LuBo·Cam Unit

Available part numbers (333)

LFCG 50X19-0, LFCG 50X21-5, LFCG 50X23-10, LFCG 50X25-15, LFCG 50X27-20, LFCG 50X30-25, LFCG 50X28-30, LFCG 50X30-35, LFCG 50X33-40, LFCG 50X36-45 + 323 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LFCG 50X19-0Width: 50 mm | Stroke: 19 mm | Work angle: 0° | Type: LFCG
LFCG 50X21-5Width: 50 mm | Stroke: 21 mm | Work angle: 5° | Type: LFCG
LFCG 50X23-10Width: 50 mm | Stroke: 23 mm | Work angle: 10° | Type: LFCG
LFCG 50X25-15Width: 50 mm | Stroke: 25 mm | Work angle: 15° | Type: LFCG
LFCG 50X27-20Width: 50 mm | Stroke: 27 mm | Work angle: 20° | Type: LFCG
LFCG 50X30-25Width: 50 mm | Stroke: 30 mm | Work angle: 25° | Type: LFCG
LFCG 50X28-30Width: 50 mm | Stroke: 28 mm | Work angle: 30° | Type: LFCG
LFCG 50X30-35Width: 50 mm | Stroke: 30 mm | Work angle: 35° | Type: LFCG
LFCG 50X33-40Width: 50 mm | Stroke: 33 mm | Work angle: 40° | Type: LFCG
LFCG 50X36-45Width: 50 mm | Stroke: 36 mm | Work angle: 45° | Type: LFCG
LFCG 50X40-50Width: 50 mm | Stroke: 40 mm | Work angle: 50° | Type: LFCG
LFCG 50X45-55Width: 50 mm | Stroke: 45 mm | Work angle: 55° | Type: LFCG
LFCG 50X51-60Width: 50 mm | Stroke: 51 mm | Work angle: 60° | Type: LFCG
LFCG 65X19-0Width: 65 mm | Stroke: 19 mm | Work angle: 0° | Type: LFCG
LFCG 65X21-5Width: 65 mm | Stroke: 21 mm | Work angle: 5° | Type: LFCG
LFCG 65X23-10Width: 65 mm | Stroke: 23 mm | Work angle: 10° | Type: LFCG
LFCG 65X25-15Width: 65 mm | Stroke: 25 mm | Work angle: 15° | Type: LFCG
LFCG 65X27-20Width: 65 mm | Stroke: 27 mm | Work angle: 20° | Type: LFCG
LFCG 65X30-25Width: 65 mm | Stroke: 30 mm | Work angle: 25° | Type: LFCG
LFCG 65X32-30Width: 65 mm | Stroke: 32 mm | Work angle: 30° | Type: LFCG
LFCG 65X35-35Width: 65 mm | Stroke: 35 mm | Work angle: 35° | Type: LFCG
LFCG 65X38-40Width: 65 mm | Stroke: 38 mm | Work angle: 40° | Type: LFCG
LFCG 65X36-45Width: 65 mm | Stroke: 36 mm | Work angle: 45° | Type: LFCG
LFCG 65X40-50Width: 65 mm | Stroke: 40 mm | Work angle: 50° | Type: LFCG
LFCG 65X38-55Width: 65 mm | Stroke: 38 mm | Work angle: 55° | Type: LFCG
LFCG 65X43-60Width: 65 mm | Stroke: 43 mm | Work angle: 60° | Type: LFCG
LFCG 80X30-0Width: 80 mm | Stroke: 30 mm | Work angle: 0° | Type: LFCG
LFCG 80X30-5Width: 80 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCG
LFCG 80X31-10Width: 80 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCG
LFCG 80X29-15Width: 80 mm | Stroke: 29 mm | Work angle: 15° | Type: LFCG
LFCG 80X32-20Width: 80 mm | Stroke: 32 mm | Work angle: 20° | Type: LFCG
LFCG 80X32-25Width: 80 mm | Stroke: 32 mm | Work angle: 25° | Type: LFCG
LFCG 80X34-30Width: 80 mm | Stroke: 34 mm | Work angle: 30° | Type: LFCG
LFCG 80X36-35Width: 80 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCG
LFCG 80X39-40Width: 80 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCG
LFCG 80X42-45Width: 80 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCG
LFCG 80X46-50Width: 80 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCG
LFCG 80X53-55Width: 80 mm | Stroke: 53 mm | Work angle: 55° | Type: LFCG
LFCG 80X61-60Width: 80 mm | Stroke: 61 mm | Work angle: 60° | Type: LFCG
LFCS 65X26-0Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCS
LFCS 62X29-5Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCS
LFCS 65X31-10Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCS
LFCS 65X31-15Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCS
LFCS 65X33-20Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCS
LFCS 65X31-25Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCS
LFCS 65X33-30Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCS
LFCS 65X39-35Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCS
LFCS 65X42-40Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCS
LFCS 65X49-45Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCS
LFCS 65X54-50Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCS
LFCS 65X43-55Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCS
LFCS 65X50-60Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCS
LFCS 65X59-65Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCS
LFCS 65X58-70Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCS
LFCS 100X28-0Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCS
LFCS 100X30-5Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCS
LFCS 100X33-10Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCS
LFCS 100X28-15Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCS
LFCS 100X30-20Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCS
LFCS 100X31-25Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCS
LFCS 100X33-30Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCS
LFCS 100X36-35Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCS
LFCS 100X39-40Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCS
LFCS 100X42-45Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCS
LFCS 100X46-50Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCS
LFCS 100X52-55Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCS
LFCS 100X60-60Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCS
LFCS 100X59-65Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCS
LFCS 100X58-70Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCS
LFCS 200X28-0Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCS
LFCS 200X30-5Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCS
LFCS 200X33-10Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCS
LFCS 200X28-15Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCS
LFCS 200X30-20Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCS
LFCS 200X31-25Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCS
LFCS 200X33-30Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCS
LFCS 200X36-35Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCS
LFCS 200X39-40Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCS
LFCS 200X42-45Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCS
LFCS 200X46-50Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCS
LFCS 200X52-55Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCS
LFCS 200X60-60Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCS
LFCS 200X59-65Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCS
LFCS 200X58-70Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCS
LFCC 65X26-0Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCC
LFCC 62X29-5Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCC
LFCC 65X31-10Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCC
LFCC 65X31-15Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCC
LFCC 65X33-20Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCC
LFCC 65X31-25Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCC
LFCC 65X33-30Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCC
LFCC 65X39-35Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCC
LFCC 65X42-40Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCC
LFCC 65X49-45Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCC
LFCC 65X54-50Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCC
LFCC 65X43-55Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCC
LFCC 65X50-60Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCC
LFCC 65X59-65Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCC
LFCC 65X58-70Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCC
LFCC 100X28-0Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 100X30-5Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCC
LFCC 100X33-10Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCC
LFCC 100X28-15Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCC
LFCC 100X30-20Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCC
LFCC 100X31-25Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCC
LFCC 100X33-30Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCC
LFCC 100X36-35Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCC
LFCC 100X39-40Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCC
LFCC 100X42-45Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCC
LFCC 100X46-50Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCC
LFCC 100X52-55Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCC
LFCC 100X60-60Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCC
LFCC 100X59-65Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCC
LFCC 100X58-70Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCC
LFCC 200X28-0Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 200X30-5Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCC
LFCC 200X33-10Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCC
LFCC 200X28-15Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCC
LFCC 200X30-20Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCC
LFCC 200X31-25Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCC
LFCC 200X33-30Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCC
LFCC 200X36-35Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCC
LFCC 200X39-40Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCC
LFCC 200X42-45Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCC
LFCC 200X46-50Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCC
LFCC 200X52-55Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCC
LFCC 200X60-60Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCC
LFCC 200X59-65Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCC
LFCC 200X58-70Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCC
LFCH 65X26-0Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCH
LFCH 62X29-5Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCH
LFCH 65X31-10Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCH
LFCH 65X31-15Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCH
LFCH 65X33-20Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCH
LFCH 65X31-25Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCH
LFCH 65X33-30Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCH
LFCH 65X39-35Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCH
LFCH 65X42-40Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCH
LFCH 65X49-45Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCH
LFCH 65X54-50Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCH
LFCH 65X43-55Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCH
LFCH 65X50-60Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCH
LFCH 65X59-65Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCH
LFCH 65X58-70Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCH
LFCH 100X28-0Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 100X30-5Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCH
LFCH 100X33-10Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCH
LFCH 100X28-15Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCH
LFCH 100X30-20Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCH
LFCH 100X31-25Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCH
LFCH 100X33-30Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCH
LFCH 100X36-35Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCH
LFCH 100X39-40Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCH
LFCH 100X42-45Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCH
LFCH 100X46-50Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCH
LFCH 100X52-55Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCH
LFCH 100X60-60Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCH
LFCH 100X59-65Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCH
LFCH 100X58-70Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCH
LFCH 200X28-0Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 200X30-5Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCH
LFCH 200X33-10Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCH
LFCH 200X28-15Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCH
LFCH 200X30-20Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCH
LFCH 200X31-25Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCH
LFCH 200X33-30Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCH
LFCH 200X36-35Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCH
LFCH 200X39-40Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCH
LFCH 200X42-45Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCH
LFCH 200X46-50Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCH
LFCH 200X52-55Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCH
LFCH 200X60-60Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCH
LFCH 200X59-65Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCH
LFCH 200X58-70Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCH
LFCCG 65X26-0Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCCG
LFCCG 62X29-5Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCCG
LFCCG 65X31-10Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCCG
LFCCG 65X31-15Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCCG
LFCCG 65X33-20Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCCG
LFCCG 65X31-25Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCCG
LFCCG 65X33-30Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCCG
LFCCG 65X39-35Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCCG
LFCCG 65X42-40Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCCG
LFCCG 65X49-45Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCCG
LFCCG 65X54-50Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCCG
LFCCG 65X43-55Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCCG
LFCCG 65X50-60Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCCG
LFCCG 65X59-65Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCCG
LFCCG 65X58-70Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCCG
LFCCG 100X28-0Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 100X30-5Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCCG
LFCCG 100X33-10Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCCG
LFCCG 100X28-15Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCCG
LFCCG 100X30-20Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCCG
LFCCG 100X31-25Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCCG
LFCCG 100X33-30Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCCG
LFCCG 100X36-35Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCCG
LFCCG 100X39-40Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCCG
LFCCG 100X42-45Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCCG
LFCCG 100X46-50Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCCG
LFCCG 100X52-55Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCCG
LFCCG 100X60-60Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCCG
LFCCG 100X59-65Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCCG
LFCCG 100X58-70Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCCG
LFCCG 200X28-0Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 200X30-5Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCCG
LFCCG 200X33-10Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCCG
LFCCG 200X28-15Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCCG
LFCCG 200X30-20Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCCG
LFCCG 200X31-25Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCCG
LFCCG 200X33-30Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCCG
LFCCG 200X36-35Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCCG
LFCCG 200X39-40Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCCG
LFCCG 200X42-45Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCCG
LFCCG 200X46-50Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCCG
LFCCG 200X52-55Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCCG
LFCCG 200X60-60Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCCG
LFCCG 200X59-65Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCCG
LFCCG 200X58-70Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCCG
LFCHG 65X26-0Width: 65 mm | Stroke: 26 mm | Work angle: 0° | Type: LFCHG
LFCHG 62X29-5Width: 62 mm | Stroke: 29 mm | Work angle: 5° | Type: LFCHG
LFCHG 65X31-10Width: 65 mm | Stroke: 31 mm | Work angle: 10° | Type: LFCHG
LFCHG 65X31-15Width: 65 mm | Stroke: 31 mm | Work angle: 15° | Type: LFCHG
LFCHG 65X33-20Width: 65 mm | Stroke: 33 mm | Work angle: 20° | Type: LFCHG
LFCHG 65X31-25Width: 65 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCHG
LFCHG 65X33-30Width: 65 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCHG
LFCHG 65X39-35Width: 65 mm | Stroke: 39 mm | Work angle: 35° | Type: LFCHG
LFCHG 65X42-40Width: 65 mm | Stroke: 42 mm | Work angle: 40° | Type: LFCHG
LFCHG 65X49-45Width: 65 mm | Stroke: 49 mm | Work angle: 45° | Type: LFCHG
LFCHG 65X54-50Width: 65 mm | Stroke: 54 mm | Work angle: 50° | Type: LFCHG
LFCHG 65X43-55Width: 65 mm | Stroke: 43 mm | Work angle: 55° | Type: LFCHG
LFCHG 65X50-60Width: 65 mm | Stroke: 50 mm | Work angle: 60° | Type: LFCHG
LFCHG 65X59-65Width: 65 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCHG
LFCHG 65X58-70Width: 65 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCHG
LFCHG 100X28-0Width: 100 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 100X30-5Width: 100 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCHG
LFCHG 100X33-10Width: 100 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCHG
LFCHG 100X28-15Width: 100 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCHG
LFCHG 100X30-20Width: 100 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCHG
LFCHG 100X31-25Width: 100 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCHG
LFCHG 100X33-30Width: 100 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCHG
LFCHG 100X36-35Width: 100 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCHG
LFCHG 100X39-40Width: 100 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCHG
LFCHG 100X42-45Width: 100 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCHG
LFCHG 100X46-50Width: 100 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCHG
LFCHG 100X52-55Width: 100 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCHG
LFCHG 100X60-60Width: 100 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCHG
LFCHG 100X59-65Width: 100 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCHG
LFCHG 100X58-70Width: 100 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCHG
LFCHG 200X28-0Width: 200 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 200X30-5Width: 200 mm | Stroke: 30 mm | Work angle: 5° | Type: LFCHG
LFCHG 200X33-10Width: 200 mm | Stroke: 33 mm | Work angle: 10° | Type: LFCHG
LFCHG 200X28-15Width: 200 mm | Stroke: 28 mm | Work angle: 15° | Type: LFCHG
LFCHG 200X30-20Width: 200 mm | Stroke: 30 mm | Work angle: 20° | Type: LFCHG
LFCHG 200X31-25Width: 200 mm | Stroke: 31 mm | Work angle: 25° | Type: LFCHG
LFCHG 200X33-30Width: 200 mm | Stroke: 33 mm | Work angle: 30° | Type: LFCHG
LFCHG 200X36-35Width: 200 mm | Stroke: 36 mm | Work angle: 35° | Type: LFCHG
LFCHG 200X39-40Width: 200 mm | Stroke: 39 mm | Work angle: 40° | Type: LFCHG
LFCHG 200X42-45Width: 200 mm | Stroke: 42 mm | Work angle: 45° | Type: LFCHG
LFCHG 200X46-50Width: 200 mm | Stroke: 46 mm | Work angle: 50° | Type: LFCHG
LFCHG 200X52-55Width: 200 mm | Stroke: 52 mm | Work angle: 55° | Type: LFCHG
LFCHG 200X60-60Width: 200 mm | Stroke: 60 mm | Work angle: 60° | Type: LFCHG
LFCHG 200X59-65Width: 200 mm | Stroke: 59 mm | Work angle: 65° | Type: LFCHG
LFCHG 200X58-70Width: 200 mm | Stroke: 58 mm | Work angle: 70° | Type: LFCHG
LFCC 120X28-0Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 120X35-10Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCC
LFCC 120X39-15Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCC
LFCC 120X52-30Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCC
LFCC 120X63-40Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCC
LFCC 120X69-45Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCC
LFCC 120X77-50Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCC
LFCC 120X99-60Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCC
LFCC 180X28-0Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCC
LFCC 180X35-10Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCC
LFCC 180X39-15Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCC
LFCC 180X52-30Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCC
LFCC 180X63-40Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCC
LFCC 180X69-45Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCC
LFCC 180X77-50Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCC
LFCC 180X99-60Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCC
LFCH 120X28-0Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 120X35-10Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCH
LFCH 120X39-15Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCH
LFCH 120X52-30Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCH
LFCH 120X63-40Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCH
LFCH 120X69-45Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCH
LFCH 120X77-50Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCH
LFCH 120X99-60Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCH
LFCH 180X28-0Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCH
LFCH 180X35-10Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCH
LFCH 180X39-15Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCH
LFCH 180X52-30Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCH
LFCH 180X63-40Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCH
LFCH 180X69-45Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCH
LFCH 180X77-50Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCH
LFCH 180X99-60Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCH
LFCCG 120X28-0Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 120X35-10Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCCG
LFCCG 120X39-15Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCCG
LFCCG 120X52-30Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCCG
LFCCG 120X63-40Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCCG
LFCCG 120X69-45Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCCG
LFCCG 120X77-50Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCCG
LFCCG 120X99-60Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCCG
LFCCG 180X28-0Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCCG
LFCCG 180X35-10Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCCG
LFCCG 180X39-15Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCCG
LFCCG 180X52-30Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCCG
LFCCG 180X63-40Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCCG
LFCCG 180X69-45Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCCG
LFCCG 180X77-50Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCCG
LFCCG 180X99-60Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCCG
LFCHG 120X28-0Width: 120 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 120X35-10Width: 120 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCHG
LFCHG 120X39-15Width: 120 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCHG
LFCHG 120X52-30Width: 120 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCHG
LFCHG 120X63-40Width: 120 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCHG
LFCHG 120X69-45Width: 120 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCHG
LFCHG 120X77-50Width: 120 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCHG
LFCHG 120X99-60Width: 120 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCHG
LFCHG 180X28-0Width: 180 mm | Stroke: 28 mm | Work angle: 0° | Type: LFCHG
LFCHG 180X35-10Width: 180 mm | Stroke: 35 mm | Work angle: 10° | Type: LFCHG
LFCHG 180X39-15Width: 180 mm | Stroke: 39 mm | Work angle: 15° | Type: LFCHG
LFCHG 180X52-30Width: 180 mm | Stroke: 52 mm | Work angle: 30° | Type: LFCHG
LFCHG 180X63-40Width: 180 mm | Stroke: 63 mm | Work angle: 40° | Type: LFCHG
LFCHG 180X69-45Width: 180 mm | Stroke: 69 mm | Work angle: 45° | Type: LFCHG
LFCHG 180X77-50Width: 180 mm | Stroke: 77 mm | Work angle: 50° | Type: LFCHG
LFCHG 180X99-60Width: 180 mm | Stroke: 99 mm | Work angle: 60° | Type: LFCHG
LVCC 90X25Width: 90 mm | Stroke: 25 mm | Work angle: - | Type: LVCC
LVCC 120X25Width: 120 mm | Stroke: 25 mm | Work angle: - | Type: LVCC
LVCC 120X35Width: 120 mm | Stroke: 35 mm | Work angle: - | Type: LVCC
LVCC 120X43Width: 120 mm | Stroke: 43 mm | Work angle: - | Type: LVCC
LVCC 180X25Width: 180 mm | Stroke: 25 mm | Work angle: - | Type: LVCC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
