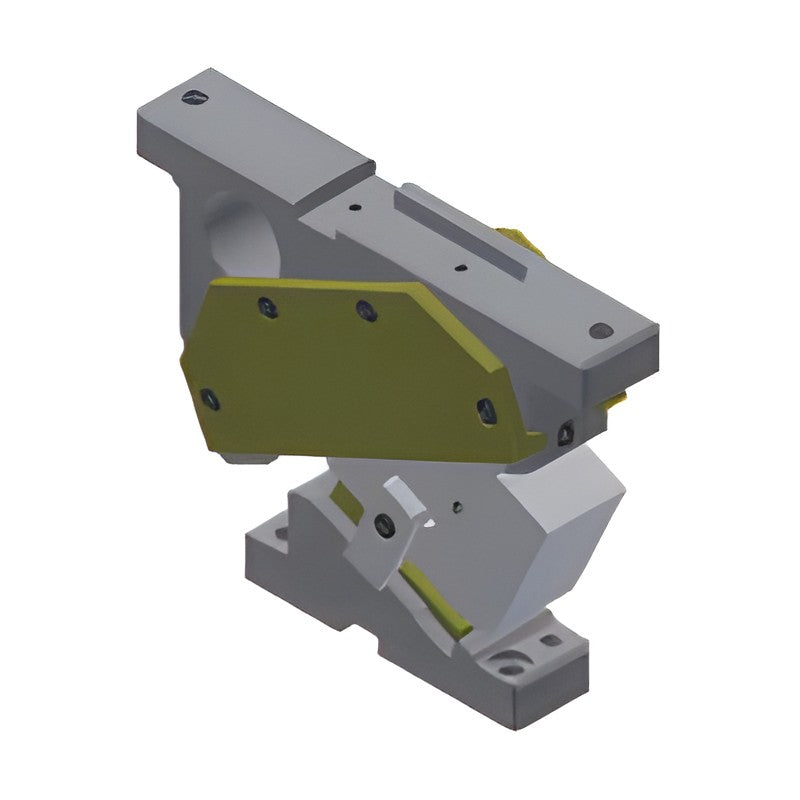

LuBo LFCV / LFCA / LFCG Aerial NAAMS Cam Units (Width 50-300 mm)

LuBo LFCV / LFCA / LFCG Aerial NAAMS Cam Units (Width 50-300 mm)

LuBo LFCV / LFCA / LFCG Aerial NAAMS Cam Units from the LuBo Cam Units catalogue, listed in 195 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Aerial NAAMS Cam Units - series LFCV / LFCA / LFCG
  • Standardized cam unit for press die side-piercing, trimming and flanging
  • Size, stroke and work angle selected from the catalogue table
  • Mounting dimensions per LuBo cam unit drawings
  • 195 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LFCV / LFCA / LFCG
Product Aerial NAAMS Cam Units
Catalogue chapter Cam Units
Orderable codes 195
Size range Width 50-300 mm
Code example LFCV 50X26-0
Row spec keys Width, Stroke, Work angle, Options
Source LuBo Cam Units catalogue
LFCV 50X26-0 Width: 50 mm | Stroke: 26 mm | Work angle: 0° | Options: -B/-L
LFCV 50X28-5 Width: 50 mm | Stroke: 28 mm | Work angle: 5° | Options: -B/-L
LFCV 50X31-10 Width: 50 mm | Stroke: 31 mm | Work angle: 10° | Options: -B/-L
LFCV 50X34-15 Width: 50 mm | Stroke: 34 mm | Work angle: 15° | Options: -B/-L
LFCV 50X37-20 Width: 50 mm | Stroke: 37 mm | Work angle: 20° | Options: -B/-L
LFCV 50X40-25 Width: 50 mm | Stroke: 40 mm | Work angle: 25° | Options: -B/-L
LFCV 50X43-30 Width: 50 mm | Stroke: 43 mm | Work angle: 30° | Options: -B/-L
LFCV 50X47-35 Width: 50 mm | Stroke: 47 mm | Work angle: 35° | Options: -B/-L
LFCV 50X51-40 Width: 50 mm | Stroke: 51 mm | Work angle: 40° | Options: -B/-L
LFCV 50X56-45 Width: 50 mm | Stroke: 56 mm | Work angle: 45° | Options: -B/-L
LFCV 50X62-50 Width: 50 mm | Stroke: 62 mm | Work angle: 50° | Options: -B/-L
LFCV 50X70-55 Width: 50 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCV 50X60-60 Width: 50 mm | Stroke: 60 mm | Work angle: 60° | Options: -B/-L
LFCV 75X32-0 Width: 75 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCV 75X35-5 Width: 75 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCV 75X39-10 Width: 75 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCV 75X42-15 Width: 75 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCV 75X46-20 Width: 75 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCV 75X50-25 Width: 75 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCV 75X54-30 Width: 75 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCV 75X59-35 Width: 75 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCV 75X64-40 Width: 75 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCV 75X70-45 Width: 75 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCV 75X78-50 Width: 75 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCV 75X70-55 Width: 75 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCV 75X80-60 Width: 75 mm | Stroke: 80 mm | Work angle: 60° | Options: -B/-L
LFCV 150X32-0 Width: 150 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCV 150X35-5 Width: 150 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCV 150X39-10 Width: 150 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCV 150X42-15 Width: 150 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCV 150X46-20 Width: 150 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCV 150X50-25 Width: 150 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCV 150X54-30 Width: 150 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCV 150X59-35 Width: 150 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCV 150X64-40 Width: 150 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCV 150X70-45 Width: 150 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCV 150X78-50 Width: 150 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCV 150X87-55 Width: 150 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCV 150X100-60 Width: 150 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCV 200X32-0 Width: 200 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCV 200X35-5 Width: 200 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCV 200X39-10 Width: 200 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCV 200X42-15 Width: 200 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCV 200X46-20 Width: 200 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCV 200X50-25 Width: 200 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCV 200X54-30 Width: 200 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCV 200X59-35 Width: 200 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCV 200X64-40 Width: 200 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCV 200X70-45 Width: 200 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCV 200X78-50 Width: 200 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCV 200X87-55 Width: 200 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCV 200X100-60 Width: 200 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCV 300X38-0 Width: 300 mm | Stroke: 38 mm | Work angle: 0° | Options: -L
LFCV 300X42-5 Width: 300 mm | Stroke: 42 mm | Work angle: 5° | Options: -L
LFCV 300X46-10 Width: 300 mm | Stroke: 46 mm | Work angle: 10° | Options: -L
LFCV 300X51-15 Width: 300 mm | Stroke: 51 mm | Work angle: 15° | Options: -L
LFCV 300X55-20 Width: 300 mm | Stroke: 55 mm | Work angle: 20° | Options: -L
LFCV 300X50-25 Width: 300 mm | Stroke: 50 mm | Work angle: 25° | Options: -L
LFCV 300X54-30 Width: 300 mm | Stroke: 54 mm | Work angle: 30° | Options: -L
LFCV 300X59-35 Width: 300 mm | Stroke: 59 mm | Work angle: 35° | Options: -L
LFCV 300X64-40 Width: 300 mm | Stroke: 64 mm | Work angle: 40° | Options: -L
LFCV 300X70-45 Width: 300 mm | Stroke: 70 mm | Work angle: 45° | Options: -L
LFCV 300X78-50 Width: 300 mm | Stroke: 78 mm | Work angle: 50° | Options: -L
LFCV 300X87-55 Width: 300 mm | Stroke: 87 mm | Work angle: 55° | Options: -L
LFCV 300X100-60 Width: 300 mm | Stroke: 100 mm | Work angle: 60° | Options: -L
LFCA 50X26-0 Width: 50 mm | Stroke: 26 mm | Work angle: 0° | Options: -B/-L
LFCA 50X28-5 Width: 50 mm | Stroke: 28 mm | Work angle: 5° | Options: -B/-L
LFCA 50X31-10 Width: 50 mm | Stroke: 31 mm | Work angle: 10° | Options: -B/-L
LFCA 50X34-15 Width: 50 mm | Stroke: 34 mm | Work angle: 15° | Options: -B/-L
LFCA 50X37-20 Width: 50 mm | Stroke: 37 mm | Work angle: 20° | Options: -B/-L
LFCA 50X40-25 Width: 50 mm | Stroke: 40 mm | Work angle: 25° | Options: -B/-L
LFCA 50X43-30 Width: 50 mm | Stroke: 43 mm | Work angle: 30° | Options: -B/-L
LFCA 50X47-35 Width: 50 mm | Stroke: 47 mm | Work angle: 35° | Options: -B/-L
LFCA 50X51-40 Width: 50 mm | Stroke: 51 mm | Work angle: 40° | Options: -B/-L
LFCA 50X56-45 Width: 50 mm | Stroke: 56 mm | Work angle: 45° | Options: -B/-L
LFCA 50X62-50 Width: 50 mm | Stroke: 62 mm | Work angle: 50° | Options: -B/-L
LFCA 50X70-55 Width: 50 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCA 50X60-60 Width: 50 mm | Stroke: 60 mm | Work angle: 60° | Options: -B/-L
LFCA 75X32-0 Width: 75 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCA 75X35-5 Width: 75 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCA 75X39-10 Width: 75 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCA 75X42-15 Width: 75 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCA 75X46-20 Width: 75 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCA 75X50-25 Width: 75 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCA 75X54-30 Width: 75 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCA 75X59-35 Width: 75 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCA 75X64-40 Width: 75 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCA 75X70-45 Width: 75 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCA 75X78-50 Width: 75 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCA 75X70-55 Width: 75 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCA 75X80-60 Width: 75 mm | Stroke: 80 mm | Work angle: 60° | Options: -B/-L
LFCA 150X32-0 Width: 150 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCA 150X35-5 Width: 150 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCA 150X39-10 Width: 150 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCA 150X42-15 Width: 150 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCA 150X46-20 Width: 150 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCA 150X50-25 Width: 150 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCA 150X54-30 Width: 150 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCA 150X59-35 Width: 150 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCA 150X64-40 Width: 150 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCA 150X70-45 Width: 150 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCA 150X78-50 Width: 150 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCA 150X87-55 Width: 150 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCA 150X100-60 Width: 150 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCA 200X32-0 Width: 200 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCA 200X35-5 Width: 200 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCA 200X39-10 Width: 200 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCA 200X42-15 Width: 200 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCA 200X46-20 Width: 200 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCA 200X50-25 Width: 200 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCA 200X54-30 Width: 200 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCA 200X59-35 Width: 200 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCA 200X64-40 Width: 200 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCA 200X70-45 Width: 200 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCA 200X78-50 Width: 200 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCA 200X87-55 Width: 200 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCA 200X100-60 Width: 200 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCA 300X38-0 Width: 300 mm | Stroke: 38 mm | Work angle: 0° | Options: -L
LFCA 300X42-5 Width: 300 mm | Stroke: 42 mm | Work angle: 5° | Options: -L
LFCA 300X46-10 Width: 300 mm | Stroke: 46 mm | Work angle: 10° | Options: -L
LFCA 300X51-15 Width: 300 mm | Stroke: 51 mm | Work angle: 15° | Options: -L
LFCA 300X55-20 Width: 300 mm | Stroke: 55 mm | Work angle: 20° | Options: -L
LFCA 300X50-25 Width: 300 mm | Stroke: 50 mm | Work angle: 25° | Options: -L
LFCA 300X54-30 Width: 300 mm | Stroke: 54 mm | Work angle: 30° | Options: -L
LFCA 300X59-35 Width: 300 mm | Stroke: 59 mm | Work angle: 35° | Options: -L
LFCA 300X64-40 Width: 300 mm | Stroke: 64 mm | Work angle: 40° | Options: -L
LFCA 300X70-45 Width: 300 mm | Stroke: 70 mm | Work angle: 45° | Options: -L
LFCA 300X78-50 Width: 300 mm | Stroke: 78 mm | Work angle: 50° | Options: -L
LFCA 300X87-55 Width: 300 mm | Stroke: 87 mm | Work angle: 55° | Options: -L
LFCA 300X100-60 Width: 300 mm | Stroke: 100 mm | Work angle: 60° | Options: -L
LFCG 50X26-0 Width: 50 mm | Stroke: 26 mm | Work angle: 0° | Options: -B/-L
LFCG 50X28-5 Width: 50 mm | Stroke: 28 mm | Work angle: 5° | Options: -B/-L
LFCG 50X31-10 Width: 50 mm | Stroke: 31 mm | Work angle: 10° | Options: -B/-L
LFCG 50X34-15 Width: 50 mm | Stroke: 34 mm | Work angle: 15° | Options: -B/-L
LFCG 50X37-20 Width: 50 mm | Stroke: 37 mm | Work angle: 20° | Options: -B/-L
LFCG 50X40-25 Width: 50 mm | Stroke: 40 mm | Work angle: 25° | Options: -B/-L
LFCG 50X43-30 Width: 50 mm | Stroke: 43 mm | Work angle: 30° | Options: -B/-L
LFCG 50X47-35 Width: 50 mm | Stroke: 47 mm | Work angle: 35° | Options: -B/-L
LFCG 50X51-40 Width: 50 mm | Stroke: 51 mm | Work angle: 40° | Options: -B/-L
LFCG 50X56-45 Width: 50 mm | Stroke: 56 mm | Work angle: 45° | Options: -B/-L
LFCG 50X62-50 Width: 50 mm | Stroke: 62 mm | Work angle: 50° | Options: -B/-L
LFCG 50X70-55 Width: 50 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCG 50X60-60 Width: 50 mm | Stroke: 60 mm | Work angle: 60° | Options: -B/-L
LFCG 75X32-0 Width: 75 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCG 75X35-5 Width: 75 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCG 75X39-10 Width: 75 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCG 75X42-15 Width: 75 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCG 75X46-20 Width: 75 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCG 75X50-25 Width: 75 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCG 75X54-30 Width: 75 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCG 75X59-35 Width: 75 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCG 75X64-40 Width: 75 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCG 75X70-45 Width: 75 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCG 75X78-50 Width: 75 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCG 75X70-55 Width: 75 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCG 75X80-60 Width: 75 mm | Stroke: 80 mm | Work angle: 60° | Options: -B/-L
LFCG 150X32-0 Width: 150 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCG 150X35-5 Width: 150 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCG 150X39-10 Width: 150 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCG 150X42-15 Width: 150 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCG 150X46-20 Width: 150 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCG 150X50-25 Width: 150 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCG 150X54-30 Width: 150 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCG 150X59-35 Width: 150 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCG 150X64-40 Width: 150 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCG 150X70-45 Width: 150 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCG 150X78-50 Width: 150 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCG 150X87-55 Width: 150 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCG 150X100-60 Width: 150 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCG 200X32-0 Width: 200 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCG 200X35-5 Width: 200 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCG 200X39-10 Width: 200 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCG 200X42-15 Width: 200 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCG 200X46-20 Width: 200 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCG 200X50-25 Width: 200 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCG 200X54-30 Width: 200 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCG 200X59-35 Width: 200 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCG 200X64-40 Width: 200 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCG 200X70-45 Width: 200 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCG 200X78-50 Width: 200 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCG 200X87-55 Width: 200 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCG 200X100-60 Width: 200 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCG 300X38-0 Width: 300 mm | Stroke: 38 mm | Work angle: 0° | Options: -L
LFCG 300X42-5 Width: 300 mm | Stroke: 42 mm | Work angle: 5° | Options: -L
LFCG 300X46-10 Width: 300 mm | Stroke: 46 mm | Work angle: 10° | Options: -L
LFCG 300X51-15 Width: 300 mm | Stroke: 51 mm | Work angle: 15° | Options: -L
LFCG 300X55-20 Width: 300 mm | Stroke: 55 mm | Work angle: 20° | Options: -L
LFCG 300X50-25 Width: 300 mm | Stroke: 50 mm | Work angle: 25° | Options: -L
LFCG 300X54-30 Width: 300 mm | Stroke: 54 mm | Work angle: 30° | Options: -L
LFCG 300X59-35 Width: 300 mm | Stroke: 59 mm | Work angle: 35° | Options: -L
LFCG 300X64-40 Width: 300 mm | Stroke: 64 mm | Work angle: 40° | Options: -L
LFCG 300X70-45 Width: 300 mm | Stroke: 70 mm | Work angle: 45° | Options: -L
LFCG 300X78-50 Width: 300 mm | Stroke: 78 mm | Work angle: 50° | Options: -L
LFCG 300X87-55 Width: 300 mm | Stroke: 87 mm | Work angle: 55° | Options: -L
LFCG 300X100-60 Width: 300 mm | Stroke: 100 mm | Work angle: 60° | Options: -L
Cam UnitLuBo
195 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LFCV / LFCA / LFCG Aerial NAAMS Cam Units (Width 50-300 mm)

Brand LuBo·Cam Unit

Available part numbers (195)

LFCV 50X26-0, LFCV 50X28-5, LFCV 50X31-10, LFCV 50X34-15, LFCV 50X37-20, LFCV 50X40-25, LFCV 50X43-30, LFCV 50X47-35, LFCV 50X51-40, LFCV 50X56-45 + 185 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LFCV 50X26-0Width: 50 mm | Stroke: 26 mm | Work angle: 0° | Options: -B/-L
LFCV 50X28-5Width: 50 mm | Stroke: 28 mm | Work angle: 5° | Options: -B/-L
LFCV 50X31-10Width: 50 mm | Stroke: 31 mm | Work angle: 10° | Options: -B/-L
LFCV 50X34-15Width: 50 mm | Stroke: 34 mm | Work angle: 15° | Options: -B/-L
LFCV 50X37-20Width: 50 mm | Stroke: 37 mm | Work angle: 20° | Options: -B/-L
LFCV 50X40-25Width: 50 mm | Stroke: 40 mm | Work angle: 25° | Options: -B/-L
LFCV 50X43-30Width: 50 mm | Stroke: 43 mm | Work angle: 30° | Options: -B/-L
LFCV 50X47-35Width: 50 mm | Stroke: 47 mm | Work angle: 35° | Options: -B/-L
LFCV 50X51-40Width: 50 mm | Stroke: 51 mm | Work angle: 40° | Options: -B/-L
LFCV 50X56-45Width: 50 mm | Stroke: 56 mm | Work angle: 45° | Options: -B/-L
LFCV 50X62-50Width: 50 mm | Stroke: 62 mm | Work angle: 50° | Options: -B/-L
LFCV 50X70-55Width: 50 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCV 50X60-60Width: 50 mm | Stroke: 60 mm | Work angle: 60° | Options: -B/-L
LFCV 75X32-0Width: 75 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCV 75X35-5Width: 75 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCV 75X39-10Width: 75 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCV 75X42-15Width: 75 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCV 75X46-20Width: 75 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCV 75X50-25Width: 75 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCV 75X54-30Width: 75 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCV 75X59-35Width: 75 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCV 75X64-40Width: 75 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCV 75X70-45Width: 75 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCV 75X78-50Width: 75 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCV 75X70-55Width: 75 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCV 75X80-60Width: 75 mm | Stroke: 80 mm | Work angle: 60° | Options: -B/-L
LFCV 150X32-0Width: 150 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCV 150X35-5Width: 150 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCV 150X39-10Width: 150 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCV 150X42-15Width: 150 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCV 150X46-20Width: 150 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCV 150X50-25Width: 150 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCV 150X54-30Width: 150 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCV 150X59-35Width: 150 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCV 150X64-40Width: 150 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCV 150X70-45Width: 150 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCV 150X78-50Width: 150 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCV 150X87-55Width: 150 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCV 150X100-60Width: 150 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCV 200X32-0Width: 200 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCV 200X35-5Width: 200 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCV 200X39-10Width: 200 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCV 200X42-15Width: 200 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCV 200X46-20Width: 200 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCV 200X50-25Width: 200 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCV 200X54-30Width: 200 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCV 200X59-35Width: 200 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCV 200X64-40Width: 200 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCV 200X70-45Width: 200 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCV 200X78-50Width: 200 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCV 200X87-55Width: 200 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCV 200X100-60Width: 200 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCV 300X38-0Width: 300 mm | Stroke: 38 mm | Work angle: 0° | Options: -L
LFCV 300X42-5Width: 300 mm | Stroke: 42 mm | Work angle: 5° | Options: -L
LFCV 300X46-10Width: 300 mm | Stroke: 46 mm | Work angle: 10° | Options: -L
LFCV 300X51-15Width: 300 mm | Stroke: 51 mm | Work angle: 15° | Options: -L
LFCV 300X55-20Width: 300 mm | Stroke: 55 mm | Work angle: 20° | Options: -L
LFCV 300X50-25Width: 300 mm | Stroke: 50 mm | Work angle: 25° | Options: -L
LFCV 300X54-30Width: 300 mm | Stroke: 54 mm | Work angle: 30° | Options: -L
LFCV 300X59-35Width: 300 mm | Stroke: 59 mm | Work angle: 35° | Options: -L
LFCV 300X64-40Width: 300 mm | Stroke: 64 mm | Work angle: 40° | Options: -L
LFCV 300X70-45Width: 300 mm | Stroke: 70 mm | Work angle: 45° | Options: -L
LFCV 300X78-50Width: 300 mm | Stroke: 78 mm | Work angle: 50° | Options: -L
LFCV 300X87-55Width: 300 mm | Stroke: 87 mm | Work angle: 55° | Options: -L
LFCV 300X100-60Width: 300 mm | Stroke: 100 mm | Work angle: 60° | Options: -L
LFCA 50X26-0Width: 50 mm | Stroke: 26 mm | Work angle: 0° | Options: -B/-L
LFCA 50X28-5Width: 50 mm | Stroke: 28 mm | Work angle: 5° | Options: -B/-L
LFCA 50X31-10Width: 50 mm | Stroke: 31 mm | Work angle: 10° | Options: -B/-L
LFCA 50X34-15Width: 50 mm | Stroke: 34 mm | Work angle: 15° | Options: -B/-L
LFCA 50X37-20Width: 50 mm | Stroke: 37 mm | Work angle: 20° | Options: -B/-L
LFCA 50X40-25Width: 50 mm | Stroke: 40 mm | Work angle: 25° | Options: -B/-L
LFCA 50X43-30Width: 50 mm | Stroke: 43 mm | Work angle: 30° | Options: -B/-L
LFCA 50X47-35Width: 50 mm | Stroke: 47 mm | Work angle: 35° | Options: -B/-L
LFCA 50X51-40Width: 50 mm | Stroke: 51 mm | Work angle: 40° | Options: -B/-L
LFCA 50X56-45Width: 50 mm | Stroke: 56 mm | Work angle: 45° | Options: -B/-L
LFCA 50X62-50Width: 50 mm | Stroke: 62 mm | Work angle: 50° | Options: -B/-L
LFCA 50X70-55Width: 50 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCA 50X60-60Width: 50 mm | Stroke: 60 mm | Work angle: 60° | Options: -B/-L
LFCA 75X32-0Width: 75 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCA 75X35-5Width: 75 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCA 75X39-10Width: 75 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCA 75X42-15Width: 75 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCA 75X46-20Width: 75 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCA 75X50-25Width: 75 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCA 75X54-30Width: 75 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCA 75X59-35Width: 75 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCA 75X64-40Width: 75 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCA 75X70-45Width: 75 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCA 75X78-50Width: 75 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCA 75X70-55Width: 75 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCA 75X80-60Width: 75 mm | Stroke: 80 mm | Work angle: 60° | Options: -B/-L
LFCA 150X32-0Width: 150 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCA 150X35-5Width: 150 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCA 150X39-10Width: 150 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCA 150X42-15Width: 150 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCA 150X46-20Width: 150 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCA 150X50-25Width: 150 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCA 150X54-30Width: 150 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCA 150X59-35Width: 150 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCA 150X64-40Width: 150 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCA 150X70-45Width: 150 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCA 150X78-50Width: 150 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCA 150X87-55Width: 150 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCA 150X100-60Width: 150 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCA 200X32-0Width: 200 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCA 200X35-5Width: 200 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCA 200X39-10Width: 200 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCA 200X42-15Width: 200 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCA 200X46-20Width: 200 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCA 200X50-25Width: 200 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCA 200X54-30Width: 200 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCA 200X59-35Width: 200 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCA 200X64-40Width: 200 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCA 200X70-45Width: 200 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCA 200X78-50Width: 200 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCA 200X87-55Width: 200 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCA 200X100-60Width: 200 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCA 300X38-0Width: 300 mm | Stroke: 38 mm | Work angle: 0° | Options: -L
LFCA 300X42-5Width: 300 mm | Stroke: 42 mm | Work angle: 5° | Options: -L
LFCA 300X46-10Width: 300 mm | Stroke: 46 mm | Work angle: 10° | Options: -L
LFCA 300X51-15Width: 300 mm | Stroke: 51 mm | Work angle: 15° | Options: -L
LFCA 300X55-20Width: 300 mm | Stroke: 55 mm | Work angle: 20° | Options: -L
LFCA 300X50-25Width: 300 mm | Stroke: 50 mm | Work angle: 25° | Options: -L
LFCA 300X54-30Width: 300 mm | Stroke: 54 mm | Work angle: 30° | Options: -L
LFCA 300X59-35Width: 300 mm | Stroke: 59 mm | Work angle: 35° | Options: -L
LFCA 300X64-40Width: 300 mm | Stroke: 64 mm | Work angle: 40° | Options: -L
LFCA 300X70-45Width: 300 mm | Stroke: 70 mm | Work angle: 45° | Options: -L
LFCA 300X78-50Width: 300 mm | Stroke: 78 mm | Work angle: 50° | Options: -L
LFCA 300X87-55Width: 300 mm | Stroke: 87 mm | Work angle: 55° | Options: -L
LFCA 300X100-60Width: 300 mm | Stroke: 100 mm | Work angle: 60° | Options: -L
LFCG 50X26-0Width: 50 mm | Stroke: 26 mm | Work angle: 0° | Options: -B/-L
LFCG 50X28-5Width: 50 mm | Stroke: 28 mm | Work angle: 5° | Options: -B/-L
LFCG 50X31-10Width: 50 mm | Stroke: 31 mm | Work angle: 10° | Options: -B/-L
LFCG 50X34-15Width: 50 mm | Stroke: 34 mm | Work angle: 15° | Options: -B/-L
LFCG 50X37-20Width: 50 mm | Stroke: 37 mm | Work angle: 20° | Options: -B/-L
LFCG 50X40-25Width: 50 mm | Stroke: 40 mm | Work angle: 25° | Options: -B/-L
LFCG 50X43-30Width: 50 mm | Stroke: 43 mm | Work angle: 30° | Options: -B/-L
LFCG 50X47-35Width: 50 mm | Stroke: 47 mm | Work angle: 35° | Options: -B/-L
LFCG 50X51-40Width: 50 mm | Stroke: 51 mm | Work angle: 40° | Options: -B/-L
LFCG 50X56-45Width: 50 mm | Stroke: 56 mm | Work angle: 45° | Options: -B/-L
LFCG 50X62-50Width: 50 mm | Stroke: 62 mm | Work angle: 50° | Options: -B/-L
LFCG 50X70-55Width: 50 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCG 50X60-60Width: 50 mm | Stroke: 60 mm | Work angle: 60° | Options: -B/-L
LFCG 75X32-0Width: 75 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCG 75X35-5Width: 75 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCG 75X39-10Width: 75 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCG 75X42-15Width: 75 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCG 75X46-20Width: 75 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCG 75X50-25Width: 75 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCG 75X54-30Width: 75 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCG 75X59-35Width: 75 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCG 75X64-40Width: 75 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCG 75X70-45Width: 75 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCG 75X78-50Width: 75 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCG 75X70-55Width: 75 mm | Stroke: 70 mm | Work angle: 55° | Options: -B/-L
LFCG 75X80-60Width: 75 mm | Stroke: 80 mm | Work angle: 60° | Options: -B/-L
LFCG 150X32-0Width: 150 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCG 150X35-5Width: 150 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCG 150X39-10Width: 150 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCG 150X42-15Width: 150 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCG 150X46-20Width: 150 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCG 150X50-25Width: 150 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCG 150X54-30Width: 150 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCG 150X59-35Width: 150 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCG 150X64-40Width: 150 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCG 150X70-45Width: 150 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCG 150X78-50Width: 150 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCG 150X87-55Width: 150 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCG 150X100-60Width: 150 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCG 200X32-0Width: 200 mm | Stroke: 32 mm | Work angle: 0° | Options: -B/-L
LFCG 200X35-5Width: 200 mm | Stroke: 35 mm | Work angle: 5° | Options: -B/-L
LFCG 200X39-10Width: 200 mm | Stroke: 39 mm | Work angle: 10° | Options: -B/-L
LFCG 200X42-15Width: 200 mm | Stroke: 42 mm | Work angle: 15° | Options: -B/-L
LFCG 200X46-20Width: 200 mm | Stroke: 46 mm | Work angle: 20° | Options: -B/-L
LFCG 200X50-25Width: 200 mm | Stroke: 50 mm | Work angle: 25° | Options: -B/-L
LFCG 200X54-30Width: 200 mm | Stroke: 54 mm | Work angle: 30° | Options: -B/-L
LFCG 200X59-35Width: 200 mm | Stroke: 59 mm | Work angle: 35° | Options: -B/-L
LFCG 200X64-40Width: 200 mm | Stroke: 64 mm | Work angle: 40° | Options: -B/-L
LFCG 200X70-45Width: 200 mm | Stroke: 70 mm | Work angle: 45° | Options: -B/-L
LFCG 200X78-50Width: 200 mm | Stroke: 78 mm | Work angle: 50° | Options: -B/-L
LFCG 200X87-55Width: 200 mm | Stroke: 87 mm | Work angle: 55° | Options: -B/-L
LFCG 200X100-60Width: 200 mm | Stroke: 100 mm | Work angle: 60° | Options: -B/-L
LFCG 300X38-0Width: 300 mm | Stroke: 38 mm | Work angle: 0° | Options: -L
LFCG 300X42-5Width: 300 mm | Stroke: 42 mm | Work angle: 5° | Options: -L
LFCG 300X46-10Width: 300 mm | Stroke: 46 mm | Work angle: 10° | Options: -L
LFCG 300X51-15Width: 300 mm | Stroke: 51 mm | Work angle: 15° | Options: -L
LFCG 300X55-20Width: 300 mm | Stroke: 55 mm | Work angle: 20° | Options: -L
LFCG 300X50-25Width: 300 mm | Stroke: 50 mm | Work angle: 25° | Options: -L
LFCG 300X54-30Width: 300 mm | Stroke: 54 mm | Work angle: 30° | Options: -L
LFCG 300X59-35Width: 300 mm | Stroke: 59 mm | Work angle: 35° | Options: -L
LFCG 300X64-40Width: 300 mm | Stroke: 64 mm | Work angle: 40° | Options: -L
LFCG 300X70-45Width: 300 mm | Stroke: 70 mm | Work angle: 45° | Options: -L
LFCG 300X78-50Width: 300 mm | Stroke: 78 mm | Work angle: 50° | Options: -L
LFCG 300X87-55Width: 300 mm | Stroke: 87 mm | Work angle: 55° | Options: -L
LFCG 300X100-60Width: 300 mm | Stroke: 100 mm | Work angle: 60° | Options: -L

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
