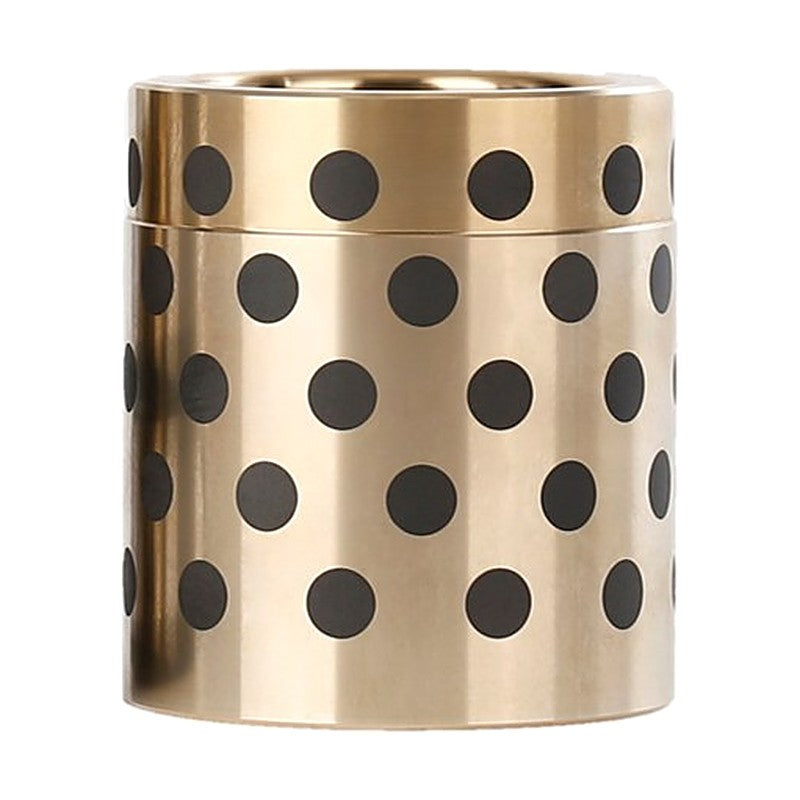

LuBo LGB Guide Bushings (Bore d 30-120 mm)

LuBo LGB Guide Bushings (Bore d 30-120 mm)

LuBo LGB Guide Bushings from the LuBo Oilless Bushings & Plates catalogue, listed in 57 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Bushings - series LGB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: 50H, F, SP
  • d50 row: L "50, 75" printed across D70/D75; assigned 50+75 to D70 and 75 to D75 following the table pattern.

Specifications

Brand LuBo
Series LGB
Product Guide Bushings
Catalogue chapter Oilless Bushings & Plates
Material 50H, F, SP
Orderable codes 57
Size range Bore d 30-120 mm
Code example LGB-30X50X50-SP
Row spec keys Bore d, Outer D, Length L, Material
Source LuBo Oilless Bushings & Plates catalogue
LGB-30X50X50-SP Bore d: 30 mm | Outer D: 50 mm | Length L: 50 mm | Material: SP
LGB-35X60X55-SP Bore d: 35 mm | Outer D: 60 mm | Length L: 55 mm | Material: SP
LGB-38X60X55-SP Bore d: 38 mm | Outer D: 60 mm | Length L: 55 mm | Material: SP
LGB-40X60X50-SP Bore d: 40 mm | Outer D: 60 mm | Length L: 50 mm | Material: SP
LGB-40X60X60-SP Bore d: 40 mm | Outer D: 60 mm | Length L: 60 mm | Material: SP
LGB-50X70X50-SP Bore d: 50 mm | Outer D: 70 mm | Length L: 50 mm | Material: SP
LGB-50X70X75-SP Bore d: 50 mm | Outer D: 70 mm | Length L: 75 mm | Material: SP
LGB-50X75X75-SP Bore d: 50 mm | Outer D: 75 mm | Length L: 75 mm | Material: SP
LGB-60X80X60-SP Bore d: 60 mm | Outer D: 80 mm | Length L: 60 mm | Material: SP
LGB-60X80X90-SP Bore d: 60 mm | Outer D: 80 mm | Length L: 90 mm | Material: SP
LGB-60X85X90-SP Bore d: 60 mm | Outer D: 85 mm | Length L: 90 mm | Material: SP
LGB-80X100X80-SP Bore d: 80 mm | Outer D: 100 mm | Length L: 80 mm | Material: SP
LGB-80X100X120-SP Bore d: 80 mm | Outer D: 100 mm | Length L: 120 mm | Material: SP
LGB-80X110X120-SP Bore d: 80 mm | Outer D: 110 mm | Length L: 120 mm | Material: SP
LGB-100X120X100-SP Bore d: 100 mm | Outer D: 120 mm | Length L: 100 mm | Material: SP
LGB-100X120X150-SP Bore d: 100 mm | Outer D: 120 mm | Length L: 150 mm | Material: SP
LGB-100X130X150-SP Bore d: 100 mm | Outer D: 130 mm | Length L: 150 mm | Material: SP
LGB-120X140X180-SP Bore d: 120 mm | Outer D: 140 mm | Length L: 180 mm | Material: SP
LGB-120X150X180-SP Bore d: 120 mm | Outer D: 150 mm | Length L: 180 mm | Material: SP
LGB-30X50X50-F Bore d: 30 mm | Outer D: 50 mm | Length L: 50 mm | Material: F
LGB-35X60X55-F Bore d: 35 mm | Outer D: 60 mm | Length L: 55 mm | Material: F
LGB-38X60X55-F Bore d: 38 mm | Outer D: 60 mm | Length L: 55 mm | Material: F
LGB-40X60X50-F Bore d: 40 mm | Outer D: 60 mm | Length L: 50 mm | Material: F
LGB-40X60X60-F Bore d: 40 mm | Outer D: 60 mm | Length L: 60 mm | Material: F
LGB-50X70X50-F Bore d: 50 mm | Outer D: 70 mm | Length L: 50 mm | Material: F
LGB-50X70X75-F Bore d: 50 mm | Outer D: 70 mm | Length L: 75 mm | Material: F
LGB-50X75X75-F Bore d: 50 mm | Outer D: 75 mm | Length L: 75 mm | Material: F
LGB-60X80X60-F Bore d: 60 mm | Outer D: 80 mm | Length L: 60 mm | Material: F
LGB-60X80X90-F Bore d: 60 mm | Outer D: 80 mm | Length L: 90 mm | Material: F
LGB-60X85X90-F Bore d: 60 mm | Outer D: 85 mm | Length L: 90 mm | Material: F
LGB-80X100X80-F Bore d: 80 mm | Outer D: 100 mm | Length L: 80 mm | Material: F
LGB-80X100X120-F Bore d: 80 mm | Outer D: 100 mm | Length L: 120 mm | Material: F
LGB-80X110X120-F Bore d: 80 mm | Outer D: 110 mm | Length L: 120 mm | Material: F
LGB-100X120X100-F Bore d: 100 mm | Outer D: 120 mm | Length L: 100 mm | Material: F
LGB-100X120X150-F Bore d: 100 mm | Outer D: 120 mm | Length L: 150 mm | Material: F
LGB-100X130X150-F Bore d: 100 mm | Outer D: 130 mm | Length L: 150 mm | Material: F
LGB-120X140X180-F Bore d: 120 mm | Outer D: 140 mm | Length L: 180 mm | Material: F
LGB-120X150X180-F Bore d: 120 mm | Outer D: 150 mm | Length L: 180 mm | Material: F
LGB-30X50X50-50H Bore d: 30 mm | Outer D: 50 mm | Length L: 50 mm | Material: 50H
LGB-35X60X55-50H Bore d: 35 mm | Outer D: 60 mm | Length L: 55 mm | Material: 50H
LGB-38X60X55-50H Bore d: 38 mm | Outer D: 60 mm | Length L: 55 mm | Material: 50H
LGB-40X60X50-50H Bore d: 40 mm | Outer D: 60 mm | Length L: 50 mm | Material: 50H
LGB-40X60X60-50H Bore d: 40 mm | Outer D: 60 mm | Length L: 60 mm | Material: 50H
LGB-50X70X50-50H Bore d: 50 mm | Outer D: 70 mm | Length L: 50 mm | Material: 50H
LGB-50X70X75-50H Bore d: 50 mm | Outer D: 70 mm | Length L: 75 mm | Material: 50H
LGB-50X75X75-50H Bore d: 50 mm | Outer D: 75 mm | Length L: 75 mm | Material: 50H
LGB-60X80X60-50H Bore d: 60 mm | Outer D: 80 mm | Length L: 60 mm | Material: 50H
LGB-60X80X90-50H Bore d: 60 mm | Outer D: 80 mm | Length L: 90 mm | Material: 50H
LGB-60X85X90-50H Bore d: 60 mm | Outer D: 85 mm | Length L: 90 mm | Material: 50H
LGB-80X100X80-50H Bore d: 80 mm | Outer D: 100 mm | Length L: 80 mm | Material: 50H
LGB-80X100X120-50H Bore d: 80 mm | Outer D: 100 mm | Length L: 120 mm | Material: 50H
LGB-80X110X120-50H Bore d: 80 mm | Outer D: 110 mm | Length L: 120 mm | Material: 50H
LGB-100X120X100-50H Bore d: 100 mm | Outer D: 120 mm | Length L: 100 mm | Material: 50H
LGB-100X120X150-50H Bore d: 100 mm | Outer D: 120 mm | Length L: 150 mm | Material: 50H
LGB-100X130X150-50H Bore d: 100 mm | Outer D: 130 mm | Length L: 150 mm | Material: 50H
LGB-120X140X180-50H Bore d: 120 mm | Outer D: 140 mm | Length L: 180 mm | Material: 50H
LGB-120X150X180-50H Bore d: 120 mm | Outer D: 150 mm | Length L: 180 mm | Material: 50H
Oilless Slide ComponentLuBo
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LGB Guide Bushings (Bore d 30-120 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (57)

LGB-30X50X50-SP, LGB-35X60X55-SP, LGB-38X60X55-SP, LGB-40X60X50-SP, LGB-40X60X60-SP, LGB-50X70X50-SP, LGB-50X70X75-SP, LGB-50X75X75-SP, LGB-60X80X60-SP, LGB-60X80X90-SP + 47 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LGB-30X50X50-SPBore d: 30 mm | Outer D: 50 mm | Length L: 50 mm | Material: SP
LGB-35X60X55-SPBore d: 35 mm | Outer D: 60 mm | Length L: 55 mm | Material: SP
LGB-38X60X55-SPBore d: 38 mm | Outer D: 60 mm | Length L: 55 mm | Material: SP
LGB-40X60X50-SPBore d: 40 mm | Outer D: 60 mm | Length L: 50 mm | Material: SP
LGB-40X60X60-SPBore d: 40 mm | Outer D: 60 mm | Length L: 60 mm | Material: SP
LGB-50X70X50-SPBore d: 50 mm | Outer D: 70 mm | Length L: 50 mm | Material: SP
LGB-50X70X75-SPBore d: 50 mm | Outer D: 70 mm | Length L: 75 mm | Material: SP
LGB-50X75X75-SPBore d: 50 mm | Outer D: 75 mm | Length L: 75 mm | Material: SP
LGB-60X80X60-SPBore d: 60 mm | Outer D: 80 mm | Length L: 60 mm | Material: SP
LGB-60X80X90-SPBore d: 60 mm | Outer D: 80 mm | Length L: 90 mm | Material: SP
LGB-60X85X90-SPBore d: 60 mm | Outer D: 85 mm | Length L: 90 mm | Material: SP
LGB-80X100X80-SPBore d: 80 mm | Outer D: 100 mm | Length L: 80 mm | Material: SP
LGB-80X100X120-SPBore d: 80 mm | Outer D: 100 mm | Length L: 120 mm | Material: SP
LGB-80X110X120-SPBore d: 80 mm | Outer D: 110 mm | Length L: 120 mm | Material: SP
LGB-100X120X100-SPBore d: 100 mm | Outer D: 120 mm | Length L: 100 mm | Material: SP
LGB-100X120X150-SPBore d: 100 mm | Outer D: 120 mm | Length L: 150 mm | Material: SP
LGB-100X130X150-SPBore d: 100 mm | Outer D: 130 mm | Length L: 150 mm | Material: SP
LGB-120X140X180-SPBore d: 120 mm | Outer D: 140 mm | Length L: 180 mm | Material: SP
LGB-120X150X180-SPBore d: 120 mm | Outer D: 150 mm | Length L: 180 mm | Material: SP
LGB-30X50X50-FBore d: 30 mm | Outer D: 50 mm | Length L: 50 mm | Material: F
LGB-35X60X55-FBore d: 35 mm | Outer D: 60 mm | Length L: 55 mm | Material: F
LGB-38X60X55-FBore d: 38 mm | Outer D: 60 mm | Length L: 55 mm | Material: F
LGB-40X60X50-FBore d: 40 mm | Outer D: 60 mm | Length L: 50 mm | Material: F
LGB-40X60X60-FBore d: 40 mm | Outer D: 60 mm | Length L: 60 mm | Material: F
LGB-50X70X50-FBore d: 50 mm | Outer D: 70 mm | Length L: 50 mm | Material: F
LGB-50X70X75-FBore d: 50 mm | Outer D: 70 mm | Length L: 75 mm | Material: F
LGB-50X75X75-FBore d: 50 mm | Outer D: 75 mm | Length L: 75 mm | Material: F
LGB-60X80X60-FBore d: 60 mm | Outer D: 80 mm | Length L: 60 mm | Material: F
LGB-60X80X90-FBore d: 60 mm | Outer D: 80 mm | Length L: 90 mm | Material: F
LGB-60X85X90-FBore d: 60 mm | Outer D: 85 mm | Length L: 90 mm | Material: F
LGB-80X100X80-FBore d: 80 mm | Outer D: 100 mm | Length L: 80 mm | Material: F
LGB-80X100X120-FBore d: 80 mm | Outer D: 100 mm | Length L: 120 mm | Material: F
LGB-80X110X120-FBore d: 80 mm | Outer D: 110 mm | Length L: 120 mm | Material: F
LGB-100X120X100-FBore d: 100 mm | Outer D: 120 mm | Length L: 100 mm | Material: F
LGB-100X120X150-FBore d: 100 mm | Outer D: 120 mm | Length L: 150 mm | Material: F
LGB-100X130X150-FBore d: 100 mm | Outer D: 130 mm | Length L: 150 mm | Material: F
LGB-120X140X180-FBore d: 120 mm | Outer D: 140 mm | Length L: 180 mm | Material: F
LGB-120X150X180-FBore d: 120 mm | Outer D: 150 mm | Length L: 180 mm | Material: F
LGB-30X50X50-50HBore d: 30 mm | Outer D: 50 mm | Length L: 50 mm | Material: 50H
LGB-35X60X55-50HBore d: 35 mm | Outer D: 60 mm | Length L: 55 mm | Material: 50H
LGB-38X60X55-50HBore d: 38 mm | Outer D: 60 mm | Length L: 55 mm | Material: 50H
LGB-40X60X50-50HBore d: 40 mm | Outer D: 60 mm | Length L: 50 mm | Material: 50H
LGB-40X60X60-50HBore d: 40 mm | Outer D: 60 mm | Length L: 60 mm | Material: 50H
LGB-50X70X50-50HBore d: 50 mm | Outer D: 70 mm | Length L: 50 mm | Material: 50H
LGB-50X70X75-50HBore d: 50 mm | Outer D: 70 mm | Length L: 75 mm | Material: 50H
LGB-50X75X75-50HBore d: 50 mm | Outer D: 75 mm | Length L: 75 mm | Material: 50H
LGB-60X80X60-50HBore d: 60 mm | Outer D: 80 mm | Length L: 60 mm | Material: 50H
LGB-60X80X90-50HBore d: 60 mm | Outer D: 80 mm | Length L: 90 mm | Material: 50H
LGB-60X85X90-50HBore d: 60 mm | Outer D: 85 mm | Length L: 90 mm | Material: 50H
LGB-80X100X80-50HBore d: 80 mm | Outer D: 100 mm | Length L: 80 mm | Material: 50H
LGB-80X100X120-50HBore d: 80 mm | Outer D: 100 mm | Length L: 120 mm | Material: 50H
LGB-80X110X120-50HBore d: 80 mm | Outer D: 110 mm | Length L: 120 mm | Material: 50H
LGB-100X120X100-50HBore d: 100 mm | Outer D: 120 mm | Length L: 100 mm | Material: 50H
LGB-100X120X150-50HBore d: 100 mm | Outer D: 120 mm | Length L: 150 mm | Material: 50H
LGB-100X130X150-50HBore d: 100 mm | Outer D: 130 mm | Length L: 150 mm | Material: 50H
LGB-120X140X180-50HBore d: 120 mm | Outer D: 140 mm | Length L: 180 mm | Material: 50H
LGB-120X150X180-50HBore d: 120 mm | Outer D: 150 mm | Length L: 180 mm | Material: 50H
